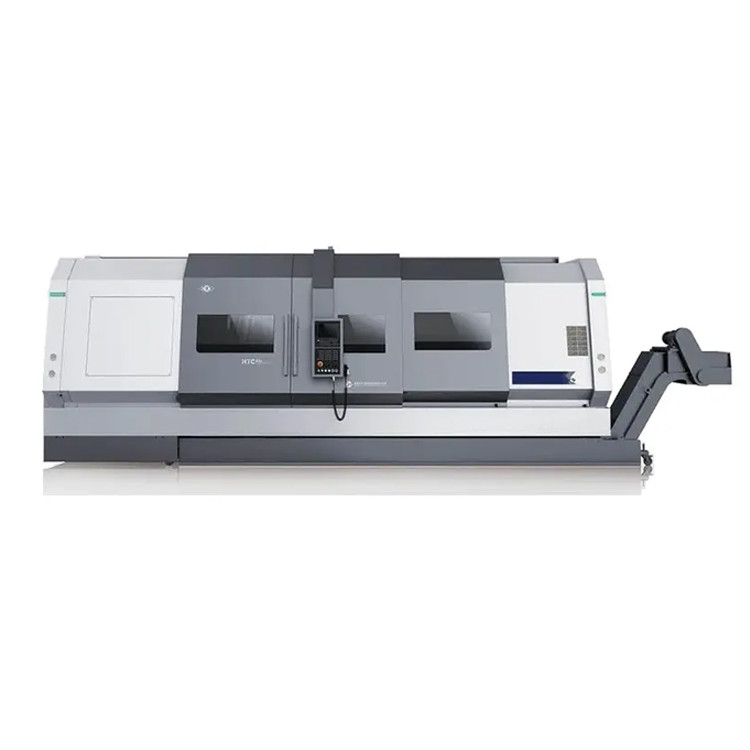

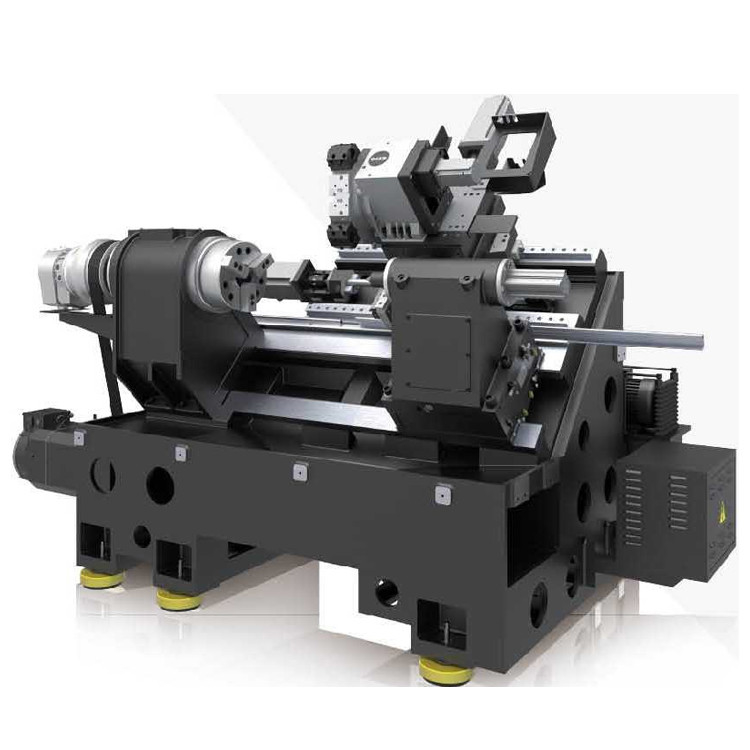

Horizontal CNC Lathe HTC50nm Fanuc System Slant Bed CNC Turning Center
Product Details
| Brand Name: | SMTCL | Model Number: | HTC 50nm |
|---|---|---|---|
| CNC Control System: | GSK/FANUC/SIEMENS | CNC Or Not: | CNC |
| Key Word: | Turning Center | Application: | Multi Purpose Metal Working |
| Max. Swing Over Bed: | Φ650 | Max. Swing Over Carriage: | Φ500 |
| Max. Cutting Diameter: | Φ500 | Max. Cutting Length: | 500/1000/1500/2000/2500 |
| Spindle Bore Diameter: | Φ80 | ||
| Highlight |
Horizontal CNC Mill Turn Center,Slant Bed Metal Horizontal CNC Lathe,Fanuc System CNC Milling Machine |
||
Product Description
Product Description:
Product Features:
method, which effectively eliminates vibration during machine operation and cutting, enhances reliability, and is easy to
maintain, enabling customers to obtain durable and stable processing quality.
|
Item
|
UNIT
|
HTC 50nm
|
|
Max. swing over bed
|
mm
|
Φ650
|
|
Max. swing over carriage
|
mm
|
Φ500
|
|
Max. cutting diameter (disc/shaft)
|
mm
|
Φ500
|
|
Max. cutting length
|
mm
|
500/1000/1500/2000/2500
|
|
Spindle bore diameter
|
mm
|
Φ80
|
|
Form of spindle nose
|
|
A2-8
|
|
Max. diameter through bar
|
mm
|
Φ65
|
|
Main motor power (continuous / 30min)
|
kw
|
22/30
|
|
Range of spindle speed / Max. output torque
|
r/min
|
35~3000 / 860
|
|
Chuck diameter
|
inch
|
10”
|
|
Max. travel of X-axis
|
mm
|
270
|
|
Max. travel of Z-axis
|
mm
|
600/1100/1600/2100/2600
|
|
Rapid speed (X /Z axis)
|
m/min
|
12/12
|
|
Form of tool turret
|
|
Horizontal 12-position turret
|
|
Size of tool shank
|
mm
|
25X25/Φ50
|
|
Positioning accuracy (X axis)
|
mm
|
0.01
|
|
Positioning accuracy (Z axis)
|
mm
|
0.015/0.015/0.020/0.025/0.035
|
|
Positioning accuracy (C axis)
|
|
40”
|
|
Repositioning accuracy(X axis)
|
mm
|
0.005
|
|
Repositioning accuracy(Z-axis)
|
mm
|
0.007/0.007/0.010/0.013/0.020
|
|
Repositioning accuracy(C-axis)
|
|
28”
|
|
Machining accuracy
|
|
IT6
|
|
Max. weight of disc workpiece
|
kg
|
200
|
|
Max. weight of shaft workpiece
|
kg
|
800
|
|
weight of machine
|
kg
|
5500/7500/9000/11000/12500
|
|
Overall dimensions of machine (LxWxH)
|
mm
|
4050x2286x2260; 4550x2286x2260; 5050x2286x2260;
5500x2286x2260; 6050x2286x2260
|
Industry application:
Workpiece example: guide sleeve
Workpiece example: medium 500 cylinder
Workpiece Example: Drive Axle
Workpiece example: RE2B axle
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
