SMTCL Horizontal Slant Bed CNC Lathe Machine T5-100Q Metal Milling CNC Turning Center
Product Details
| Brand Name: | SMTCL | Model Number: | T5.2-100Q |
|---|---|---|---|

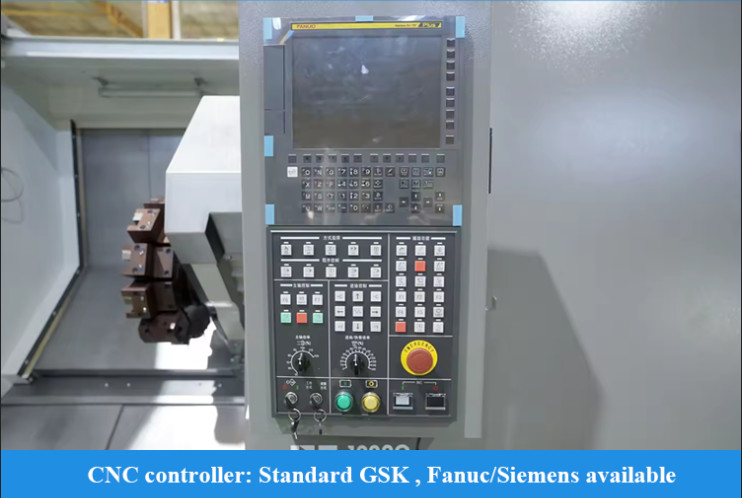

| CNC Control System: | GSK/FANUC/SIEMENS | CNC Or Not: | CNC |
| Key Word: | Slant Bed Lathe CNC Machine | Travel (X Axis)(mm): | 145 |
| Travel (Z Axis)(mm): | 205 | X/Z Rapid Traverse: | 30m/min |
| Tool Post Stations: | 8 | Max. Spindle Speed (r.p.m): | 5000 |
| Max. Turned Length (mm): | 160 | Max. Swing Over Bed: | Φ420 |
| Max. Swing Over Slide: | Φ160 | Max. Cutting Dia.: | Φ160 |
| Highlight |
SMTCL,Slant Bed CNC Lathe,Slant Bed Metal Milling Turning Center |
||
Product Description
Product Description:

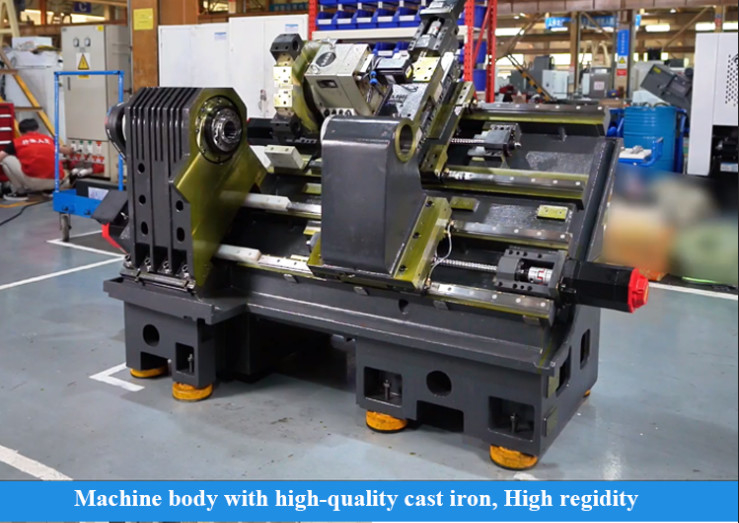

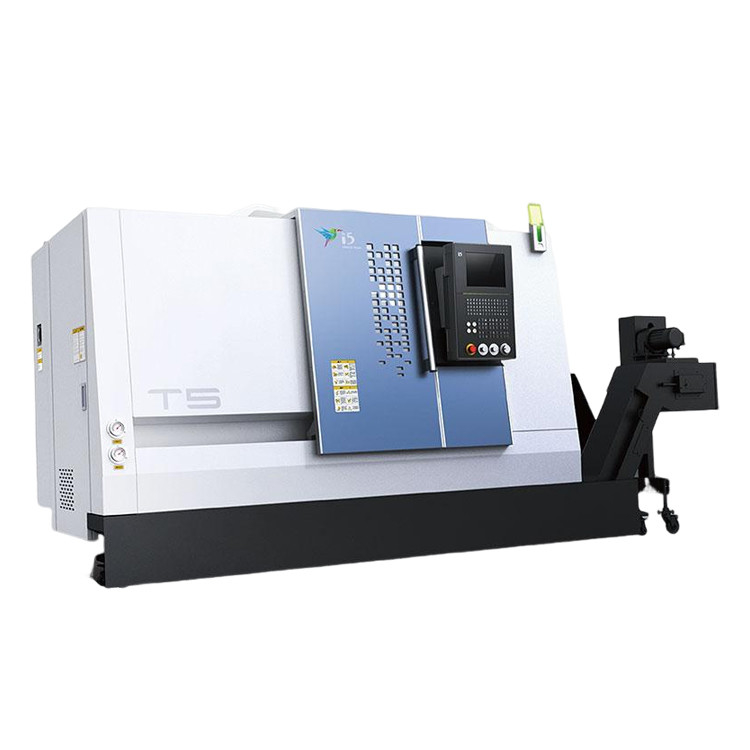

T5-Q series horizontal CNC lathe, combining intelligent control technology and advanced manufacturing technology, has high precision, high efficiency and high cutting rigidity. The finite element analysis software is used to optimize the design, analyze the distribution of stress points, reduce the deformation of parts, and achieve the optimal structure of the whole machine. The main castings are all made of high-strength cast iron materials, which ensures the minimization of vibration during the cutting process and improves the machining accuracy and cutting stability.
Product Features:
1,High Precision
|
Item
|
Unit
|
Specifications
|
Remarks
|
|
|
Max. turning diameter
|
mm
|
160
|
|
|
|
Max. turning length
|
mm
|
160
|
Different fixture parameters change
|
|
|
Max.swing diameter over bed
|
mm
|
Φ420
|
|
|
|
Max.swing diameter over cross slide
|
mm
|
Φ160
|
|
|
|

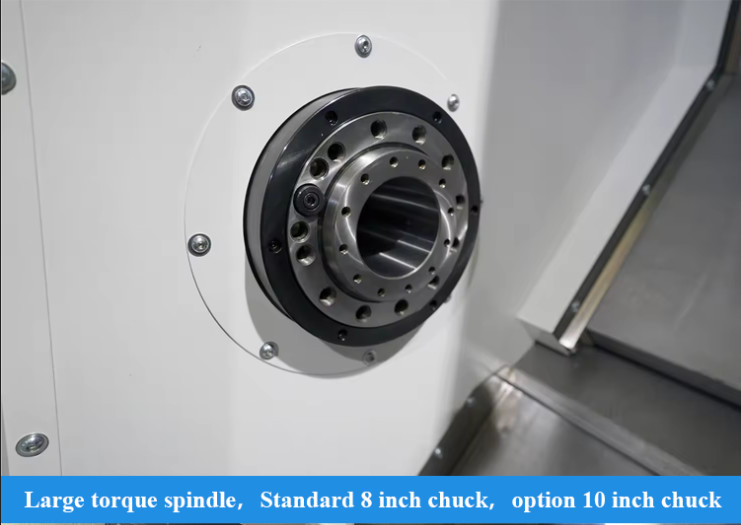

Spindle
|
Type of spindle nose
|
|
A2-5
|
|
|
Inner diameter of front bearing
|
mm
|
Φ90
|
|
|
|
Taper of spindle bore
|
|
1:20；Φ62
|
|
|
|
Spindle bore
|
mm
|
Φ56
|
|
|
|
Max. through bar diameter
|
mm
|
Φ44
|
|
|
|
Standard chuck diameter
|
inch
|
8
|
|
|
|
Max. spindle speed
|
r/min
|
5000
|
Subject to chuck and fixture restrictions
|
|
|
Spindle rated torque
|
Nm
|
35(200r/min)
|
|
|
|
Max. spindle torque
|
Nm
|
70(150r/min)
|
|
|
|

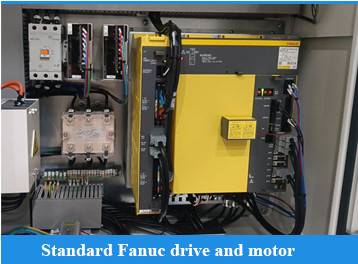

Main motor output power continuous /30 minutes
|
kW
|
7.5/11
|
Mechanical spindle
|
|
|
Two axis
|

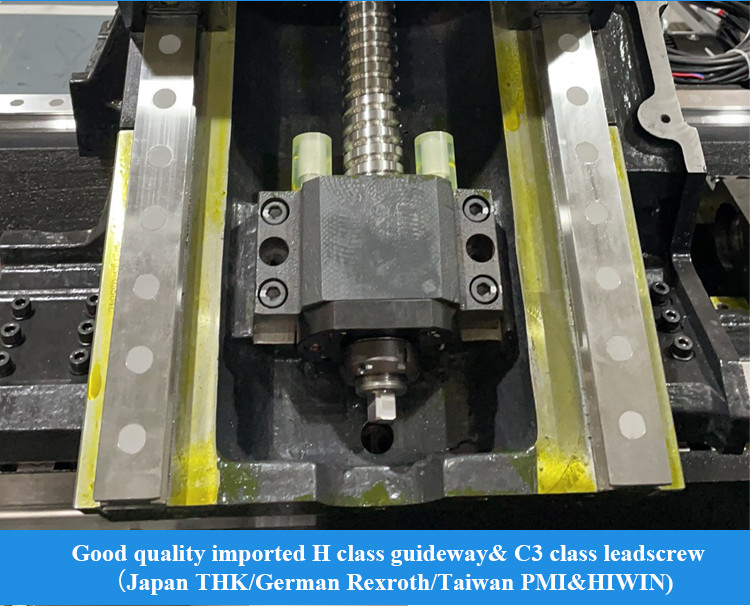

Rapid traverse of X/Z axis
|
m/min
|
30
|
|
|
X axis travel
|
mm
|
145
|
|
|
|
Z axis travel
|
mm
|
205
|
|
|
|

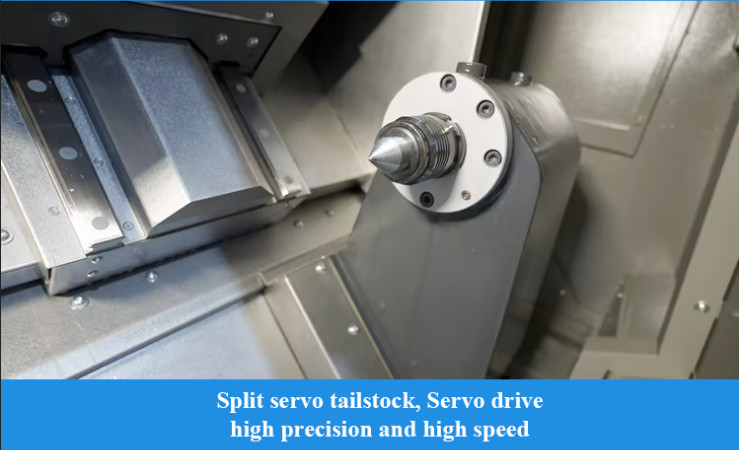

Tailstock
|
Tailstock travel
|
mm
|
-
|
|
|
Tailstock quill taper
|
Morse
|
-
|
|
|
|

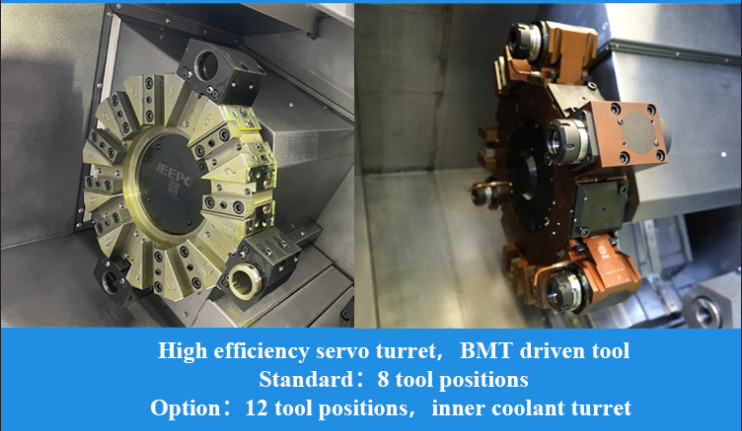

Turret
|
Turret form
|
|
Horizontal 8 positions servo turret
|
|
|
Center height of turret
|
mm
|
63 |
|
|
|
Turret rotation repeat positioning accuracy
|
Sec.
|
±1.6
|
|
|
|
Whether the cutter can be selected nearby
|
|
yes
|
|
|
|
Other
|
Distance from spindle center to bed bottom
|
mm
|
926
|
|
|
Machine net weight
|
kg
|
2600
|
|
|
|
Total power supply capacity
|
kVA
|
23
|
|
|
|
Overall dimensions (Length X width X height)
|
mm
|
1750×1650×1650
|
Overall dimension
|
|
Industry application:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
