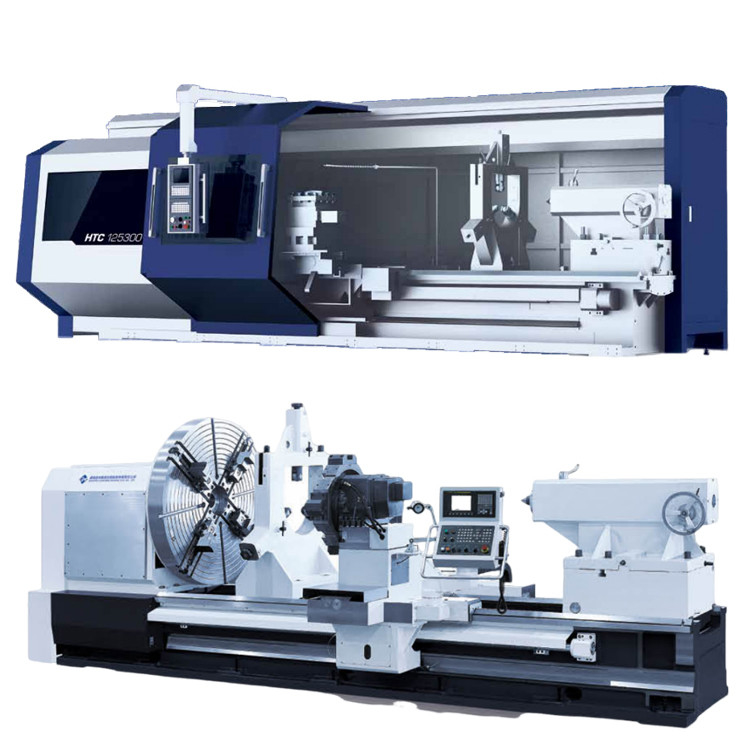

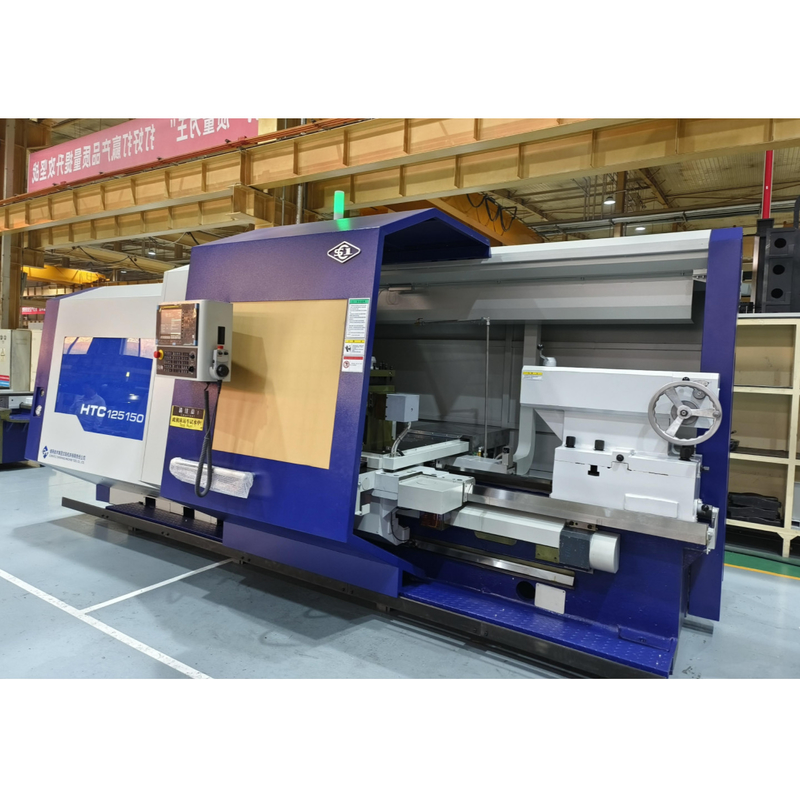

SMTCL SYMG High Rigidity High Speed CNC Lathe HTC125 Large Horizontal Flat Bed CNC Lathe

Brand Name: SMTCL/SYMG
Model Number: HTC125
Place of Origin: China
Certification: ISO certification
Minimum Order Quantity: 1 Set
Supply Ability: 50 sets per month
Tags

Flatbed Turning CNC Machine

CNC Lathe Machine

Cost-effective CNC lathes

Product Details

Brand Name:: SYMG,SMTCL Max. Length Of Workpiece (mm):: 5000
Max. Spindle Speed (r.p.m):: 500 R.p.m Spindle Bore(mm):: 130
Positioning Accuracy (mm):: ±0.014 Repeatability (X/Y/Z) (mm):System:: ±0.006
Structure:: Flat Bed Lathe CNC Control System:: GSK,FANUC,SIEMENS
Toolpost Brand:: IEEPO Dimension(L*W*H):: 8500X2725X2450
Highlight

High Speed Flat Bed CNC Lathe

,

Horizontal CNC Lathe Machine

,

High Rigidity Flat Bed CNC Lathe

Product Description

HTC125 large-size serial CNC Horizontal Lathe SMTCL SYMG

Lathe machine Overview

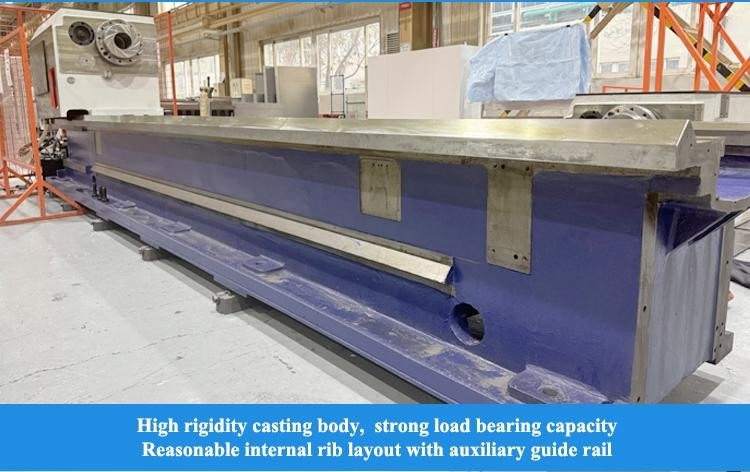

HTC125 large-size serial CNC horizontal flat bed lathe ,High rigidity high speed high accuracy and high efficiency

Lathe machine ​ SPECIFICATIONS
Product Introductio

SMTCL SYMG High Rigidity High Speed CNC Lathe HTC125 Large Horizontal Flat Bed CNC Lathe 0

PRODUCT SPECIFICATIONS

Main technical specifications

Main Technical Parameters
Items
Unit
HTC 125150
HTC 125300
HTC 125500

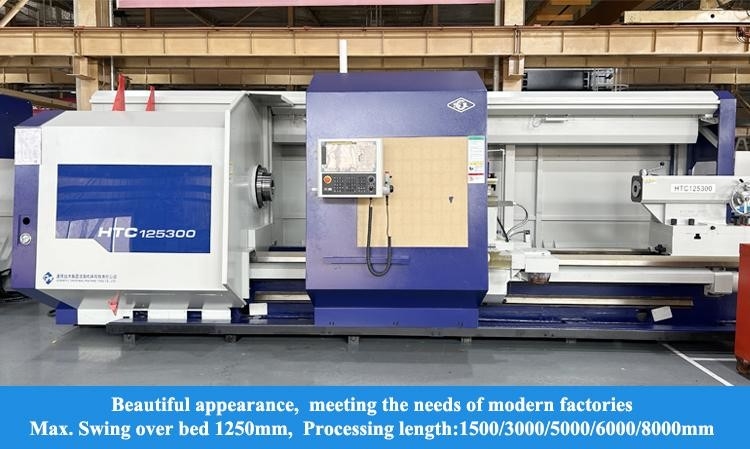

Maximum swing diameter over bed
mm
1250
1250
1250
Maximum workpiece holding length (distance between centers)
mm
1600
3100
5100
Maximum cutting length
mm
1500
3000
5000
Maximum cutting diameter
mm
1250
1250
1250
Maximum swing diameter over cross slide
mm
850
850
850
Spindle nose type and code

A2-15
A2-15
A2-15
Spindle front end bore taper

Metric system 140
Metric system 140
Metric system 140
Spindle bore diameter
mm
130
130
130
Hydraulic variable speed headstock
Spindle speed range
r/min
5-500
5-500
5-500
Maximum output torque of spindle
Nm
7500
7500
7500
Spindle speed steps

Hydraulicly3steps, infinitely variable speeds at each step
Hydraulicly3steps, infinitely variable speeds at each step
Hydraulicly3steps, infinitely variable speeds at each step
Power of main motor
kW
22
22
22

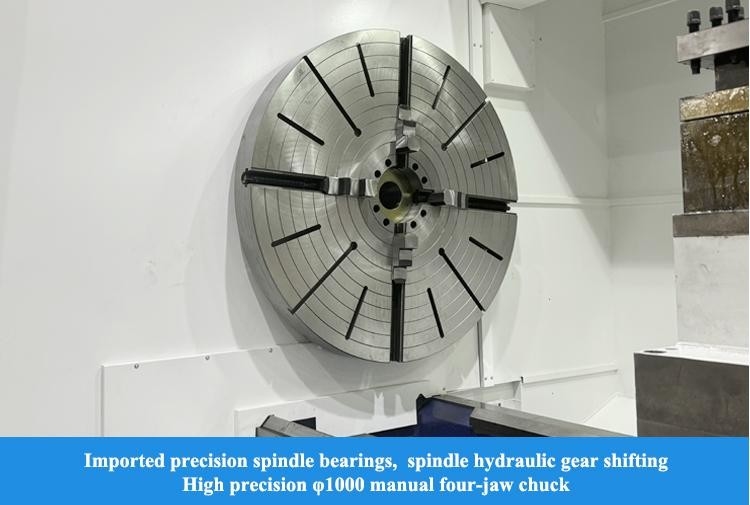

Chuck
Diameter/type of chuck
mm
1000/manual four-claw
1000/manual four-claw
1000/manual four-claw
X-axis rapid traverse speed
m/min
6
6
6
Z-axis rapid traverse speed
m/min
5
5
5
X-axis travel
mm
650
650
650
Z-axis travel
mm
1500
3000
5000

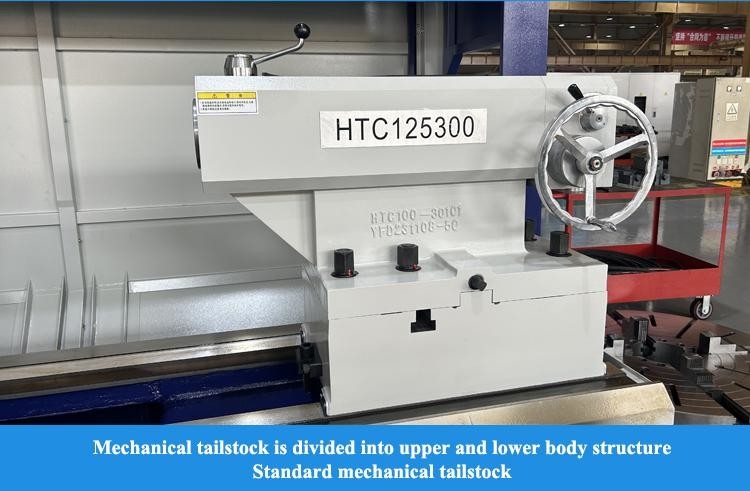

Mechanical tailstock
Tailstock sleeve diameter
mm
160
160
160
Tailstock sleeve travel
mm
300
300
300
Tailstock sleeve taper

Morse 6#
Morse 6#
Morse 6#

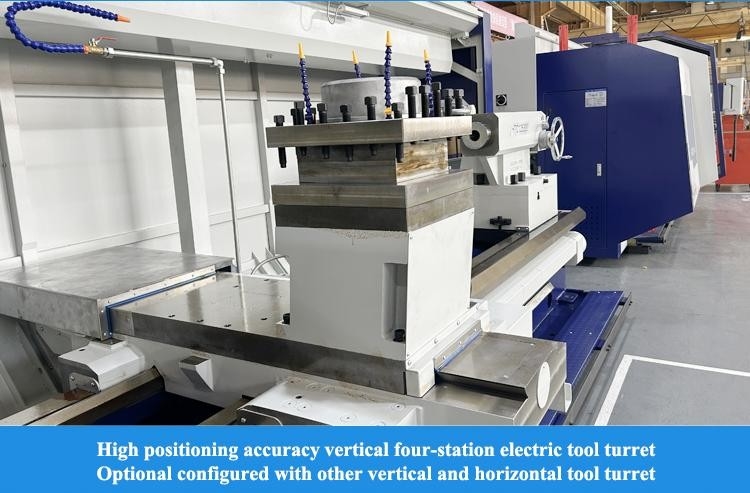

Tool post type

Vertical 4-position
Vertical 4-position
Vertical 4-position
Tool size
mm
40X40
40X40
40X40
Maximum load capacity
Disc workpieces
kg
1000
1000
1000
Shaft workpieces
kg
5000
5000
5000
Machining accuracy
Machining accuracy

IT6-IT7
IT6-IT7
IT6-IT7
Roundness of workpiece machined
mm
0.005
0.005
0.005
Consistency of machining diameter
mm
0.025/300
0.025/300
0.025/300
Planeness of workpiece machined
mm
0.02/0300
0.02/0300
0.02/0300
Surface roughness of workpiece machined
Cylindrical surface
Ral.6nm
Ral.6nm
Ral.6nm
Circular cambered surface Conical surface
Ra 3.2pm
Ra 3.2pm
Ra 3.2pm
Positioning accuracy
X-axis
mm
0.014
0.014
0.014
Z-axis
mm
0.024
0.032
0.05
Repeated positioning accuracy
X-axis
mm
0.006
0.006
0.006
Z-axis
mm
0.012
0.016
0.016
Center height
From bed
mm
625
625
625
From ground surface
mm
1275
1275
1275
Main power supply
Voltage
V
AC380
AC380
AC380
Range of voltage fluctuation

±10%
±10%
±10%
Frequency
Hz
50 ±0.5
50 ±0.5
50 ±0.5
Total electric capacity
KVA
51
51
51
Overall dimension (LX W X H)
mm
5000X2725X2450
6500X2725X2450
8500X2725X2450
Remarks: the parameters provided in the table are only for reference, and please refer to the actual product in case of change.
