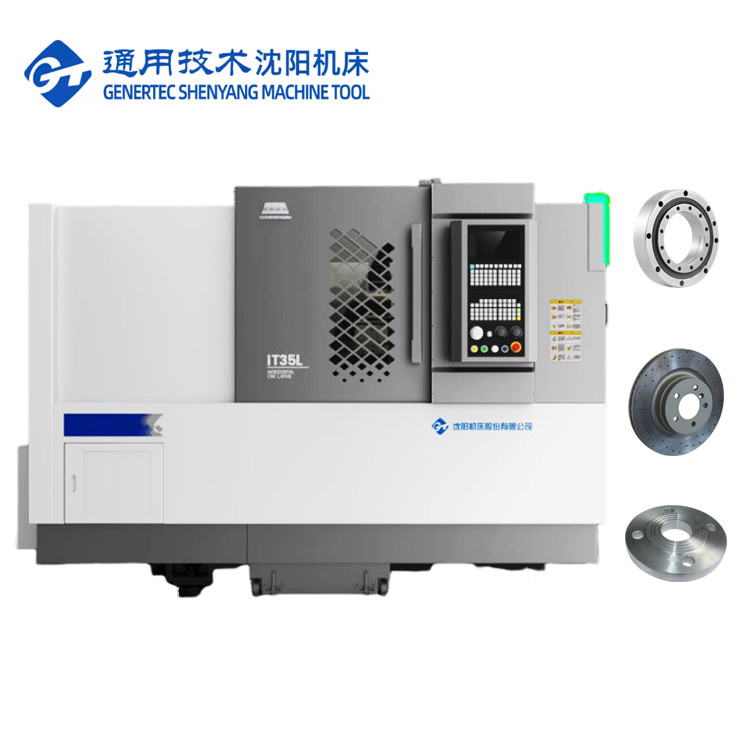

Slant Bed CNC Lathe Horizontal 8 Station Servo Turret IT35L Hard Machining Metal SMTCL CNC Lathe

Brand Name: SMTCL
Model Number: IT35L
Place of Origin: China
Certification: ISO certification
Minimum Order Quantity: 1 Set
Price: Negotiable
Supply Ability: 50 sets per month
Tags

CNC Lathe Machine

High Precision Horizontal CNC Lathe

CNC Turning Center

Product Details

Swing Over Bed: 580mm Max.turning Diameter: 36mm
Max. Machining Length: 350mm Effective Travel For X-axis: 200mm
Effective Travel For Z-axis: 350mm Max.spindle Speed: 4000rpm
Highlight

Cnc Automatic Lathe Machine

,

Parts Processing CNC Lathe

,

CNC Turning Lathe Machine

Product Description

Slant Bed CNC Lathe Horizontal 8 Station Servo Turret IT35L Hard Machining Metal SMTCL CNC Lathe 0

Product Description:

SMTCL Slant Bed CNC Lathe Horizontal 8 Station Servo Turret IT35L Hard Machining Metal CNC Lathe

Slant Bed CNC Lathe is a kind of CNC lathe with a inclined design. This design makes the workpiece more stable during the turning process, reduces vibration and deformation, and improves the machining accuracy and surface quality. The lathe is usually used to process long and thin shaft workpieces, such as threaded rods, bearings, etc. It uses computer numerical control technology, can automatically complete the workpiece processing task, has the characteristics of high efficiency, accuracy and reliability. In general, Slant Bed CNC Lathe has the characteristics of high efficiency, accuracy and reliability, and is widely used in machinery manufacturing, automobile industry, aerospace and other fields.

Product Features:

1,High Rigidity

♦ Finite element analysis to optimize the whole machine structure

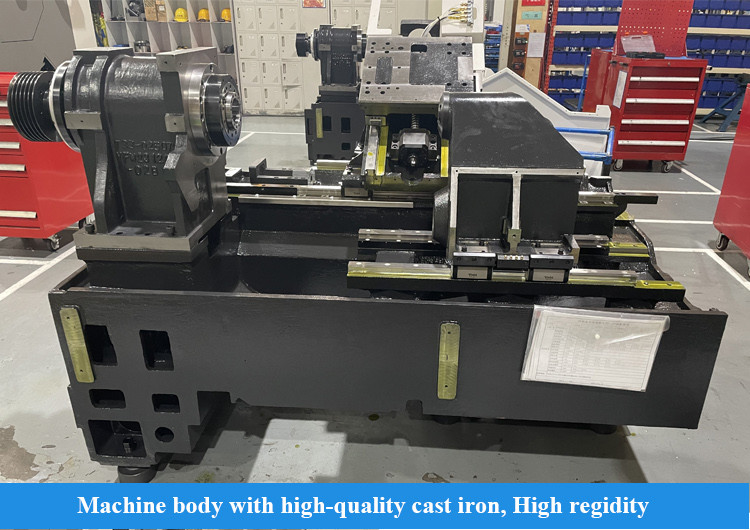

♦ The bed is made of high quality castings with reasonable bar layout

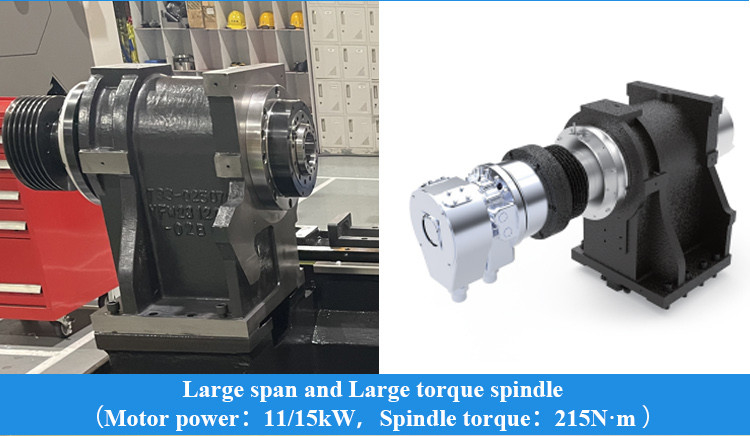

♦ Configuration of large span, large torque spindle, improve cutting rigidity

♦ Precision scraping process, improve the connection rigidity

2,High efficiency

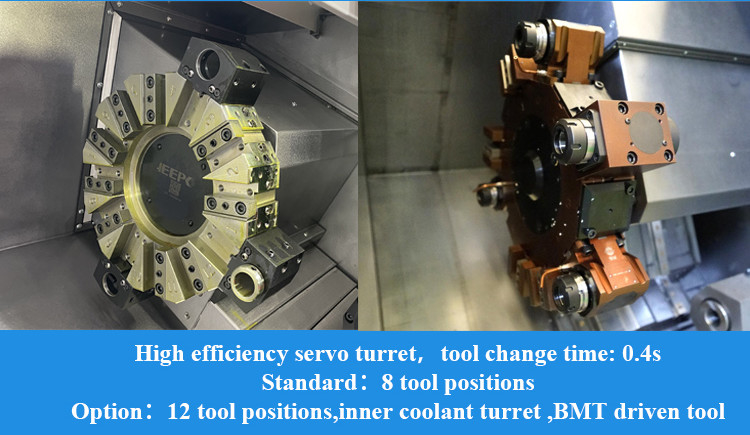

♦ Configuration servo tool holder, short transposition time, high tool change efficiency
♦ Two-axis servo motor drive, fast moving speed
♦ Large chip discharge port design, efficient chip discharge
♦ User-friendly design, easy operation and maintenance
3,High Stability
♦ Double support feed structure to achieve stable processing

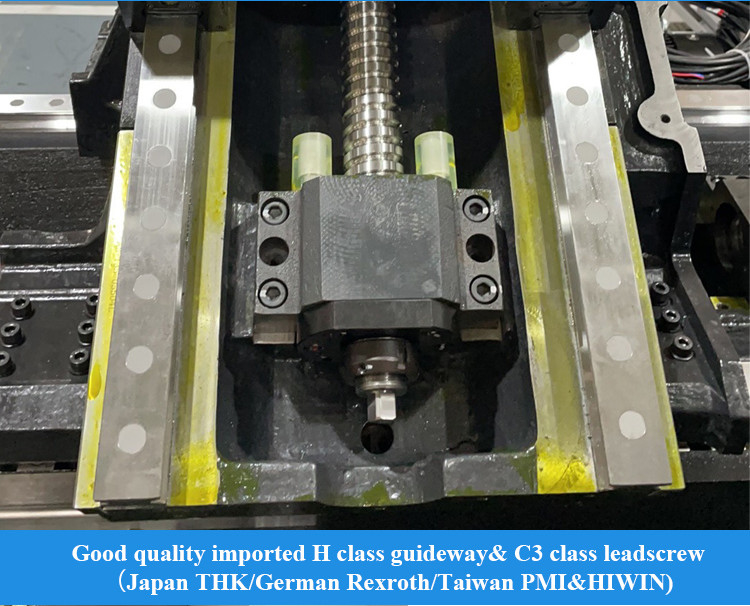

♦ High quality guide screw, stable operation
♦ Integral tail platform, parts simplification, high stability
♦ Quantitative process indicators, strict inspection standards
Product Details:

Slant Bed CNC Lathe Horizontal 8 Station Servo Turret IT35L Hard Machining Metal SMTCL CNC Lathe 1

Product Paramenters:
Item
Unit
Specification
iT35
iT35L
Maximum turning diameter
mm
Φ360
Maximum turning length
mm
350
500
Maximum swing over bed
mm
Φ580
Max swing over slide
mm
Φ360
Φ330
Spindle
spindle nose

A2-6
front bearing dia.
mm
100
spindle taper and hole size

1:20；Φ70
dis.of spindle hole
mm
Φ65
max dia. Of bar
mm
Φ50

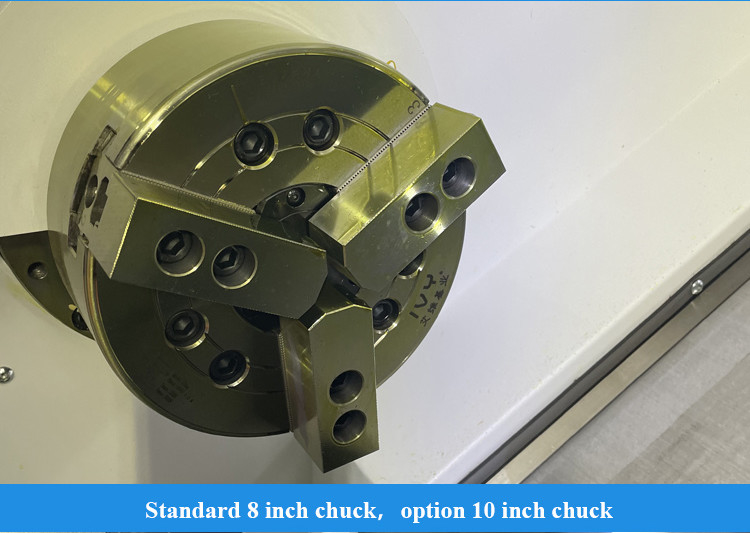

chuck size
inch
8
spindle speed
r/min
4000
spindle rated torque
Nm
157.5(666r/min)
max spindle torque
Nm
215(666r/min)
max motor output power continous/30min
kW
11/15
Feeding
X/Z rapid traverse
m/min
30
X/Z max speed
m/min
30
 x axis travel
mm
200
 z axis travel
mm
350
510

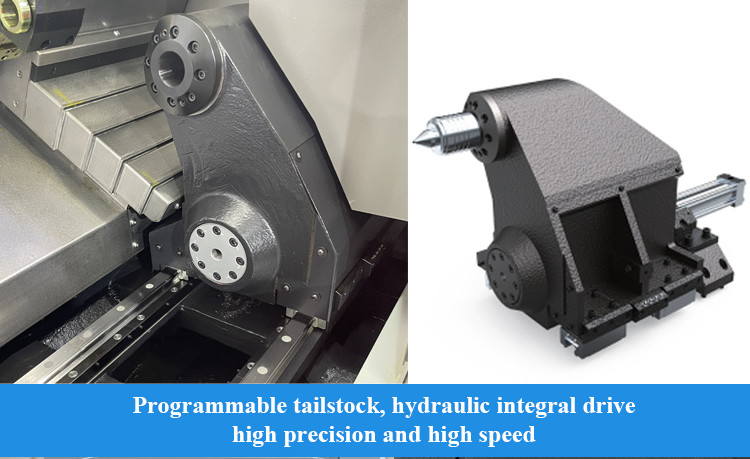

Tailstock
tailstock travel
mm
NO
400
 drive type

NO
Cylinder drive
Maximum fast moving speed
m/min
NO
8
Minimum jacking workpiece length
mm
NO
120
tailstock taper
morse
NO
MT-5
Turret
turret type

Horizontal 8 station servo turret
center height
mm
80
rotary positioning
Sec.
±1.6
Whether the cutter can select the tool nearby

yes
End tool holder
mm
25×25
Boring tool holder
mm
Φ40
Reducer sleeve
mm
Φ32
Cooling chip removal
Cooling pump pressure
bar
0.9
Cooling pump flow
L/min
40
Tank capacity
L
150
160
Chip extractor form

Right side chain plate
Loading
Disk-like parts
kg
150 Includes chuck and other accessories
Axial parts
kg
300 Includes chuck and other accessories
Other
The spindle center is high from the bottom of the bed
mm
108+0
weight
kg
3300
3600
power
kVA
27
overall dimensions
(L*W*H)
mm
2330×1675×1760
2550×1675×1760
Standard configuration:
1,GSK988TA controller
2,Solid chuck&cylinder Chinese brand
3,8 positions turret
4,Hydraulic station Chinese brand
5,Chip box
Selective configuration:
1,Side conveyor
2,Rear conveyor
3,Special chuck
4,Special cylinder
5,Special turret

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Slant Bed CNC Lathe Horizontal 8 Station Servo Turret IT35L Hard Machining Metal SMTCL CNC Lathe 2

Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Slant Bed CNC Lathe Horizontal 8 Station Servo Turret IT35L Hard Machining Metal SMTCL CNC Lathe 3

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
