Quality SMTCL CNC Turning Center HTC40Hm Long-span Sleeve Spindle BMT55 Servo Power Turret CNC Turning Center With Y Axis factory

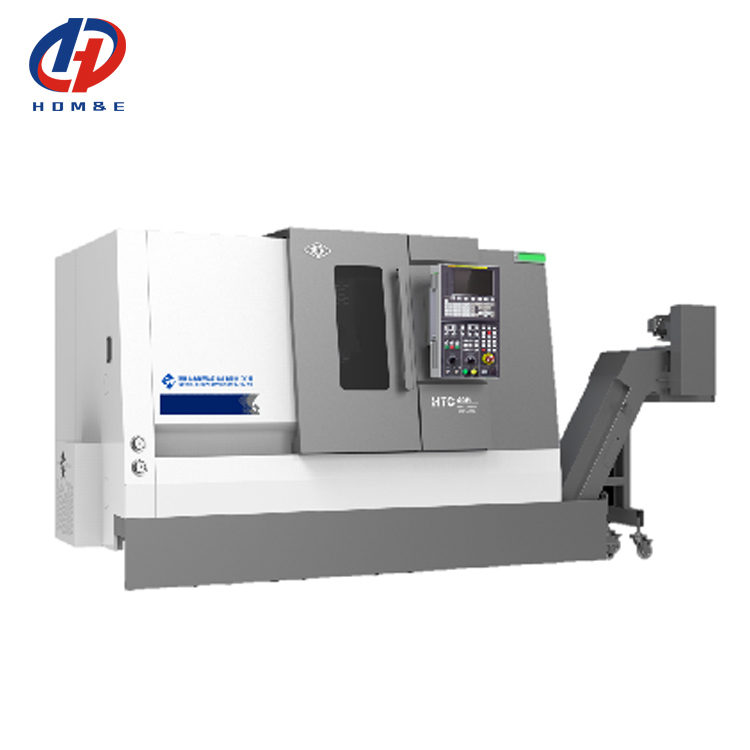

SMTCL CNC Turning Center HTC40Hm Long-span Sleeve Spindle BMT55 Servo Power Turret CNC Turning Center With Y Axis

Name: SMTCL CNC Turning Center HTC40Hm Long-span Sleeve Spindle BMT55 Servo Power Turret CNC Turning Center With Y Axis
Brand: Shanghai HD ME Tech Co., Ltd.
SKU: HTC40PM
Availability: InStock

Brand Name: SYMG

Model Number: HTC40PM

Place of Origin: China

Certification: ISO certification

Minimum Order Quantity: 1 Set

Price: Negotiable

Supply Ability: 40 sets per month

High efficiency Slant Bed CNC Lathe

High Precision Horizontal CNC Lathe

CNC Lathe Machine

Product Details

Product Name:	Horizontal CNC Turning Center	Max. Diameter Of Swing Over Bed:	560mm
Max. Cutting Length:	450mm	Max. Turning Diameter:	350mm
Spindle Nose:	A2-8	Spindle Hole Diameter:	80mm
Highlight	5000rpm Horizontal Turning Machine , C Axis Horizontal Turning Machine , 5000rpm CNC Horizontal Turning Center

Product Description

SMTCL CNC Turning Center HTC40Hm Long-span Sleeve Spindle BMT55 Servo Power Turret CNC Turning Center With Y Axis 0

Product Description:

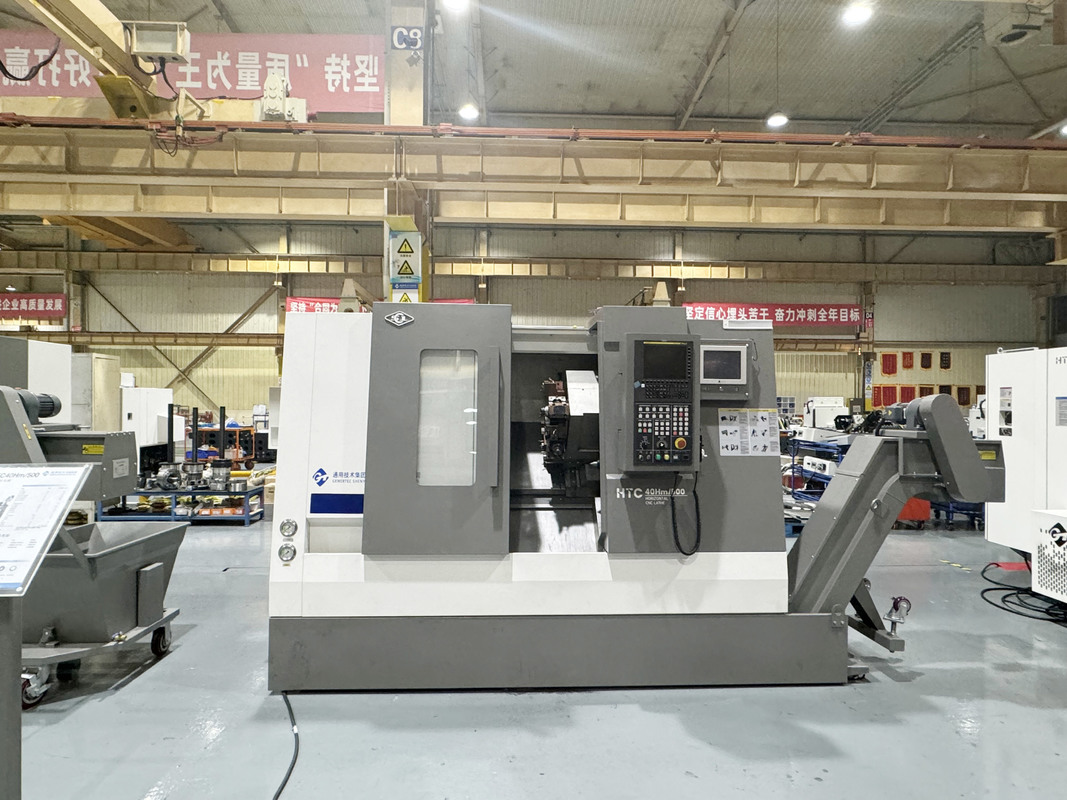

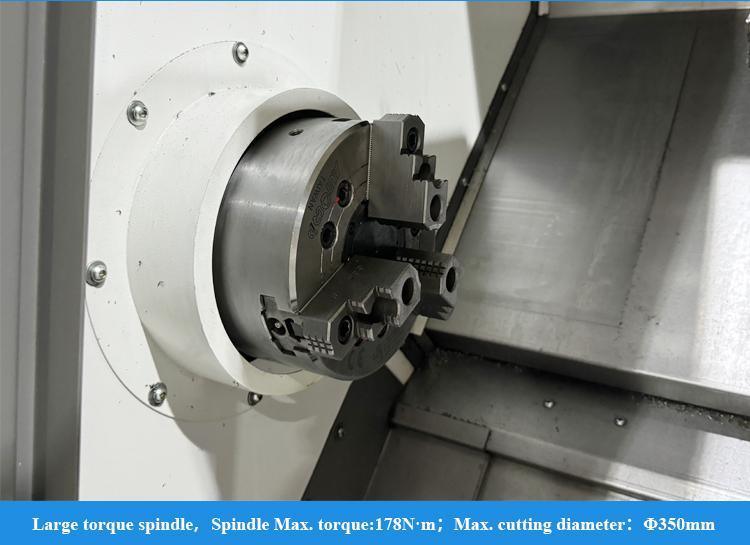

High Precision CNC Turning Center HTC40Hm Large Spindle Torque 178N.m Slant Bed CNC Lathe With Y Axis

HTC40Hm horizontal turning center has been assembled and improved through scientific analysis,optimization and advanced manufacturing and testing technologies. It has excellent cutting performance and can meet the processing requirements of various rotary parts. Equipped with a servo-driven turret, it can realize processing methods such as turning,
milling and drilling. It can also be equipped with a servo-driven tailstock module. The tailstock can tightly abut at high speed without impact, and the abutting force can be intelligently adjusted. It features high machining accuracy and good stability, andis suitable for processing parts in many industries.

Product Features:

1,High Efficiency

◆ High-efficiency servo power tool holder
◆ Split servo tailstock
◆ High rapid movement speed of two axes
◆ Optional Y-axis configuration to achieve multi sequence integrated processing

2,High Precision

◆ High-precision pre-stretched screw
◆ Error compensation technology
◆ Quantification of process standards
◆ Strict inspection standards

3,High Rigidity

◆ Machine bed and other key castings made of high -quality cast iron
◆ Large span spindle unit
◆ Arc-shaped anti-bending saddle
◆ Small spindle structure tailstock

Product Details:

Rapid moving speed: 30m/min

The servo motor is directly connected to the ball screw through a coupling, reducing intermediate links and achieving gapless transmission. The X and Z-axis guide rails adopt imported linear rollingguide rails to ensure high rigidity, good dynamic performance and accuracy, increase operating speed and improve production efficiency.

Split Servo Tailstock

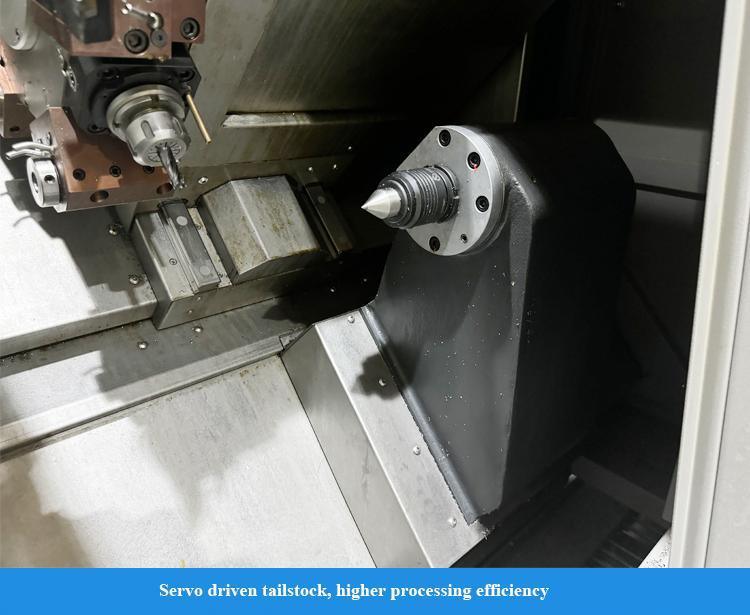

The tailstock can be moved in an optional servodriven manner, which can precisely control and flexibly adjust the tailstock moving speed and working clamping force according to processing requirements, allowing the tailstock to quickly approach the workpiece and tighten without impact , and can provide real-time feedback on the tightening position.improve production

replacement efficiency. It adopts an upper and lower split tailstock ,easy to adjustment accuracy and improve maintenance efficiency.

Double fixed pre-tensioned structure

X axis develops a double fixed support structure and uses a pre-stretched screw to effectively offset pre-stretch deformation and temperature risedeformation. It cooperates with a special sealing structure to reduce the temperature rise of the screw, thereby achieving high precision and high precision of machine tool feed stability

Y axis configuration

Optional Y-axis configuration, combinedwith BMT powered turret, high-precision C -axis structure and a variety of poweredtool holders, can realize complex surface processing with once installation.

High precision ball screw

It uses high-quality imported C3-grade screw and H-grade guide rail, and is directly driven by servo motor to achieve excellent operating accuracy.

Anti-bending saddle

The guide rail span is reasonably enlarged,the motion system structure is optimized,and the main body of the bed saddle isdesigned in an arc shape to ensure theoverall rigidity of important components.

Efficient servo powered turret

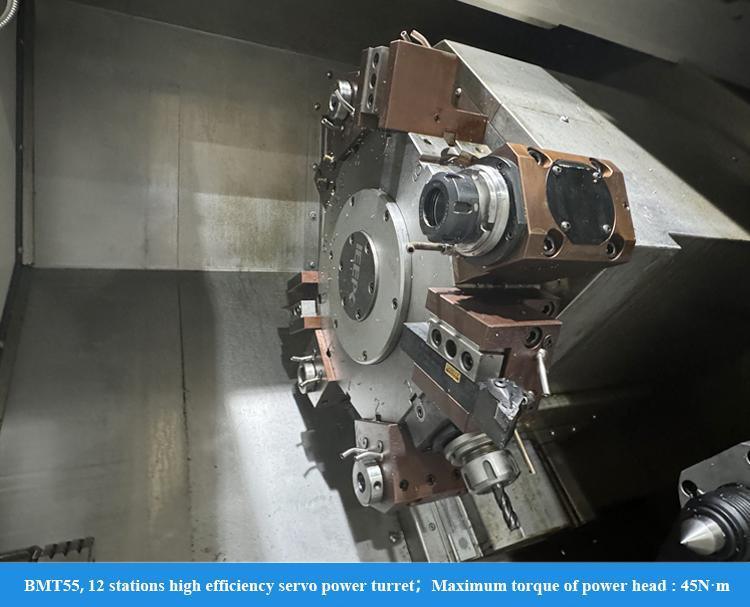

Standard BMT interface, high rigidityconnection; the tool is driven by DIN1809 interface, which has reliable transmission and low failure rate;the drive motor is side-mounted and compact in structure; it is equipped with high-precision C axis and brake device to achieve high-efficiency integrated processing of turning, milling anddrilling.

Internal cooling tool holder

Optional internal cooling tool holder and water outlet from the tool center realize efficient chip removal during inner hole machining and ensure processing quality

Driven tool milling capability

Workpiece material: HT200
Tool model: Ф20 square shoulder
milling cutter
Cooling status: water cooling

Driven tool drilling capacity
Workpiece material: HT200
Tool model: Ф16 twist drill
Cooling status: water cooling

SMTCL CNC Turning Center HTC40Hm Long-span Sleeve Spindle BMT55 Servo Power Turret CNC Turning Center With Y Axis 1

Product Paramenters:

Project	Unit	HTC 40H(Q)m/500	HTC 40H(Q)m/1000
Max. cutting dia.	mm	Φ350	Φ350
Max.cutting length	mm	450	950
Max. swiming dia.over bed	mm	Φ560	Φ560
Max. swiming dia.on slide	mm	Φ350	Φ350
Spindle
Spindle nose model		A2-6	A2-6
Front bearing inner dia.	mm	100	100
Spindle taper and hole size		1:20;Φ70	1:20;Φ70
Dia. of spindle hole		Φ65	Φ65
Max.bar dia.	mm	Φ50	Φ50
Standard chuck dia.	inch	8	8
Spindle speed range	r/min	4500	4500
Rated spindle torque	N·m	130(800r/min)	130(800r/min)
Spindle Max. torque	N·m	230(600r/min)	230(600r/min)
Main motor output power continuous/15 min.	kW	11/15	11/15
X/Z axis
X/Z axis rapid movement	m/min	30	30
X axis travel	mm	220	220
Z axis travel	mm	510	1000
Tailstock
Tailstock travel	mm	500	500
Tailstock drive method		Hydraulic drive	Hydraulic drive
Tailstock taper hole taper	Morse	MT-5	MT-5
Turret
Turret typle		Horizontal 12-station power turret	Horizontal 12-station power turret
Center height	mm	100	100
Turret indexing repeat positioning accuracy	Sec.	±1.6	±1.6
Tool size	mm	25	25
If could choose tool nearby		yes	yes
Power tool holder interface		BMT55	BMT55
Max. drilling capacity	mm	16×0.2	16×0.2
Max. milling capacity	mm	14×10×40	14×10×40
Max. tapping capacity	mm	M12×1.5	M12×1.5
Others
Distance between spindle center and floor	mm	1050	1050
Machine tool net weight	kg	4200	4750
Overall dimensions(LxWxH)	mm	2750×1920×2000	3620×1920×2000
Note: The parameters provided in the table are for reference only. If there is any change, please refer to the actual product.

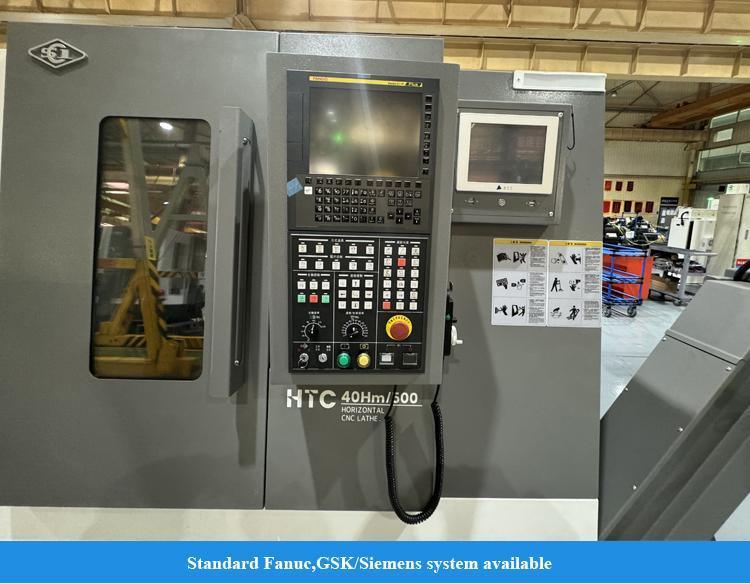

Standard configuration: 1,FANUC-0i-TF Plus (5) System (Hm/Sm Series) 2,GSK988TA System (Qm Series) 3,Sleeve-type spindle 4,Hollow chuck oil cylinder 5,Horizontal 12-station power tool carriage

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control

3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

SMTCL CNC Turning Center HTC40Hm Long-span Sleeve Spindle BMT55 Servo Power Turret CNC Turning Center With Y Axis 3

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight

Product Highlights

Product Description: High Precision CNC Turning Center HTC40Hm Large Spindle Torque 178N.m Slant Bed CNC Lathe With Y Axis HTC40Hm horizontal turning center has been assembled and improved through scientific analysis,optimization and advanced manufacturing and testing technologies. It has excellent ...

Send Inquiry
