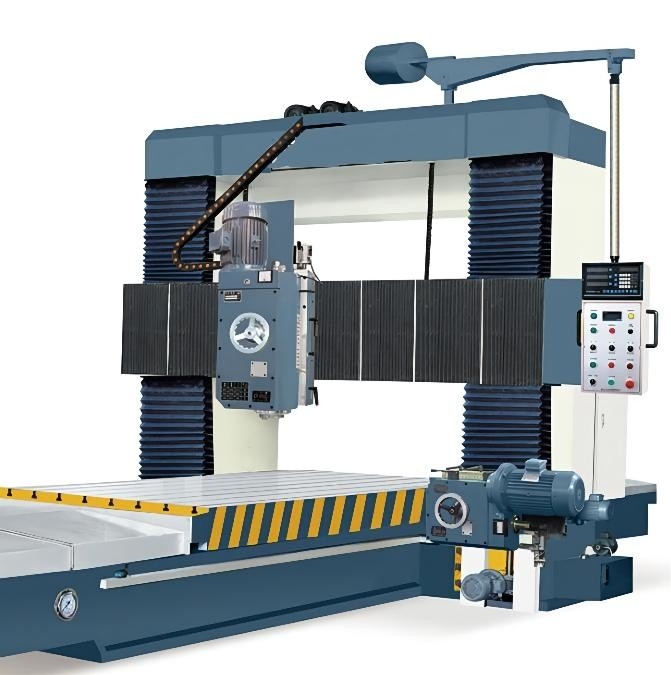

TXK20-6 Heavy Duty Moving Beam CNC Gantry Milling Machine

TXK20-6 Heavy Duty Moving Beam CNC Gantry Milling Machine

18.5kw Gantry Milling Machine

Large Gantry Milling Machine

Moving Beam CNC Gantry Machine

Place of Origin:

China

Brand Name:

HD M&E

Certification:

ISO certification

Model Number:

TXK20-6

Contact Us
Request A Quote
TXK20-6 Heavy Duty Moving Beam CNC Gantry Milling Machine
Product Details
Product Name:
TXK20-6 Large CNC Moving Beam Gantry Milling Machine
Center Distance Of The Guide Rail:
1200 Mm
Maximum Machining Length:
3000-4000mm
Maximum Machining Width:
2000-2500mm
Maximum Machining Height:
1500/1800mm
Worktable Length:
3000-4000 Mm
Worktable Width:
1600/2200mm
Maximum Weight Of Workpiece:
10/12t
Worktable Movement Speed:
30-4000 Mm/min, Stepless Adjustable
Main Motor Power:
18.5kw
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
30-60days
Payment Terms
T/T,L/C,Western Union
Supply Ability
20 sets per month
RELATED PRODUCTS
Good price Heavy Duty 3 Axis Moving Beam CNC Large Gantry Milling Machine online

Heavy Duty 3 Axis Moving Beam CNC Large Gantry Milling Machine

Get Best Price
Good price TXK20-6 Heavy Duty Moving Beam CNC Gantry Milling Machine online

TXK20-6 Heavy Duty Moving Beam CNC Gantry Milling Machine

Get Best Price
Good price Large CNC Gantry Milling Machine TXK20-4 TXK20-5 Heavy Duty Moving Beam Gantry Milling Machine online

Large CNC Gantry Milling Machine TXK20-4 TXK20-5 Heavy Duty Moving Beam Gantry Milling Machine

Get Best Price
Good price Knee Type Milling Machine X5032 Universal Milling Machine Manual Milling Machine online

Knee Type Milling Machine X5032 Universal Milling Machine Manual Milling Machine

Get Best Price
Contact Us
+8613916455787
sales@huidijd.com
86-021-61195255
Contact Now
Product Description
TXK20 series large CNC moving beam gantry milling machine
  • 1. TXK20 series CNC gantry moving beam milling machine is a new generation of precision CNC machining machine tools, suitable for high speed steel carbide tool on ferrous metal, non-ferrous metal and part of the non-metallic material processing of the workpiece. Can complete the plane, high and low surface, inclined surface, side, groove class, boring, drilling and other processes of the milling process.
  • 2. Transmission mode of worktable: workbench ball screw drive, driven by AC servo system to achieve stepless adjustment of working speed and positioning, and repeat positioning accuracy
  • 3. Beam locking: TXK20 series beam is mechanically automatically locked and realizes chain control with the beam lifting.
  • 4. The two-axis ball screw drive of the end milling head is driven by an AC servo system to achieve stepless adjustment of working speed and positioning, and the accuracy of repeated positioning
  • 5. Side milling head milling feed quantity is stepless adjustable.
  • 6. All machine tools are cast, processed, assembled by our company. The casting materials are HT250 quality cast iron, all through thermal, vibration and secondary time treatment, to fully eliminate the internal stress of the casting. The bed body, column and beam guide rail have been super audio quenching.
Main Technical Parameters
Machine Specifications TXK20-0 TXK20-1 TXK20-2 TXK20-3
Center distance of the guide rail mm 500 600 700 800
Maximum machining length mm 3000-4000 3000-6000 3000-6000 3000-6000
Maximum machining width mm 1000-1300 1300-1600 1600-2000 1600-2000
Maximum machining height mm 800 1000,1200 1200 1200, 1500
Worktable length mm 3000-4000 3000-6000 3000-6000 3000-6000
Worktable width mm 800/900 1100/1300 1400/1600 1400/1600
Maximum weight of workpiece t 3,4 5,6,8 6,7,9 7, 8, 10
Worktable movement speed mm/min 30-4000 stepless adjustable 30-4000 stepless adjustable 30-4000 stepless adjustable 30-4000 stepless adjustable
Main motor power kw 3.7 5.5,7.5 5.5, 7.5 5.5,7.5,11
Spindle power kw 7.5 7.5 7.5 7.5
Machine weight t 13-16 15-25 20-32 23-36
CNC system
Siemens/KND Siemens/KND Siemens/KND Siemens/KND
Digital display
Optional Optional Optional Optional
Machine Specifications TXK20-4 TXK20-5 TXK20-6
Center distance of the guide rail mm 900 1000 1200
Maximum machining length mm 3000-4000 3000-4000 3000-4000
Maximum machining width mm 2000-2500 2000-2500 2000-2500
Maximum machining height mm 1500 1500 1500, 1800
Worktable length mm 3000-4000 3000-4000 3000-4000
Worktable width mm 1600/2200 1600/2200 1600/2200
Maximum weight of workpiece t 8,9 10,11 10,12
Worktable movement speed mm/min 30-4000 stepless adjustable 30-4000 stepless adjustable 30-4000 stepless adjustable
Main motor power kw 13 15 18.5
Spindle power kw 11 15 15
Machine weight t 29-36 35-43 41-53
CNC system
Siemens/KND Siemens/KND Siemens/KND
Digital display
Optional Optional Optional
Standard configurations
  • 1.One vertical milling head(Three-axis CNC)
  • 2. One side milling head (optional between left and right)
  • 3.Steel plate shield of the bed body
  • 4.Bebar, column organ type shield
Special attachments
  • 1.90 degree Angle milling head
  • 2. Pneumatic tool lock
  • 3.Microelectronic pulsating tool setting handwheel
Packaging

TXK20-6 Heavy Duty Moving Beam CNC Gantry Milling Machine 0

FAQ
  • 1. what is Parts material?
    Such as the Aluminum, Steel, Stainless steel, Cast iron, Superalloy, Hard material, etc.
  • 2. What is the processing?
    My company's CNC machine tool products, different models have different characteristics, please contact me to get detailed information.
  • 3.How to choose the besifit for your machine?
    If you have special request for the machine tool configuration,and the budget is limited, we can also according to your need to change the configuration.
    Thus please provide us your machining drawing, we are very glad to design a specific process solution for you and recommend you a proper CNC machine model.
  • 4.Does your company accept customized offer?We have special need.
    Our company focuses on research and manufacture of modular CNC machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
  • 5.Confirm the purchase
    FOB CFR or CIF, LCL or FCL shipping.
    Payment terms: T/T or LC or other ways contact us.
    Package: Plywood case.
    Delivery time: Within 30-45 working days after the down payment. (Actual delivery time depends on actual order.
  • 6.Tips and others
    Warranty period: One year.
    If the outer packing damage, leakage erc, and if the goods damaged;
    Check the packing list the product literature and warranty cards if they is integrity;
    Examine the content of the packing list,the product quantity to both consistent,and accessories;
    Machine tool details if they are normal, If have the trace of replacement and maintenance, If have other effects use of the problerm.
    If happens above declare,please take pictures and contact us immediately.
