SL280 Slant Bed CNC Lathe High Accuracy With Linear Guideway
Product Details
| Name: | SL280 Slant Bed CNC Lathe With Linear Guideway | Chuck/ Collet: | Hydraulic Collet,*Hydraulic Chuck 6", 8" |
|---|---|---|---|
| Max. Workpiece Length: | Collet 240,*chuck 200mm | Max. Swing Dia. Over Slide: | Ø140mm |
| Max. Swing Dia.over Bed: | Ø420mm | Spindle Bore: | Ø48/Ø55/Ø62/Ø81mm |
| Spindle Nose: | A2-5/ *A2-6/*A2-8 | Max. Spindle Speed: | 3000/*4500/*2500/*4000/*5000/*2000/*3500/*4000/*1600rpm |
| Spindle Power: | 3.7/5.5 ,*5.5/7.5Kw | X/Z Axis Rapid Traverse: | 28/28 M/min |
| Highlight |
High Accuracy Slant Bed CNC Lathe,SL280 Slant Bed CNC Lathe |
||
Product Description

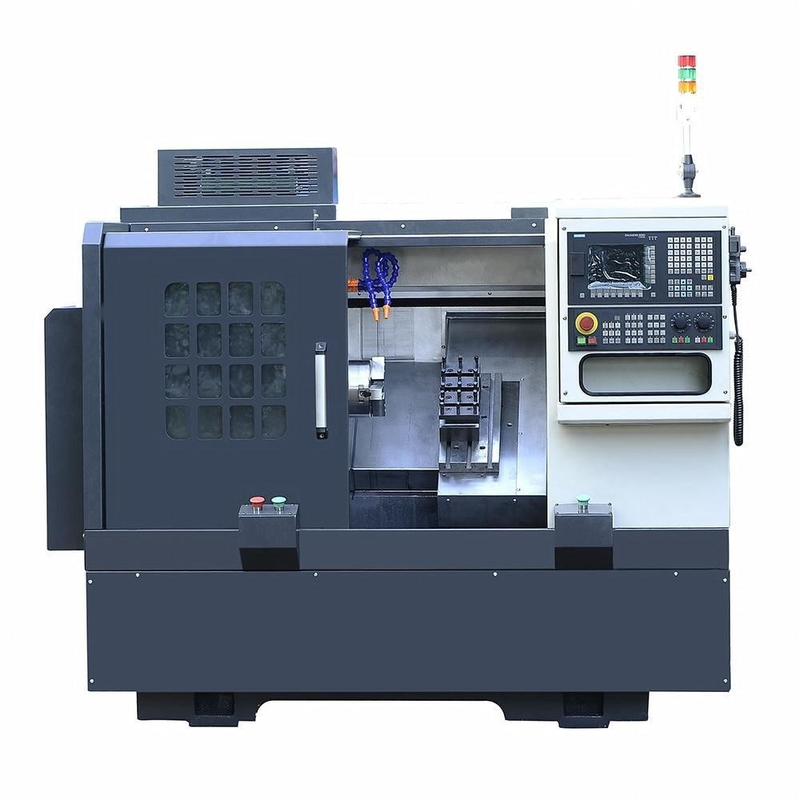

Linear Guideway SL280 Slant Bed CNC Lathe beauty of speed and accuracy
Machine Characteristics
- Heat treated and annealed high quality cast iron base-provides strong foundation for the high speed,highly accurate SL Series of CNC Lathes.
- True Slant Bed design is highly rigid and withstands heavy cutting forces
- Slant bed also allows for easy operator access and efficient chip removal.
- The combination of high X/Z rapid speeds and gang tool set-up increases productivity tremendously. Highly accurate parts at the lowest cost.
- Quality machine at a value price-High volume production and good QC.
Main Specification
| Items | specification SL280 |
|---|---|
| Capacity | Chuck/collet: Hydraulic collet *Hydraulic Chuck 6", *8" |
| Max.Swing Dia. Over Bed: Ø420mm | |
| Max.Length of Workpiece : Collet 240,*Chuck200mm | |
| Max. Swing Dia. Over Slide: Ø140mm | |
| Spindle | Spindle Bore: Ø48/*Ø55/*Ø62/*Ø81mm |
| Max.dia. of through-hole:Ø40/*Ø46/*Ø52/*Ø70mm | |
| Spindle Nose: A2-5/*A2-5/*A2-6/*A2-8 | |
| Max. Spindle speed: 3000rpm, *2500rpm,*2000rpm,*1600rpm *4500rpm,*4000rpm,*3500rpm *5000rpm,*4000rpm |
|
| Main motor Power: 3.7/5.5,*5.5/7.5kW | |
| Axis | X Axis Travel: 280mm |
| Z axis travel: 240mm | |
| X/Z axis rapid traverse: 28/28m/min | |
| Turret | Type: Gang type |
| No. of tool stations: 4-6 | |
| OD tool and bore tool shank:20x20/Ø25mm | |
| Structure | Inclined bed degree:35° |
| Guideway type: LM | |
| Others | Power Capacity: 11kVA |
| Dimension(L*W*H): 1750x1320x1500mm | |
| Weight(about): 2000Kg | |
| Note | "*"means optional, "N/A"means not available,"LM" means linear motion guide way |
Standard Features
- Hydraulic Collet

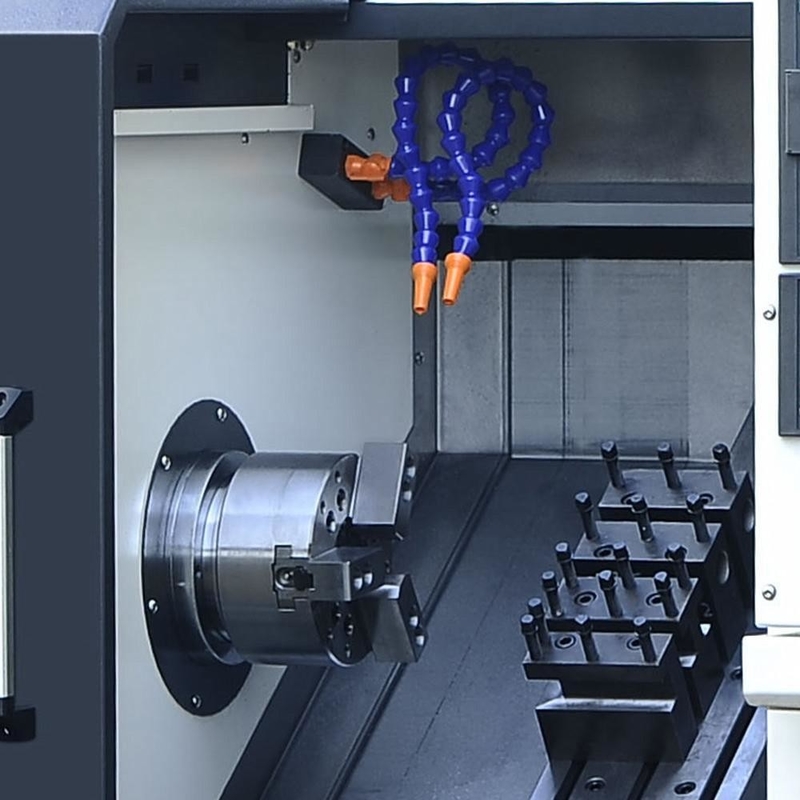

- Gang Type Tooling
- Ergonomic Operator Panel Design
- Automatic Lubrication System
- Automatic Coolant System
- Built-In Safety Features
Optional Features
- Different Chucks and Collets
- Different Control Systems
- Live Tooling
- Bar Feeder
Workpiece Samples
