CNC Drilling Horizontal Machine Center MDH100S Double Pallets Heavy Duty
Product Details
| Product Name: | MDH100S Double Pallets Horizontal Machining Center | Worktable Size: | 1000×1000 Mm |
|---|---|---|---|
| No. Of Pallet: | 2 | Max.table Load: | 2000kg |
| Distance From Table Surface To Spindle Center: | 80-1180mm | Distance From Spindle Nose To Table: | 250～1250mm |
| X/Y/Z Travel: | 1400/1100/1000 Mm | L×W×H: | 6153*3717*3827mm |
| Highlight |
MDH100S Horizontal Machine Center,Double Pallets Horizontal Machine Center,Heavy Duty CNC Horizontal Drilling Machine |
||
Product Description
MDH100S Heavy Duty double pallets Horizontal Machining Center China Machine
Product Presentation
MDH series horizontal machining center is my company development and production of high efficiency, precision horizontal machining center, widely used in automotive, mold, machinery manufacturing industry such as parts, body parts, shell plate parts, special-shaped parts processing, parts by a clamping can be automatically completed four surface milling, boring, drilling, expansion, reaming, tapping the multistep process.
Product Features

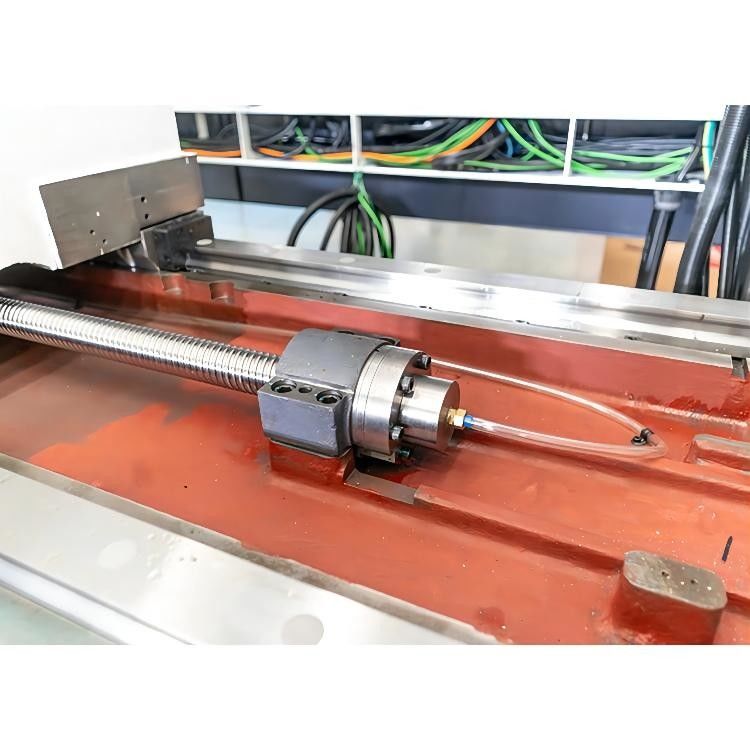

(1) High precision -- the X, Y and Z coordinate screw of the machine tool all adopts advanced hollow cooling technology, which effectively controls the heat deformation in the process of machine tool processing and improves the machining accuracy of the machine tool. In addition, the machine tool has the function of temperature compensation. The temperature sensor is installed in the main position of the machine body, and the precision of the machine tool is realized by analyzing and compensating the coordinate position of the CNC system.
(2) High speed -- the machine spindle adopts motorized spindle structure, with a maximum speed of 12000rpm and internal two speed changes, which can meet the requirements of low speed cutting and high speed machining; X, Y, Z three coordinate guide uses high rigid linear rolling guide, its fast moving speed up to 60m/min; The machine adopts linkage tool changing mechanism (tool changing time: 2 seconds). The above parameters are in the domestic leading level and international advanced level.
(3) high rigidity - the main part of the machine tool is all made of resin sand casting, the bed body is an integral casting, and the column, slide table and workbench move on it. The exchange table and knife storage manipulator are fixed on the bed body to ensure the overall rigidity of the machine tool. In addition, the structure of the machine tool is more reasonable through finite element analysis in the design process.
| Standard configurations | Optional configurations |
| • Two-speed internal transmission spindle | •BRT CNC turntable |
| • Screw hollow cooling system | • Spray cooling |
| •Automatic tool change system | •High pressure cooling unit |
| • Screw chip conveyor (both sides) | • Spindle cooling device |
| •Automatic lubrication system (spindle) | •Electrical cabinet thermostatic control device |
| • Rigid tapping | • Lifting chip conveyor |
| •Electrical cabinet heat exchanger | •Grating ruler |
| • Spindle cooling device | •M30 automatic power-off device |
| •Closed protective cover | |
| • RS-232 data transmission system |
Main Technical Parameters
| Product Model | Unit | MDH80 | MDH80A | MDH100S | MDH125 |
| Worktable size (L*W) | mm | 800X800 | 800X800 | 1000X1000 | 1250X1250 |
| No.of Pallet | 2 | Single table | 2 | 2 | |
| Table type | IT Opt:BRT | IT Opt:BRT | |||
| Table indexing | IT (1° X360°) BRT (0.001° X360°) |
IT (1° X360°) BRT (0.001° X360°) |
|||
| Table indexing time | S | 4.5(90°) | 5(90°) | ||
| Pallet changing time | S | 12.5 | — | 12.5 | 35 |
| Max. table load | Kg | 2000 | 3000 | ||
| X/Y/Z-axis travel | mm | 1400/1100/1050 | 1400/1100/1000 | 1700/1400/1240 | |
| X/Y/Z Axis guide way type | Linear roller guideway | Linear roller guideway | |||
| Distance from table surface to spindle center | mm | 80-1180 | 70-1470 | ||
| Distance from spindle nose to table | mm | 200-1250 | 250-1250 | 360-1600 | |
| Rapid traverse of X/Y/Z axis | m/min | 45 | 45 | ||
| Cutting feed rate | 1-20000 | 1-20000 | |||
| Spindle taper | No.50 (7:24) | No.50 (7:24) | |||
| Max spindle speed | rpm | 8000(Motor Spindle) Opt:12000(Motor Spindle) Opt:4000(①Gear box) Opt:4000(②Gear box) |
6000(Motor Spindle) Opt:8000,12000(Motor Spindle) Opt:6000(Gear box) |
||
| Spindle motor power (Continueous/30 min) |
kw | 8000rpm:25/30 12000rpm:25/30 ①4000rpm:22/26 ②4000rpm:30/37 |
6000rpm:37/45 8000rpm:25/30 12000rpm:25/30 6000rpm:22/26 |
||
| Tool magazine capacity | T | 40(Opt:60/80/120) | 40(Opt:60/80) | ||
| Tool shank type | BT50 | BT50 | |||
| Max. tool length | mm | 500 | 500 | ||
| Max. tool weight | Kg | 25 | 25 | ||
| Max. tool diameter (w/oadjacenttools) | mm | Ø115(Ø270) | Ø115(Ø270) | ||
| Tool changing time(T-T) | 2.5 | 2.5 | |||
| X/Y/Z axis positioning accuracy | 0.01 | X:0.015 Y:0.012 Z:0.012 | |||
| X/Y/Z axis repeatability accuracy | 0.006 | X:0.007 Y:0.007 Z:0.007 | |||
| CNC controller | FANUC 3li | FANUC 3li | |||
| Machine dimensions(LXWXH) | mm | 6153X3717X3827 | 5393X3682X3827 | 6153X3717X3827 | 8075X6087X3702 |
| Machine weight | Kg | 24000 | 21000 | 24500 | 32500 |
Product Highlights
