FANUC Horizontal Machining Centers High Speed Double Pallet MDH65S
Product Details
| Product Name: | MDH65S Double Pallets Horizontal Machining Center | Worktable Size: | 630×630 Mm |
|---|---|---|---|
| No. Of Pallet: | 2 | Max.table Load: | 800kg |
| Distance From Table Surface To Spindle Center: | 80-830mm | Distance From Spindle Nose To Table: | 150～950mm |
| X/Y/Z Travel: | 780/750/800 Mm | L×W×H: | 4891*3200*3125mm |
| Highlight |
MDH65S Horizontal Machining Centers,FANUC Horizontal Machining Centers,Double Pallet High Speed Machine Center |
||
Product Description

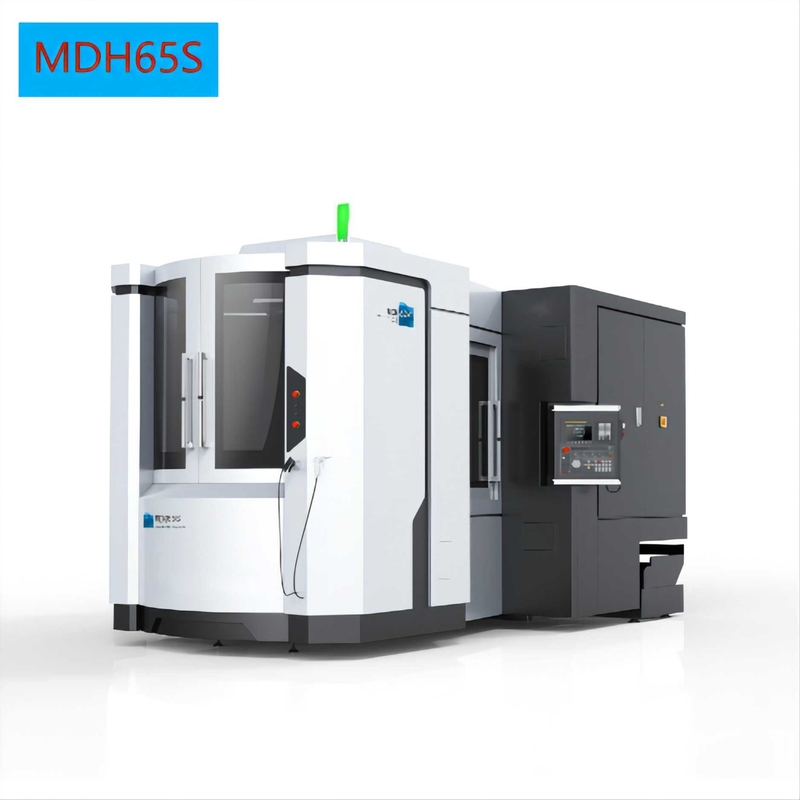

MDH65S China double pallets Horizontal Machining Center High Speed FANUC Machine
Detailed Images
| Standard configurations | Optional configurations |
| • Two-speed internal transmission spindle | •BRT CNC turntable |
| • Screw hollow cooling system | • Spray cooling |
| •Automatic tool change system | •High pressure cooling unit |
| • Screw chip conveyor (both sides) | • Spindle cooling device |
| •Automatic lubrication system (spindle) | •Electrical cabinet thermostatic control device |
| • Rigid tapping | • Lifting chip conveyor |
| •Electrical cabinet heat exchanger | •Grating ruler |
| • Spindle cooling device | •M30 automatic power-off device |
| •Closed protective cover | |
| • RS-232 data transmission system |
Main Technical Parameters
| Product Model | Unit | MDH50 | MDH50A | MDH65S |
| Worktable size (L*W) | mm | 500X500 | 500X500 | 630X630 |
| No.of Pallet | 2 | Single table | 2 | |
| Table type | IT Opt:BRT | |||
| Table indexing | IT (1° X360°) BRT (0.001° X360°) |
|||
| Table indexing time | S | 1.7(90°) | ||
| Pallet changing time | S | 6 | - | 6 |
| Max. table load | Kg | 800 | ||
| X/Y/Z-axis travel | mm | 780/750/800 | ||
| X/Y/Z Axis guide way type | Linear roller guideway | |||
| Distance from table surface to spindle center | mm | 80-830 | ||
| Distance from spindle nose to table | mm | 150-950 | ||
| Rapid traverse of X/Y/Z axis | m/min | 54 | ||
| Cutting feed rate | 1-20000 | |||
| Spindle taper | No.50 (7:24) | |||
| Max spindle speed | rpm | 8000(Motor Spindle) Opt:12000(Motor Spindle) Opt:6000(Gear box) |
||
| Spindle motor power (Continueous/30 min) |
kw | 8000rpm:18.5/22 12000rpm:25/30 6000rpm:22/26 |
||
| Tool magazine capacity | T | 40(Opt:60/80/120) | ||
| Tool shank type | BT50 | |||
| Max. tool length | mm | 500 | ||
| Max. tool weight | Kg | 25 | ||
| Max. tool diameter (w/oadjacenttools) | mm | Ø115(Ø270) | ||
| Tool changing time(T-T) | 2 | |||
| X/Y/Z axis positioning accuracy | 0.008 | |||
| X/Y/Z axis repeatability accuracy | 0.005 | |||
| CNC controller | FANUC 3li | |||
| Machine dimensions(LXWXH) | mm | 4891X3200X3125 | 4190X3200X3125 | 4891X3200X3125 |
| Machine weight | Kg | 15000 | 14000 | 15000 |
