Manual Threading Lathe Machine CDS6150C CDS6250C Medium Gap Lathe Machine
Product Details
| Product Name: | CDS6150C/CDS6250C Horizontal Lathe Machine Used For Various Turning Processes | Max. Swing Diameter Over Bed: | Ø500mm |
|---|---|---|---|
| Max.swing Diameter Over Cross Slide: | Ø290mm | Max.swing Diameter In Gap: | —/Ø760mm |
| Max. Workpiece Length: | 750/1000/1500/2000/3000mm | Max. Cutting Length: | 700/950/1450/1950/2950mm |
| Spindle Bore: | Ø105(Allowable Bar Diameter≤Ø103)mm | Spindle Speed Ranges: | 26-1700(16 Speeds) Rpm |
| Spindle Motor Power: | 7.5(10 HP)kW | Diameter Of Tailstock Quill: | Ø75mm |
| Highlight |
Manual Threading Lathe Machine,Medium Threading Lathe Machine,Medium Gap Lathe Machine |
||
Product Description

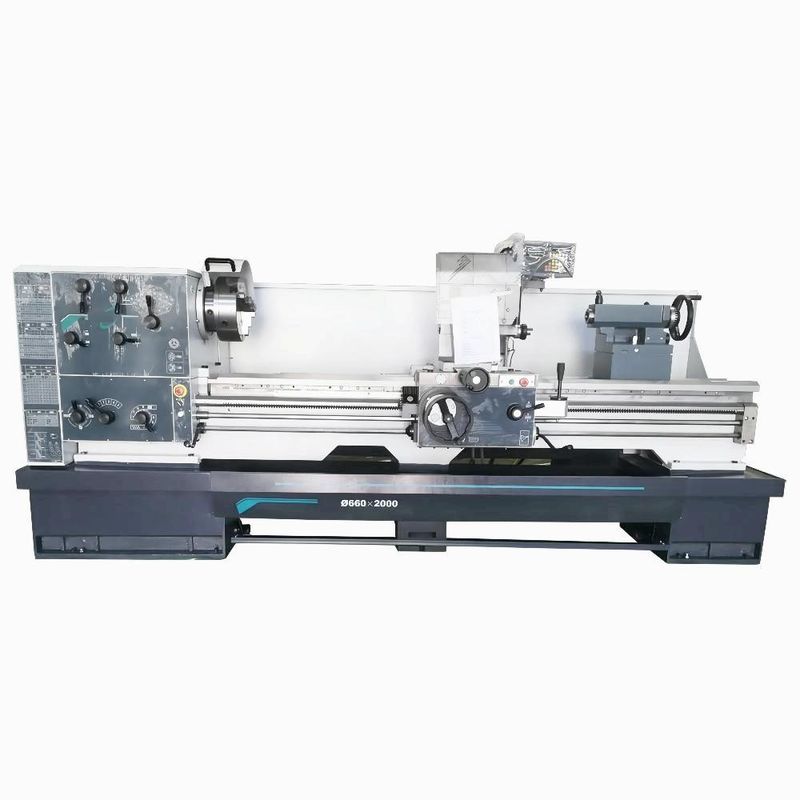

CDS6150C/CDS6250C Manual Type Thread Machining Medium Size Gap Lathe machine
Product Presentation
CD-S series ordinary lathes have a popular right-angle plane shape with wide front and rear legs. The bed has undergone
high-frequency surface quenching and grinding, with a quenching hardness of G50. The headbox gear has undergone high-frequency
quenching and precision grinding of the teeth, and the gear accuracy can reach level 7. The dimensional accuracy of the parts
processed on this machine can reach IT7 level, and the surface roughness can reach 1.6 level.
Product Configuration
| Product model | UNIT | CDS6150C | CDS6250C | CDS6156C | CDS6256C | CDS6166C | CDS6266C | |
| specification | ||||||||
| Max. swing diameter over bed | mm | Ø500 | Ø560 | Ø660 | ||||
| Max.swing diameter over cross slide | mm | Ø290 | Ø350 | Ø440 | ||||
| Max.swing diameter in gap | mm | — | Ø760 | — | Ø800 | — | Ø870 | |
| Length in gap | mm | — | 280 | — | 280 | — | 280 | |
| Max. workpiece length | mm | 750/1000/1500/2000/3000 | ||||||
| Max. cutting length | mm | 700/950/1450/1950/2950 | ||||||
| Spindle | ||||||||
| spindle nose | D8 | |||||||
| Spindle bore | mm | Ø105(Allowable bar diameter≤Ø103) | ||||||
| Chuck size | mm | Ø315 | ||||||
| Taper of spindle bore | 110 mm/1:20 | |||||||
| Max.Spindle torque | Nm | 1100 | ||||||
| Spindle speed ranges | rpm | 26-1700(16 speeds) | ||||||
| Spindle centre height | mm | 250 | 280 | 325 | ||||
| Spindle motor power | kW | 7.5(10 HP) | ||||||
| Tailstock | ||||||||
| Diameter of tailstock quill | mm | Ø75 | ||||||
| Travel of tailstock quill | mm | 150 | ||||||
| Taper of tailstock quill | No.5 MT | |||||||
| Feeds&Threads (metric screw *inch screw) | ||||||||
| Longitudinal feed | 0.044-1.48 mm/rpm (45 Kinds) *0.044〜0.148 in/rpm (45 Kinds) | |||||||
| Cross feed | 0.022~0.74mm/rpm (45 Kinds) *0.031-0.092 in/rpm (45 Kinds) | |||||||
| Metric threads | mm | 0.5-80 (73 Kinds *53 Kinds) | ||||||
| Modular threads | mm | 0.5-40 (45 Kinds *66 Kinds) | ||||||
| Inch threads | TPI | 7/16-80 (47 Kinds *47 Kinds) | ||||||
| Diametral pitch threads | DP | 7/8~160 (47 Kinds *48 Kinds) | ||||||
| Tool post | ||||||||
| Max.tool shank size | mm | 25X25 | ||||||
| Travel of top slide | mm | 150 | ||||||
| machine dimensions (L*W*H) |
mm | 2680X1223X1295 (750) 2930X1223X1295 (1000) 3430X1223X1295 (1500) 3930X1223X1295 (2000) 4930X1223X1295 (3000) | 2680X1223X1325 (750) 2930X1223X1325 (1000) 3430X1223X1325 (1500) 3930X1223X1325 (2000) 4930X1223X1325 (3000) |
2680X1223X1370 (750) 2930X1223X1370 (1000) 3430X1223X1370 (1500) 3930X1223X1370 (2000) 4930X1223X1370 (3000) |
||||
| Machine weight | kg | 2120/2170/2420/2620/3120 | 2180/2270/2480/2680/3180 | 2400/2500/2700/2900/3400 | ||||
| Standard configurations | |
| 3-Jaw chuck | lead screw cover |
| Fixed center of tailstock | 4-way tool post |
| Foot brake | Standard toolkit |
| Steady rest(≥1500mm Available) | |
| Follower rest (≥1500mm Available) | |
| Optional configurations | ||
| 4-Jaw chuck | Quick-change tool post | |
| Chuck guard | Tool post guard | |
| Rear splash guard | Live center of tailstock | |
| Face plate | Thread dial | |
| Drive plate | Taper-turning attachment | |
| DRO | Carriage stop | |
| Adjustable pads | Anchor bolts |
|
| Spindle center and center sleeve | ||
| Steady rest&Follow rest (≤1000mm Available) |
||
