High Precision Horizontal CNC Lathe

CNC Turning Center

Product Details

Product Name:	HTC16H Horizontal Slant Bed CNC Lathe	Max. Cutting Length:	160mm
Max. Cutting Diameter:	160 Mm	Max. Swing Diameter Of Bed:	420 Mm
Max. Swing Diameter Over Slide:	160 Mm	Type Of Spindle Head:	A2-5
Spindle Bore Diameter:	ø56	Spindle Speed Range:	6000 R/min
Main Motor Power:	11/KW (15 Minutes/ Continuous)	Standard Chuck Diameter:	6 Inch
Standard Type Of Turret:	Horizontal 8 Tool Stations
Highlight	Small Parts Machining CNC Lathe , Horizontal CNC Lathe , 8 Stations Horizontal CNC Lathes

Product Description

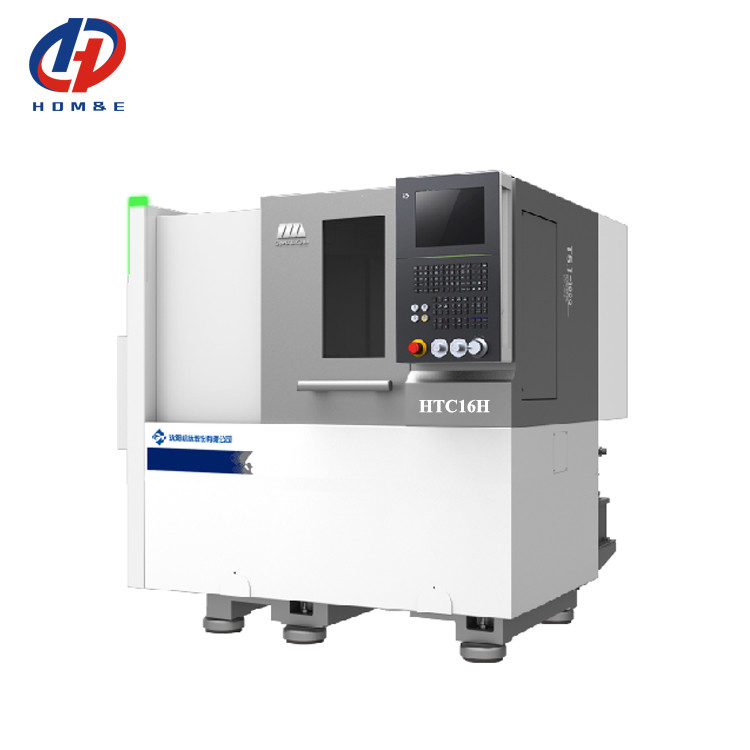

Small Parts Machining HTC16H Metal Slant Bed CNC Lathe SMTCL Horizontal CNC Lathe 0

Product Description:

SMTCL Small Parts Machining HTC16H Metal Slant Bed CNC Lathe 8 Stations Horizontal CNC Lathes

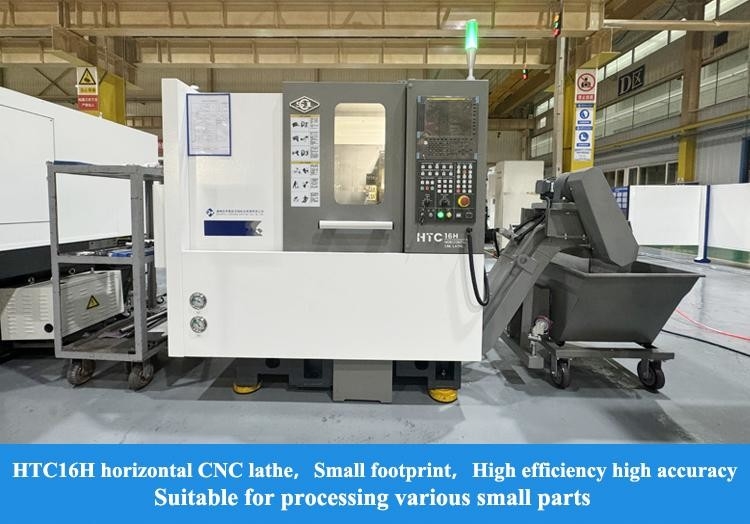

HTC16H series horizontal CNC lathe is suitable for processing a variety of disk and shaft parts, can turn a variety of threads, circular arc, cone and the inner and outer surfaces of the rotary body, its small area, high processing accuracy, especially suitable for automotive, electronics, aerospace, military, non-ferrous metal processing and other industries, the rotary body parts for efficient, large quantities, high-precision processing.

Product Features:

1. High precision

♦ Feed shaft pretension structure

♦ High precision C3 ball screw

♦ Thermal stability structure of the whole machine

2. Efficient

♦ Spindle speed 5000rpm

♦ Two axes fast shift 30m/min

♦ High efficiency servo cutter tower

3. High performance

♦ Small footprint

♦ Chemical process standard

♦ Strict inspection standard

Structural characteristics:

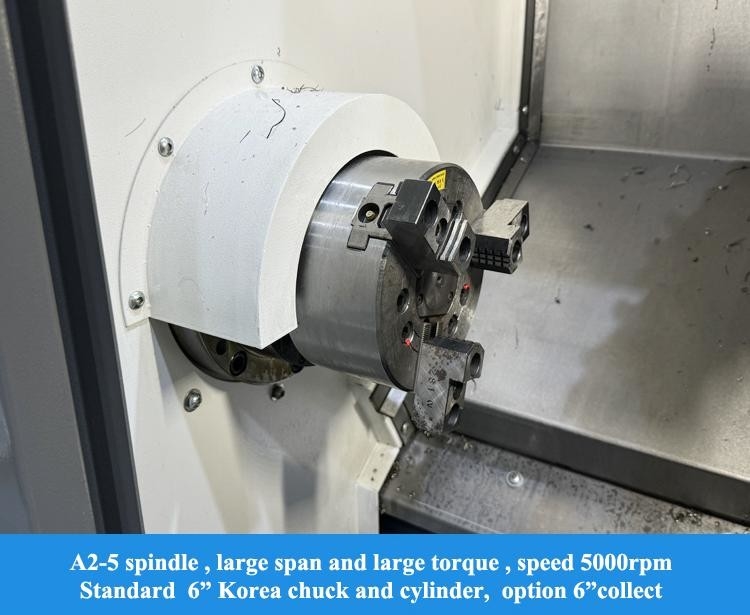

♦ High quality sleeve spindle unit

Adopt imported bearings, large size bearing span, meet the requirements of high rigidity, high torque, high precision, easy installation and maintenance. The important joint surface is easy to realize the scraping process and ensure the contact rigidity. The symmetrical headstock structure improves the controllability of thermal deformation

♦ Servo turret

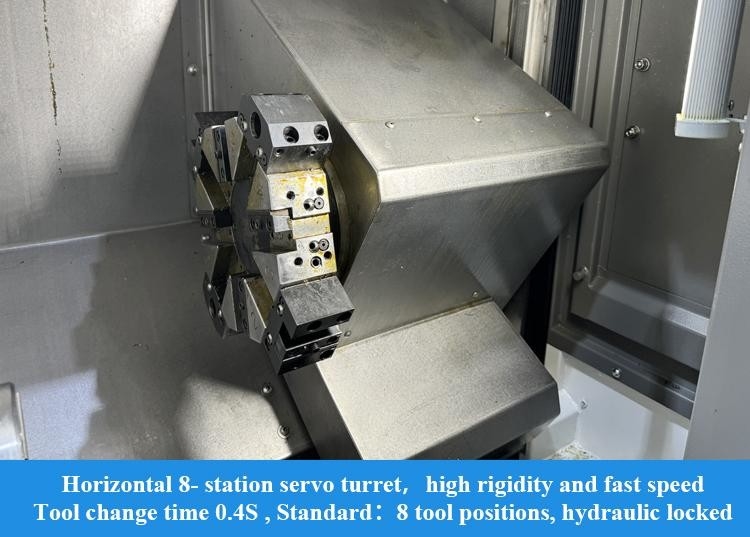

Servo motor is used to control the precise rotation of the cutter head, and the tool change of the adjacent station only needs 0.4s, which is fast and the processing efficiency is high. Triple disc structure, hydraulic lock, full rigidity.

♦ Feed structure

The linear guide rail is used to optimize the rigidity, stability and life of the guide rail, while the two axes are fast 30m/min, and the processing efficiency is higher The X-axis adopts the pre-tensile structure to reduce the influence of temperature on accuracy and improve the stability of machining accuracy;

Small Parts Machining HTC16H Metal Slant Bed CNC Lathe SMTCL Horizontal CNC Lathe 1

Industry application:

HTC16H series CNC horizontal lathe is a small-size CNC product designed and manufactured toadapt to market demand on the basis of numerous years of technology accumulation and experience of ourfactory for production of CNC lathe. The machine tool features characteristics such as economical, efficient,energy-saving, high positioning accuracy and easy maintenance, and is the first choice product for turningmachining of small-size components of industries such as motor vehicle, hardware and electronics, etc.

Small Parts Machining HTC16H Metal Slant Bed CNC Lathe SMTCL Horizontal CNC Lathe 2

Product Paramenters:

Items		Unit	HTC16H(Q)
Maximum turning diameter		mm	Φ 160
Maximum turning length		mm	160
Maximum swing diameter over the bed		mm	Φ 420
Maximum swing diameter over the slide		mm	Φ 160
Spindle	Spindle nose type		A2-5
	Front bearing inner diameter	mm	Φ 90
	Spindle taper and hole size		1:20 ; Φ 62
	Diameter of spindle hole	mm	Φ 56
	Maximum bar diameter	mm	Φ44
	Standard chuck size	inch	6
	Maximum spindle speed	r / min	5000
	Spindle rated torque	Nm	35 ( 2000r / min )
	Spindle maximum torque	Nm	70 ( 1500r / min )
	Main motor output power continuous/ 15 minutes	kW	7.5 /1 1
Two axes	X/Z axis rapid traverse speed	m/min	30
	X-axis travel	mm	145
	Z-axis travel	mm	205
Tool Turret	Tool turret type		Horizontal 8- station servo tool holder
	Tool turret center height	mm	63
	Tool turret indexing repeat positioning accuracy	Sec.	±1.6
	If could choose the tool from the tool disc nearby		yes
Cooling and chip removal	Cooling pump pressure	bar	1.5
	Cooling pump flow	L/min	30
	Water tank capacity	L	70
	Chip conveyor form		Chain plate type
Other	Spindle center distance from bed bottom	mm	926
	Machine tool net weight	kg	2600
	Total power capacity	kVA	23
	Machine tool dimensions (length x width x height)	mm	1750 ×1580 × 1650

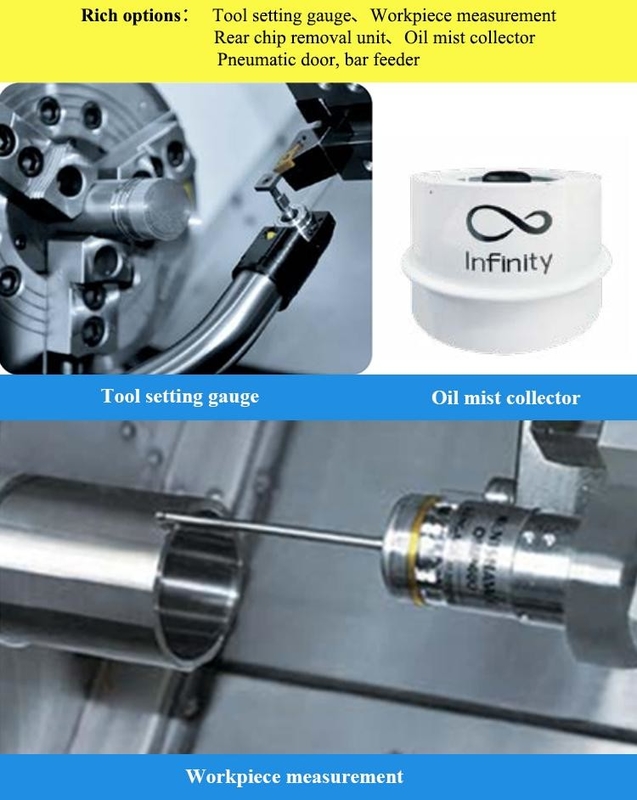

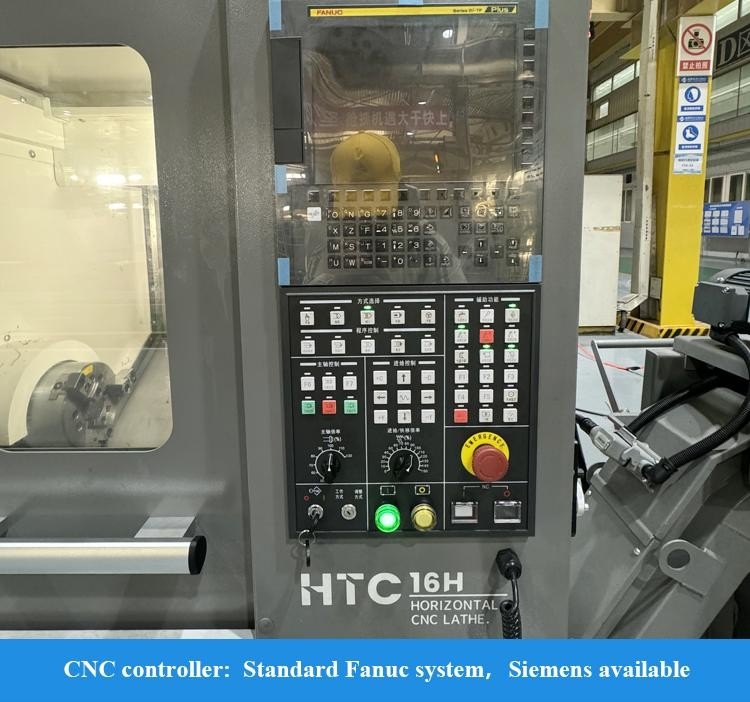

Standard configuration: 1,FANUC-0i-TF Plus (5) System (H/S Series) 2,GSK988TA System (Q Series) 3,Sleeve-type spindle 4,Hollow chuck oil cylinder 5,8-station servo tool carriage		Optional configuration: 1,Siemens system 2,Tool setting gauge 3,12-station servo tool carriage 4,Workpiece measurement 5,Power tool carriage 6,Oil mist collector 7,Rear chip removal unit 8,Tool damage detection 9,Pneumatic door

Test items		National standard	factory standard
Accuracy of machined workpiece		IT6	IT6
Roundness of machined workpiece		0.005 mm / Ф3 2 mm	0.00 2mm / Ф40mm
Consistency of machined workpiece		0.015 mm / 1 05 mm	0.008mm / 1 2 0mm
Flatness of machined workpiece		0 .015 mm / Ф 12 0 mm	0.0 06 mm / Ф 1 00 mm
Surface roughness of machined workpiece		Ra 1.6μm	Ra 1.25μm
Positioning accuracy	X-axis	0.022mm	0.008 mm
Positioning accuracy	Z axis	0.022mm	0.008 mm
Repeat positioning accuracy	X-axis	0.006mm	0.004mm
Repeat positioning accuracy	Z axis	0.006mm	0.004mm

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control

3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Small Parts Machining HTC16H Metal Slant Bed CNC Lathe SMTCL Horizontal CNC Lathe 4

Our Factory:

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight

Product Highlights

Product Description: SMTCL Small Parts Machining HTC16H Metal Slant Bed CNC Lathe 8 Stations Horizontal CNC Lathes HTC16H series horizontal CNC lathe is suitable for processing a variety of disk and shaft parts, can turn a variety of threads, circular arc, cone and the inner and outer surfaces of ...
