SMTCL VMC850B Metal CNC Milling Machine 4 Axis Vertical Machining Center

SMTCL VMC850B Metal CNC Milling Machine 4 Axis Vertical Machining Center

Vertical CNC Metal Milling Machine

VMC850B CNC Metal Milling Machine

Vertical 4 Axis CNC Machining Center

Place of Origin:

China

Certification:

CE ISO

Model Number:

VMC850B

Contact Us
Request A Quote
Product Details
Product Name:
VMC850B 4-axis Vertical Machine Center
Table Size (mm):
1000*500
Table Travel (X/Y/Z) (mm):
850/560/650
Spindle Taper:
BT40
Spindle Speed:
8000 Rpm
X/Y/Z Axis Travel Speed:
32/32/30 Mm
Tool Magazine:
24 Tools
T Slot:
18*5mm
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Package suitable for long distance sea freight
Delivery Time
30-40days
Supply Ability
100 Set/Sets per Year
Product Description

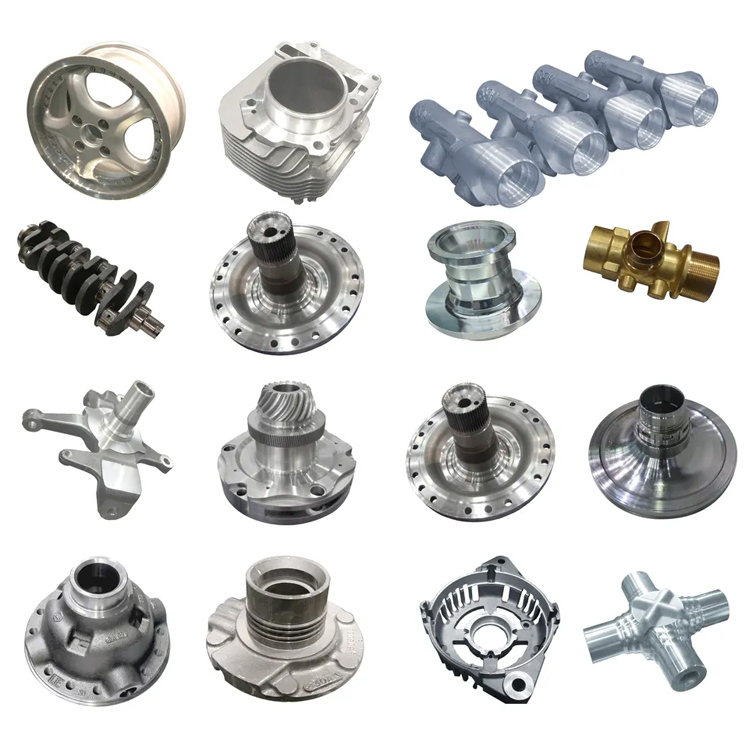

SMTCL VMC850B Metal CNC Milling Machine 4 Axis Vertical Machining Center 0

Product Description:

SMTCL VMC850B Metal CNC Milling Machine 4 Axis Vertical Machining Center
VMC-B through the typical series product description is a combination of market demand and development of a product, it is not only complete specifications, from the table 800×420mm to 2200×800mm, X-axis travel from 700mm to 2100mm; From the spindle configuration, we also achieve a variety, from the standard belt connection, direct connection 8000 to the output of 380Nm large torque.
VMC-B is a very cost-effective typical machine tool, ultra wide bed design to ensure the machine has the best support capacity and stability, and the bed adopts a large bevel structure, Y axis adopts split protection, making chip removal convenient and fast.

Product Features:

1,Classical Structure Design

◆ Super wide beveled bed

◆ Split cover of Y-axis

◆ Multistage filtered chain plate chip conveyo

2,New Update and Improvemer

◆ Improved the thermal stability of lead screw

◆ Improved the seal class of cover

◆ Reduced the thermal deformation of headstock

3,High Configuration, Wide Applicability

◆ Large machining range

◆ Standard chain plate chip conveyor

◆ 11/15 kw main motor

Product Details:

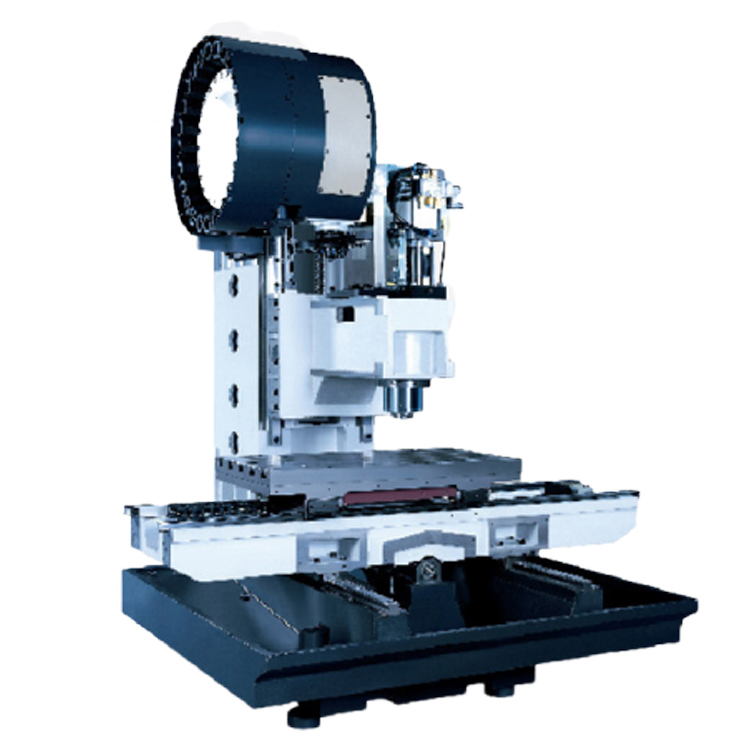

SMTCL VMC850B Metal CNC Milling Machine 4 Axis Vertical Machining Center 1
Product Paramenters:
Item
Unit
VMC 580B
VMC 850B
VMC 1100B
Capacity
X axis travel
mm
580
850
1100
Y axis travel
mm
420
560
610
Z axis travel
mm
520
650
650
Spindle nose to table surface
mm
100-620
150-800
150-800
Worktable
Table size (L×W)
mm
650×430
1000×500
1300×610
Max load on the table
kg
300
600
1000
T-slot size
mm
14×3
18×5
18×5
Spindle
Spindle speed
rpm
10000
10000
10000
Spindle taper/spindle shank
mm
7/24
7/24
7/24
BT40
BT40
BT40
Spindle motor
kw
7.5/11
11/15
11/15
Maximum output torque
N.m
35.8
52.5
52.5
Feed rate
X,Y,Z rapid traverse
M/min
48/48/48
45/45/30
45/45/30
Feed rate
MM/min
1-20000
1-20000
1-20000
A.T.C
Tool storage capacity
pc
20
24
24
Maximum tool length
mm
300
300
300
Tool change time
sec
1.8
2.5
2.5
Accuracy
Positioning accuracy X/Y/Z

mm
0.010/0.008/0.010
0.010/0.008/0.010
0.010/0.008/0.010
Repeatability positioning X/Y/Z

mm
0.008/0.006/0.008
0.008/0.006/0.008
0.008/0.006/0.008
Others
Overall dimensions(L×WxH)

mm
2020×2700×2473
4200×2480×2950
4200×2480×2950
Net machine weight
kg
3500
5900
6100
Total power requirment
KVA
18

25
25
UR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL VMC850B Metal CNC Milling Machine 4 Axis Vertical Machining Center 2
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

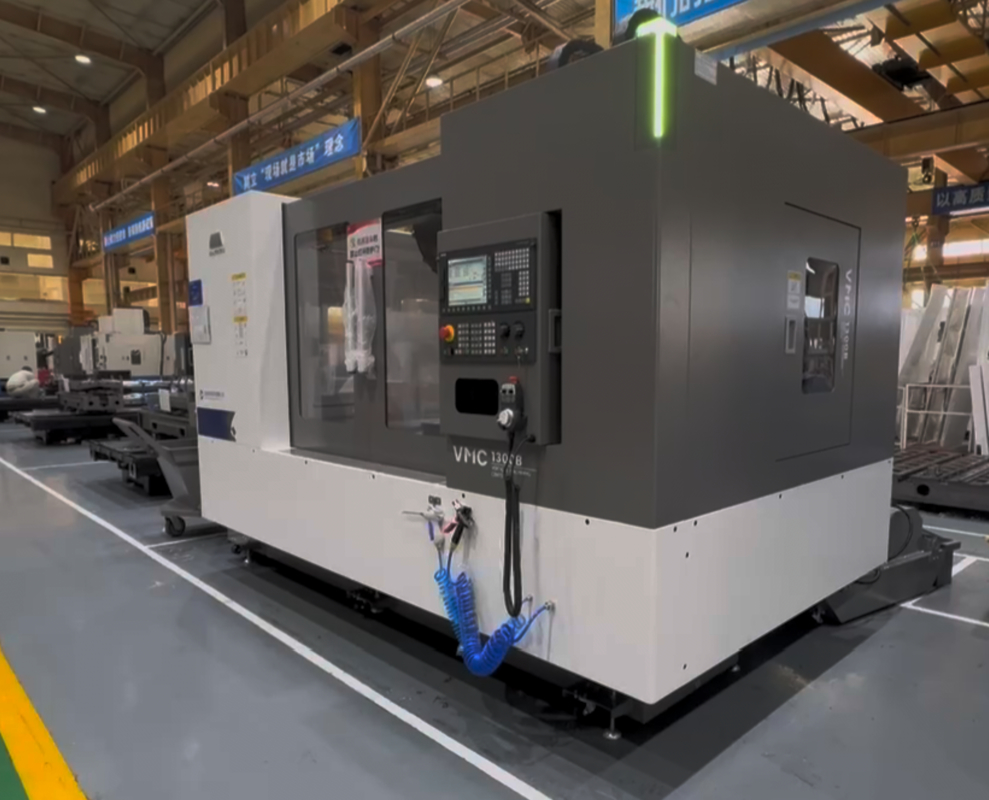

Our Factory:

SMTCL VMC850B Metal CNC Milling Machine 4 Axis Vertical Machining Center 3

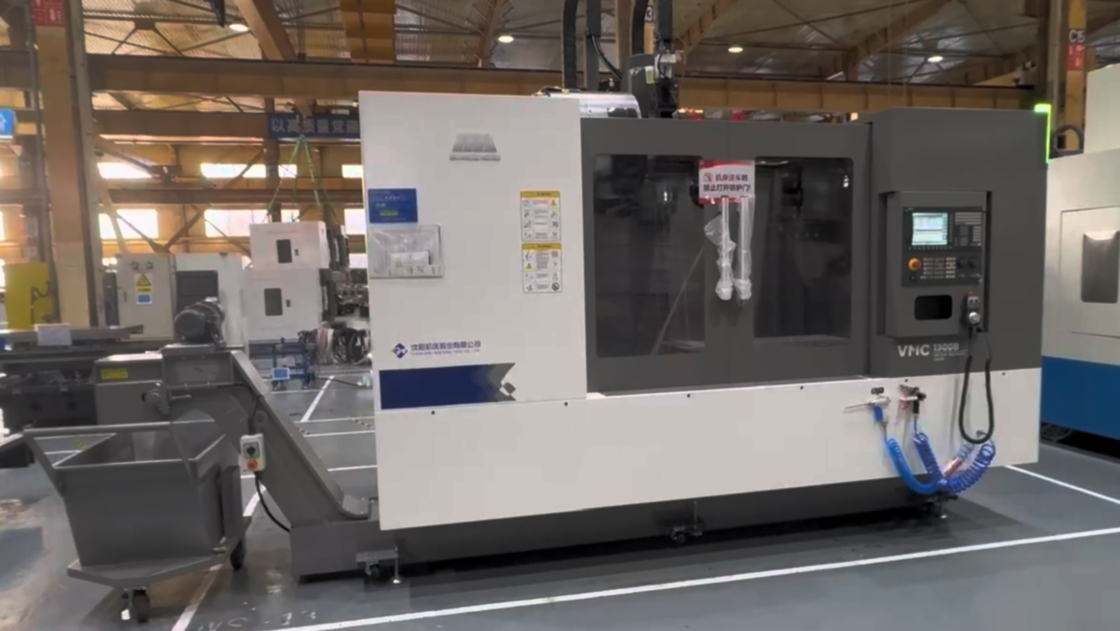

Exhibition:

SMTCL VMC850B Metal CNC Milling Machine 4 Axis Vertical Machining Center 4

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
