SMTCL Universal Lathe CW6180B Heavy Duty Engine Lathe 600mm Bed Width Turning Lathe

Brand Name: smtcl symg
Model Number: CW6180B
Place of Origin: China
Certification: CE ISO
Minimum Order Quantity: 1 Set
Supply Ability: 30Set/Sets per Month
Tags

Manual Lathe Machine

Horizontal Conventional Lathe Machine

Heavy Duty Manual Lathe

Product Details

Brand: SMTCL Product Name: Heavy Manual Lathe
Model: CW6180B Max. Swing Diameter (mm): 800
Width Of Bed (mm): 600mm Max Turning Dia Over Carriage: 480mm
Max. Length Of Workpiece (mm): 3000 Spindle Speed Ranges: 5.4-720 R/min (18kinds)
Highlight

Gap Bed Manual Metal Lathe

,

CW6180 Manual Metal Lathe

,

600mm Bed Width

Product Description

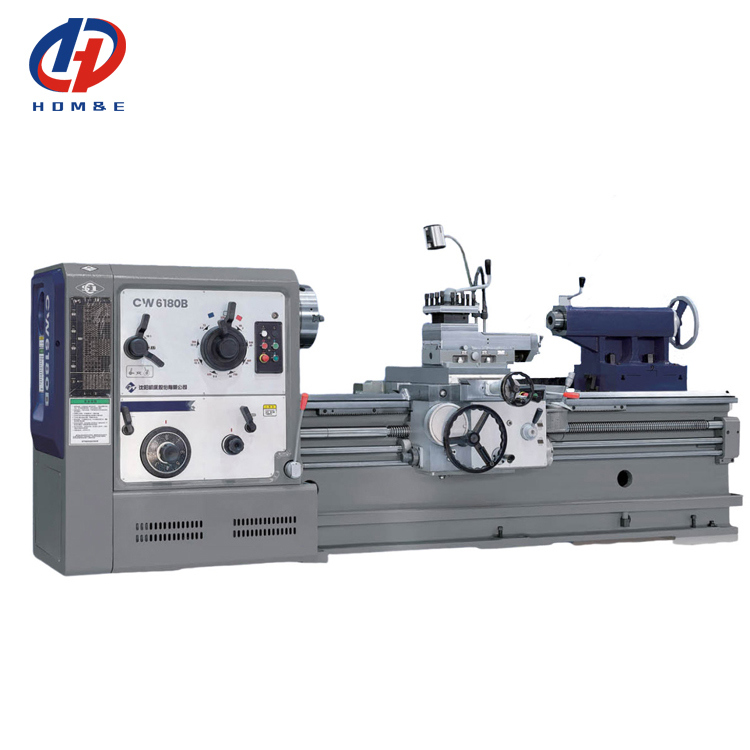

SMTCL Universal Lathe CW6180B Heavy Duty Engine Lathe 600mm Bed Width Turning Lathe 0

Product Description:

Universal Lathe CW6180B High Rigidity 600mm Bed Width Heavy Duty Engine Lathe Turning Machine
CW6180B series ordinary horizontal lathe The lathe bed adopts the combination structure of box and inclined bar in the width side wall double rib plate and inner rib plate, and the overall stiffness is one-third higher than that of the single wall door rib structure; This series of machine tools is suitable for processing cast iron, steel and various non-ferrous metals and other materials.
The series of lathes can undertake all kinds of lathe-turning operations, such as internal orexternal cylindrical surfaces,conical surfaces, surfaces ofrevolution, and end surfaces as well asmetric thread, inch screw thread, modulus and diametrical pitch thread, They can also broach oilgrooves and key grooves.

Product Features:

New Appearance

The upgraded version of the appearance is a perfect hybrid of ergonomic design and sophisticated configuration of machine.
The product quality has been enhanced by adoption of new materials.

Easy Operation

The handles and hand wheels are designed intuitively so that the machine is easy to operate, good for hand feeling and user-friendly. Fault operations for machine could be reduced
effectively by the highlighted color and reasonable machine layout.

Powerful Cutting

CW6180B is a base-model machine product with a bed width of 600mm. The integral floor-type bed combined with stable diagonal bar construction is adopted to the high structural rigidity in its class. Large torque cutting can be realized by a large torque motor (11kW) combined with an optimized reduction speed headstock.

Reliable Performance

The machine is made with advanced manufacturing equipment.
The production process strictly follows SOP and is under strict control of IS09000 QC system so as to ensure its reliab machining performance.

Product Details:

SMTCL Universal Lathe CW6180B Heavy Duty Engine Lathe 600mm Bed Width Turning Lathe 1

Product Paramenters:
Item
Unit
CW6180B
Max. Swing diameter over bed
mm
Φ800
Max. Swing diameter over turret
mm
Φ480
Max.Length of workpiece
mm
1500/3000
Max swing diameter and effective width in gap
mm
Φ1000/310
Spindle bore diameter and type of spindle head

Φ104/D11
Taper of spindle nose and center

120, 1:20. Morse 5#
Steps and range of spindle speeds
r/min
18 speeds 5.4-720
Steps and range of longitudinal feeds
mm/r
64 feeds 0.06-24.3
Range 1:1
mm/r
0.1-1.52
Range 16:1
mm/r
1.6-24.3
Range of fine feed with change gears
mm/r
0.05-0.912
Ration of cross feed to longitudinal feed

1/2
Rapid traverse of saddle
mm/min
4000
Pitch of lead screw

12 (Metric):1/2'' (Inch system)
Number,range of Metric
mm
50 kinds  1-240
Thread Number, range of Whitworth thread
t.p.i
26 kinds 14-1
Number,range of module
mm
53 kinds 0.5-120
ThreadNumber, range of diametral pitch thread
DP
24 kinds 28-1
Max. Transverse travel of lower slide
mm
500
Max.Travel of top slide
mm
200
Travel of tailstock quill
mm
250
Taper of tailstock quill

Morse 5#
Bed guideway width and hardness of quenching
mm
550 RC52
Main motor power
KW
11/15
Rapid motor power
KW
1.1
Power of coolant pump motor
W
180
Net weight
kg
4900
Overall dimension
mm
3660x 1450x 1630
Max. Load of workpiece
T
2.5(standard configuration)
Standard configuration:
1.Main motor: YE3-160M-4 11kW
2.Fast motor: NJ12-4
3.Cooling pump: YSB2-50
4.Chuck: K11 315C/ A211
5.Main shaft bearing:
(1)NN3032K/P5 160X240X60
(2)NN3026K/P5 130X200X52
(3)6028 140X210X33
Selective configuration:

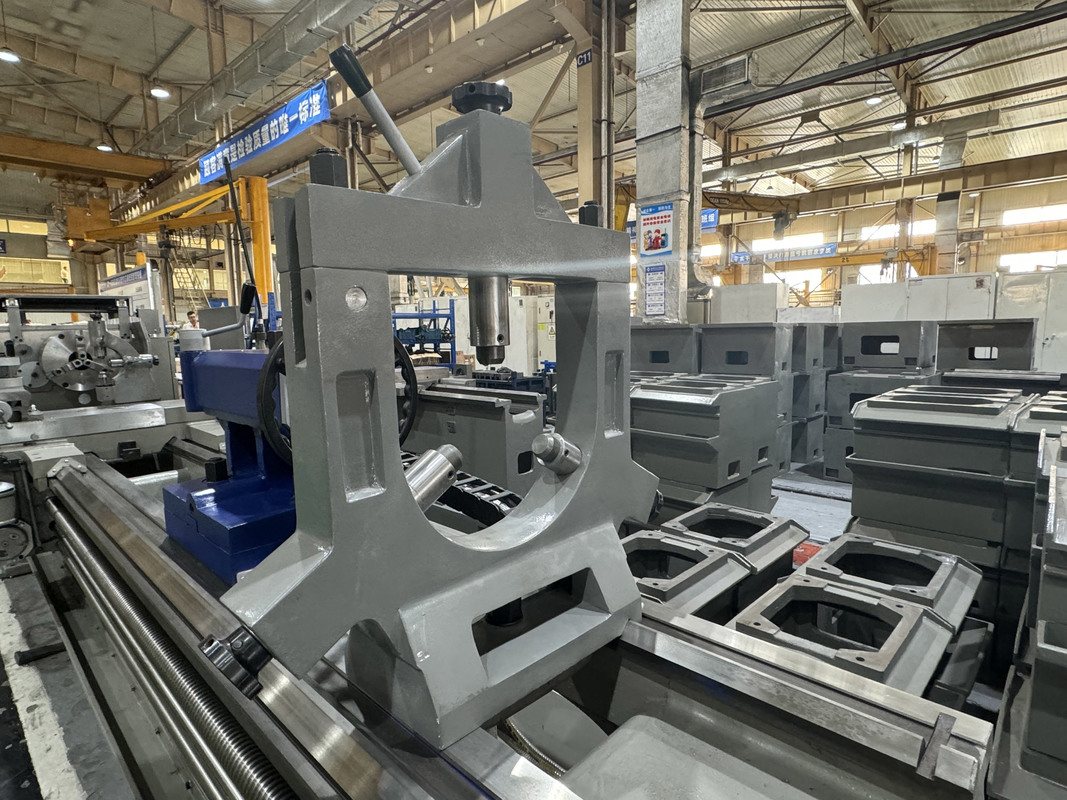

1.Steady rest Φ40-Φ350
2.Follow rest Φ50-Φ220
3.Φ400mm 3-jaw chuck
4.Φ500mm 3-jaw chuck
5.Φ400mm 4-jaw chuck
6.Φ500mm 4-jaw chuck
7.Φ630mm 4-jaw chuck
8.Live centers Morse NO.5
9.Φ650mm face plate

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL Universal Lathe CW6180B Heavy Duty Engine Lathe 600mm Bed Width Turning Lathe 2
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:

SMTCL Universal Lathe CW6180B Heavy Duty Engine Lathe 600mm Bed Width Turning Lathe 3

Exhibition:

SMTCL Universal Lathe CW6180B Heavy Duty Engine Lathe 600mm Bed Width Turning Lathe 4

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
