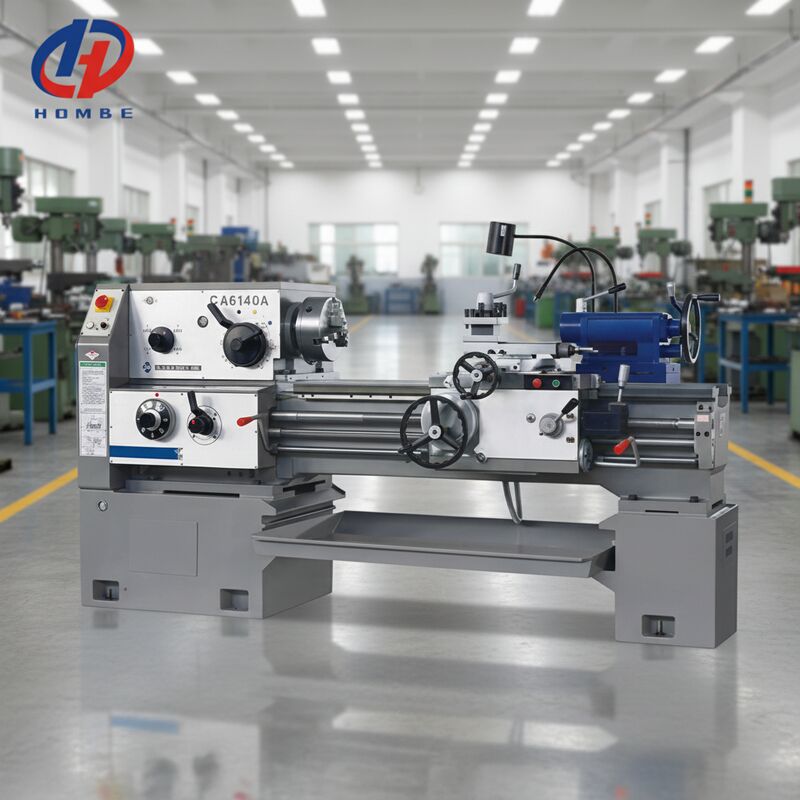

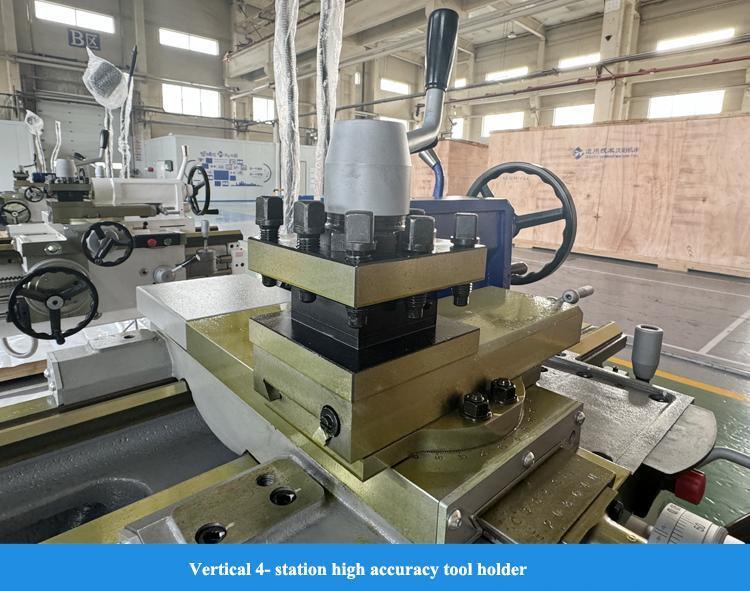

SMTCL High Precision High Rigidity Metal Flange Cutting Ordinary Lathe CA6140a/1000mm Manual Lathe

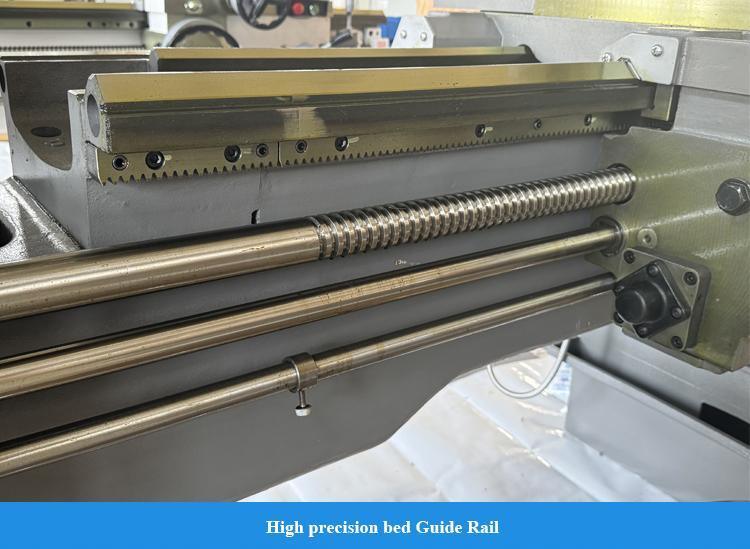

CA6140A ordinary lathe This lathe is suitable for turning internal and external cylindrical surface, conical surface and other rotating surface, turning all kinds of metric, imperial, modular and diameter pitch threads, and can drill and pull oil groove and other work. CA series products, based on the "A" model, derive several deformation products. The bed is wider than the general lathe, with high stiffness, the guide rail surface is quenched, durable and wear-resistant.
Product Features:
- Novel appearance The appearance design of the machine tool integrates the ergonomic concept into the mature machine structure, enhances the operation, uses the striking red and gray stamping parts, and the overall appearance is beautiful.
- Complete specifications CA series products have complete specifications and a wide range of categories. Including straight bed lathe, saddle bed lathe and large bore lathe.
- Complete functions CA series lathe can bear a variety of materials end, inside and outside E1 column, cone and other rotating surface turning processing. More accurate processing of a variety of metric, imperial, modular, diameter pitch threads. In addition, drilling, hairpin holes, pulling oil guns and other work can also be easily qualified.

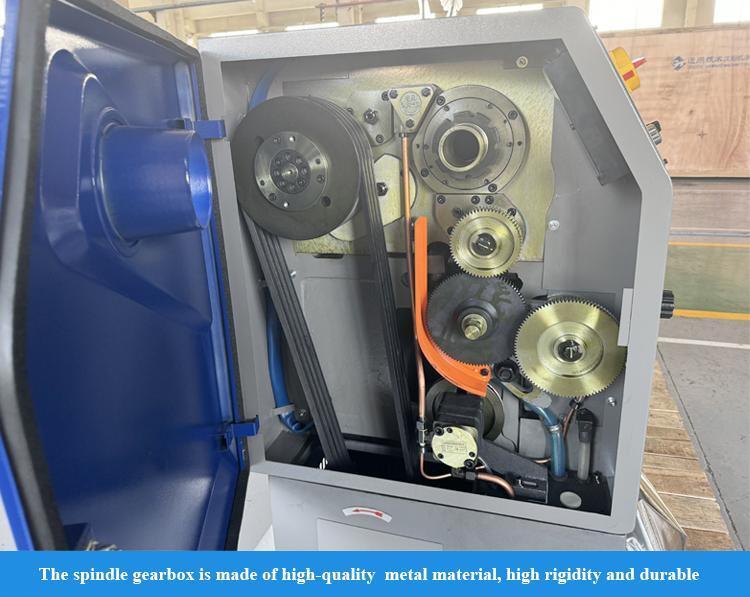

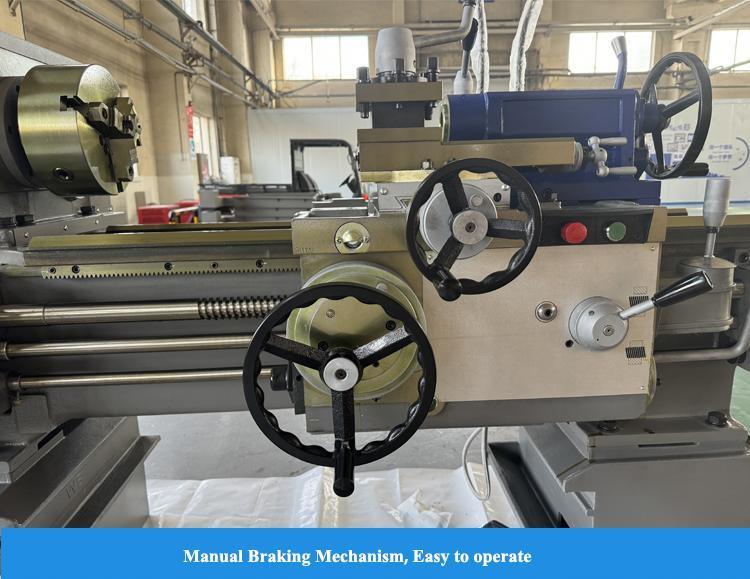

- Excellent performance The 40A series ordinary lathe is equipped with a large diameter spindle front bearing and has a wider bed span than similar products, achieving a higher structural difference and achieving new levels of performance.
Product Details:
Product Paramenters:
| Item |
Unit |
CA6140A/ CA6240A |
CA6150A/CA6250A |
|
| Max.swing dia over bed |
mm |
400 |
500 |
| Max.swing dia over carriage |
mm |
210 |
300 |
| Max swing dia over gap/ Width of gap |
mm |
630*210 |
720*210 |
| Max workpiece length |
mm |
750/650;1000/900;1500/1400;2000/1900 |
| Width of bed / hardness mm |
mm |
400, Rc52 |
| Section of turning tools |
mm |
25x25 |
| Spindle speed range |
r/min |
11-1600(24) |

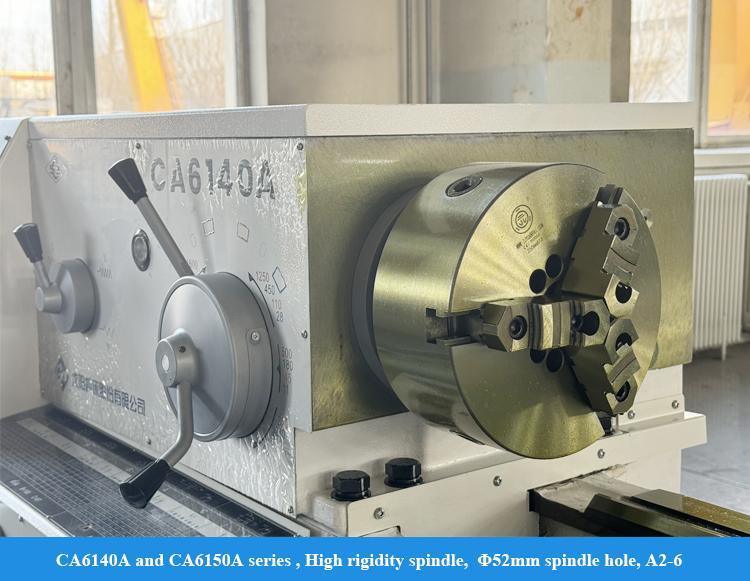

| Spindle bore and nose |
mm |
52 A6 |
| Taper of spindle nose |
|
Morse 6# |
| Range of longitudinal feed |
Standard |
mm/r |
0.08-1.59 |
0.08-1.59 |
| small feed |
mm/r |
0.028-0.054 |
0.028-0.054 |
| enlarge feed |
mm/r |
1.71-6.33 |
1.71-6.33 |
| Rang of cross feed |
Standard |
mm/r |
0.04-0.79 |
0.04-0.79 |
| small feed |
mm/r |
0.014-0.027 |
0.014-0.027 |
| enlarge feed |
mm/r |
0.86-3.16 |
0.86-3.16 |
| Travel of cross slide / top turret travel |
mm |
320/140 |
| Swiveling angle of compound slide |
degree |
±90 |
| Rapid travel carriage |
m/min |
4 |
| Rapid travel of cross slide |
m/min |
2 |

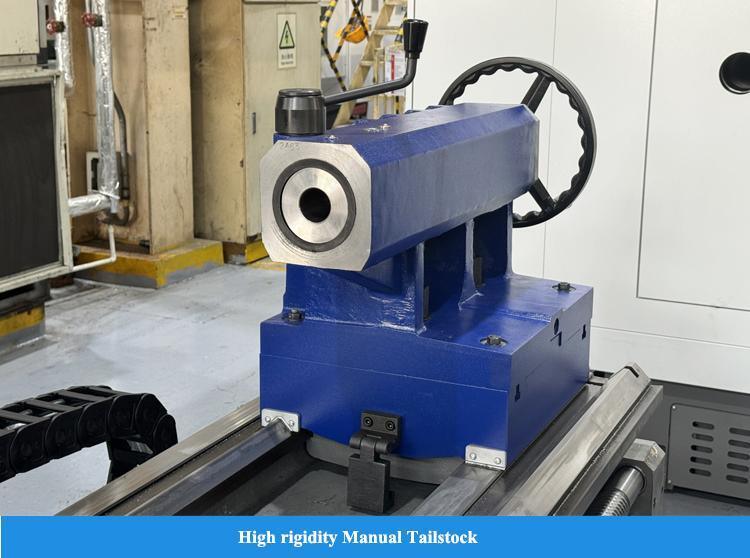

| Travel of tailstock spindle |
mm |
150 |
| Diameter of tailstock spindle |
mm |
75 |
| Taper of tailstock spindle |
|
Morse 5# |
| Metric thread(kinds) |
mm |
1-192(44) |
| Whitwhorth thread(kinds) |
t.p.i |
2-24(21) |
| Modular thread(kind) |
mm |
0.25-48(39) |
| Diameter Pitch(kinds) |
D.P |
1-96(37) |
| Main motor |
kW |
7.5 |
| New weight of machine |
750mm |
kg |
1990 |
|
| 1000mm |
kg |
2070 |
2140 |
| 1500mm |
kg |
2220 |
2290 |
| 2000mm |
kg |
2570 |
2640 |
| Overall dimensions(L*W*H) |
750mm |
mm |
2418*1000*1267 |
|
| 1000mm |
mm |
2668*1000*1267 |
2668*1037*1312 |
| 1500mm |
mm |
3168*1000*1267 |
3168*1037*1312 |
| 2000mm |
mm |
3668*1000*1267 |
3668*1037*1312 |
|
CA6140A and CA6240A
Standard configuration:
Spindle bore dia. :Φ 52mm
1. Spindle nose type:A6
2. Chuck : Φ 250mm three jaw chuck
3. Taistock tape: Morse 5
4. Dead center
5. Working lamp
6. Oil gun
7. Tool box
8. Adjustable iron pad
|
CA6140A and CA6240A
Selective configuration:
1. Φ 315mm manual three jaw chuck
2. Φ 250mm manual four chuck
3. Φ 315mm manual four jaw chuck
4. Steady rest Φ 20- Φ125mm
5. Steady rest Φ100-Φ205mm
6. Follow rest Φ20-Φ80mm
7. Live center Morse 5 or Morse 4
8. Chuck protection
9. Rear chip screen
10. Digital display
|
|
CA6150A and CA6250A
Standard configuration:
Spindle bore dia. :Φ 52mm
1. Spindle nose type:A6
2. Chuck : Φ 250mm three jaw chuck
3. Taistock tape: Morse 5
4. Dead center
5. Working lamp
6. Oil gun
7. Tool box
8. Adjustable iron pad
|
CA6150A and CA6250A
Selective configuration:
1. Φ 315mm manual three jaw chuck
2. Φ 400mm manual four jaw chuck
3. Φ 250mm manual four chuck
4. Φ 315mm manual four jaw chuck
5. Φ 400mm manual four jaw chuck
6. Steady rest Φ 20- Φ125mm
7. Steady rest Φ125-Φ250mm
8. Follow rest Φ20-Φ80mm
9. Live center Morse 5 or Morse 4
10. Chuck protection
11. Rear chip screen
12. Digital display
|
