Heavy Duty Lathe for Large Metal Parts CQW61100F Large Swing Powerful Cutting Heavy Duty Lathe

Brand Name: HD
Model Number: CQW61100F
Place of Origin: China
Certification: CE ISO
Minimum Order Quantity: 1 Set
Price: Negotiable
Supply Ability: 50 Sets per Month
Tags

Manual Lathe Machine

Horizontal Conventional Lathe Machine

Heavy Duty Manual Lathe

Product Details

Brand: HD Type: CQW61100F
Product Name: Heavy Manual Lathe Max.swing Diameter Over Bed: 1000mm
Max.swing Diameter Over Carriage: 680mm Width Of Bed: 600mm
Max.length Of Workpiece: 600mm-15000mm Spindle Bore Diameter: ф104mm
Highlight

Cost-effective

,

High rigidity

,

Heavy cutting

Product Description

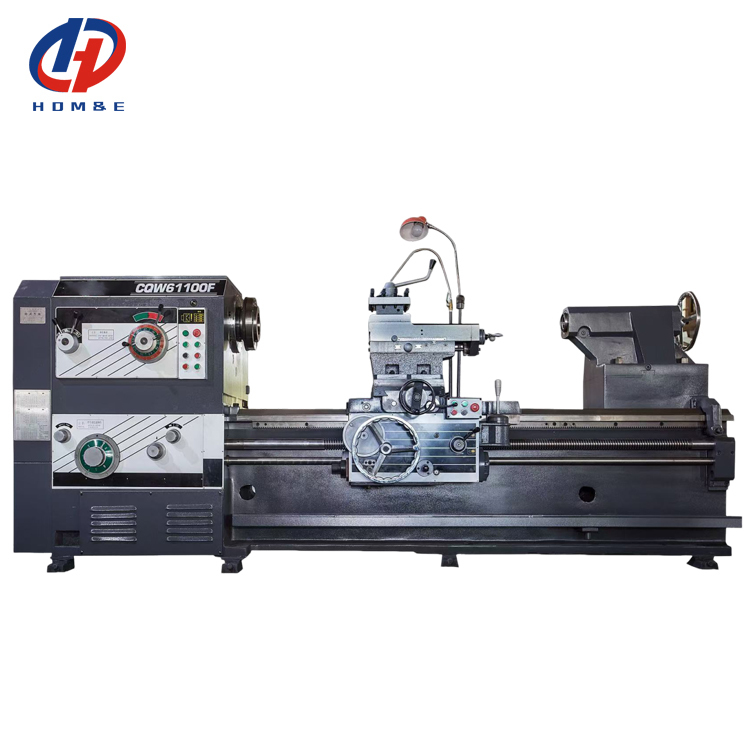

Heavy Duty Lathe for Large Metal Parts CQW61100F Large Swing Powerful Cutting Heavy Duty Lathe 0

Product Description:

Heavy Duty Lathe for Large Metal Parts CQW61100F Large Swing Powerful Cutting Heavy Duty Lathe
The CQW61100F horizontal lathe is specially designed for the processing of heavy-duty parts. It has a maximum rotary diameter of 1000mm and supports four-speed stepless regulation ranging from 17 to 1000r/min, which can meet the requirements of rough and finish machining. The bed is made of high-strength castings cast by resin sand. The guide rails have undergone ultrasonic frequency quenching and precision grinding, featuring excellent wear resistance and precision retention, and can withstand heavy cutting. The diameter of the main shaft through hole is 104mm. Combined with a high-torque motor, it is suitable for powerful turning of ferrous and non-ferrous metals. It is applicable to the processing of large components in industries such as energy and shipping.

Product Details:

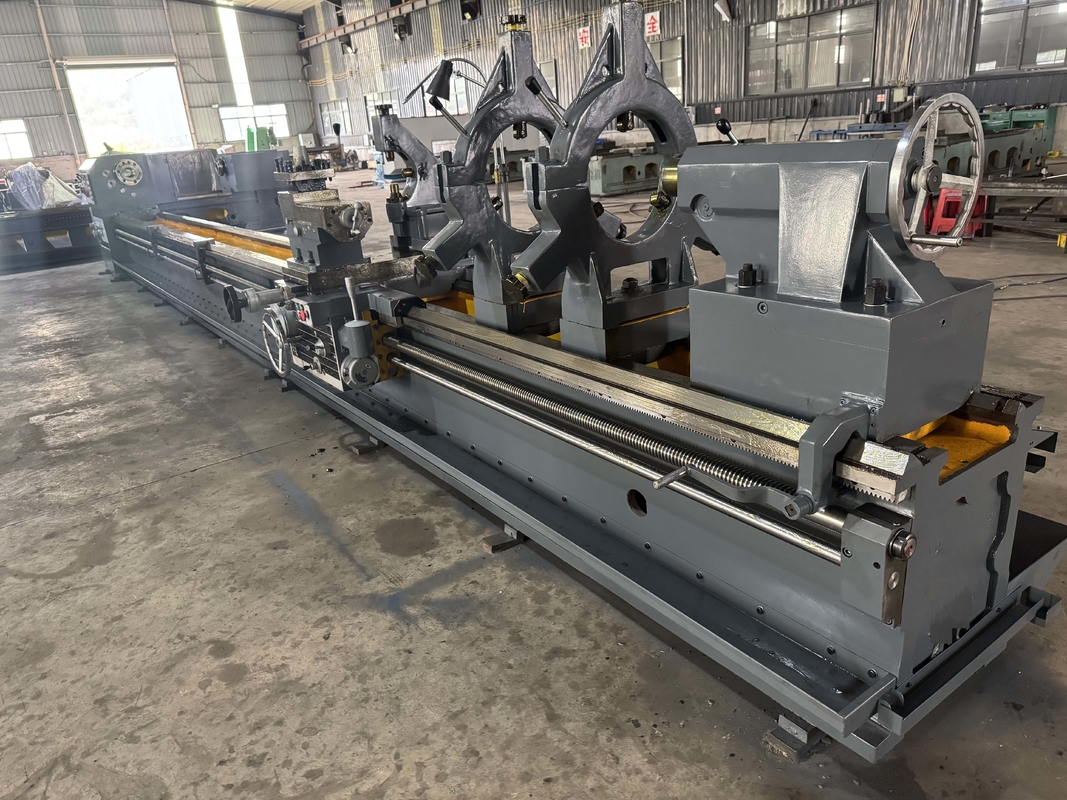

Heavy Duty Lathe for Large Metal Parts CQW61100F Large Swing Powerful Cutting Heavy Duty Lathe 1

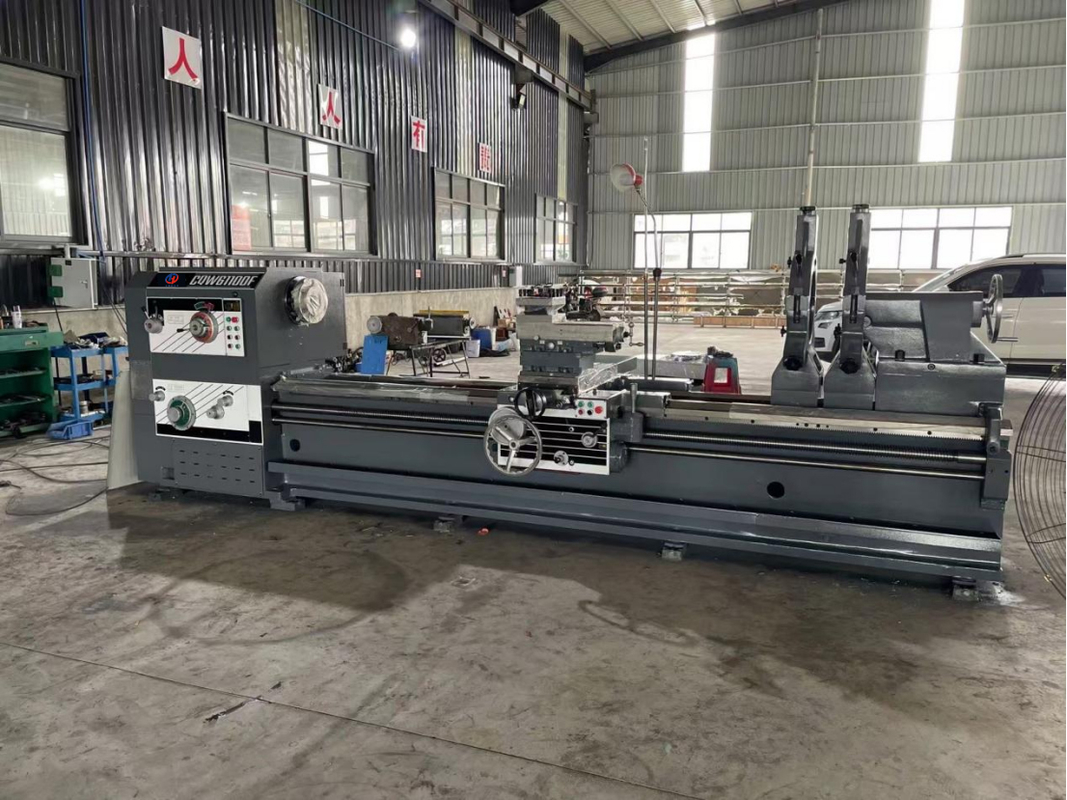

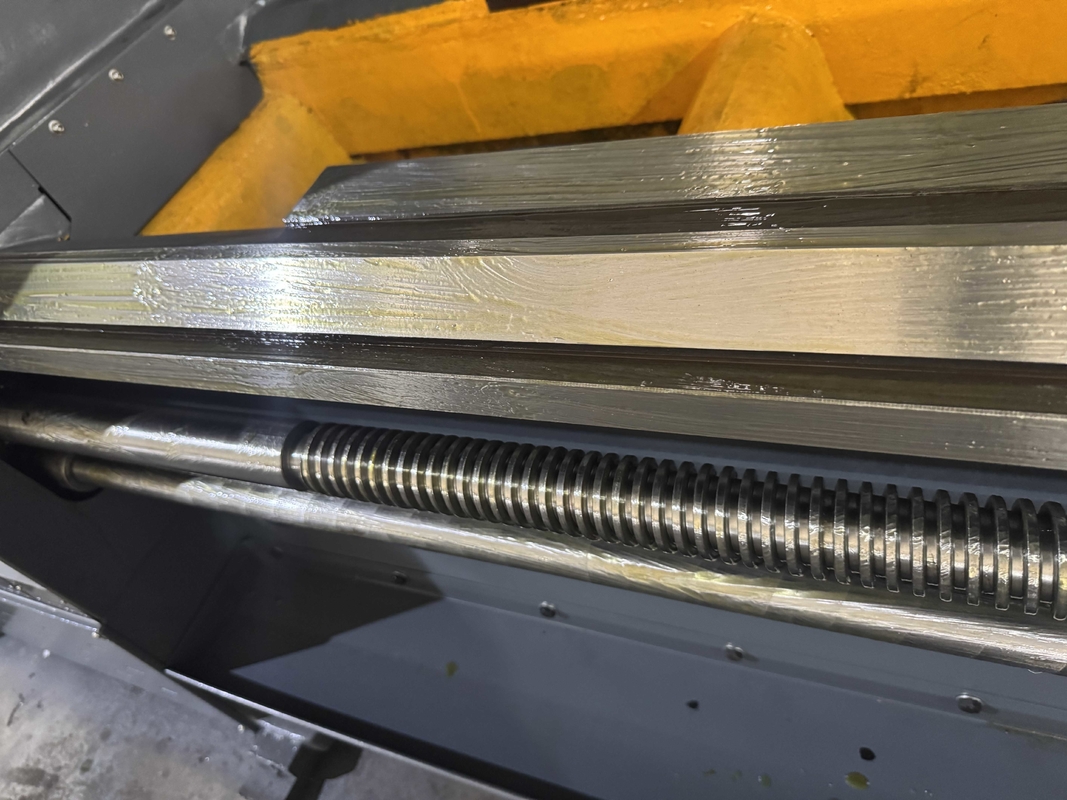

Heavy Duty Lathe for Large Metal Parts CQW61100F Large Swing Powerful Cutting Heavy Duty Lathe 2Heavy Duty Lathe for Large Metal Parts CQW61100F Large Swing Powerful Cutting Heavy Duty Lathe 3

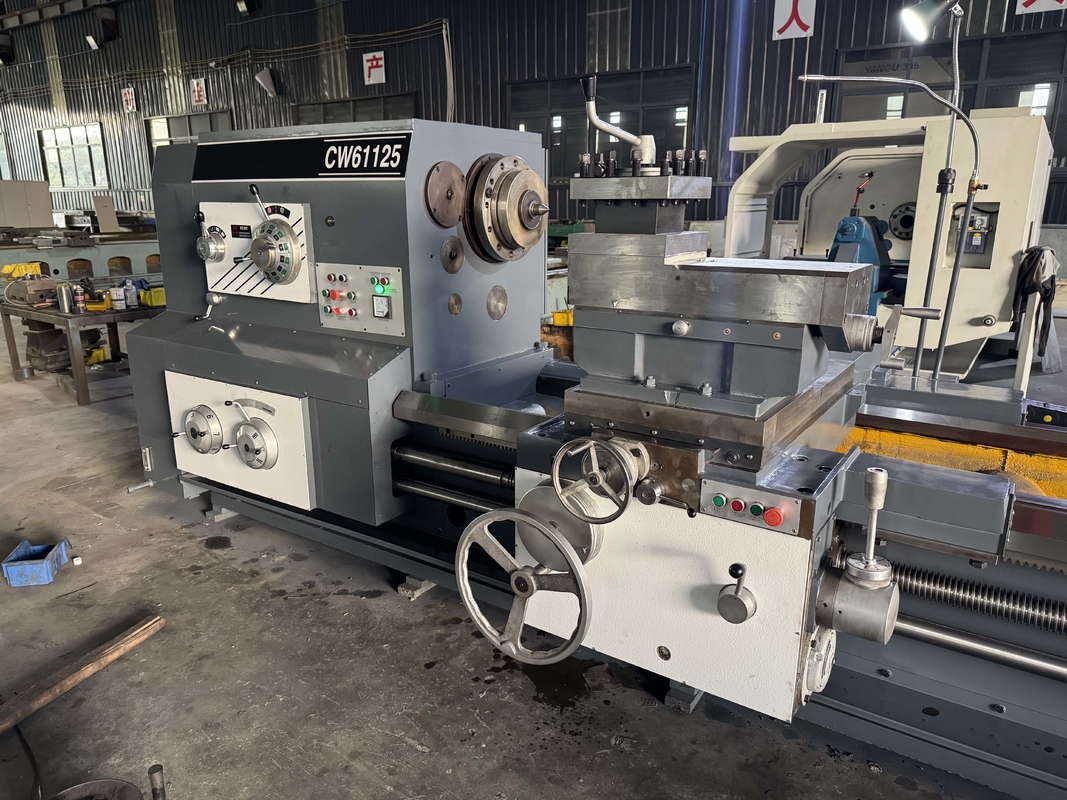

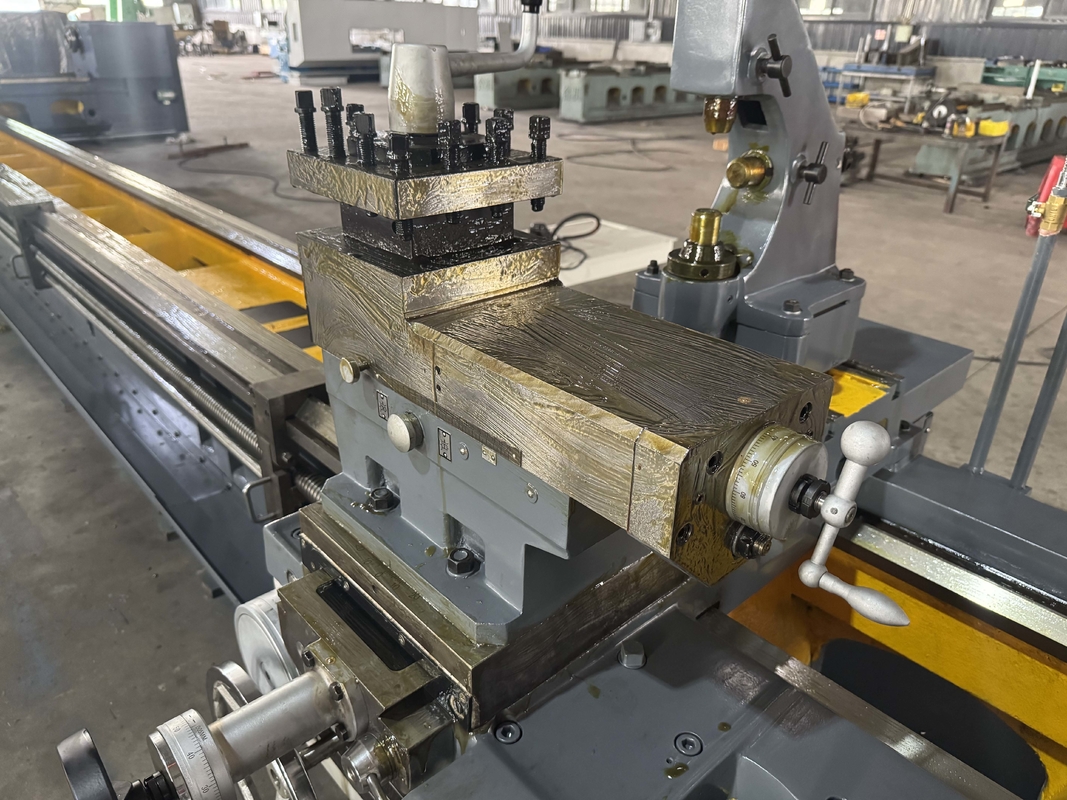

Heavy Duty Lathe for Large Metal Parts CQW61100F Large Swing Powerful Cutting Heavy Duty Lathe 4Heavy Duty Lathe for Large Metal Parts CQW61100F Large Swing Powerful Cutting Heavy Duty Lathe 5

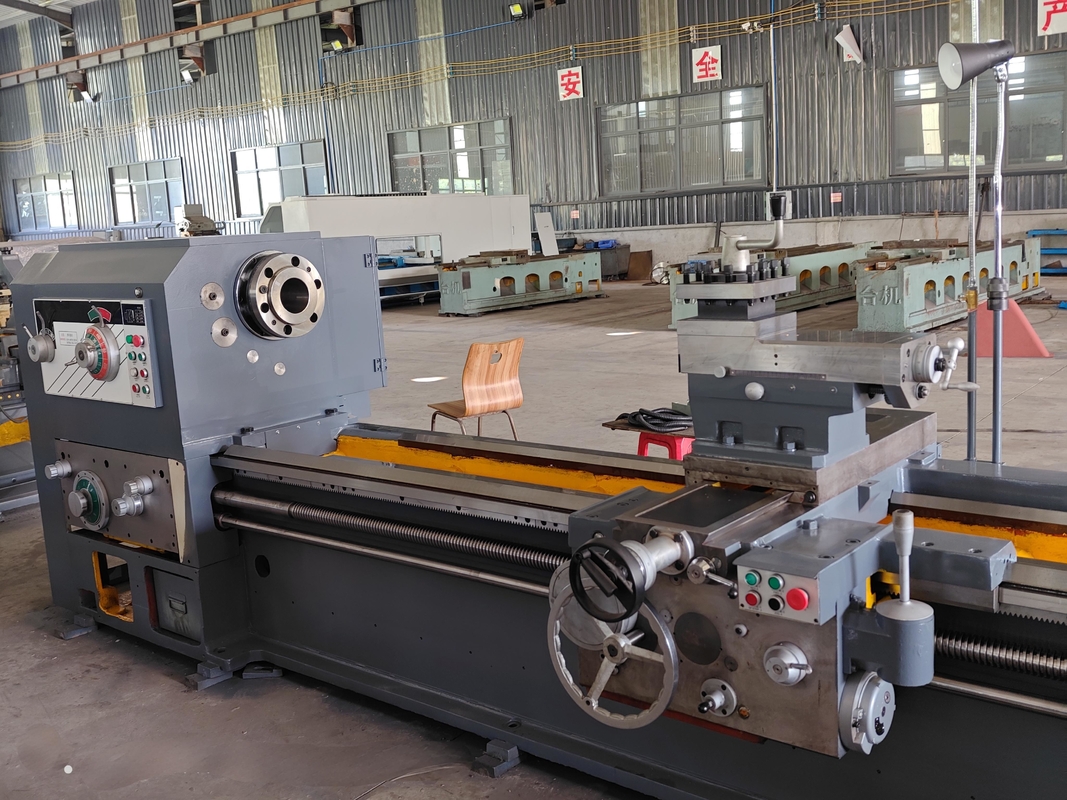

Heavy Duty Lathe for Large Metal Parts CQW61100F Large Swing Powerful Cutting Heavy Duty Lathe 6Heavy Duty Lathe for Large Metal Parts CQW61100F Large Swing Powerful Cutting Heavy Duty Lathe 7

Product Paramenters:

SPECIFICATION
Unit
CQW61100F
CQW61110F
CQW61120F
Max.swing over bed
mm(inch)
1000
1100
1200
Max.swing over carriage
mm(inch)
680
780
880
Max.swing in gap
mm(inch)
1220
1320
1420
Max.length of wordpiece
mm(inch)
600,1500,2000,3000,4000,5000,6000,7000,8000,10000,12000,13000,14000,15000
Valid length of gap
mm(inch)
400
Spindle bore
mm(inch)
104
Width of bed
mm(inch)
600
Taper hole in spindle
mm
120
Grades of spindle speeds
Metric
Forward rotation 18,Reverse rotation 6
Ranges of spindle speeds
r/min
4.8~640 5.4~720 6~800
Longitudinal feedes 64 Kinds
mm/(in/r)
0.06~24
Transverse feeds 64kinds
mm/(in/r)
0.03~12
Metric threads 50 kinds
mm
1~240
Whitworth threads 26 kinds
tpi
14~1
Module threads 53 Kinds
mm
0.5~120
Diametral threads 24 kinds
D.P.
28~1
Max.travel of cross slide
mm(inch)
500
Slide rapid traverse speeds
m/min
4
Taper in centre sleeve
Morse
5
Max.travel of centre sleeve
mm(inch)
250
Power of main motor
kw
11/15
Power of rapid motor
kw
1.1
Power of coolant motor
kw
0.125
Overall diamensions (L.M.H)
mm
2745/3650/4150/5150/6150/7150/8380/9105/10285/
12055/14305/15025/16255/17255×1500×1650
Net weg(approx.)
kg
4300;5950;6250:6750;7750:8400;9130:9780;10500;
14200;16200;18200;20000;21800
Standard accessories: Centre sleeve and centre:Φ500mm 4-jaw chuck;General tools.
Note:above 3 metre deploy Φ40-350 centre rest;Φ30-80mm follow rest; General tools.

Optional accessories:Internal and external grinding wheechead;Φ800mm,Φ1000m face plate; Φ500mm 3-jaw chuck;Φ630mm,Φ800 4-jaw independent chuck;Φ250-480 mm centre rest;follow rest;thread chasing dial;live-centre,driver plate

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Heavy Duty Lathe for Large Metal Parts CQW61100F Large Swing Powerful Cutting Heavy Duty Lathe 8
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Heavy Duty Lathe for Large Metal Parts CQW61100F Large Swing Powerful Cutting Heavy Duty Lathe 9

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
