Automatic Production Line HTCSY50-S CNC Turning Center Automated Loading and Unloading CNC Lathe
Product Details
| Brand Name: | SMTCL | Model Number: | HTCSY50-S |
|---|---|---|---|
| CNC Or Not: | CNC | Key Word: | Automatic Production Line |
| Max. Swiming Dia.over Bed: | Φ700 | Max. Turning Diameter:: | Φ350 |
| X Axis Travel: | 200 (diameter 400mm) | Y Axis Travel: | 90 (±45) |
| Z Axis Travel: | 550 | Spindle Speed: | 4000 R/min |
| Highlight |
Automatic Production Line,Automated Loading and Unloading CNC Lathe,CNC Turning Center |
||
Product Description
Product Description:
Automatic Production Line HTCSY50-S CNC Turning Center Automated Loading and Unloading CNC Lathe

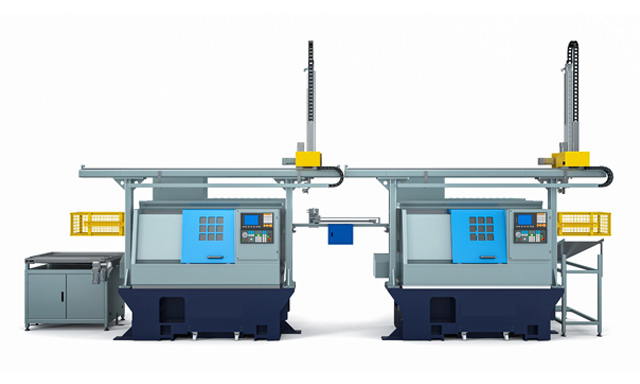

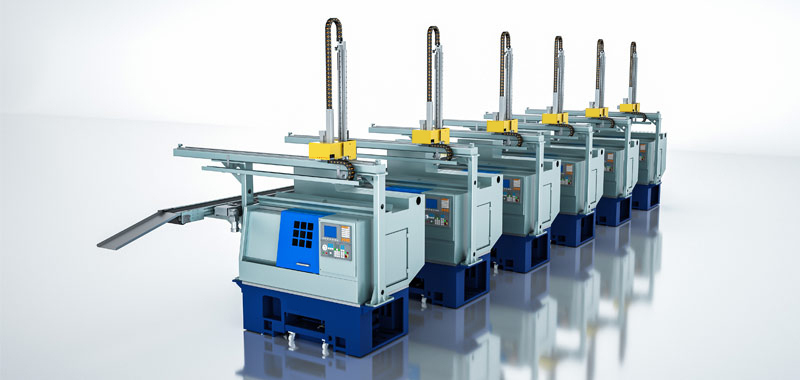

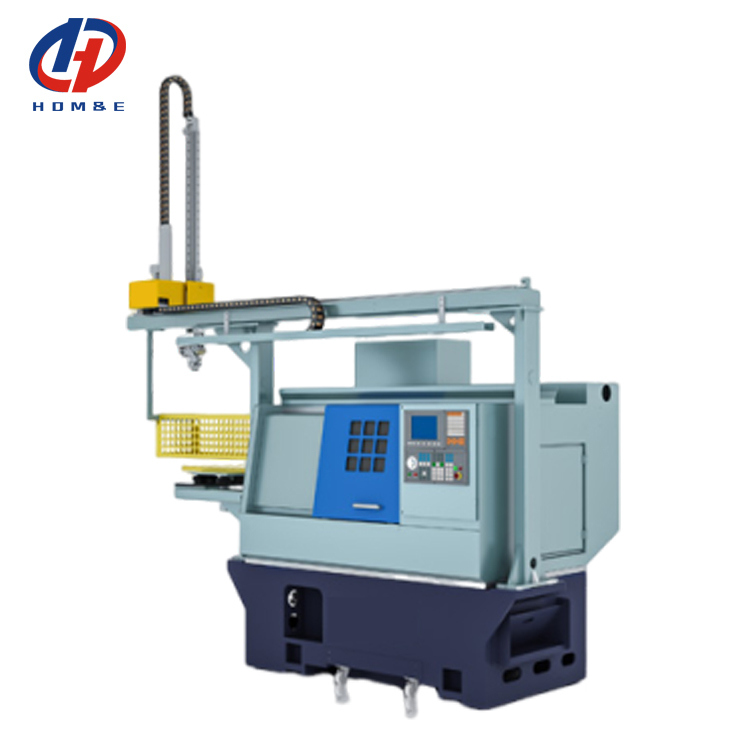

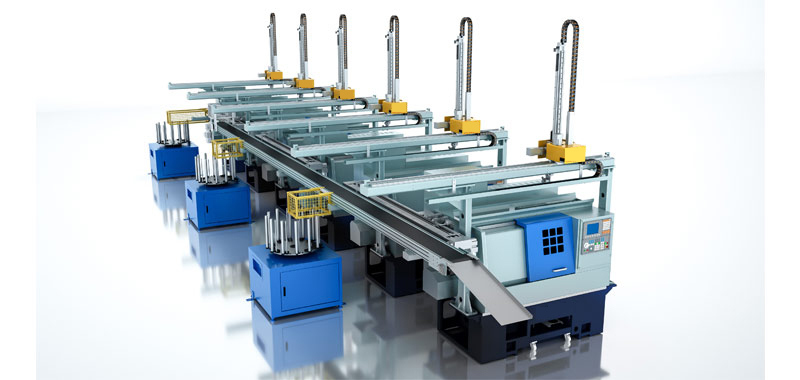

Solution Introduction: The solution adopts an integrated design of the mechanical arm and the machine tool to achieve automated loading and unloading. The integration of the machine tool and the mechanical arm is achieved through a dual-channel CNC controller, ensuring stable operation. The automation uses full servo control, featuring fast operation speed, accurate positioning, and the ability to run 24 hours a day without the need for dedicated personnel to stand by. The design structure is compact, easy to move and space-saving.
Product Features:
- High efficiency: 24-hour operation, precise control of production capacity, effective increase in output, and cost reduction
- High quality: Accurate positioning, effectively reducing the defect rate
- Safe and reliable: Simple operation, reasonable protection, and small floor space
Product Details:
Product Parameters:
| Item | Units | HTCSY52-S |
| Power: | 3P | 380V/50Hz |
| Max. swing over bed diameter: | mm | Φ700 |
| Max. turning diameter: | mm | Φ350 |
| X axis travel: | mm | 200 (diameter 400mm) |
| Z axis travel: | mm | 550 |
| Y axis travel: | mm | 90 (±45) |
| X/Z axis rapid traverse speed: | m/min | 25 |
| Main spindle chuck size: | “ | 8 |
| Main spindle taper: | / | A2-6 |
| Main spindle through hole diameter: | mm | Φ65 |
| Main spindle max bar size: | mm | Φ52 |
| Main spindle max. speed: | r/min | 4000 |
| Main spindle motor: | kW | 11 |
| Sub-spindle chuck size: | “ | 6 |
| Main spindle taper: | / | A2-5 |
| Sub-spindle hrough hole diameter: | mm | Φ55 |
| Sub-spindle max. speed: | r/min | 4000 |
| Sub-spindle motor: | kW | 11 |
| Slant bed degree: | ° | 30 |
| Turret with live head: | / | 12 tool holder, BMT55 |
| Power capacity: | kW | 30 |
| Overall dimension: L*W*H | mm | 3030*2045*2050 |
| Machine weight(about): | kg | 4800 |
| Main part brand: | ||
| Item | Qty | Brand |
| Control system: | 1 | SYNTEC |
| X/Z/Y axis motor/driver: | 3 | SYNTEC |
| Main spindle motor/driver: | 1 | SYNTEC |
| Sub-spindle motor/driver: | 1 | HYSIS |
| X/Z/Y screw: | 3 | PMI |
| X/Z/Y linear guideway: | 3 | PMI |
| Spindle bearing: | 1 | NTN/SKF/KOYO |
| Hydraulic chuck: | 1 | Taiwan |
| Spare parts free of charge: | ||
| Item | Qty | Model No. |
| Tool holder | 3 | Drilling |
| 1 | Axial | |
| 4 | Radial | |
| Live head | 2 | For 0° |
| 2 | For 90° | |
| Optional item price list: | ||
| Item |
Qty | |
| Part catcher for simple automation | 1 | |
| Bath feeder, brand:LNS | 1 | |
| Oil skimmer | 1 | |
| Tool pre-setter, brand: RENISHAW | 1 | |
| Chip conveyor | 1 | |
OUR Service:
- Ensure you receive a high quality machine
- Every parts need be inspected
- Over 100 production process control
- Over 200 inspection items
- Sample processing of each machine
- 72 hours trial run before delivery
Why Choose Us:
- Top quality sense, customers' requests come first
- 30 years + R & D history, the company was founded in 1993
- High-tech manufacturer with research anddesign capacity
- Stable and mature supplying system
- Young active sales and engineers for instant services(24 hours online)
- Upgrading on mechanism according to ergonomics and easy maintenance
- Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
FAQ:
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
