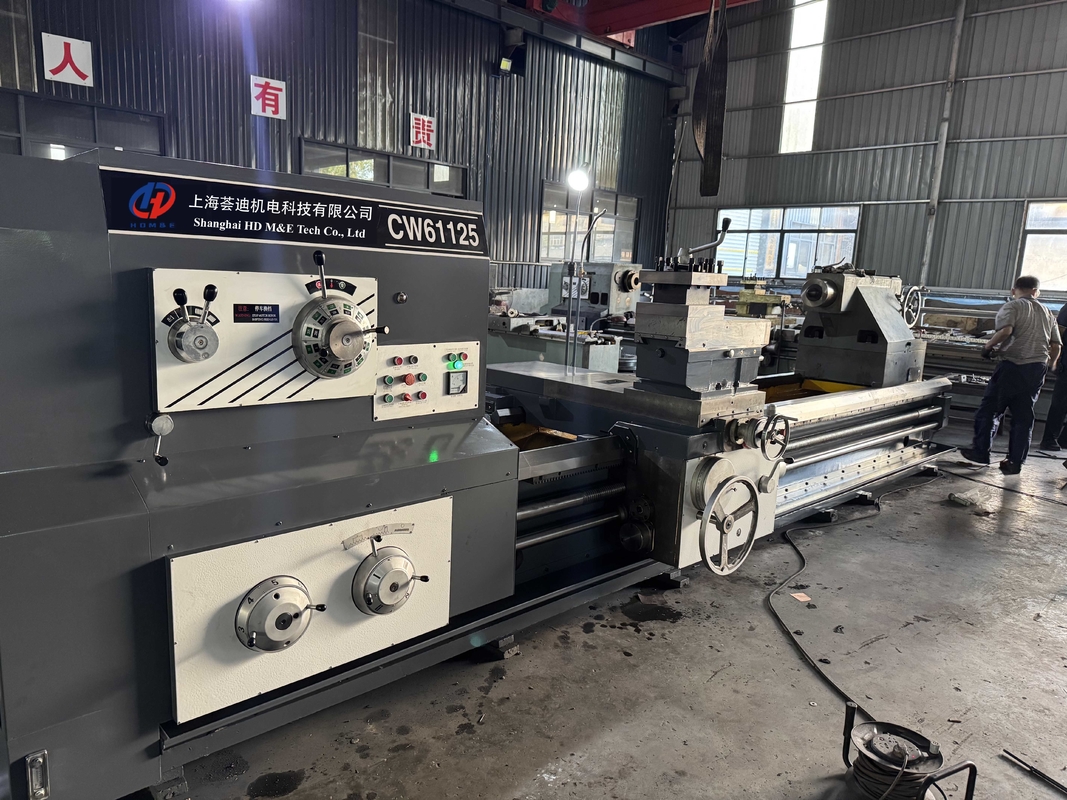

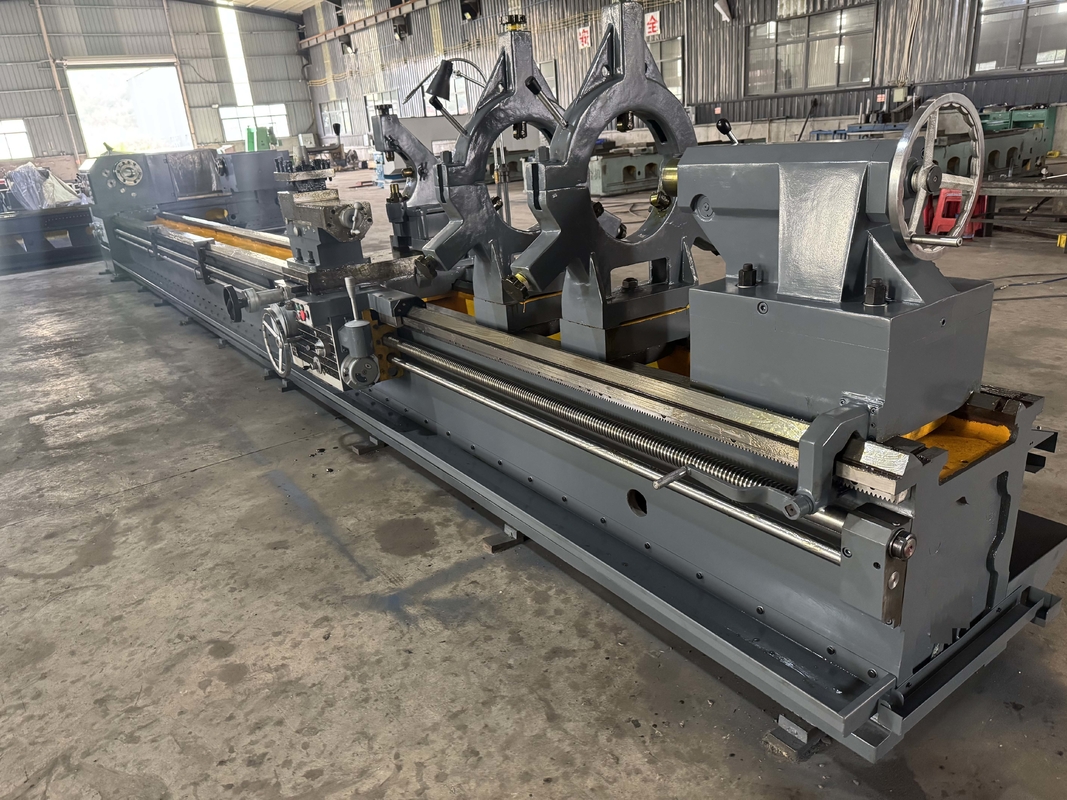

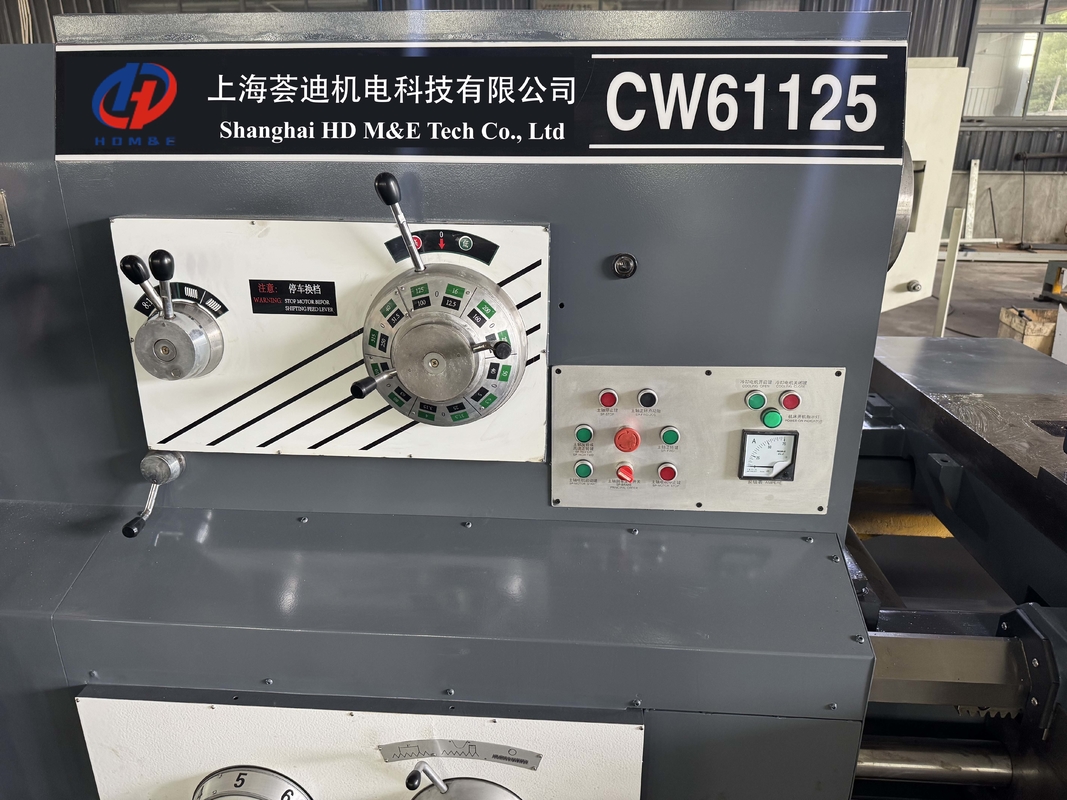

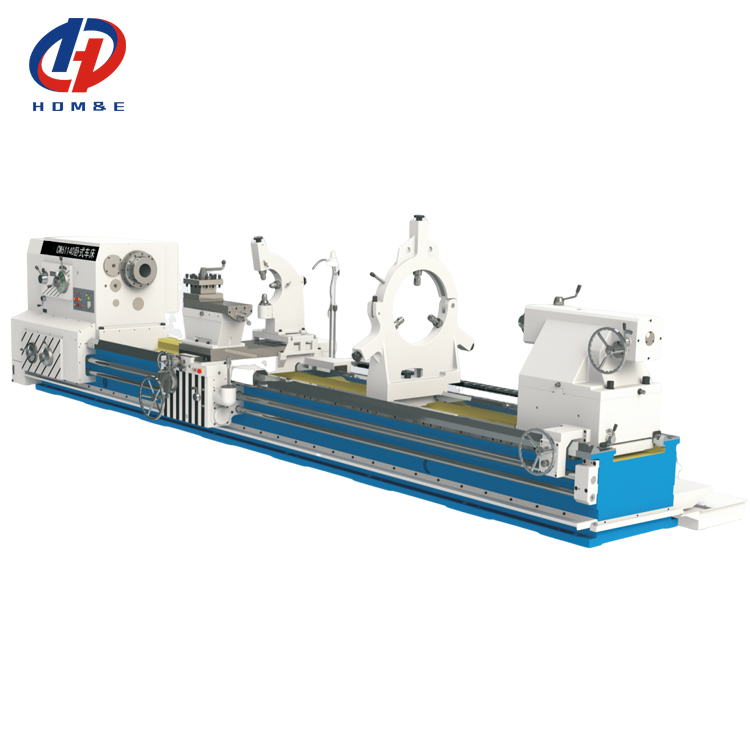

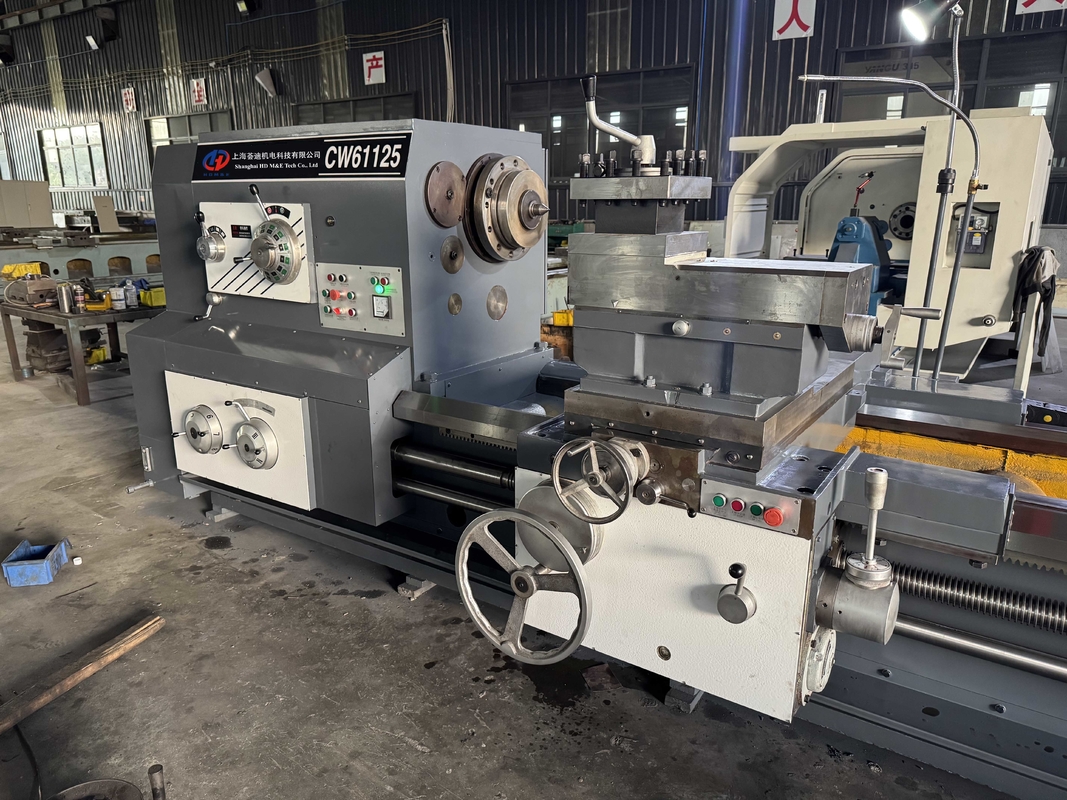

Name: Powerful Heavy Duty Lathe CW61125 Big Spindle Bore 130mm Ordinary Horizontal Engine Lathe
Brand: Shanghai HD M&E Tech Co., Ltd.
SKU: CW61125
Availability: InStock

Home > products > Conventional Lathe Machine >

Powerful Heavy Duty Lathe CW61125 Big Spindle Bore 130mm Ordinary Horizontal Engine Lathe

Turning Big Workpieces Efficiently

Large Swing Powerful Cutting

Industrial Precision Machining

Place of Origin:

China

Brand Name:

Certification:

CE ISO

Model Number:

CW61125

Request A Quote

Product Details

Brand:

Type:

CW61125

Product Name:

Heavy Manual Lathe

Max.swing Diameter Over Bed:

1250mm

Max.swing Diameter Over Carriage:

900mm

Width Of Bed:

970mm

Max.length Of Workpiece:

1000mm-15000mm

Spindle Bore Diameter:

ф130mm

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

Wooden package standard for sea shipping

Delivery Time

30 days

Supply Ability

50 Sets per Month

12m Floor Type Heavy Duty Horizontal Lathe Machine CW6180F Universal Turning Lathe

Get Best Price

Video

Precision Heavy Duty CNC Lathes for Large Diameter Turning Work CQW61110F Engine Lathes

Get Best Price

Video

Heavy Duty Lathe for Large Metal Parts CQW61100F Large Swing Powerful Cutting Heavy Duty Lathe

Get Best Price

Video

CW6180F Heavy Horizontal Ordinary Lathe High-rigidity Guide Rail Width 600mm Floor Manual Lathe

Get Best Price

+8613916455787

sales@huidijd.com

86-021-61195255

Contact Now

Product Description

Powerful Heavy Duty Lathe CW61125 Big Spindle Bore 130mm Ordinary Horizontal Engine Lathe 0

Product Description:

Powerful Heavy Duty Lathe CW61125 Big Spindle Bore 130mm Ordinary Horizontal Engine Lathe

With a super rotating diameter of 1.25 meters and a load-bearing capacity of up to 10 tons, it is specially designed for oversized workpieces such as mine shafts, ship crankshafts, and wind power flanges! Integrated cast iron bed +RC52 quenched guide rail, anti-vibration and wear-resistant, with a 30% increase in service life. Supports full-function turning of metric/imperial/module/diameter pitch threads, integrated hydraulic braking + stepless speed change, efficient and safe operation. The optional extended bed can be extended to 15 meters, and the single machine can solve the processing problems of super-long workpieces in the energy and aviation fields!

Product Details:

Product Paramenters:

Project	Main parameter	Unit	CW61125
Plus work fan around	Max.swing over bed	mm	1250
	Max.swing over carriage	mm	900
	Max.length of wordpiece	mm	1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/15000
	Max.cutting length	mm	850/1350/1850/2850/3850/4850/5850/6850/7850/9850/11850/14850
	Two top max. weight bearing capabilities	kg	10000(15000)
Spindle	Spindle bore	mm	130
	Taper hole in spindle	mm	1:20(140 Metric)
	Main hole in spindle	ISO	A2-15
	Diameter of the front bearing position of the spindle	mm	220
	Number of types of spindle rotation and rotational speed	r/min	21 kinds 3.15-315
	Number of spindle reversals and rotational speed	r/min	21 kinds 5-400
	Power of main motor	kw	22(30)
	Manual chuck diameter	mm	1000
Bed structure	Width of bed	mm	970
	Bed structure	mm	Whole floor bed frame
	Lateral feed	mm	730
	Vertical feed	mm	1000-15000
	Rapid horizontal/vertical movement	m/min	4/8
Enter to fanaround	Longitudinal feedes 64 Kinds	mm/(in/r)	0.1~12
	Transverse feeds 64kinds	mm/(in/r)	0.05~6
	64 feed rates on the upper tool rest	mm/(in/r)	0.025-3
	Metric threads 56 kinds	mm	1~240
	Whitworth threads 56kinds	tpi	30-1/4
	Module threads 53 Kinds	mm	0.5~60
	Diametral threads 24 kinds	D.P.	60-0.5
	The ratio of the feed rate of the upper tool holder to the longitudinal feed rate	mm	1/4
	Machine tool screw pitch	mm	12
	Fast motor power	kw	1.5
Tailseat	Diameter of tailstock sleeve	mm	160(220)
	Tail socket travel	mm	300
	Tailstock sleeve taper hole	mm	Morse 20
	Top socker taper(metric)	metric	Number 6

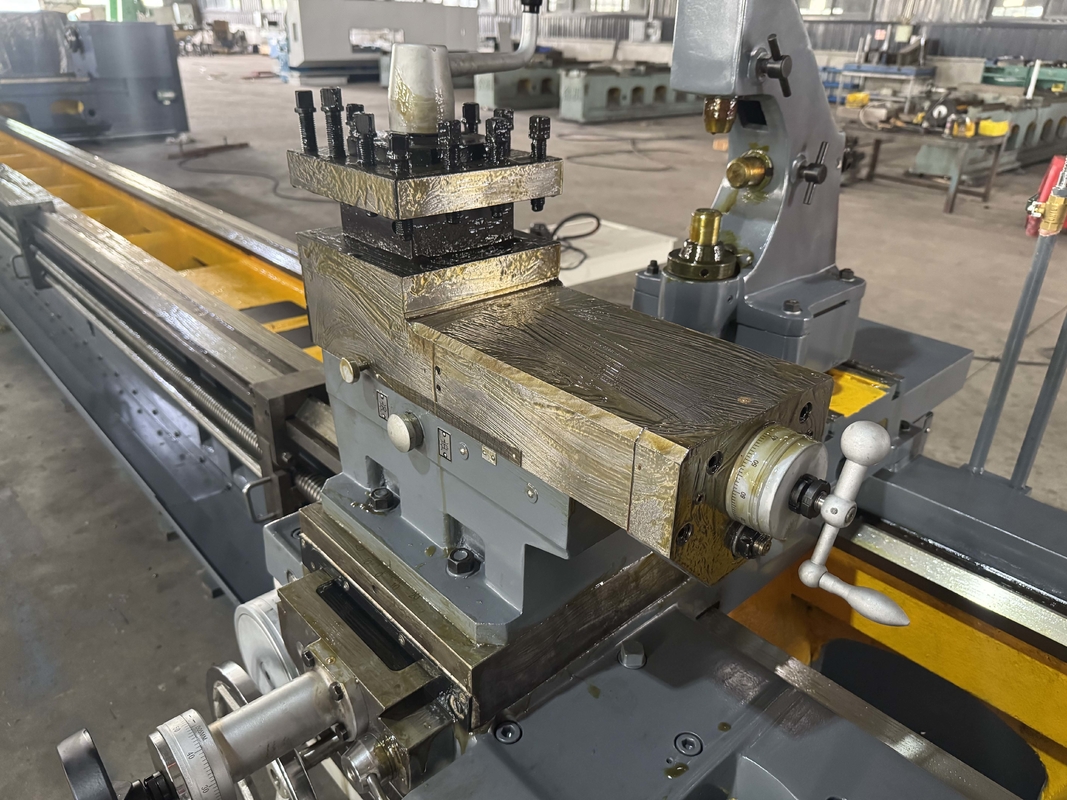

Tool carrier	Knife holder form	type	vertical 4 station
	Cutting tool cross-sectional dimensions	type	45×45
	Rotation angle of knife holder		±90°
	Max. lateral travel of the lower knife holder	mm	500
	Max. lateral travel of upper knife holder	mm	300
	Quick vertical/horizontal movement speed of the tool holder	mm	3740/1870
	Quick movement speed of small knife holder	mm/min	935
	Cooling pump motor power	mm/min	0.125
Inspection items	Processing accuracy	kw	IT6/IT7
	Processing roundness	level	0.008
	Processing workpiece cylindricity	mm	0.03/300
	Processing workpiece flatness	mm	0.033/500
	Roughness	mm	Ra1.6
	Spindle end face	mm	0.008
Machine tool standard accessories: spindle and tail frame top sleeve: Φ1000 four jaw chuck: Adjusting pad iron; Anchor bolt; Cool the water tank. Note:3000mm and above 3000mm with 50-600mm center frame;Φ50-250mm tool holder Optional accessories:Φ1250 four jaw chuck:Φ250-800mm center frame
