Product Description:
SV960L Vertical Machining Center is an advanced and powerful tool for mechanical machining.
It features a sturdy and stable machine body structure, which can maintain excellent rigidity during high-intensity machining, effectively ensuring machining accuracy. This machining center has a large working stroke and a spacious worktable surface, capable of easily handling the machining tasks of large workpieces. Its high-precision spindle system has a wide range of rotational speeds and high torque, meeting the cutting requirements of different materials and processes.
In terms of the control system, it is convenient to operate and powerful in functions, enabling efficient programming and machining of complex parts. Meanwhile, it is equipped with reliable lubrication and cooling systems to reduce equipment wear and thermal deformation. Whether in the fields of aerospace, automobile manufacturing or mold machining, the SV960L can deliver outstanding performance.

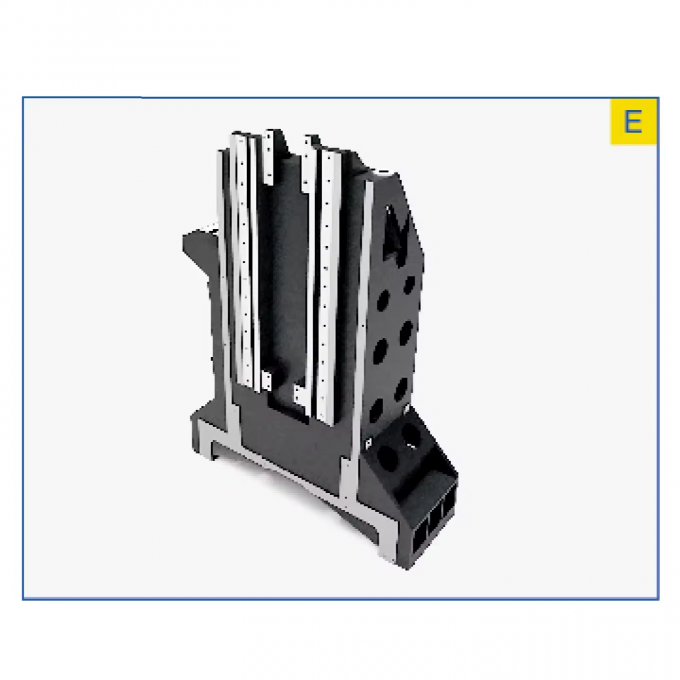

1,The main large parts of the machine tool: base, workbench, column, bed saddle, spindle box are made of high-quality resin sand modeling, high strength high-quality cast iron, with perfect heat treatment process to eliminate residual stress, and layout of enough reinforcement plate, to ensure that the machine has enough strength, rigidity and high stability;

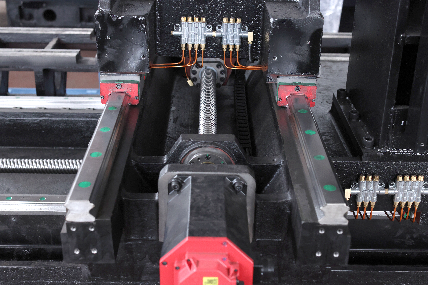

2,Using Taiwan original heavy duty linear guide rail, strong rigidity, good dynamic accuracy;
3,Three-axis transmission using Taiwan grinding double nut ball screw, compact structure, smooth movement, high precision:

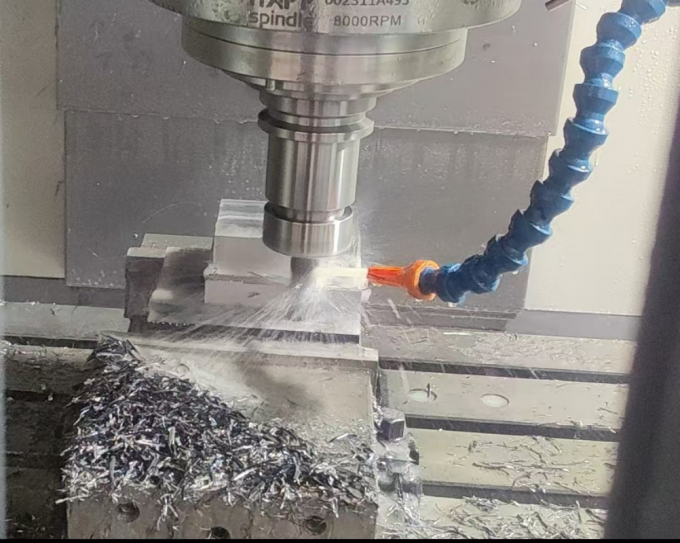

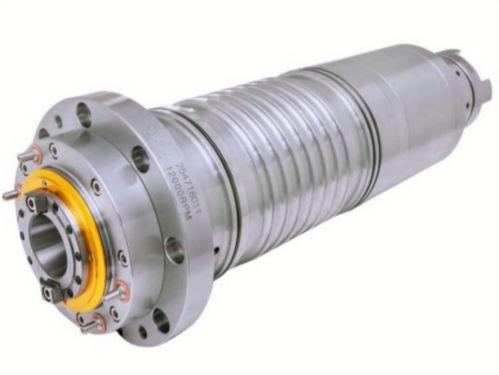

4,High rigidity of Taiwan spindle, using grease lubrication, can make the spindle bearing get constant and reliable lubrication;
5,The base adopts casting large water tray structure, good waterproof performance.

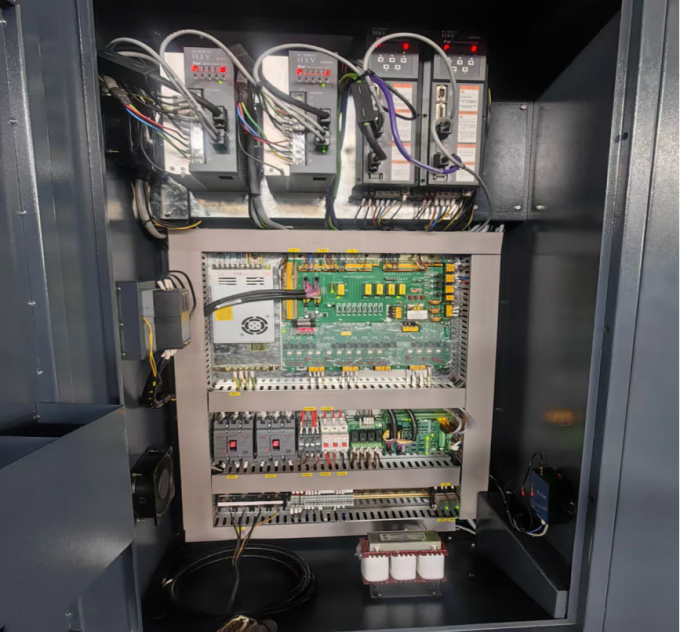

Drive system
1. The three-axis feed adopts advanced servo control;
2. mechanical transmission using direct transmission;
3. transmission components optional precision coupling, extrusion resistance, temperature rise
Industry application:
Product Paramenters:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
