Heavy Vertical CNC Lathe VTC250140H Max.Swing Diameter 3000mm New Energy Bearing CNC Vertical Lathe

Heavy Vertical CNC Lathe VTC250140H Max.Swing Diameter 3000mm New Energy Bearing CNC Vertical Lathe

New Energy Bearing CNC Vertical Lathe

VTC250140H CNC Vertical Lathe

Heavy Vertical CNC Lathe

Place of Origin:

CHINA

Brand Name:

SMTCL

Certification:

CE ISO certification

Model Number:

VTC 250140H

Contact Us
Request A Quote
Product Details
Brand Name:
SMTCL
Model Number:
VTC 250140H
Key Word:
Heavy CNC Vertical Lathe
Diameter Of Workbench:
Φ2500
Max.swing Diameter:
Φ3000
Max.cutting Diameter:
Φ2800
Max. Workpiece Height:
2000
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case,Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T, L/C,, Western Union
Supply Ability
50 sets per month
Product Description

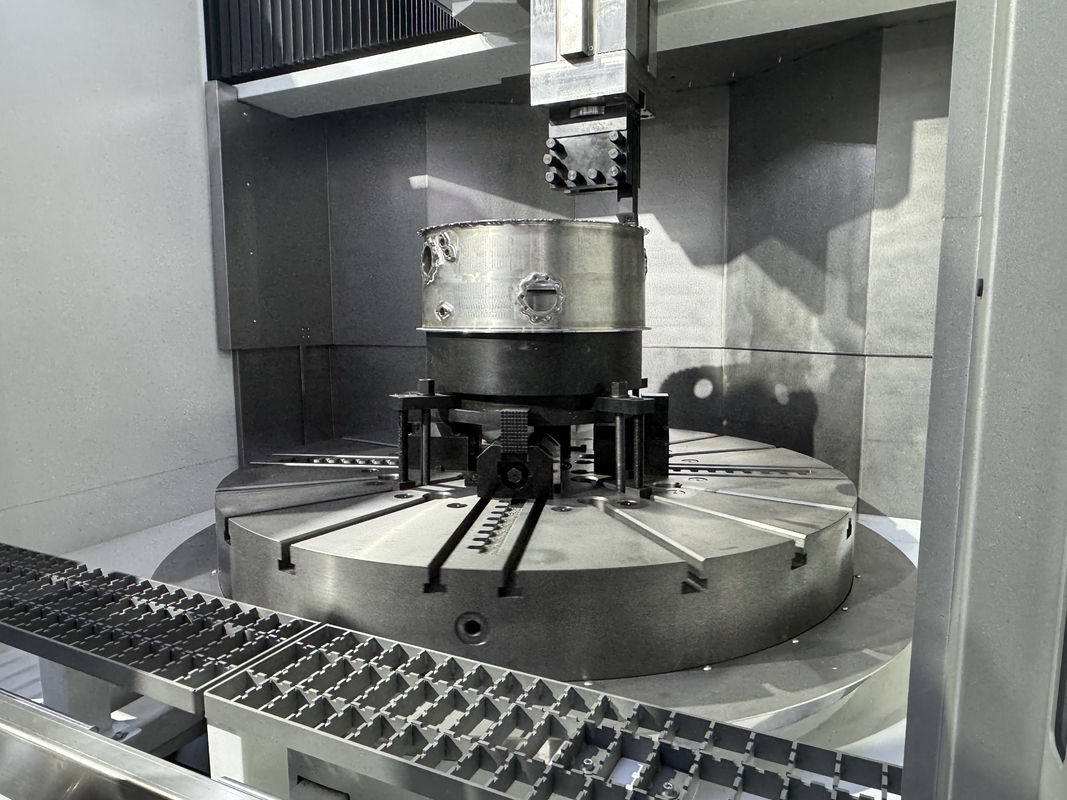

Heavy Vertical CNC Lathe VTC250140H Max.Swing Diameter 3000mm New Energy Bearing CNC Vertical Lathe 0

Product Description:

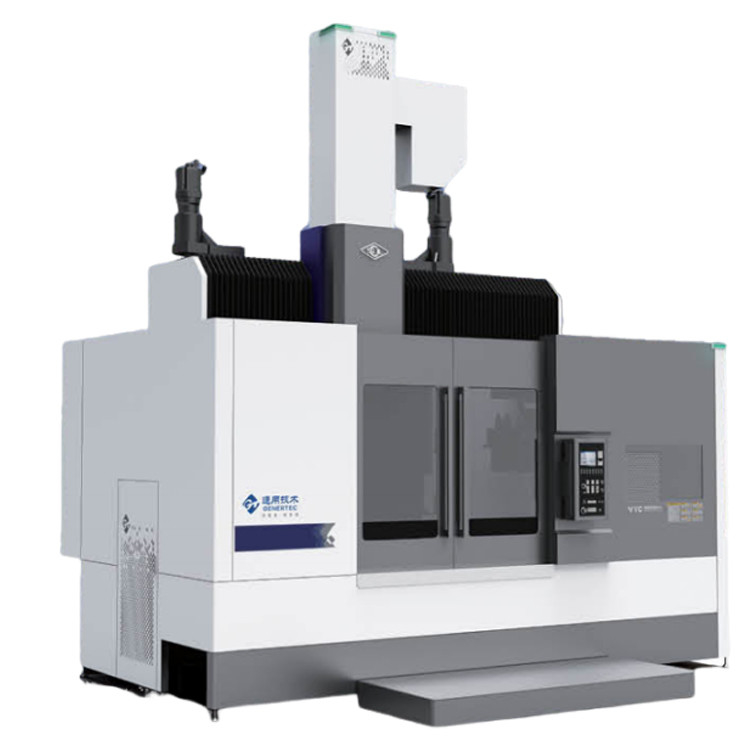

VTC 250140H Heavy CNC vertical lathe
Shenyang Machine Tool VTC250140H is a high-performance vertical turning and milling compound machining center. It has a solid body structure to ensure stability and reliability during the processing. Equipped with an advanced numerical control system, it is easy to operate and has high precision. This equipment has a large processing stroke and can meet the processing needs of various large workpieces. The spindle speed is high and the cutting ability is strong. It can perform multi-process machining such as high-efficiency milling and turning. Widely used in fields such as machinery manufacturing and aerospace, it provides a strong guarantee for enterprises to improve production efficiency and product quality. It is a reliable high-end processing equipment.

Product Features:

1,high rigidity

◆ High rigid casting structure

◆ High rigid ram structure

◆ High rigid hard rail structure

◆ High rigid host structure

2,High precision and high efficiency

◆ Spindle high-precision transmission mechanism

◆ Double spindle indexing mechanism

◆ Automatic tool change system

3,High stability

◆ Symmetrical layout

◆ Beam double drive lifting structure

◆ Cross roller bearing

4,The machine structure advantage

◆ Modular turning and milling

◆ Layout advantage

◆ Control advantage

Product Details:

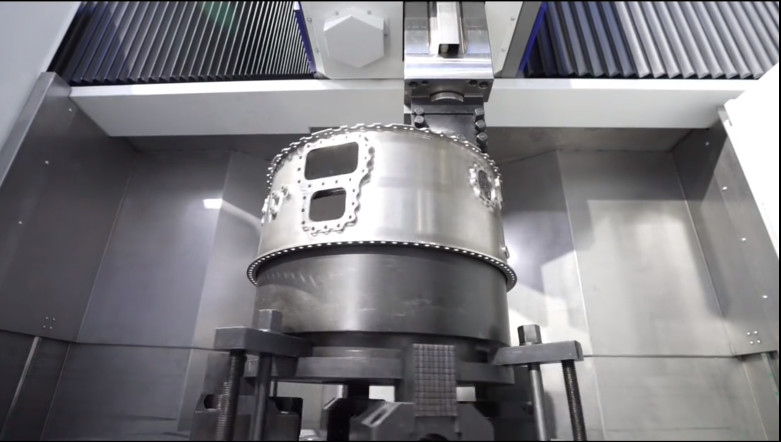

Heavy Vertical CNC Lathe VTC250140H Max.Swing Diameter 3000mm New Energy Bearing CNC Vertical Lathe 1

High rigidity casting structure

VTC series castings are made of box cast iron structure integrated molding, after heat treatment to release internal stress, design thick reinforcement, low center of gravity, good shock absorption, important joint surface are special scraping treatment, to ensure that in heavy cutting can still adhere to the accuracy and stability of the machine tool.

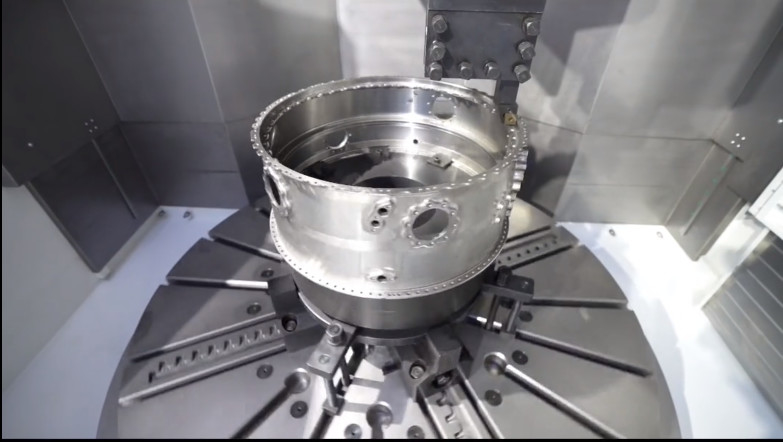

Heavy Vertical CNC Lathe VTC250140H Max.Swing Diameter 3000mm New Energy Bearing CNC Vertical Lathe 2

High rigidity ram structure

The ram is forged steel structure, the surface is quenched, the cutter clamp is tensioned by T-key, the lower end is positioned by tooth disk, and the track joint surface is scraped, with high positioning accuracy. At the same time, the cross section of the ram body is increased by 44% compared with the previous generation.
Heavy Vertical CNC Lathe VTC250140H Max.Swing Diameter 3000mm New Energy Bearing CNC Vertical Lathe 3

High rigid hard rail structure

The two axes adopt high rigidity hard rail structure, the track surface is professionally treated, and attached with low friction coefficient wear plate, strong rigidity, good accuracy retention, with excellent cutting ability, more suitable for heavy duty cutting.
Heavy Vertical CNC Lathe VTC250140H Max.Swing Diameter 3000mm New Energy Bearing CNC Vertical Lathe 4

High rigid host structure

The main structure is mainly designed for the high rigidity and heavy load processing requirements. The thickness of the column and the span of the guide rail are increased to strengthen the rigidity of the support. The lower lever of the ram can effectively resist the cutting torque and improve the machining stability.
Heavy Vertical CNC Lathe VTC250140H Max.Swing Diameter 3000mm New Energy Bearing CNC Vertical Lathe 5



Turning and milling modularization
With integrated turn-milling configuration, the skateboard structure is compatible with the turning ram structure and the turning ram structure, easy to replace and strong modularity.
Heavy Vertical CNC Lathe VTC250140H Max.Swing Diameter 3000mm New Energy Bearing CNC Vertical Lathe 6

Layout advantage

Modular structure design, can choose single ram and double ram, increase the processing efficiency.
Heavy Vertical CNC Lathe VTC250140H Max.Swing Diameter 3000mm New Energy Bearing CNC Vertical Lathe 7



Spindle high precision transmission mechanism
The main drive is upgraded from belt drive to gear transmission, which can provide accurate segmentation and positioning accuracy, with turn-milling composite function, high stability, and the internal design of the spindle constant temperature cooling device to prevent the axial movement caused by excessive temperature change.
Heavy Vertical CNC Lathe VTC250140H Max.Swing Diameter 3000mm New Energy Bearing CNC Vertical Lathe 8



Double spindle indexing mechanism
The table main drive uses two main motors to drive the table rotation. Through the CNC system to achieve synchronous control of the two main motors, so that the indexing movement of the machining more stable and accurate, to achieve the turning speed control function and C-axis anti-backlash function, to achieve a high level of quality surface quality.
Heavy Vertical CNC Lathe VTC250140H Max.Swing Diameter 3000mm New Energy Bearing CNC Vertical Lathe 9

Automatic tool change system

Hanging disk tool store, according to the user's processing needs, to achieve fast automatic tool change, shorten the processing auxiliary time, improve production efficiency. A variety of turning tool clips are available through T-head and clamping.

Product Paramenters:

ltems
UNIT
VTC 250140H
Diameter of workbench
mm
Φ2500
Max.swing diameter
mm
Φ3000
Max.cutting diameter
mm
Φ2800
Maximum workpiece height
mm
2000
Maximum torque of workbench
N.m
69000
Maximum speed of workbench
r/min
120
Rated power of main motor
kw
58
Ram


Size of ram body section
mm×mm
280×280
Beam


Beam lift movement
mm
1400
X/Z axes


X-axis travel
mm
-50-+1540
Z-axis travel
mm
1400
X-axis rapid traverse speed
m/min
10
Z-axis rapid traverse speed
m/min
8
Tool holder


Turning tool rod dimensions
mm
40×40
Positioning accuracy


X axis
mm/1000mm
0.025
Z axis
mm/1000mm
0.025
Repeated positioning accuracy


X axis
mm
0.01
Z axis
mm
0.01
Machine weight
kg
60500
Standard configuration
Selective configuration
Siemens 828D system
Fanuc System
Lubrication equipment
Raised column
Chip box
Oil mist collector
Hydraulic equipment
Tool detection
Manual four jaw chuck
Grating scale
Safety plate
Job detection
Side flushing chip
High pressure water tank
Tricolour light
Pneumatic door
Water gun floodlight
Chip cleaner
Cross roller bearing
Oil-water separation
Door lock
Magnetic chuck
Oil cooler
Tool magazine
Semi-enclosed protection
Full defense

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Heavy Vertical CNC Lathe VTC250140H Max.Swing Diameter 3000mm New Energy Bearing CNC Vertical Lathe 10
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Heavy Vertical CNC Lathe VTC250140H Max.Swing Diameter 3000mm New Energy Bearing CNC Vertical Lathe 11

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
