Place of Origin:
CHINA
Brand Name:
SMTCL
Certification:
CE ISO certification
Model Number:
HTC40B
Video
Video
Video
Product Description:
Product Features:
1,High rigidity

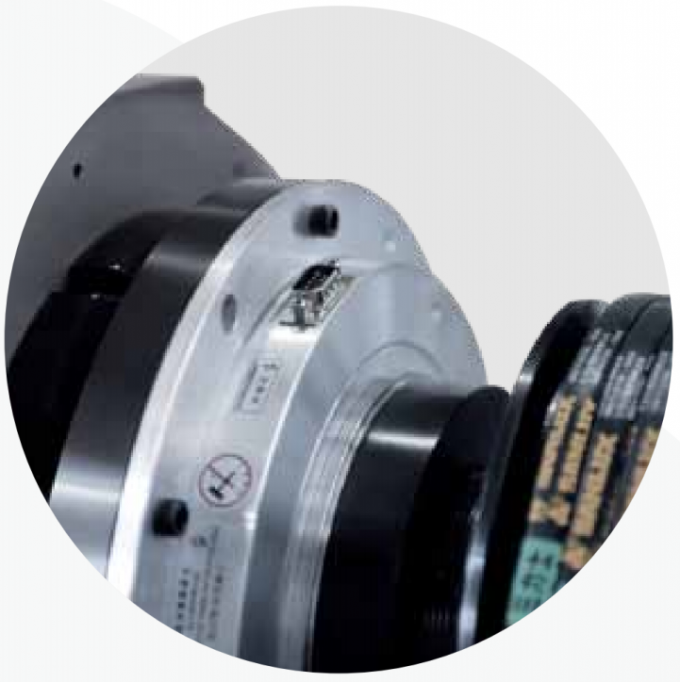

Rigidity is raised by 50% through enlargement of bearing,increase of spindle span,shortening of belt pulley overhang and new sliding tailstock structure.
Industry application:
1,Outer ball cage, inner ball cage, rotor shaft, differential housing,
Product Paramenters:
|
Items
|
Unit
|
HTC40B/500
|
HTC40B/1000
|
|
Maximum swing diameter over bed
|
mm
|
Φ600
|
Φ560
|
|
Maximun cutting length
|
mm
|
500
|
970
|
|
Maximum cutting diameter
|
mm
|
Φ400
|
Φ360
|
|
Maximum swing diameter on the slide
|
mm
|
Φ320
|
Φ350
|
|
Spindle nose
|
mm
|
A2-8
|
A2-8
|
|
Spindle hole diameter
|
mm
|
Φ80
|
Φ80
|
|
Diameter of maximum through bar
|
mm
|
Φ65
|
Φ65
|
|
Spindle speed range
|
r/min
|
50-3500
|
50-4000
|
|
Spindle maximum output torque
|
Nm
|
245
|
177
|
|
Main motor
|
KW
|
15/11
|
15/11
|
|
Chuck diameter
|
inch
|
10''
|
8''
|
|
X-axis fast moving speed
|
m/min
|
30
|
30
|
|
Z-axis fast moving speed
|
m/min
|
30
|
30
|
|
X-axis travel
|
mm
|
200
|
200
|
|
Z-axis travel
|
mm
|
550
|
1050
|
|
ailstock stroke
|
mm
|
100
|
100
|
|
Tailstock spindle taper taper
|
Mohs
|
5#
|
4#
|
|
Standard tool holder form
|
mm
|

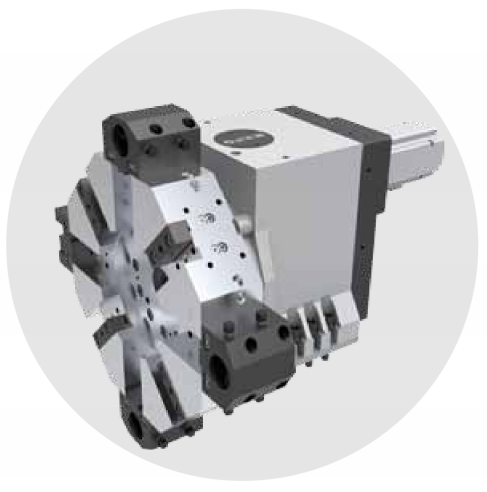

Horizontal 8 station
|
Horizontal 8 station
|
|
External knife
|
mm
|
25×25
|
25×25
|
|
Boring bar diameter
|
mm
|
Φ40/Φ32/Φ25/Φ20
|
Φ40/Φ32/Φ25/Φ20
|
|
Weight capacity(Disk type)
|
kg
|
200
|
200
|
|
Weight capacity(Shaft parts)
|
kg
|
500
|
500
|
|
Machine weight
|
kg
|
4200
|
4650
|
|
Machine tool appearance
|
mm
|
2700×1900×2100
|
3570×1860×1850
|
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
