Place of Origin:
CHINA
Brand Name:
SMTCL
Certification:
CE ISO certification
Model Number:
HTC50E
Video
Video
Video

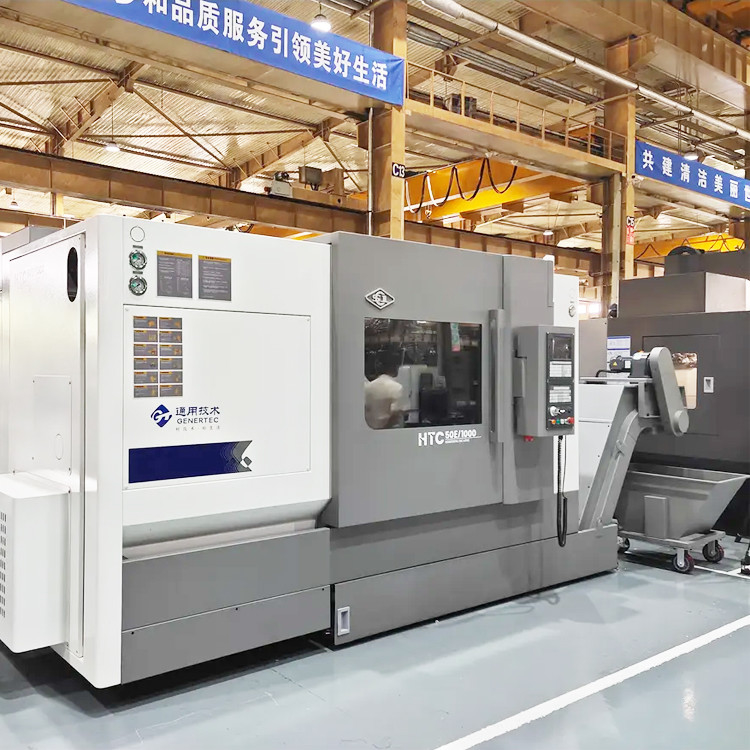

Product Description:

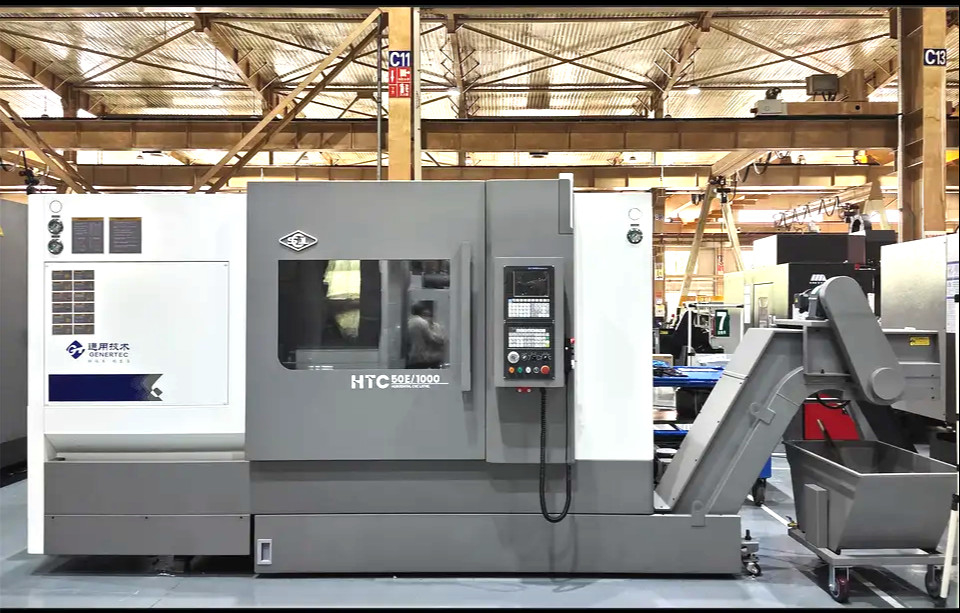

Product Features:

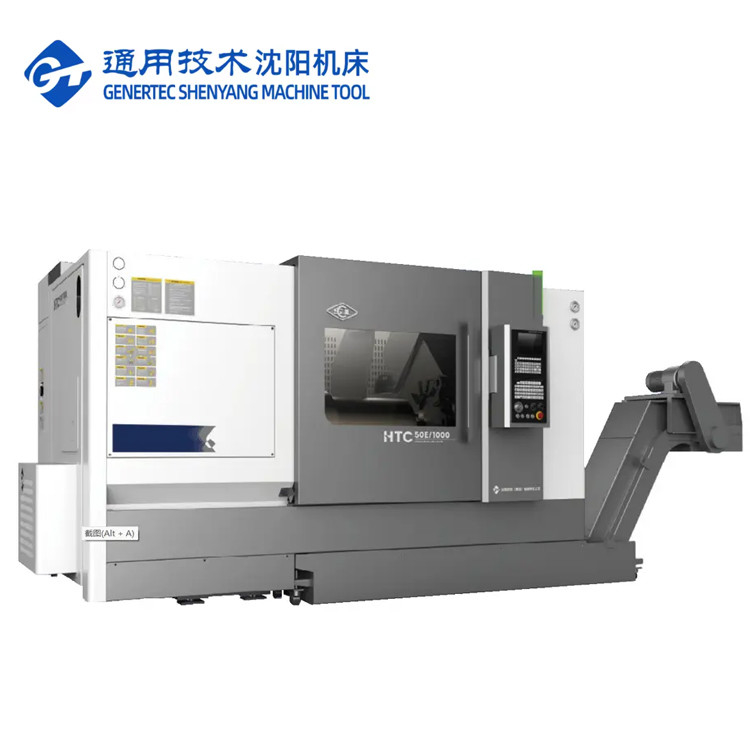

1. High Rigidity Integral Bed
|
Item
|
Unit
|
HTC50E series
|
|
|
Maximum swing diameter over bed
|
mm
|
700/670/670
|
|
|
Maximum cutting length
|
mm
|
1000/1500/2000
|
|
|
Maximum cutting diameter
|
mm
|
Shaft 500/disk 550
|
|
|
Maximum swing diameter over carriage
|
mm
|
500
|
|
|
Spindle nose
|
|
A2-8
|
|
|
Spindle hole diameter
|
mm
|
80
|
|
|
Spindle speed range
|
r/min/Nm
|
50~3500/344 GSK system
|
|
|
Main motor Spindle maximum output torque 30 minutes / continuous
|
kW
|
30/22
|
|
|
Standard chuck diameter
|
inch
|
10''
|
|
|
X-axis fast moving speed
|
m/min
|
24
|
|
|
Z-axis fast moving speed
|
m/min
|
24
|
|
|
X-axis travel
|
mm
|
320
|
|
|
Z-axis travel
|
mm
|
1050/1550/2050
|
|
|
Tailstock sleeve diameter
|
mm
|
120
|
|
|
Tailstock sleeve travel
|
mm
|
150
|
|
|
Tailstock travel
|
mm
|
800/1300/1800
|
|
|
Tailstock spindle taper taper
|
Morse
|
5#
|
|
|

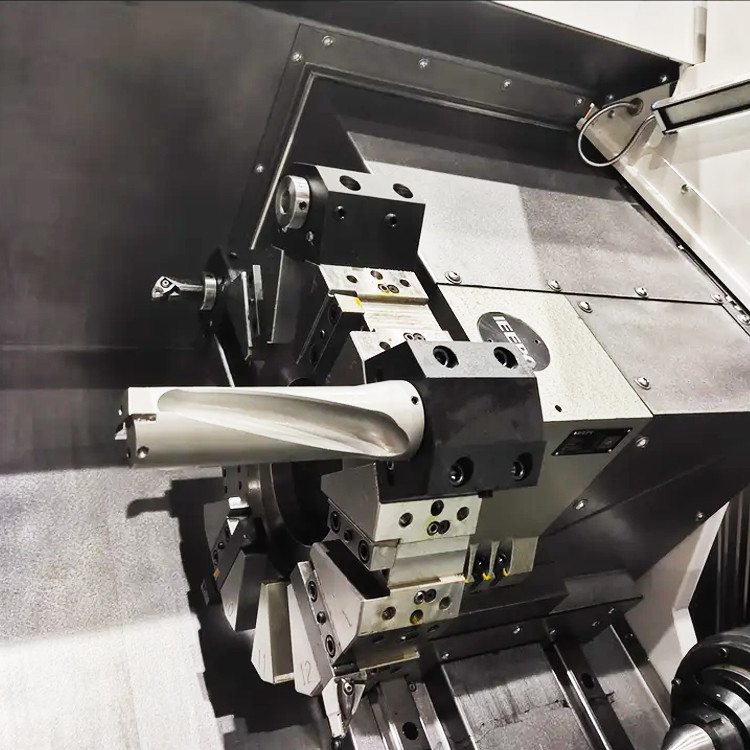

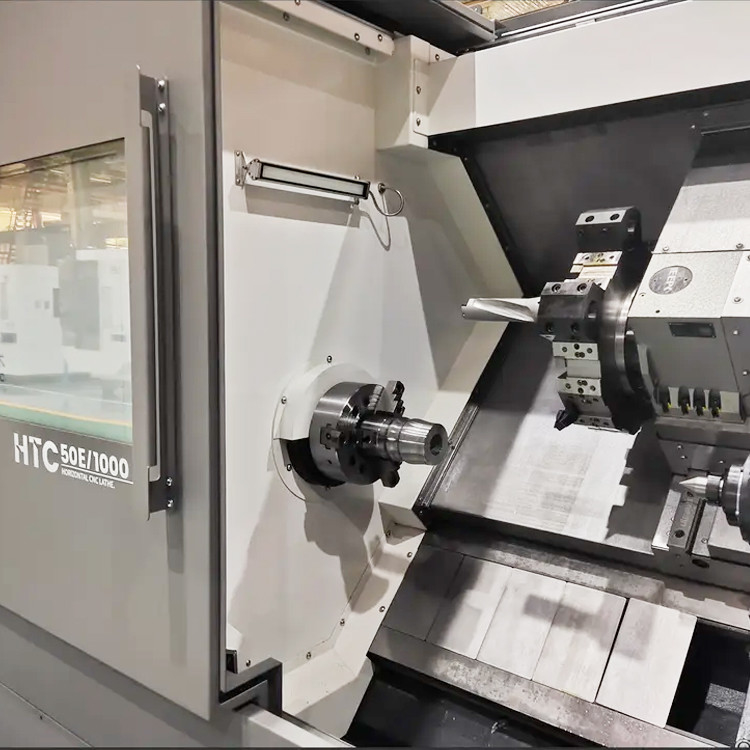

Standard turret form
|
|
Horizontal 12 station servo turret
|
|
|
Tool size
|
External tool
|
mm
|
25×25
|
|
Boring bar diameter
|
mm
|
Ф40/Ф32/Ф25/Ф16
|
|
|
Positioning accuracy
|
X axis
|
mm
|
0.010
|
|
Z axis
|
mm
|
0.015
|
|
|
Repeat position accuracy
|
X axis
|
mm
|
0.005
|
|
Z axis
|
mm
|
0.007
|
|
|
Weight capacity
|
Disk type
|
kg
|
200
|
|
Shaft type
|
kg
|
800
|
|
|
Machine weight
|
|
|
7000/8500/10000
|
|
Machine tool appearance
|
Length × width × height
|
mm
|
3700×2210×2200
4300×2210×2200 4900×2210×2200Main accuracy |
|
Inspection items
|
Factory standard
|
|
|
Machining accuracy
|
IT6
|
|
|
Roundness of machined workpiece (mm)
|
0.0025
|
|
|
Cylindricity of machined workpiece (mm)
|
0.016/300
|
|
|
Flatness of machined workpiece (mm)
|
0.020/Ф300
|
|
|
Surface roughness of machining workpiece
|
Ra1.25μm
|
|
|
Positioning accuracy
|
X axis (mm)
|
0.010
|
|
Z axis (mm)
|
0.015
|
|
|
Repeat positioning accuracy
|
X axis (mm)
|
0.005
|
|
Z axis (mm) Z
|
0.007
|
|
Main configuration
|
No.
|
Name
|
Manufacturer
|
Remarks
|
|
1
|
CNC system
|
GSK
|
Optional FANUC
|
|
2
|
Main motor
|
GSK
|
Optional FANUC
|
|
3
|
Servo motor
|
GSK
|
Optional FANUC
|
|
4
|
Two -axis screw
|
Domestic
|
|
|
5
|
Two-axis ball guide
|
Domestic
|
|
|
6
|
Spindle bearing
|
Imported
|
|
|
7
|
Screw bearing
|
Imported
|
|
|
8
|
12 station servo turret
|
IEEPO
|
100 center height
|
|
9
|
Chuck
|
Taiwan Province/Korea
|
10²Medium solid
|
|
10
|
Tailstock
|
Our factory
|
Manual tailstock without sleeve lock
|
|
11
|
Chip cooling box
|
Domestic
|
OUR Service:
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
