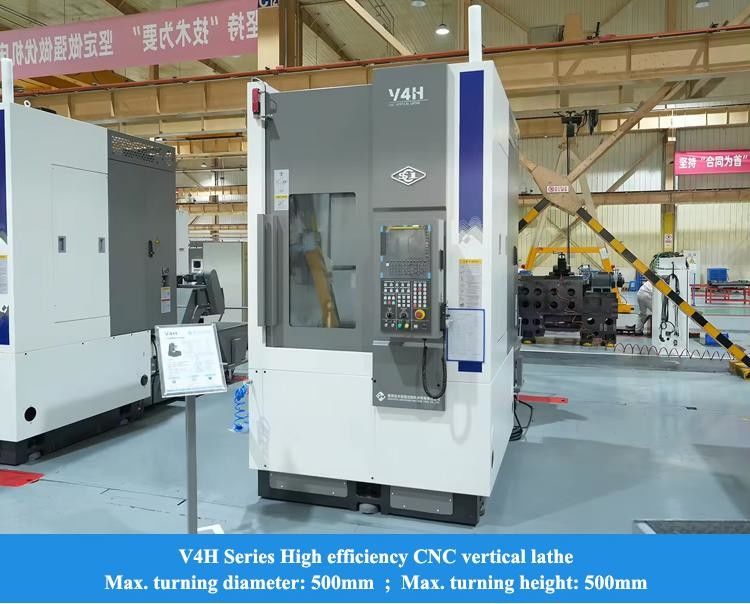

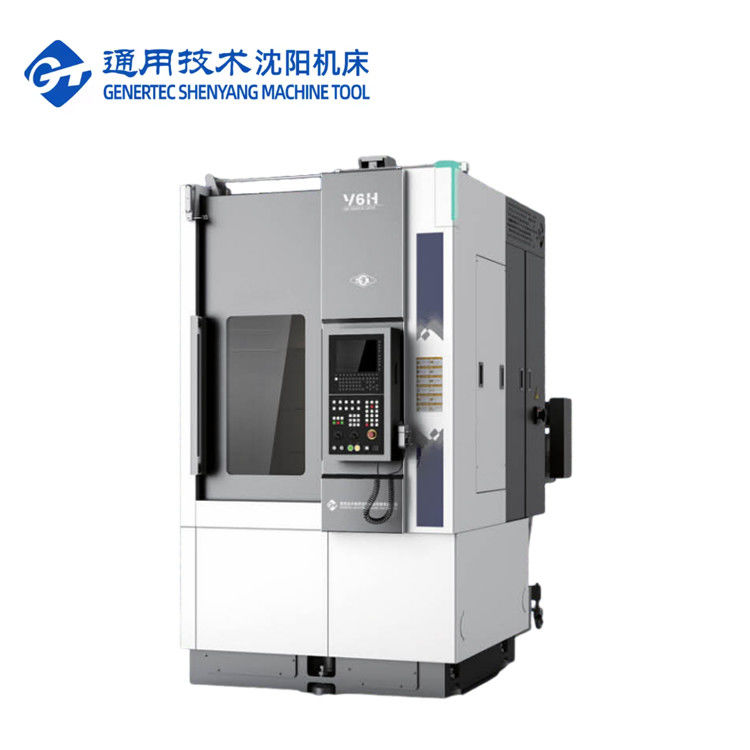

SMTCL Vertical CNC Lathe V4H CNC Vertical Milling Machine Vertical Lathe Milling Machine Combo

SMTCL Vertical CNC Lathe Machine

High rigidity body structure

High Efficient Vertical CNC Lathe

Place of Origin:

China

Brand Name:

SMTCL/SYMG

Certification:

ISO certification

Model Number:

V 4H

Document:

8-GT SMTCL V Series Vertica...he.pdf

Request A Quote

Product Details

Brand Name:

SMTCL

Model Number:

V 4H

Name:

Vertical Cnc Lathe Machine

Control System:

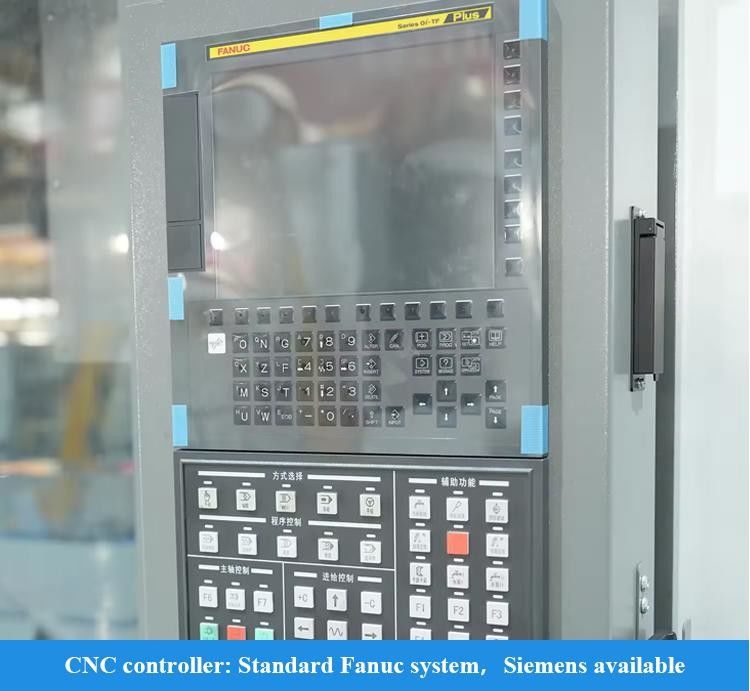

SIEMENS GSK FANUC (optional)

Max.cutting Diameter:

Φ500

Max.swing Diameter:

Φ650

Max.cutting Height:

500

X Axis Travel:

290

Z Axis Travel:

530

Turret:

Horizontal 8 Positions Servo Turret

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Packaging Details

The wooden case，Tin trunk ,Other seaworthy packing

Delivery Time

45-60 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

50 sets per month

SMTCL Vertical CNC Lathe V4H CNC Vertical Milling Machine Vertical Lathe Milling Machine Combo

Get Best Price

Heavy Duty Vertical CNC Lathes Single Column CK5116 C5116

Get Best Price

30KW 45KW Large Vertical Lathe Double Column CNC Vertical Lathe Machine

Get Best Price

AC Servo CNC Heavy Duty Lathe CK5225 C5225T Vertical Turning Lathe Machine

Get Best Price

+8613916455787

sales@huidijd.com

86-021-61195255

Contact Now

Product Description

SMTCL Vertical CNC Lathe V4H CNC Vertical Milling Machine Vertical Lathe Milling Machine Combo 0

SMTCL Vertical CNC Lathe V4H CNC Vertical Milling Machine Lathe Milling Machine Combo Vertical CNC Lathe

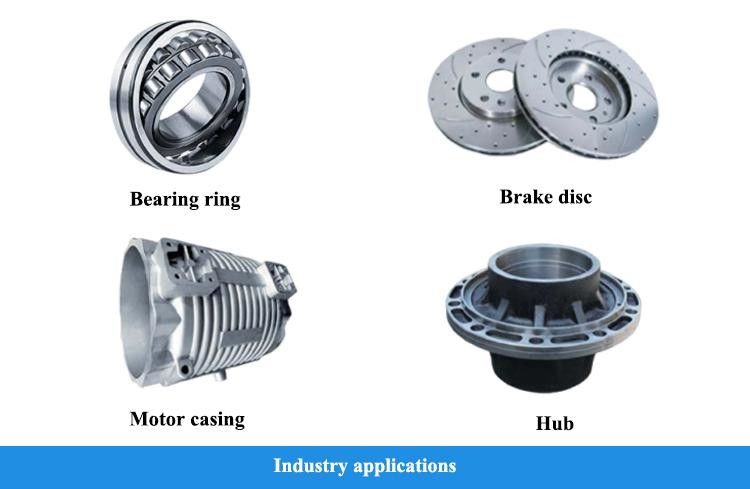

V series CNC vertical lathe is the third generation of new CNC vertical lathe of our new upgraded technical structure, with excellent rigidity, stability and processing accuracy, supporting imported high-quality functional parts, widely used in new energy, automotive, bearing and other industries processing, to provide customers with excellent experience.

FEATURES AT A GLANCE

High rigidity
- High rigid bed structure
- High rigidity and long span column
- High rigid guide rail structure
High stability
- Symmetrical layout
- Large chip discharge Angle bed
High precision and high efficiency
- High efficiency tool holder
- High performance spindle and feed system
High cost performance
- Various configuration options are available
- Efficient and intelligent function
- Reasonable configuration of functional components
Easy to operate
- Optimize feeding height and feeding distance
- Moderate height control panel

Product details

High rigidity body structure

Whole body casting made by resin sand to reach low gravity,anti-vibration. Main contact surfaces all solved by scretch way, can keep the precision and stability during heavy duty cutting

Big gap column with high rigidity

Solid, anti-vibration, anti-transshape, more suitable to vertical turret and integrated turret.

High rigidity guideway structure

Two-axis configuration linear roller guide, strong rigidity, with excellent cutting ability, more suitable for configuration of vertical tool holder heavy duty cutting.

Body with large angle chip flush

The base adopts a large chip discharge Angle to eliminate the area prone to chip accumulation, effectively prevent the accumulation of iron chips, smooth chip discharge, and improve the processing stability.

Performanced spindle and feeding system

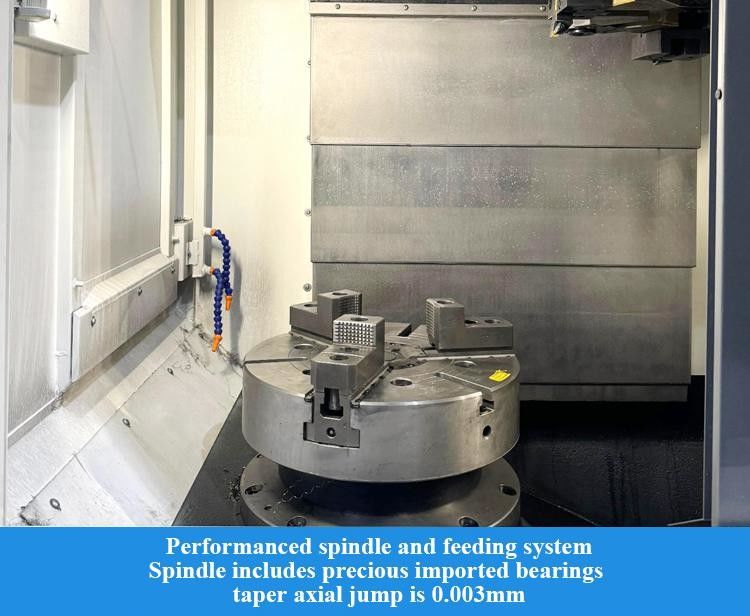

The spindle adopts high-precision imported bearings, high radial runout accuracy of the cone end axis, especially suitable for processing high hardness, large cutting parts, greatly reducing the vibration and thermal error generated during processing, low failure rate, high efficiency.

High efficiency tool holder

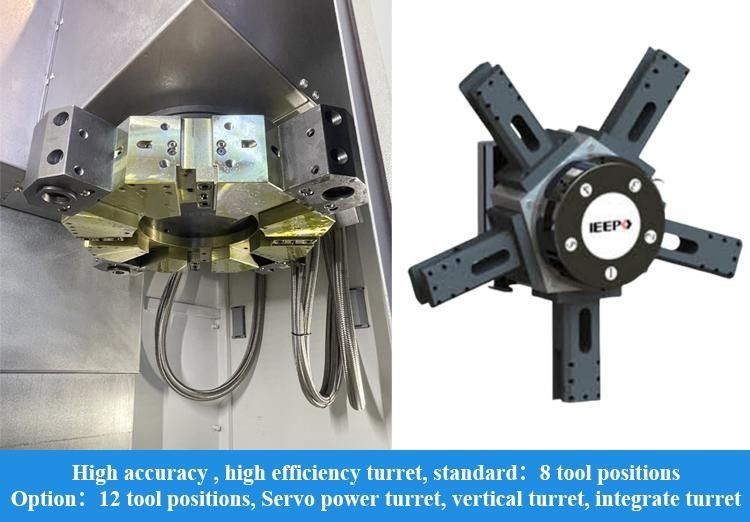

Simple structure, strong rigidity, fast transposition, adjacent tool transposition time 0.25s, farthest end transposition time 0.79s, repeated tool change accuracy ±1.6", to achieve high precision, high efficiency, high reliability processing.

ATC Knife library

In the machining process, the ATC tool library has the tool selection function, which can provide 10/12 tool positions, solve the problem of tool shortage and tool interference, and shorten the tool change time.

Double speed servo motor

Use M code can get low speed&high torque output or high speed&low torque, satisfy customer’s high speed and big torque request.

SMTCL Vertical CNC Lathe V4H CNC Vertical Milling Machine Vertical Lathe Milling Machine Combo 1

PRODUCT SPECIFICATIONS

Item	Unit	V4H
Accuracy grade		IT6
Technical parameters
Max.cutting diameter	mm	Φ500
Max.swing diameter	mm	Φ650
Max.cutting height	mm	500
Spindle
Spindle nose and taper		A2-8
Standard chuck size	Inch	12(☆ 15,☆ 18)
Max.spindle speed	r/min	2500
Rated spindle torque	N.m	549
Main motor output power continous/30min	KW	18.5/26
X/Z axis
X axis rapid traverse	m/min	20
Z axis rapid traverse	m/min	20
X axis travel	mm	290
Z axis travel	mm	530
Turret
Type		Horizontal 8 positions servo turret
Center height	mm	100
Turret rotary repeat positioning	''	±1.6
Positioning
X axis	mm	0.008
Z axis	mm	0.008
Repeat positioning
X axis	mm	0.005
Z axis	mm	0.005
Machine weight	kg	6000
Machine dimensions(Without conveyor)	mm	2235×1570×3030

Standard configuration	Selective configuration

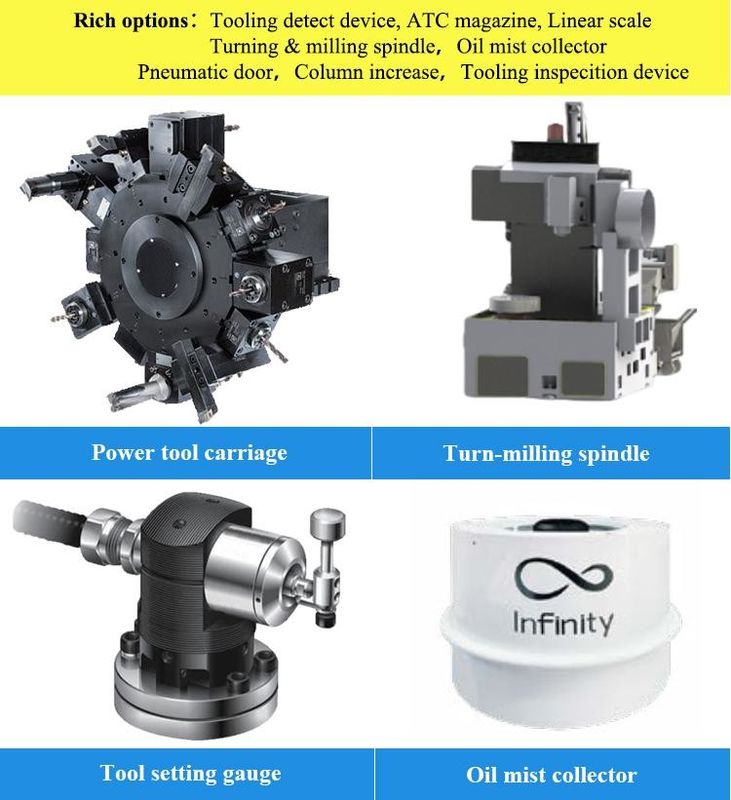

10.4" Fanuc System	Power tool rest
Lubrication equipment	Raised column
Hydraulic chuck (with soft claw)& rotary cylinder	Vertical tool rest
Hydraulic equipment	Tool detection
Roller guide	Turning and milling spindle
Safety plate	Test cylinder
Chain chip extractor	Oil mist collector
Tricolour light	Pneumatic door
Side flushing chip	Grating scale
Floodlight	Oil-water separation
Foot switch	High pressure water tank
Door lock	ATC Knife library
Water gun	Magnetic scraper chip remover
	Tailstage

Why Choose Us

Top quality sense, customers' requests come first
30 years + R & D history, the company was founded in 1993
High-tech manufacturer with research anddesign capacity
Stable and mature supplying system
Young active sales and engineers for instant services(24 hours online)
Upgrading on mechanism according to ergonomics and easy maintenance
Our structure design principle: easy maintenance & installation, low cost maintenance, not affect productio
