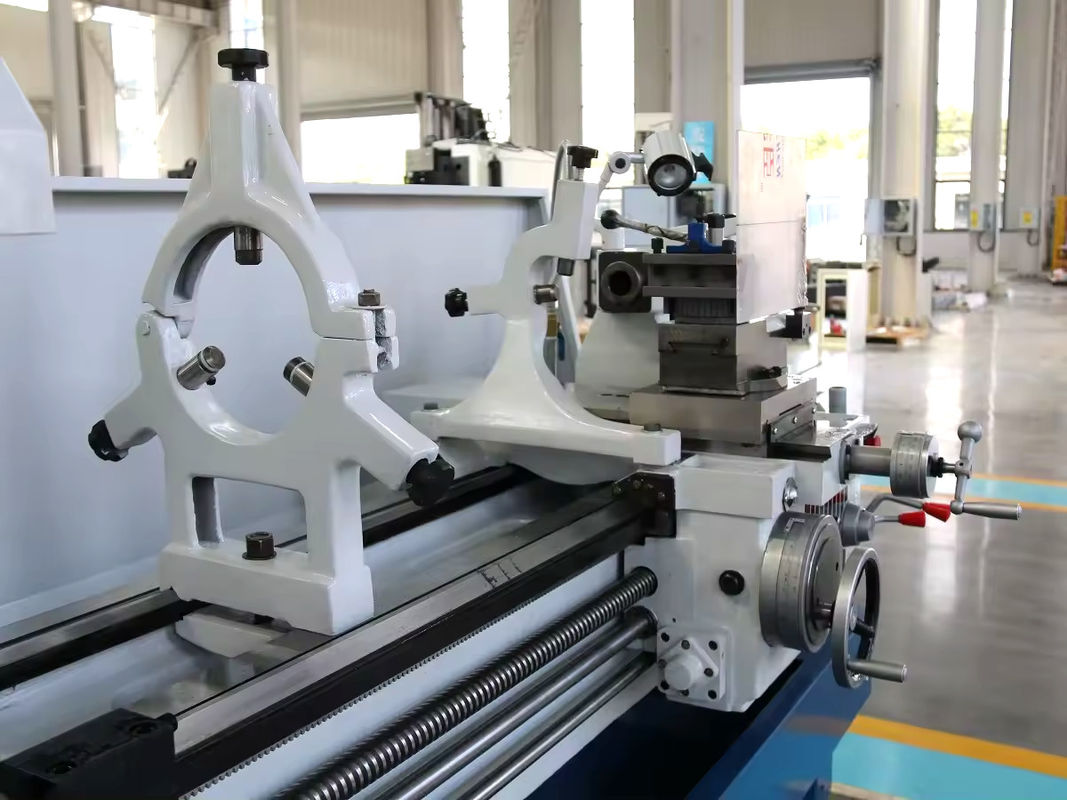

Heavy Duty Gap Bed Turning Manual Lathe CA6180 Hole Trough Spindle 105mm Manual Lathe
Product Details
| Brand Name: | SMTCL | Model Number: | CA6180 |
|---|---|---|---|
| CNC Or Not: | Manual | Key Word: | Manual Lathe Machine |
| Max.swing Dia Over Bed: | 800mm | Max.swing Dia Over Carriage: | 540mm |
| Width Of Bed: | 400mm | Spindle Bore: | 52/80/105mm |
| Highlight |
Conventional Lathe Machine CA6180,Gap Bed Turning Manual Lathe,Hole Trough Spindle 105mm |
||
Product Description
Product Description:
The CA series common lathe is a type of standard lathe commonly used for processing medium-sized workpieces. It is a popular lathe model known for its stability, simple structure, easy operation, and maintenance.
The CA series common lathe typically consists of the bed, spindle, feed system, and tool holder. The bed is the main component that supports the workpiece and cutting tools, while the spindle is responsible for securing and rotating the workpiece. The feed system controls the movement of the cutting tool on the workpiece, and the tool holder is used for clamping and operating the cutting tools.
The CA series common lathe is suitable for machining various types of metal workpieces, such as shafts, threads, and gears. It can perform turning, boring, drilling, threading, and other machining operations. It is widely used in manufacturing and mechanical processing industries as one of the commonly used machine tools.
The CA series common lathe finds extensive applications in industrial production, catering to both single-piece machining and mass production requirements. It offers flexibility and versatility, making it suitable for beginners and small to medium-sized enterprises with various machining needs.
Product Features:
1,This series lathe machine is suitable for internal and extermnal turning, tapering, and other rotating faces, metric, moduleand inch threads, as well as drilling and pull oil slot.
2,Width of bed is bigger than normal lathe machine, with high hardness on guideway, the guideway is throughhigh-frequency quenching, wear-resisting.
3,This machine is easy to operate, with rapid device for carriage, design with single hand wheel to operate.
4,The strength and rigidity of machine is higher than normal lathe machine, high effciency, suitable for heavy dutymachining.
Product Details:
|
Specifications
|
CA6180 CA6280 CA6180B CA6280B CA6180C CA6280C
|
||
|
Max.Swing over bed
|
800mm
|
||
|
Max.Swing over carriage
|
540mm
|
||
|
Max.Swing in gap
|
_
|
1020mm
|
|
|
Effective gap length
|
_
|
210mm
|
|
|
Max.Length of work piece
|
750/1000/1500/2000/2500/3000/4000mm
|
||
|
Width of bed
|
400mm
|
||
|
Section of turning tool
|
25×25mm
|
||
|
Spindle
|
Spindle speed
|
16-1400rpm(24 steps)
|
|
|
Hole through spindle
|
52mm/80mm/105mm
|
||
|
Spindle taper
|
moseNO.6(MT6)
|
||
|
Feed
|
Number of feeds
|
64kinds
|
|
|
Range of metric threads(kinds)
|
(1-192mm)44kinds
|
||
|
Range of inch threads(kinds)
|
(2-24tpi)21kinds
|
||
|
Range of module threads(kinds)
|
0.25-48(module 39kinds)
|
||
|
Range of
pitch threads(kinds) |
1-96DP(37 kinds)
|
||
|
Tailstock
|
Max.Tailstock spindle travel
|
150mm
|
|
|
Tailstock spindle diameter
|
75mm
|
||
|
Taper of tail stock spindle center hole
|
moseNO.5(MT5)
|
||
|
Main motor
|
7.5K(10HP)
|
||
OUR Service:
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only)
4. Overall warehousing solution provided
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
