SMTCL High Cost Performance Metal CNC Turning Lathe T6 Vertical CNC Lathe
Product Details
| Brand Name: | SMTCL | Model Number: | T6 Series |
|---|---|---|---|

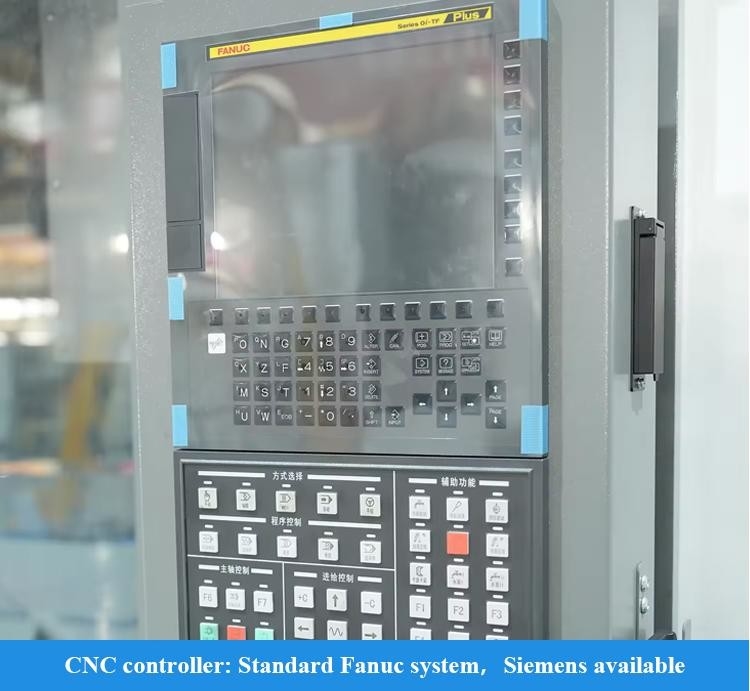

| Name: | Vertical Cnc Lathe Machine | Control System: | SIEMENS GSK FANUC (optional) |
| Max.cutting Diameter: | Φ850 | Max.swing Diameter: | Φ1000 |
| Max.cutting Height: | 850 | X Axis Travel: | 480 |
| Z Axis Travel: | 850 | Turret: | Horizontal 8 Positions Servo Turret |
| Highlight |
High Rigidity Vertical CNC Lathe,CNC Vertical Turning Milling Machine,SMTCL |
||
Product Description

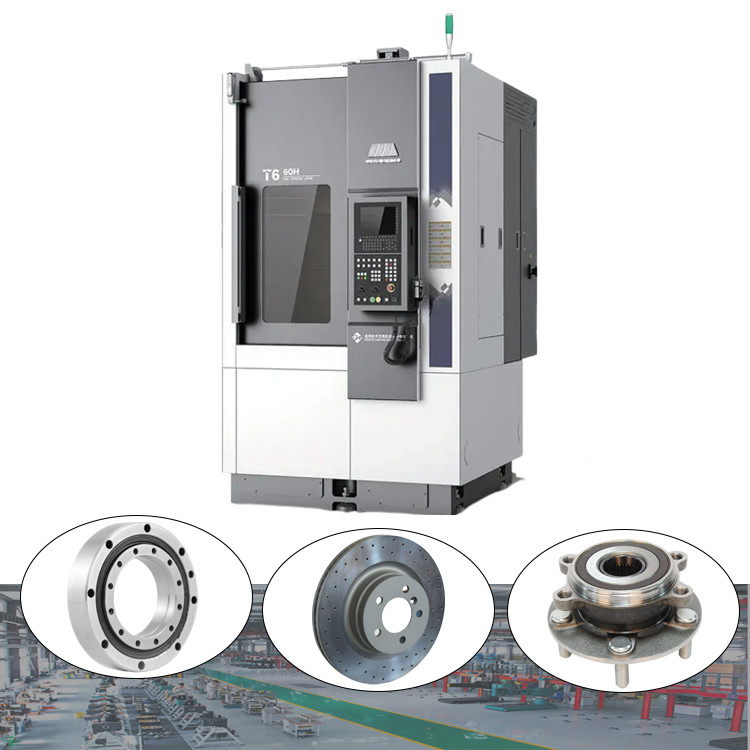

T6-Q series CNC vertical lathe is cost-effective, easy to operate, with high rigidity and stability, supporting domestic high-quality functional parts, small floor area, large processing range, widely used in automotive, general industry, construction machinery and other industries processing. T6-H series CNC vertical lathe is our new upgraded technology structure of the third generation of new CNC vertical lathe, with excellent rigidity, stability and processing accuracy, supporting imported high-quality functional parts, widely used in new energy, automotive, bearing and other industries processing, to provide customers with excellent experience.
- 1,High rigidity
- High rigid bed structure
- High rigidity and long span column
- High rigid guide rail structure
- 2,High stability
- Symmetrical layout
- Large chip discharge Angle bed
- 3,High precision and high efficiency
- High efficiency tool holder
- High performance spindle and feed system
- 4,High cost performance
- Various configuration options are available
- Efficient and intelligent function
- Reasonable configuration of functional components
- 5,Easy to operate
- Optimize feeding height and feeding distance
- Moderate height control panel
High rigidity body structure

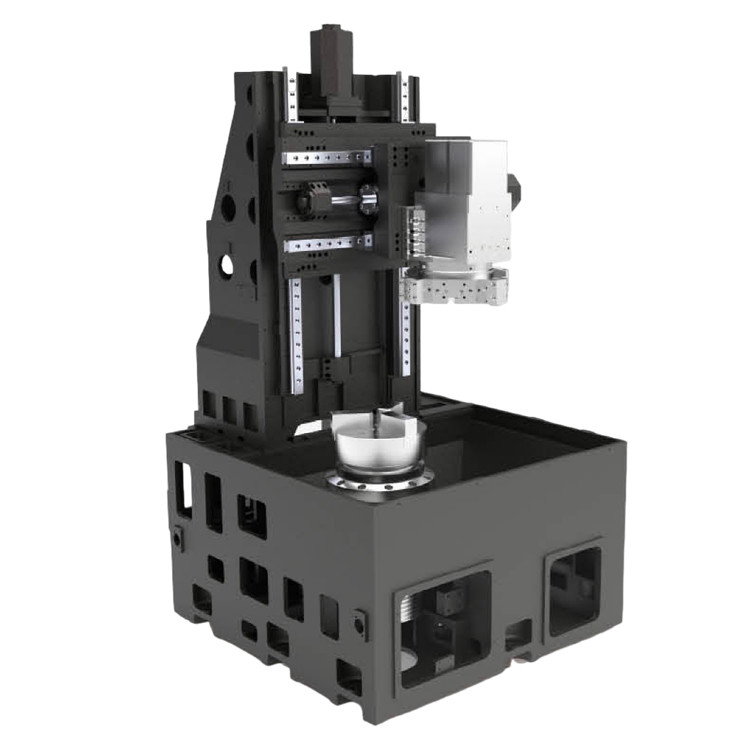

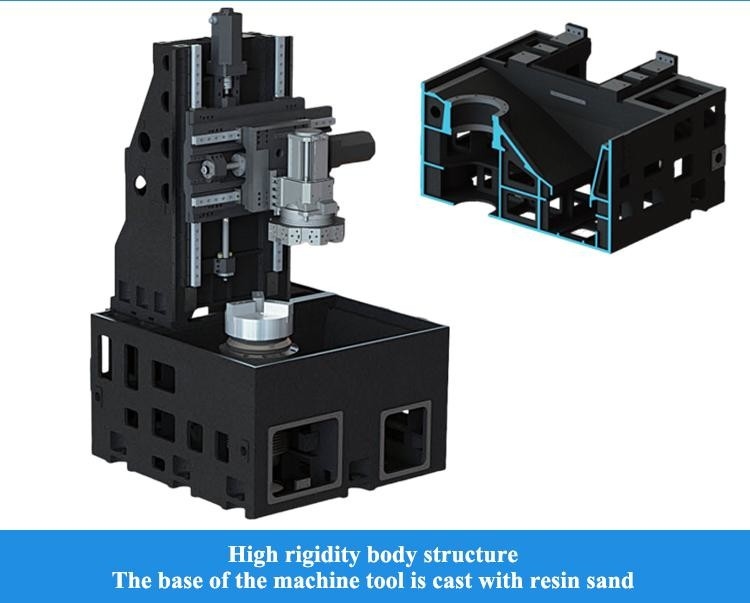

Whole body casting made by resinsand to reach low gravity,anti-vibration. Main contact surfacesall solved by scretch way, can keep the precision and stability during heavy duty cutting

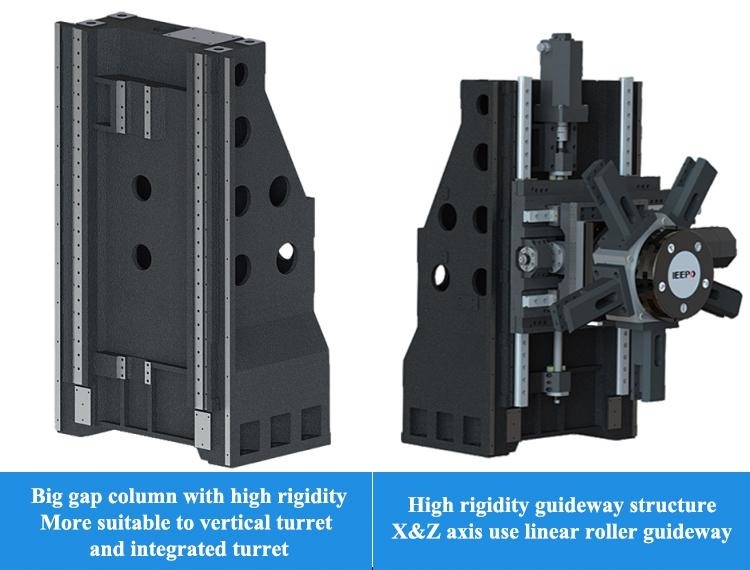

Big gap column with high rigidity
Solid, anti-vibration, anti-transshape, more suitable to vertical turret and integrated turret.
High rigidity guideway structure
X & Z axis use liner roller rguideway, has strong extremecutting ability. 580mm long borig bar can reach 5mm deep cutting and 0.5mm feeding cutting.
Body with large angle chip flush
Body base degree is 23 ° and 27 ° ,avoid chips pile up, chip flushingsmoothly, improves machining stability
Performanced spindle and feeding system
Spindle includes precious imported bearings, taper axial jump is0.003mm,especially suitble forworkpiece with high hardness and heavy cutting , extremely reduce vibration and heat error duringmachining process, machine has low error rate and high efficiency

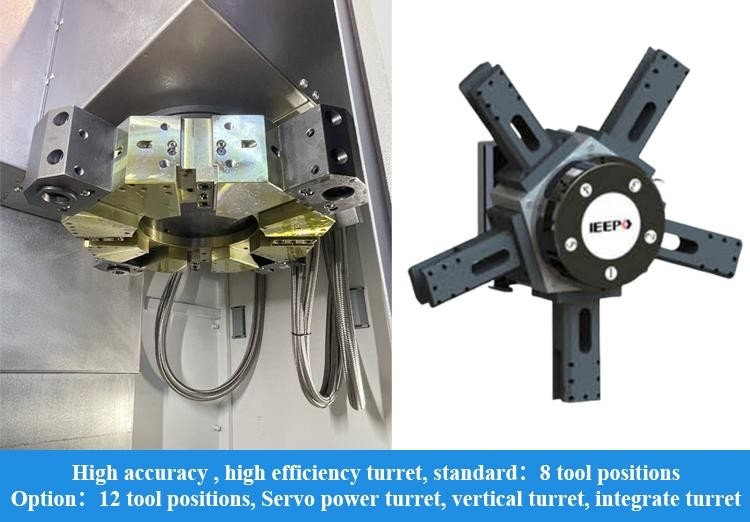

Servo power turret, vertical turret, integrate turret
◆ May choose 0 ° and 90 ° power turret to do drilling, milling and tapping due to demand
◆ Vertical turret may get high rigidity, use servo rotary, hydraulic lock, stable and in the right location, especially suit for deep inner hold machining
| Item | Unit | T6- 35H | T6- 50H | T6- 60H | T6- 85H |
| Accuracy grade | IT6 | IT7/IT6 | IT7/IT6 | IT7/IT6 | |
| Technical parameters | |||||
| Max.cutting diameter | mm | Φ350 | Φ500 | Φ600 | Φ850 |
| Max.swing diameter | mm | Φ500 | Φ650 | Φ700 | Φ1000 |
| Max.cutting height | mm | 350 | 500 | 650 | 850 |
| Spindle | |||||
| Spindle nose and taper | A2-8 A2-8 | A2-8 A2-8 | A2-11 2-11 | A2-11( A2-15) | |
| Standard chuck size | inch | 10( 12) | 12( 15, 18) | 15( 18, 21) | 21( 24, 32) |
| Max.spindle speed | R/min | 3000 | 1500/2500 | 1100/2500 | 1100/1500 |
| Max.spindle torque | N/M | 472 | 771 | 1158/1160 | 1910 |
| Main motor output power continous/30min | KW | 15/18.5 | 18.5/26 | 18.5/26/22/30 | 22/30 |
| XZaxis | |||||
| X axis rapid traverse | m/min | 30 | 18/20 | 18/20 | 18/20 |
| Z axis rapid traverse | m/min | 30 | 18/20 | 18/20 | 18/20 |
| X axis travel | mm | 200 | 290 | 330 | 480 |
| Z axis travel | mm | 400 | 530 | 653 | 850 |
| Turret | |||||
| Type | Horizontal 8 positions servo turret | Horizontal 8 positions servo turret | Horizontal 8 positions servo turret | Horizontal 8 positions servo turret | |
| Center height | mm | 100 | 100 | 125 | 160 |
| Turret rotary repeat positioning | ‘’ '' | ±1.6 | ±1.6 | ±1.6 | ±1.6 |
- Top quality sense, customers' requests come first
- 30 years + R & D history, the company was founded in 1993
- High-tech manufacturer with research anddesign capacity
- Stable and mature supplying system
- Young active sales and engineers for instant services(24 hours online)
- Upgrading on mechanism according to ergonomics and easy maintenance
- Our structure design principle: easy maintenance & installation, low cost maintenance, not affect productio
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
