Place of Origin:
CHINA
Brand Name:
SMTCL
Certification:
CE ISO certification
Model Number:
IT35series
Video
Video
Product Description:
iT series horizontal CNC lathe is suitable for processing all kinds of disk and short shaft parts, can turn the end face and the end groove, the outer circle and the inner hole thread, the groove and the rotary surface and other geometric features. Can meet the automotive, bearing, engineering machinery, non-ferrous metals and other industries for rotary parts of efficient, large quantities, high-precision processing requirements.

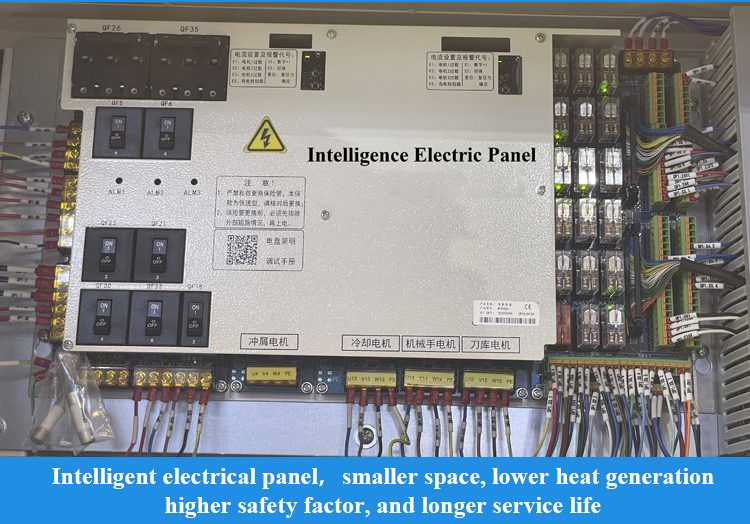

Product Features:
1,High Rigidity
♦ Finite element analysis to optimize the whole machine structure
♦ The bed is made of high quality castings with reasonable bar layout

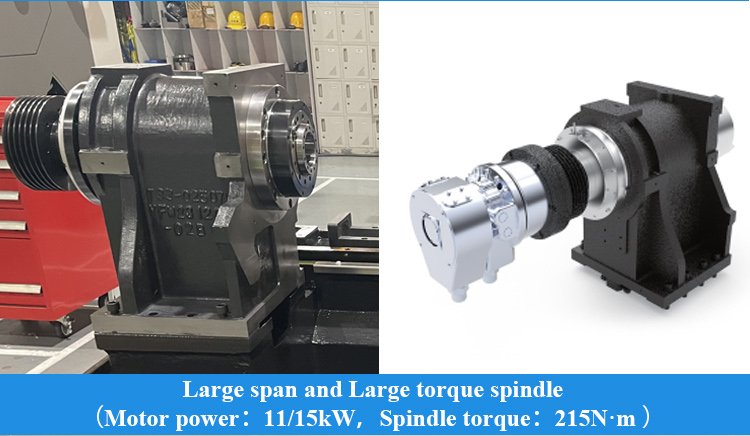

♦ Configuration of large span, large torque spindle, improve cutting rigidity
♦ Precision scraping process, improve the connection rigidity
|
Item
|
unit
|
specification
|
||
|
iT35
|
iT35L
|
|||
|
Maximum turning diameter
|
mm
|
Φ360
|
||
|
Maximum turning length
|
mm
|
350
|
500
|
|
|
Maximum swing over bed
|
mm
|
Φ580
|
||
|
Max swing over slide
|
mm
|
Φ360
|
Φ330
|
|
|
Spindle
|
spindle nose
|
|
A2-6
|
|
|
front bearing dia.
|
mm
|
100
|
||
|
spindle taper and hole size
|
|
1:20；Φ70
|
||
|
dis.of spindle hole
|
mm
|
Φ65
|
||
|
max dia. Of bar
|
mm
|
Φ50
|
||
|

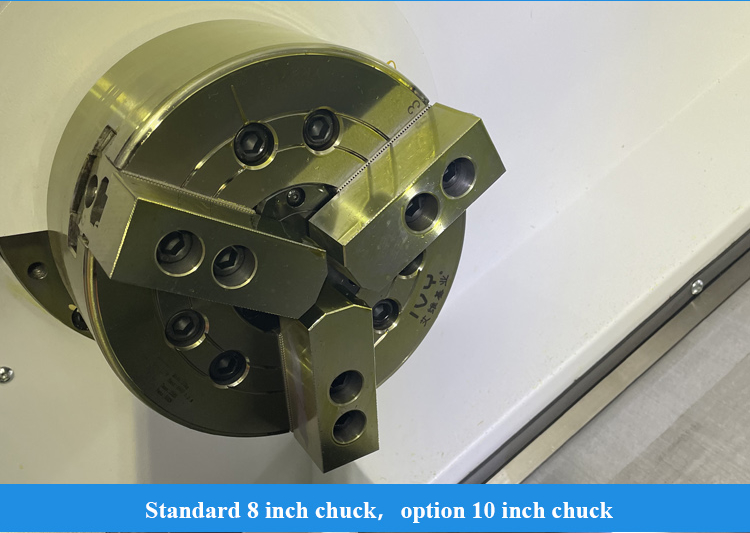

chuck size
|
inch
|
8
|
||
|
spindle speed
|
r/min
|
4000
|
||
|
spindle rated torque
|
Nm
|
157.5(666r/min)
|
||
|
max spindle torque
|
Nm
|
215(666r/min)
|
||
|
max motor output power continous/30min
|
kW
|
11/15
|
||
|

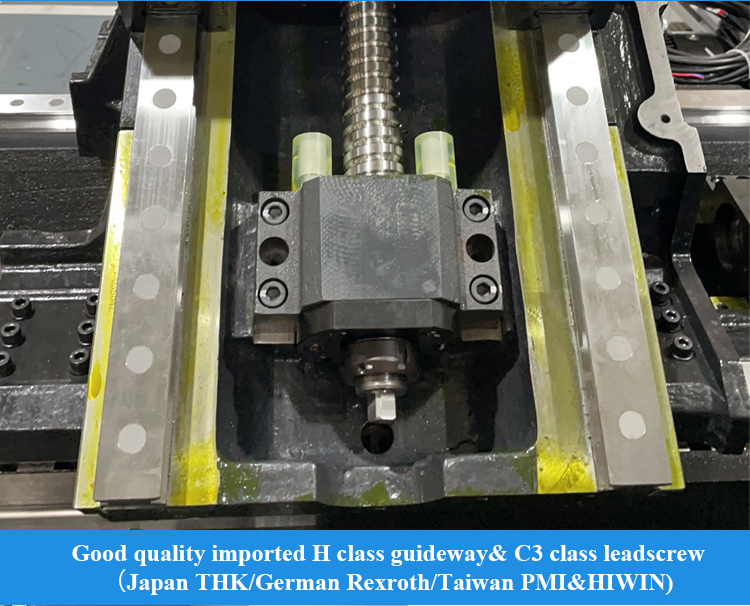

Feeding
|
X/Z rapid traverse
|
m/min
|
30
|
|
|
X/Z max speed
|
m/min
|
30
|
||
|
x axis travel
|
mm
|
200
|
||
|
z axis travel
|
mm
|
350
|
510
|
|
|

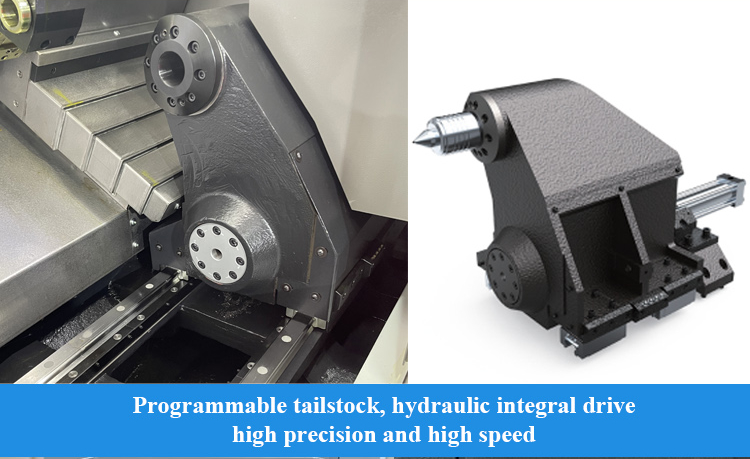

Tailstock
|
tailstock travel
|
mm
|
NO
|
400
|
|
drive type
|
|
NO
|
Cylinder drive
|
|
|
Maximum fast moving speed
|
m/min
|
NO
|
8
|
|
|
Minimum jacking workpiece length
|
mm
|
NO
|
120
|
|
|
tailstock taper
|
morse
|
NO
|
MT-5
|
|
|

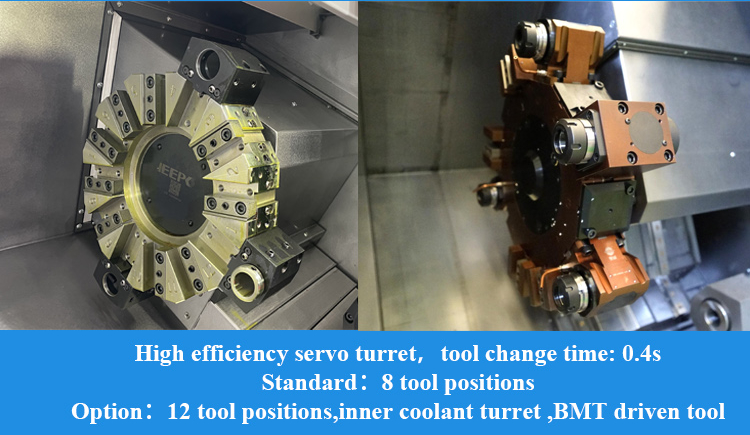

Turret
|
turret type
|
|
Horizontal 8 station servo turret
|
|
|
center height
|
mm
|
80
|
||
|
rotary positioning
|
Sec.
|
±1.6
|
||
|
Whether the cutter can select the tool nearby
|
|
yes
|
||
|
End tool holder
|
mm
|
25×25
|
||
|
Boring tool holder
|
mm
|
Φ40
|
||
|
Reducer sleeve
|
mm
|
Φ32
|
||
|
Cooling chip removal
|
Cooling pump pressure
|
bar
|
0.9
|
|
|
Cooling pump flow
|
L/min
|
40
|
||
|
Tank capacity
|
L
|
150
|
160
|
|
|
Chip extractor form
|
|
Right side chain plate
|
||
|
Loading
|
Disk-like parts
|
kg
|
150 Includes chuck and other accessories
|
|
|
Axial parts
|
kg
|
300 Includes chuck and other accessories
|
||
|
Other
|
The spindle center is high from the bottom of the bed
|
mm
|
108+0
|
|
|
weight
|
kg
|
3300
|
3600
|
|
|
power
|
kVA
|
27
|
||
|
overall dimensions
(L*W*H) |
mm
|
2330×1675×1760
|
2550×1675×1760
|
|
Industry application:
OUR Service:
1. Assemble and debug before delivery
