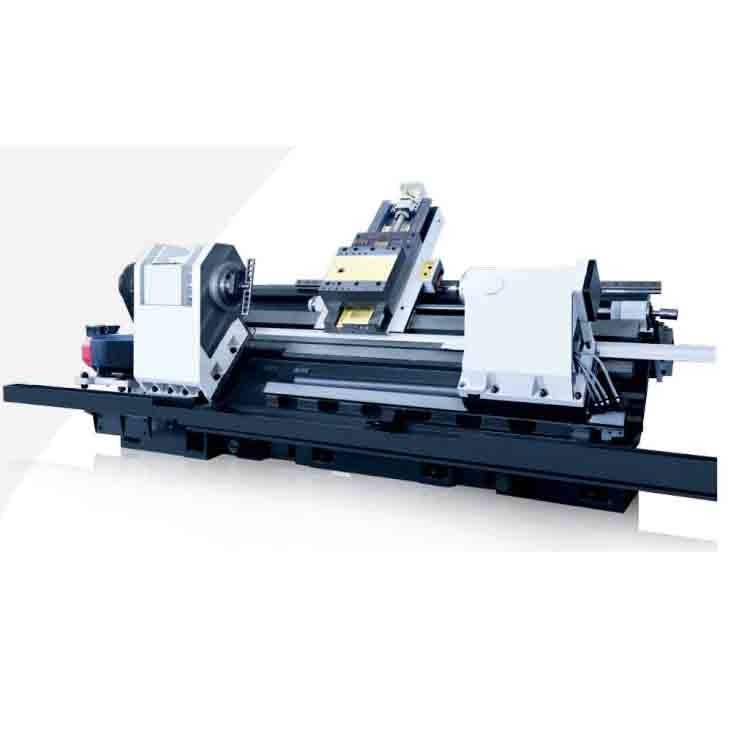

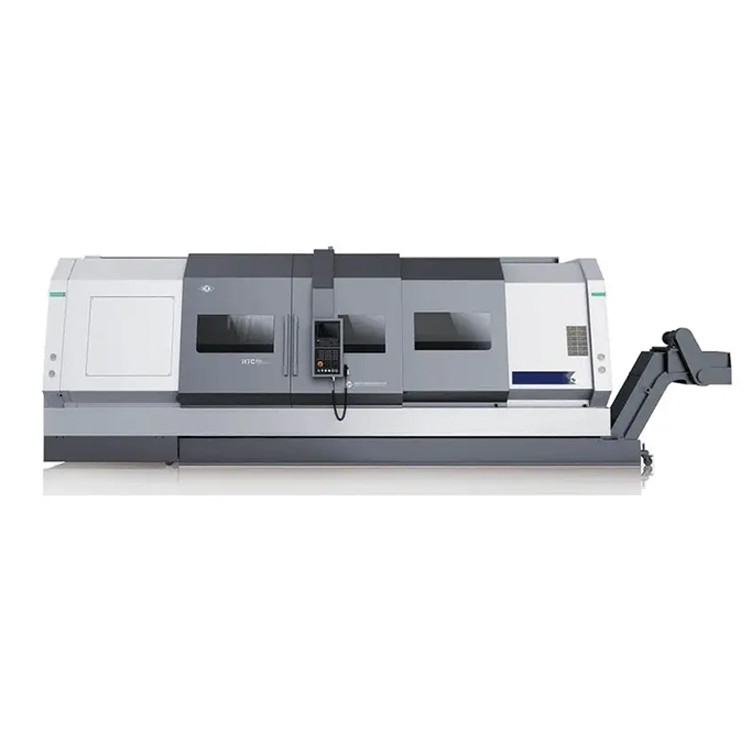

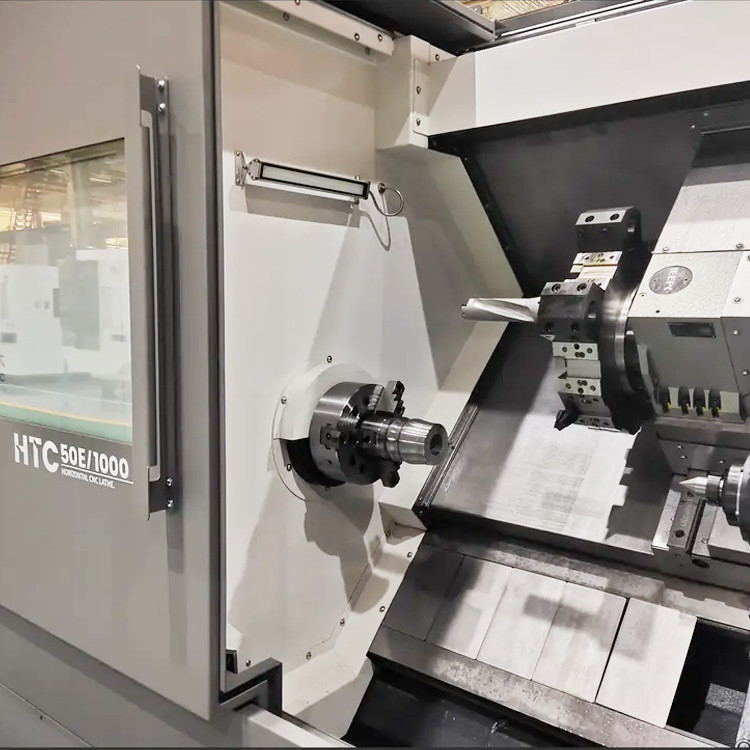

SMTCL 75 Degrees Turning Center HTC63t Slant Bed CNC Lathe Heavy Duty Horizontal CNC Lathe Machine
Product Details
| Brand Name: | SMTCL | Model Number: | HTC 63t |
|---|---|---|---|
| CNC Control System: | GSK/FANUC/SIEMENS | CNC Or Not: | CNC |
| Key Word: | Turning Center，slant Bed Cnc Lathe | Application: | Multi Purpose Metal Working |
| Max. Swing Over Bed: | Φ900 | Max. Cutting Diameter: | Φ3500 |
| Max. Cutting Length: | 1000/1500/2000/2500/3500 | Spindle Bore Diameter: | Φ130 |
| Highlight |
Turning Center Slant Bed CNC Lathe,75 Degrees Horizontal Slant Bed Lathe,Heavy Duty CNC Lathe Milling Machine |
||
Product Description
Product Description:
Product Features:
method, which effectively eliminates vibration during machine operation and cutting, enhances reliability, and is easy to
maintain, enabling customers to obtain durable and stable processing quality.
|
Item
|
UNIT
|
HTC63t Series
|
|
Max. swing over bed
|
mm
|
Φ900
|
|
Max. swing over carriage
|
mm
|
Φ630
|
|
Max. cutting diameter (disc/shaft)
|
mm
|
Φ750/Φ630
|
|
Max. cutting length
|
mm
|
1000/1500/2000/3000/3500
|
|
Spindle bore diameter
|
mm
|
Φ130
|
|
Form of spindle nose
|
|
A2-11
|
|
Max. diameter through bar
|
mm
|
Φ115
|
|
Main motor power (continuous / 30min)
|
kw
|
30/37
|
|
Range of spindle speed / Max. output torque
|
r/min
|
(Mechanical 2 steps) 20~2000 / 2456
|
|
Chuck diameter
|
inch
|
15”
|
|
Max. travel of X-axis
|
mm
|
410
|
|
Max. travel of Z-axis
|
mm
|
1100/1600/2100/3100/3600
|
|
Rapid speed (X axis)
|
m/min
|
12/15/;12/15
|
|
Rapid speed (Z-axis)
|
m/min
|
12/12/;12/12
|
|

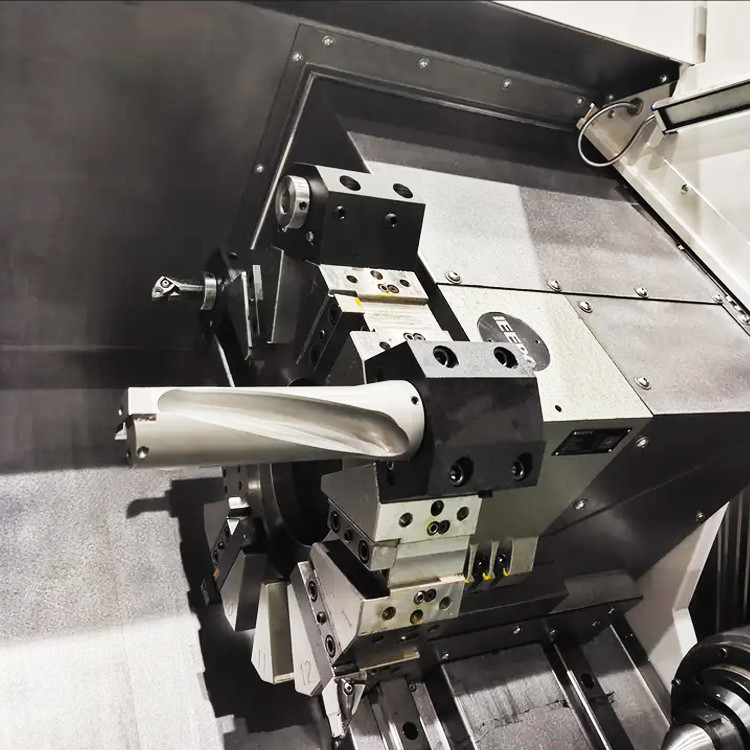

Form of tool turret
|
|
Horizontal 12-position turret
|
|
Size of tool shank
|
mm
|
32X32/Φ50
|
|
Positioning accuracy (X axis)
|
mm
|
0.013
|
|
Positioning accuracy (Z-axis)
|
mm
|
0.020/0.022/0.030/0.040/0.044
|
|
Repositioning accuracy(X axis)
|
mm
|
0.006
|
|
Repositioning accuracy(Z-axis)
|
mm
|
0.008/0.012/0.015/0.018
|
|
Machining accuracy
|
|
IT6
|
|
Max. weight of disc workpiece
|
kg
|
500
|
|
Max. weight of shaft workpiece
|
kg
|
2000
|
|
weight of machine
|
kg
|
22000/25000/2000/28000/320000/35000
|
|
Overall dimensions of machine (LxWxH)
|
mm
|
7400x2800x23130;7800x2800x3130; 8200x2800x3130;9000x2800x3130
|
Industry application:
Workpiece example: guide sleeve
Workpiece example: medium 500 cylinder
Workpiece Example: Drive Axle
Workpiece example: RE2B axle
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
Product Highlights
Product Description: Slant bed CNC lathe HTC63t Series Turning Center Full Function CNC Lathe HTC63t series horizontal CNC lathe can be selected with 75° integral inclined bed, casting by resin sand process, reasonable internal rib layout, wide guide surface, high overall rigidity of the bed, with ...
