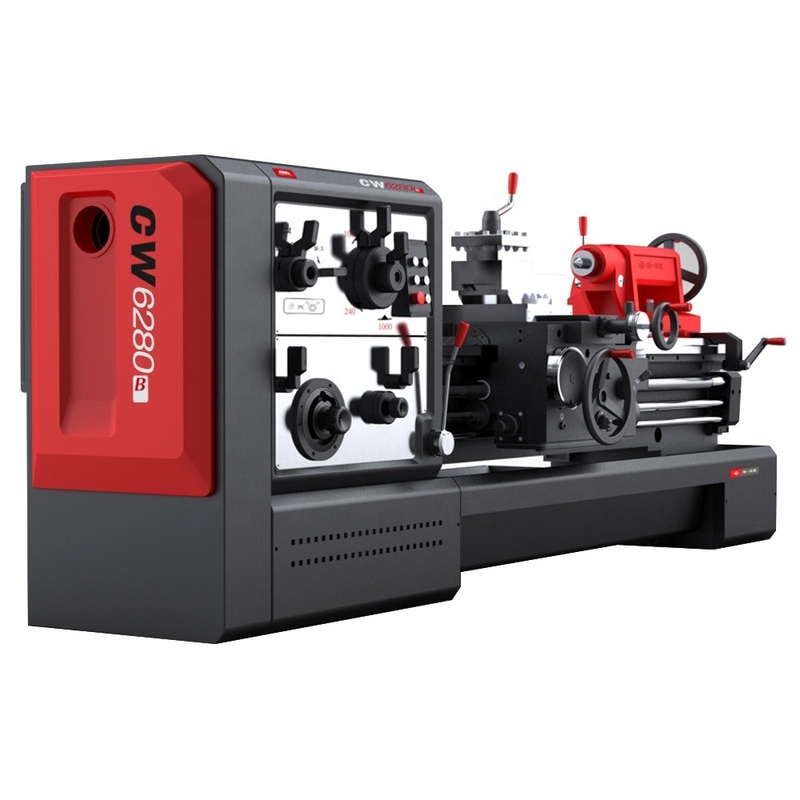

Name: Universal Conventional Lathe Machine CW6180B CW6280B Heavy Duty
Brand: Shanghai HD M&E Tech Co., Ltd.
SKU: CW6180B/6280B
Availability: InStock

Home > products > Conventional Lathe Machine >

Universal Conventional Lathe Machine CW6180B CW6280B Heavy Duty

CW6180B Conventional Lathe Machine

Cw6280b Conventional Lathe Machine

Universal Cw6280b Lathe

Place of Origin:

China

Brand Name:

smtcl

Certification:

ISO CE

Model Number:

CW6180B/6280B

Request A Quote

Universal Conventional Lathe Machine CW6180B CW6280B Heavy Duty

Product Details

Product Name:

CW6180B/6280B Universal Manual Lathe

Width Of Bed (mm):

310

Width Of Bed:

600mm

Max. Swing Diameter (mm):

800

Max Turning Dia Over Carriage:

480mm

Max Workpiece Length:

1500,3000,4000,5000,6000,8000

Max. Swing Diameter And Width In Gap:

1000/310

Taper In Spindle Nose And Center:

120/Morse.5

Max. Cross Travel Of Lower Slide:

500mm

Max. Travel Of Top Slide:

200

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

Package suitable for long distance sea freight

Delivery Time

30-45 days

Supply Ability

30 Set/Sets per Month

SMTCL Manual Lathe CA6140A Screw Nuts Processing 1500mm Convencional Horizontal Lathe

Get Best Price

Video

SMTCL Horizontal Lathe Machine 1.5m Lathe CA6140 CA6150 Engine Turning Manual Lathe

Get Best Price

Video

SMTCL Horizontal Lathe Machine CA6140B/A 2000mm Manual Lathe Machine For Steel

Get Best Price

Video

SMTCL 2000mm Manual Gap Bed Lathe CA6150B/A Manual Metal Turning Lathe Machine

Get Best Price

+8613916455787

sales@huidijd.com

86-021-61195255

Contact Now

Product Description

CW6180B/6280B Heavy Duty Universal Manual Lathe Machine Conventional Metal Lathe Tool For Sell

Machine Parameters

Model	CW6163B CW6263B	CW6180B CW6280B
Max. swing diameter over bed	630mm	800
Max. swing diameter over carriage	350mm	480
Max. work piece length	1000.1500, 2000, 3000, 4000,5000, 6000, 7000	1500,3000,4000, 5000,6000,7000
Max. swing diameter and width in gap	800/300mm	81000/300mm
Spindle bore and nose	104,D11(B series)	104,D11(B series)
Taper in spindle nose and center	120(B series) Morse NO.5	120(B series) Morse NO.5
Steps and range of spindle speeds	18speeds 7.5-1000(B series) r/min	18speeds 5.4-720(B series) r/min
Steps and range of longitudinal feeds	64feeds 0.05-24.3 mm/r	64feeds 0.06-24.3 mm/r
Range 1:1	0.1-1.52 mm/r	0.1-1.52 mm/r
Range 16:1	1.6-24.3mm/r	1.6-24.3mm/r
Range of fine feed with change gears	0.05-0.912mm/r	0.06-0.912mm/r
Longitudinal and cross feed rate	1/2	1/2
Quick movement of saddle	4000mm/min	4000mm/min
Screw pitch	12(metric);1/2''(whitworth)	12(metric);1/2''(whitworth)
Number and range of metric thread	50kinds 1-240	50kinds 1-240
Number and range of whitworth thread	26kinds 14-1	26kinds 14-1
Number, range of module thread	53kinds 0.5-120mm	53kinds 0.5-120mm
Number, range of diametral thread	24kinds 28-1D P	24kinds 28-1D P
Max. cross travel of lower slide	420mm	500mm
Max. travel of top slide	200mm	200mm
Max. travel of tailstock quill	250mm	250mm
Taper of tailstock quill	Morse NO.5	Morse NO.5
Width and hardness of bed guideways	550 RC52mm	600 RC52mm
Main motor power	11kW	11/15kW
Rapid motor power	1.1kW	1.1kW
Power of coolant pump motor	120W	120W
Machine W×H	1380×1450	1450x1630
Max. payload of workpiece	2500kg	2500kg

Product Introduction

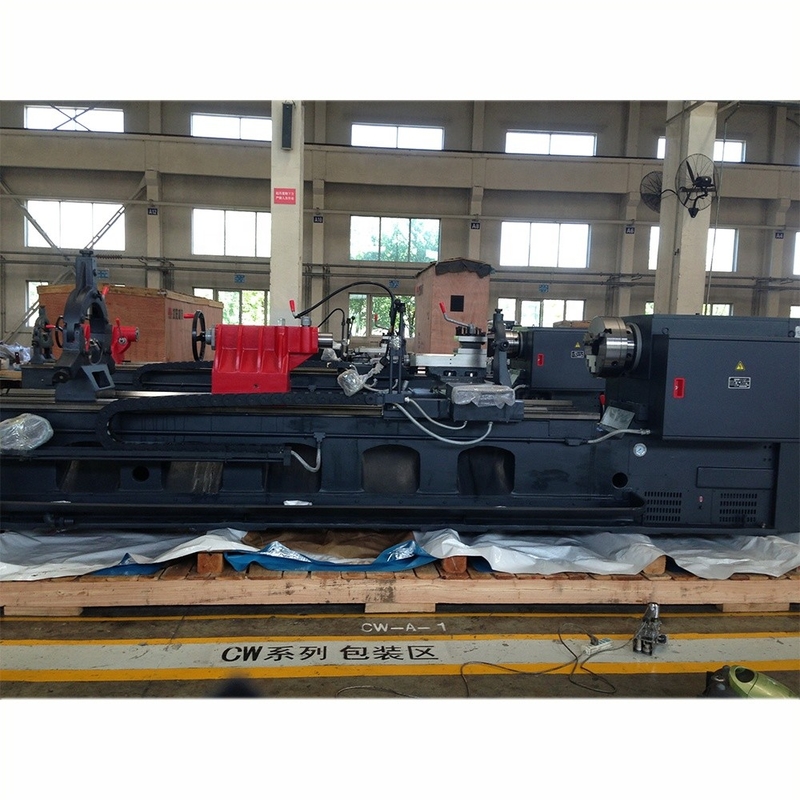

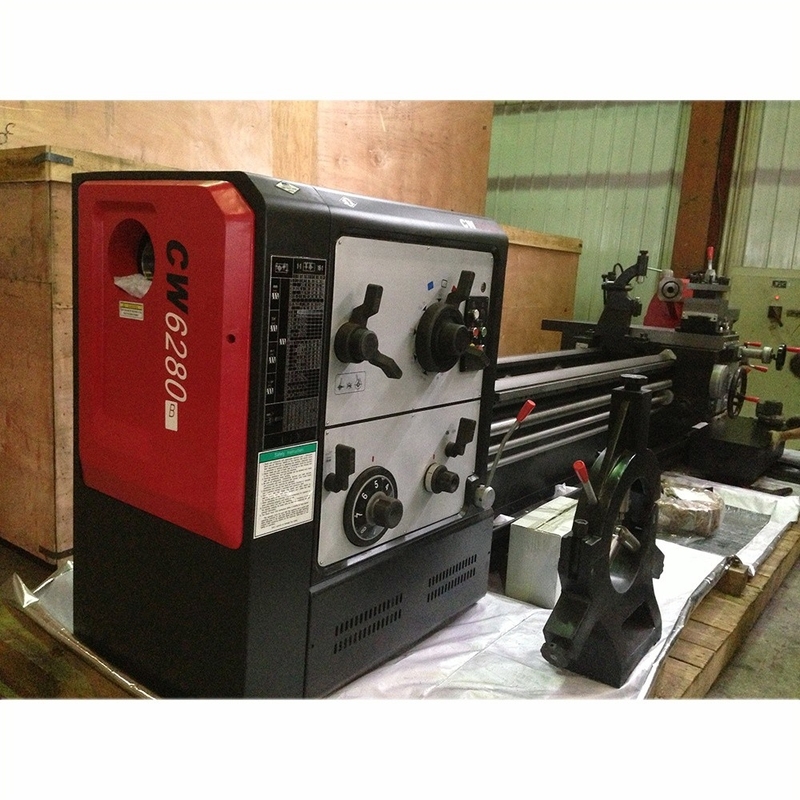

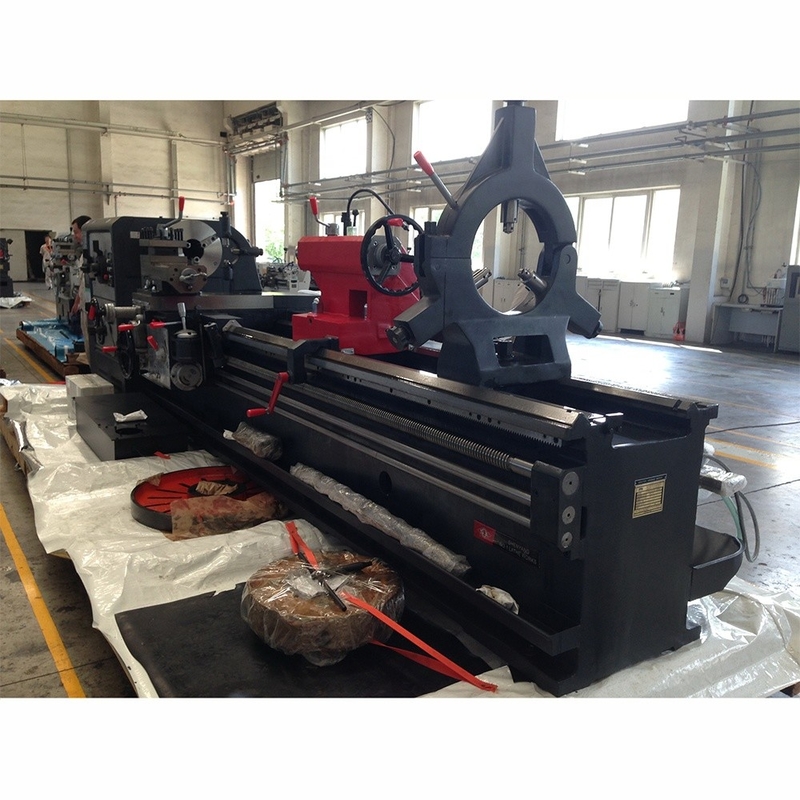

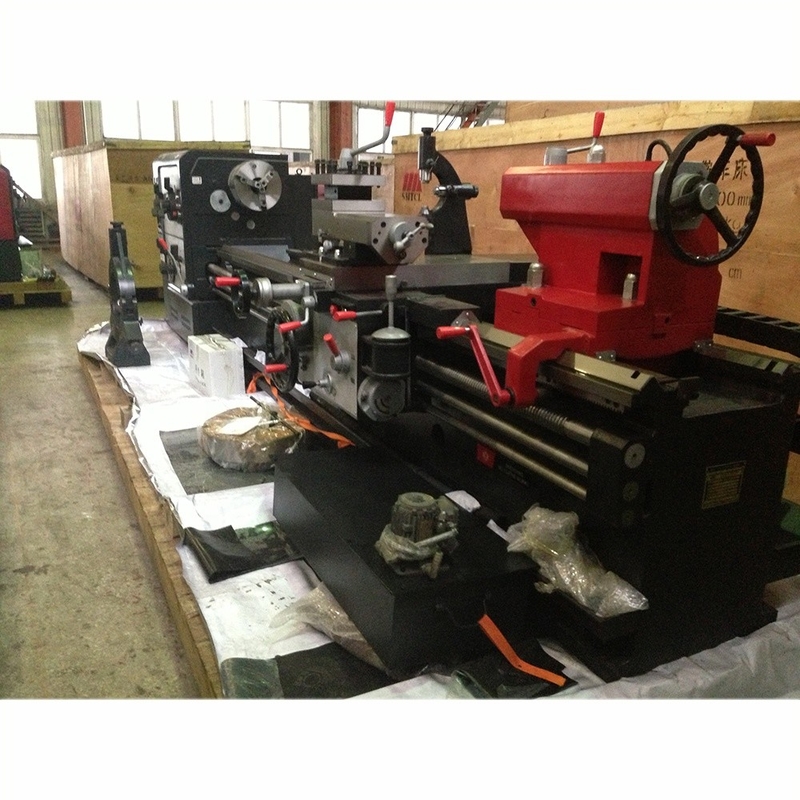

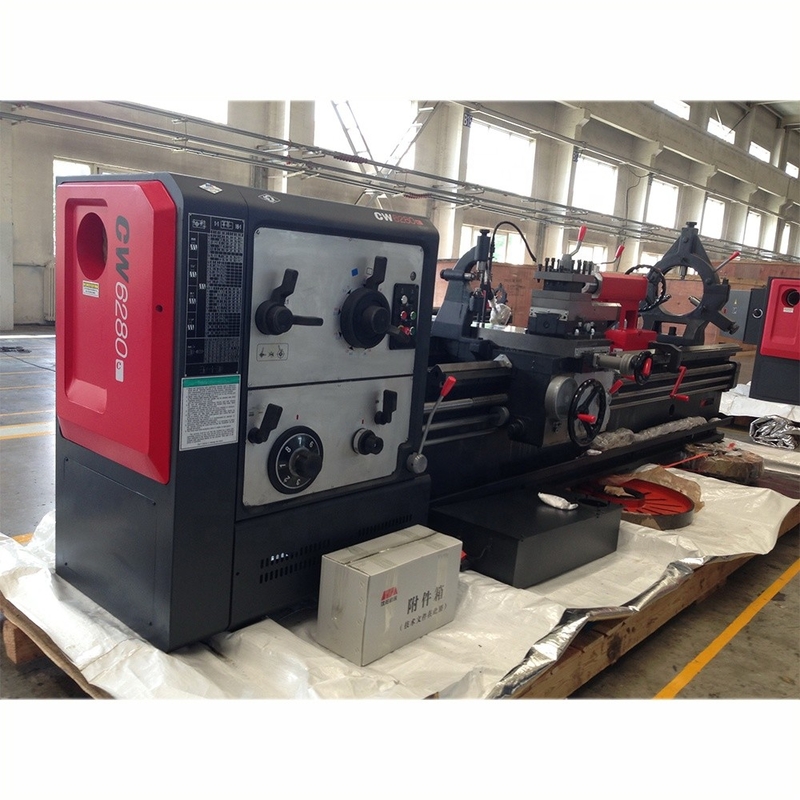

Packaging & Shipping

Universal Conventional Lathe Machine CW6180B CW6280B Heavy Duty 8
