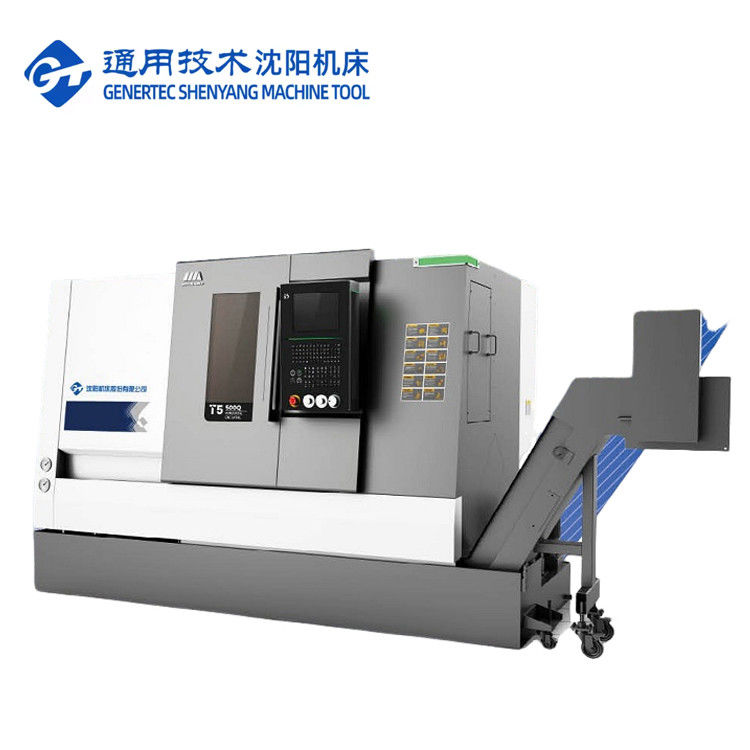

SMTCL Multi-purpose Fanuc System CNC Lathe T5.2-500Q Metal Processing Slant Bed CNC Lathe
Product Details
| Brand Name: | SMTCL | Model Number: | T5.2-500Q |
|---|---|---|---|
| CNC Control System: | GSK/FANUC/SIEMENS | CNC Or Not: | CNC |
| Key Word: | Slant Bed Lathe CNC Machine | Travel (X Axis)(mm): | 200 |
| Travel (Z Axis)(mm): | 560 | X/Z Rapid Traverse: | 30m/min |
| Tool Post Stations: | 8 | Max. Spindle Speed (r.p.m): | Max. Spindle Speed (r.p.m) |
| Max. Turned Length (mm): | 500 | Max. Swing Over Bed: | Φ560 |
| Max. Swing Over Slide: | Φ350 | Max. Cutting Dia.: | Φ360 |
| Highlight |
Multi Purpose Slant Bed CNC Lathe,Precision CNC Lathe,3 Axis Slant Bed CNC Lathe |
||
Product Description
SMTCL Multi-purpose CNC Lathe T5.2-500Q Fanuc System Metal Processing 3 Axis Slant Bed CNC Llathe

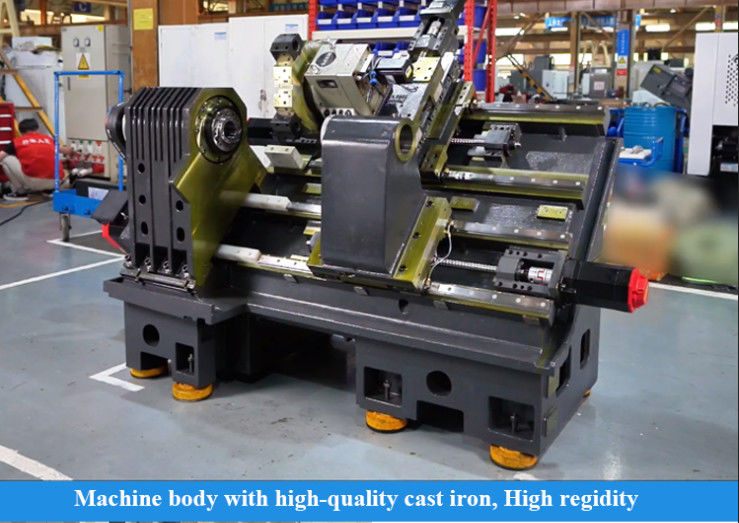

T5Q series horizontal CNC lathe, combining intelligent control technology and advanced manufacturing technology, has high precision, high efficiency and high cutting rigidity. The finite element analysis software is used to optimize the design, analyze the distribution of stress points, reduce the deformation of parts, and achieve the optimal structure of the whole machine. The main castings are all made of high-strength cast iron materials, which ensures the minimization of vibration during the cutting process and improves the machining accuracy and cutting stability.

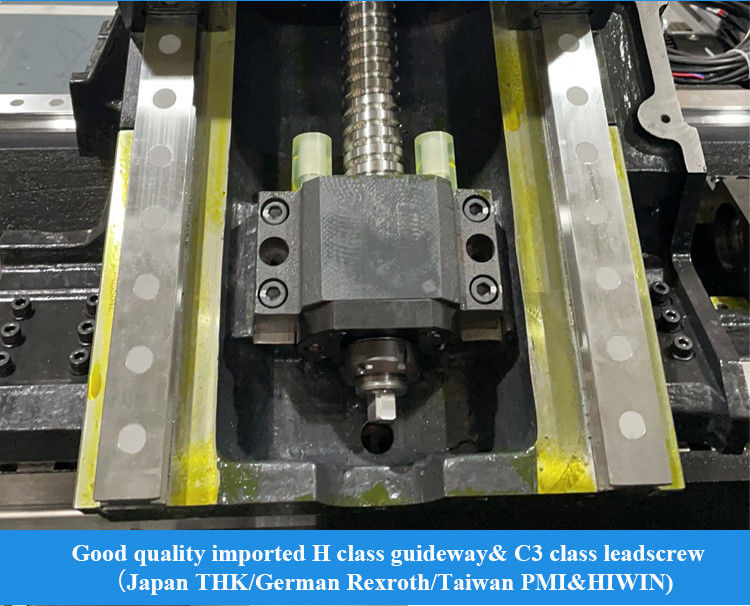

- C3 pre-drawn lead screw
- Error compensation technology
- Process standard quantification
- Two axes high and fast moving speed
- Split servo tail

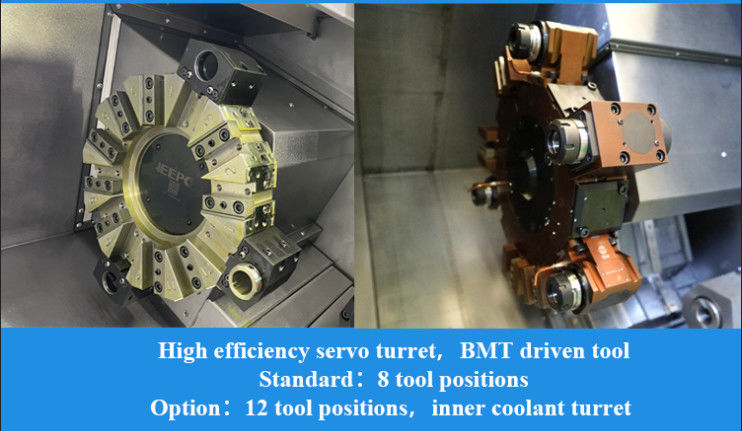

- High efficiency servo cutter tower
- High-quality cast iron bed and other key castings

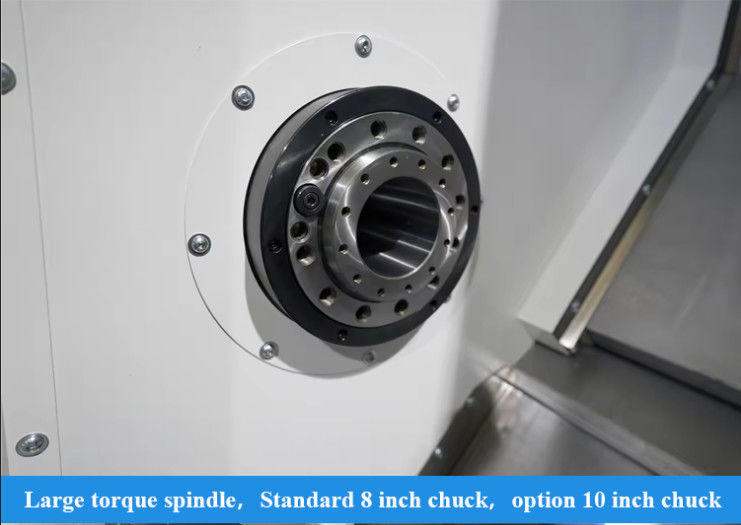

- Large span double row cylindrical roller spindle bearing
- Anti-bending saddle structure
| Item | Unit | T5.2-500Q | T5.2-1000Q | |
| Max. turning diameter | mm | Φ360 | Φ360 | |
| Max. turning length | mm | 500 | 500 | |
| Max.swing diameter over bed | mm | Φ560 | Φ560 | |
| Max.swing diameter over cross slide | mm | Φ350 | Φ350 | |
| Spindle | Type of spindle nose | A2-6 | A2-6 | |
| Inner diameter of front bearing | mm | 100 | 100 | |
| Taper of spindle bore | 1:20；Φ70 | 1:20；Φ70 | ||
| Spindle bore | mm | Φ65 | Φ65 | |
| Max. through bar diameter | mm | Φ50 | Φ50 | |
| Standard chuck diameter | inch | 8 | 8 | |
| Max. spindle speed | r/min | 4500 | 4500 | |
| Spindle rated torque | Nm | 136(769r/min) | 136(769r/min) | |
| Max. spindle torque | Nm | 245(576r/min) | 245(576r/min) | |
| Main motor output power continuous /15 minutes | kW | 11/15 | 11/15 | |
| Two axis | Rapid traverse of X/Z axis | m/min | 30 | 30 |
| X axis travel | mm | 200 | 200 | |
| Z axis travel | mm | 560 | 1050 | |
| Tailstock | Tailstock travel | mm | 500 | 950 |
| Tailstock quill taper | Morse | MT-5 | MT-5 | |
| Turret | Turret form | Horizontal 8 positions servo turret | Horizontal 8 positions servo turret | |
| Center height of turret | mm | 80 | 80 | |
| Turret rotation repeat positioning accuracy | Sec. | ±1.6 | ±1.6 | |
| Whether the cutter can be selected nearby | yes | yes | ||
| Other | Distance from spindle center to bed bottom | mm | 1015 | 1015 |
| Machine net weight | kg | 4200 | 4750 | |
Standard specifcations:
|
Options:
|
|||
| Total power supply capacity | kVA | 27 | 27 | |
| Overall dimensions (Length X width X height) | mm | 2750×1890×1900 | 3620×1890×1900 | |
- Every parts need be inspected
- Over 100 production process control
- Over 200 inspection items
- Sample processing of each machine
- 72 hours trial run before delivery
- Top quality sense, customers' requests come first
- 30 years + R & D history, the company was founded in 1993
- High-tech manufacturer with research anddesign capacity
- Stable and mature supplying system
- Young active sales and engineers for instant services(24 hours online)
- Upgrading on mechanism according to ergonomics and easy maintenance
- Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
- Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
- Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
- Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
- Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date. - Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system - Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee. - Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
- Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
