SMTCL Max Swing Diameter 1250mm Siemens System HTC125500 Large Horizontal CNC Lathe

Brand Name: SMTCL
Model Number: HTC125800
Place of Origin: China
Certification: CE ISO
Minimum Order Quantity: 1 Set
Supply Ability: 50 Sets per Month
Tags

Flatbed Turning CNC Machine

CNC Lathe Machine

Cost-effective CNC lathes

Product Details

Brand: SMTCL Type: HTC125800
Product Name: Horizontal Flat Bed CNC Lathe Maximum Swing Diameter Over Bed: 1250mm
Maximum Cutting Length: 8000mm Maximum Cutting Diameter: 1250mm
X Axis Travel: 650mm Z Axis Travel: 8000mm
Tool Post Type: Vertical 4-position
Highlight

Siemens System

,

Max Swing Diameter 1250mm

,

Max cutting length 8000mm

Product Description

SMTCL Max Swing Diameter 1250mm Siemens System HTC125500 Large Horizontal CNC Lathe 0

Product Description:

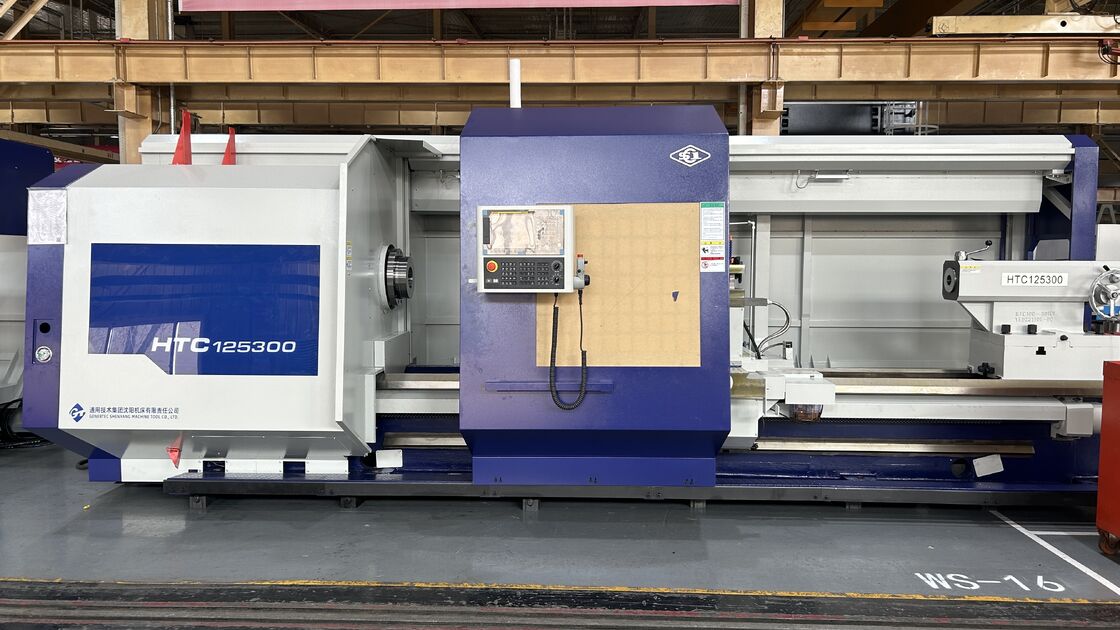

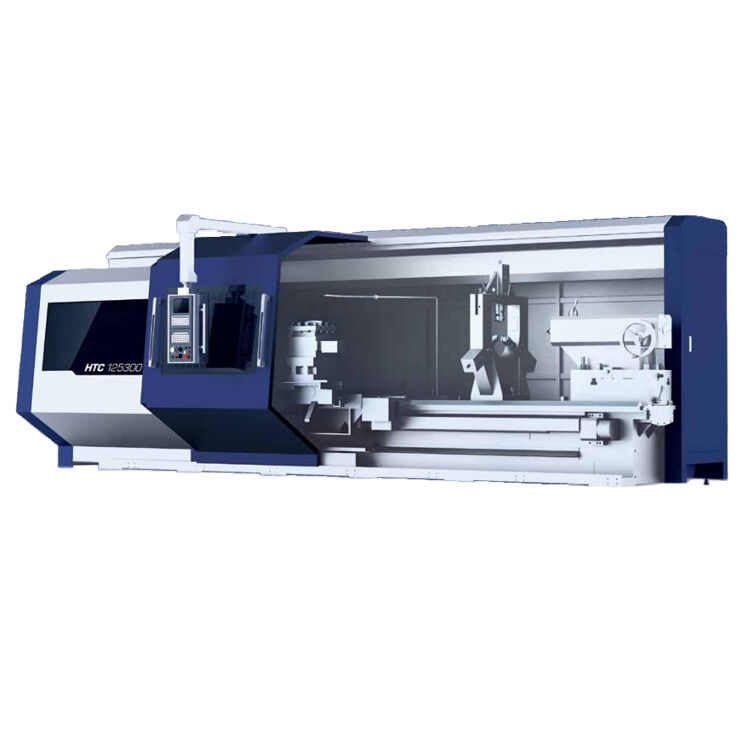

SMTCL Max Swing Diameter 1250mm Siemens System HTC125800 Large Horizontal CNC Lathe
HTC series lathe is a large CNC horizontal lathe with high reliability, high accuracy and CNC Two-axis linkage. This machine tool series is the excellent product designed and produced on the basis of digesting & absorbing CNC lathe technology at home and abroad and integrating our many years of experience in producing CNC lathes to meet market demand, and it has the advantages of similar products in the world.
It is applicable to rolling stock, metallurgy, paper making, electric power, national key fields and other machining industries, and it can be used in rough and fine lathe machining for various outer curve surface, inner hole, thread, end face and grooving of cast iron, steel and non-ferrous metal workpieces.
In addition to the functions of universal CNC lathe, it is also equipped with a variety of functional parts for users to select, and it can cooperate with the principal machine to achieve the multi-procedure machining in a single loading/clamping, that is, it can achieve functional integration in one machine, and combination of multi-procedure/process.
Product Features:

headstock:

Selection of imported precision spindle bearings, high precision fire grinding gear, spindle hydraulic shift Chuck: Selection of domestic well-known brands, clamping force, clamping reliable

Z-axis drive:

SIEMENS/FANUC original servo motor, screw drive for machine tools with less than 5m stroke, rack drive for machine tools with 6m and above

Steady rest:

Various specifications closed center frame (can be equipped with rollers)

Tool rest:

Domestic vertical four-station electric tool holder, can be selected with other vertical and horizontal tool holder, high positioning accuracy, strong rigidity, high reliability

Bed saddle, skateboard:

Casting bed saddle, skateboard, reasonable internal rib layout, high precision ball screw or rack and pinion, high precision, accurate transmission

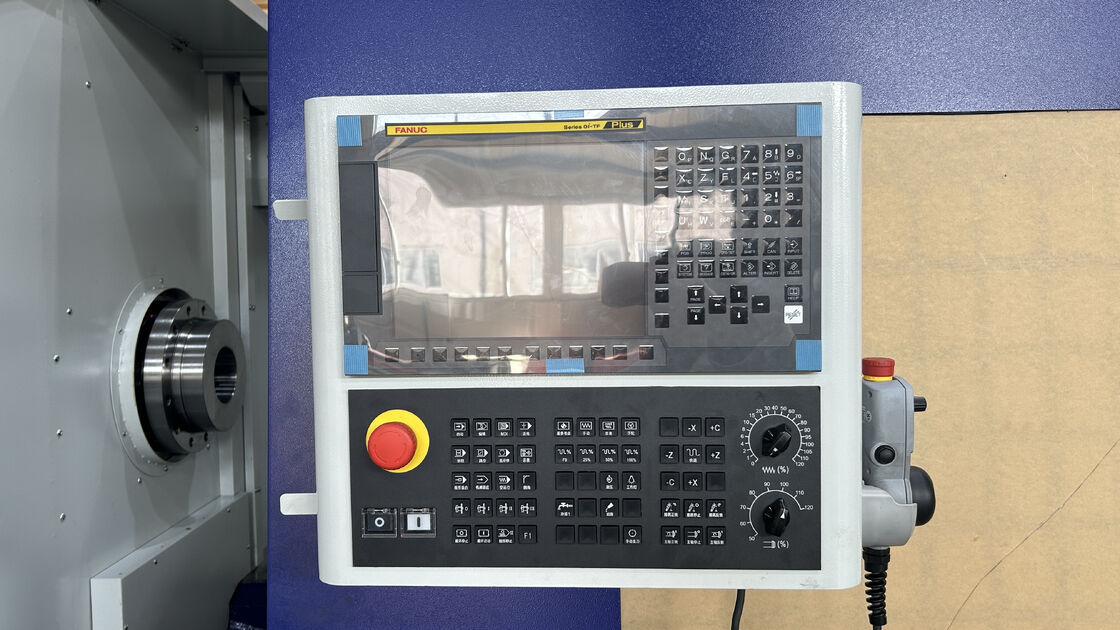

Control console:

Siemens servo system, to achieve high-speed, high-precision, high-stability servo control, optional FANUC system

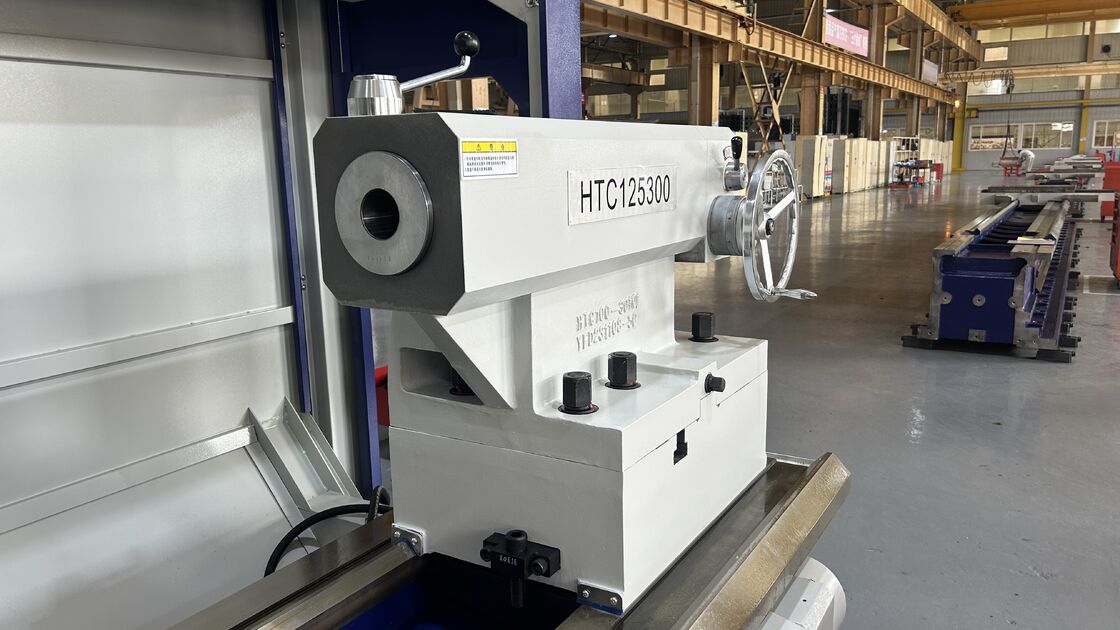

Tailstock:

Mechanical tail seat is divided into upper and lower body structure. Standard mechanical tailstock

Body:

Casting bed with reasonable internal rib layout and auxiliary guide rail, with high rigidity, strong bearing capacity, good stability and so on. (6m and above specifications of the bed with a long section splicing form)

SMTCL Max Swing Diameter 1250mm Siemens System HTC125500 Large Horizontal CNC Lathe 1

Industry application:

SMTCL Max Swing Diameter 1250mm Siemens System HTC125500 Large Horizontal CNC Lathe 2

Product Paramenters:

Items
Unit
HTC 125800
Maximum swing diameter over bed

mm
1250
Maximum workpiece holding length (distance between centers)

mm
8100
Maximum cutting length
mm
8000
Maximum cutting diameter
mm
1250
Maximum swing diameter over cross slide

mm
850
Spindle nose type and code


A2-15
Spindle front end bore taper


Metric 140
Spindle bore diameter
mm
130
Hydraulic variable speed headstock
Spindle speed range

r/min
5-500
Maximum output torque of spindle
Nm
7500
Spindle speed steps

Hydraulicly 3steps, infinitely variable speeds at each step

Power of main motor
kW
22
Chuck
Diameter/type of chuck
mm
1000/manual four-claw
X-axis rapid traverse speed
m/min
6
Z-axis rapid traverse speed
m/min
5
X-axis travel
mm
650
Z-axis travel
mm
8000
Mechanical tailstock
Tailstock sleeve diameter
mm
160
Tailstock sleeve travel
mm
300
Tailstock sleeve taper

Mohs 6#
Tool post type

Vertical 4-position
Tool size
mm
40*40
Maximum load capacity
Disc workpieces
kg
1000
Shaft workpieces
kg
5000
Machining accuracy

IT6-IT7
Roundness of workpiece machined
mm
0.005
Consistency of machining diameter
mm
0.025/300
Planeness of workpiece machined
mm
0.02/300
Surface roughness of workpiece machined
Cylindrical surface

Ra l.6μm
Circular cambered surface Conical surface

Ra 3.2μm
Positioning accuracy
X-axis
mm
0.014
Z-axis
mm
0.065(Z-axis standard grating ruler)
Repeated positioning accuracy
X-axis
mm
0.006
Z-axis
mm
0.016(Z-axis standard grating ruler)
Center height
From bed
mm
625
From ground surface
mm
1275
Overall dimension (L* W * H)
mm
11850*2725*2450
Standard configuration:
1. CNC control system: Siemens 828D
2.Domestic 22kW frequency conversion main motor
3. Imported high-precision spindle bearings
4. Manual tail seat
5. Vertical four-station electric tool holder
6. Imported brand lead screw
7. φ1000 manual four-jaw chuck
8. Two axis automatic lubrication
9. Cooling device
10.The floor mat iron (technical foot hole configuration)
Selective configuration:
1. CNC system FANUC(two-axis motor with the system configuration)
2. Other specifications three or four jaw chuck
3. Heidenhain/Fager grating ruler
4. Axle parts bearing capacity 8 tons
5. Various specifications steady rest and roller
6. Siemens/FANUC main motor
7. Other specifications power tool holder
8. Semi-closed protection
9. Chain plate chip extractor
10. Various specifications boring tool base
11. Small spindle tailstock
12. Electric tailstock

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:

SMTCL Max Swing Diameter 1250mm Siemens System HTC125500 Large Horizontal CNC Lathe 3

Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
SMTCL Max Swing Diameter 1250mm Siemens System HTC125500 Large Horizontal CNC Lathe 4

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
