SMTCL General-purpose floor-type Milling and Boring machining center P-Force for Wind Power Industry

Brand Name: SMTCL
Model Number: P-Force
Place of Origin: CHINA
Certification: CE ISO certification
Minimum Order Quantity: 1
Supply Ability: 50 sets per month
Tags

Horizontal Boring And Milling Machine

Horizontal CNC Boring Machine

CNC Milling And Boring Machine

Product Details

Brand Name: SMTCL Product Name: CNC Floor Milling And Boring Machine
Product: P-Force Spindle Diameter: 130
Milling Axis Diameter: 211.44 Tool Handle Specification: BT50/JT50
X-axis: 4000(increment Per 2000) Y-axis: 2000/2500/3000/4000
Z-axis: 700 W-axis: 700
Highlight

General-purpose

,

floor-type

,

Wind Power Industry

Product Description

SMTCL General-purpose floor-type Milling and Boring machining center P-Force for Wind Power Industry 0

Product Description:

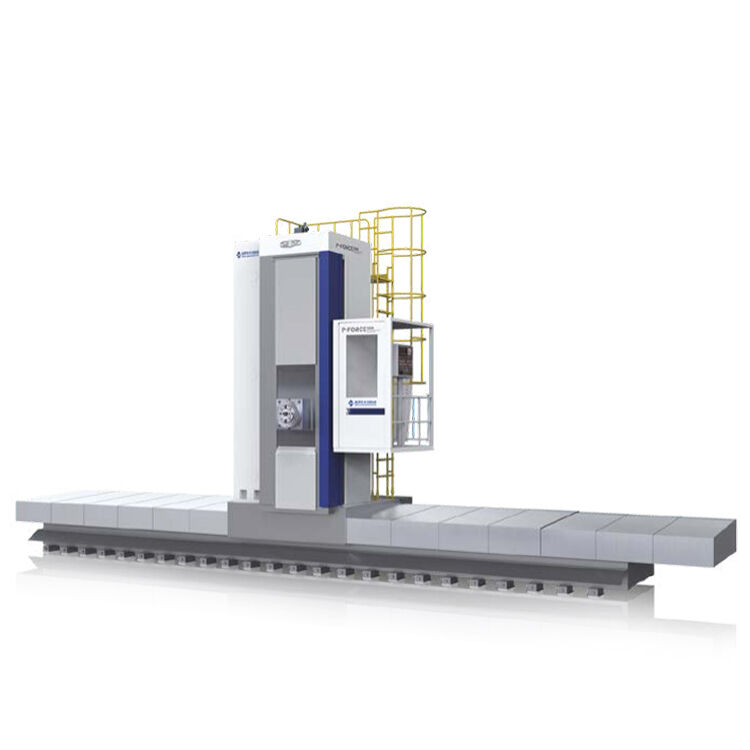

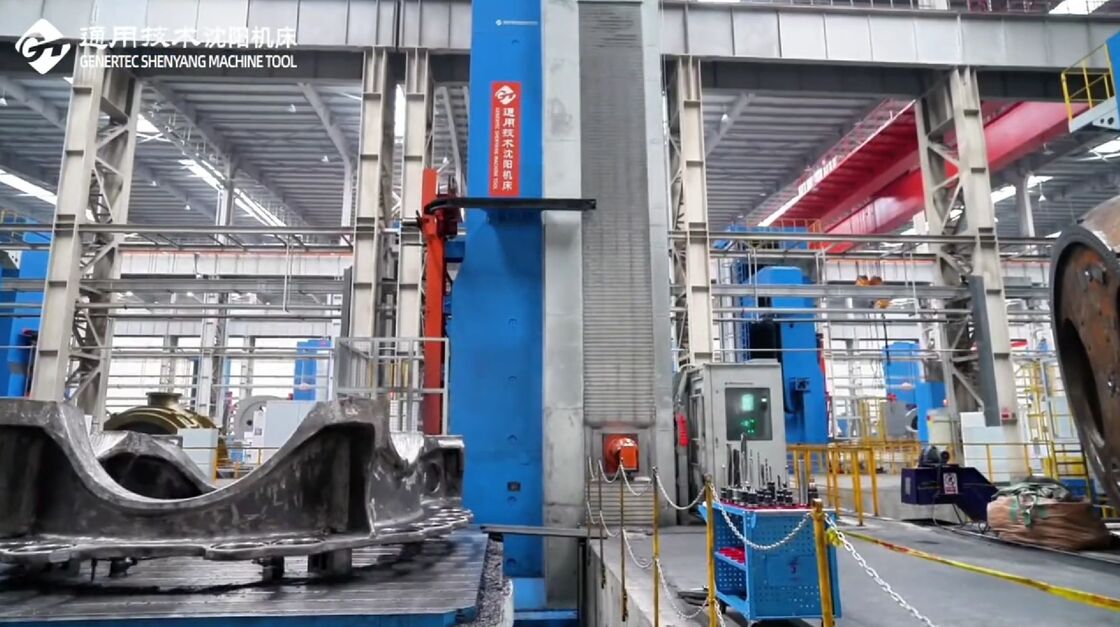

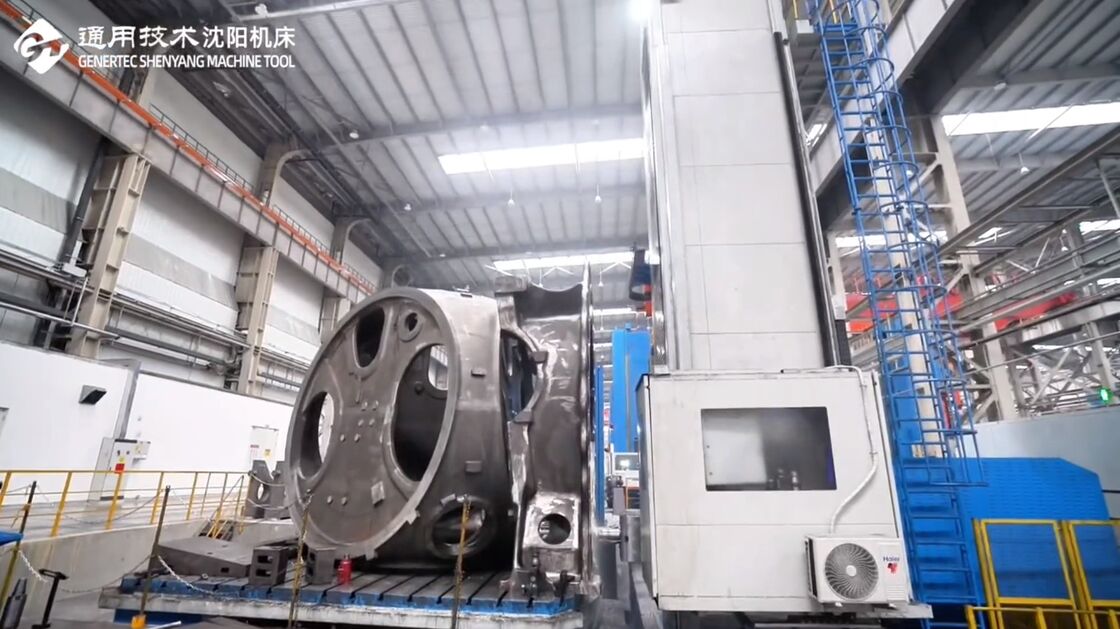

SMTCL General-purpose floor-type Milling and Boring machining center P-Force for Wind Power Industry
General type, which is economical and practical with wide machining range, and it is suitable for machining of various parts. It is used in engineering machinery, reducer, pump valve, general machinery and other industries.
Structural features:Single column side hanging box layout, in which, the column moves horizontally along the body guide rail (X-axis coordinate) , the headstock moves vertically along the column guide rail (Y-axis coordinate) , the ram moves horizontally in the headstock (Z-axis coordinate) , and the spindle moves in the ram (W-axis coordinate) .
Basic parts:Cast with high-strength cast iron material and resin sand process
Spindle group:The spindle is driven by Siemens AC servo motor via homemade reduction gearbox, which is divided into high gear and low gear speed change.
Guide rail:The imported heavy-load roller linear guide rail for X-axis, the steel plastered guide rail
pair for Y-axis, and the four-sided enclosed cast iron hardening guide rail for Z-axis

Product Features:

SMTCL General-purpose floor-type Milling and Boring machining center P-Force for Wind Power Industry 1

High-quality basic castings

The body, sliding seat, column, headstock and other castings of the machine tool are made of resin sand molding high strength gray cast iron. The ram and the
main gearbox are made of high-strength ductile cast iron, which has good shock absorption and stiffness
SMTCL General-purpose floor-type Milling and Boring machining center P-Force for Wind Power Industry 2

Strict process control and quality inspection

Strict and comprehensive quality process control, 138 process inspection control items, total acceptance test, and 179 inspection items conduct high-standard
inspection on accuracy of the product to ensure that the product accuracy is stable and reliable.
SMTCL General-purpose floor-type Milling and Boring machining center P-Force for Wind Power Industry 3

High-accuracy and high-rigidity ram

The ram is made of high-strength ductile cast iron, and is jointly compensated by double hydraulic cylinder, proportional valve and CNC control system.
SMTCL General-purpose floor-type Milling and Boring machining center P-Force for Wind Power Industry 4

Full closed-loop control

Each axis is measured by imported grating ruler to achieve full closed loop control, improving the positioning accuracy of the machine tool.
SMTCL General-purpose floor-type Milling and Boring machining center P-Force for Wind Power Industry 5
SMTCL General-purpose floor-type Milling and Boring machining center P-Force for Wind Power Industry 6
Product Paramenters:
Item
Unit
P-Force 130R
P-Force 160R
FBC 130rp
FBC 160rp
Spindle
Spindle diameter
mm
130
160
130
160
Milling axis diameter
mm
211.44
260
211.44
260
Tool handle specification

BT50/JT50
BT50/JT50
BT50/JT50
BT50/JT50
Spindle rotary speed
r/min
10-1500
10-1000
10-1500
10-1500
Maximum
spindle torque
SIEMENS
N·m
1700/2100
2900/3500
3000/3600
4400/5000
FANUC
N·m
1850/2200
3000/3700
-
-
Spindle motor
power
SIEMENS
kW
41/49
41/49
41/49
60/69
FANUC
kW
37/45
37/45
-
-
Ram cross section
mm
480×480
480×480
480×480
480×480
Stroke
X-axis
mm
4000(increment per 2000)
6000(increment per 2000)
6000(increment per 2000)
6000(increment per 2000)
Y-axis
mm
2000/2500/3000/4000
2000/2500/3000/4000
2500/3000/4000
2500/3000/4000
Z-axis
mm
700
700
1000
1000
W-axis
mm
700
700
800
800
Feed
Feed speed
X/Y-axis
mm/min
1-6000
1-6000
1-6000
1-6000
Z/W-axis
mm/min
1-3000
1-3000
1-3000
1-3000
Fast moving
X/Y-axis
mm/min
6000
6000
6000
6000
Z/W-axis
mm/min
3000
3000
3000
3000
Positioning accuracy







Execution standard
GB/T 5289.2-2021
X-axis
mm
0.012/1000
(grating ruler as standard configuration)
0.012/1000
(grating ruler as standard configuration)
0.012/1000
(grating ruler as standard configuration)
0.012/1000
(grating ruler as standard configuration)
Y-axis
mm
0.02/1000; 0.012/1000(grating ruler as Optional configuration)
Z-axis
mm
0.025; 0.015(grating ruler as Optional configuration)
0.025; 0.015(grating ruler as Optional configuration)
0.025; 0.015(grating ruler as Optional configuration)
0.025; 0.015(grating ruler as Optional configuration)
W-axis
mm
0.025
0.025
0.025
0.025
Repeat positioning accuracy


Execution standard
GB/T 5289.2-2021
X-axis
mm
0.012
0.012
0.012
0.012
Y-axis
mm
0.012
0.012
0.012
0.012
Z-axis
mm
0.012
0.012
0.012
0.012
W-axis
mm
0.015
0.015
0.015
0.015
Note: The parameters provided in the table are for reference only. If there is any change, the physical object shall prevail.
Standard configuration:
SIEMENS 828D system
X-axis grating ruler
Imported linear guide rail for X-axis
Steel protective pull plate for X-axis
Imported spindle bearings
Spindle blowing function
Domestic headstock oil cooler
Centralized lubrication system for machine tool
Column armor protection for Y-axis
Platform lifted up/down along with the headstock
Single side chain-type chip removal unit
Tri-color light, floodlight
Y, Z, W-axis imported lead screws and bearings
Clean air gun/water gun
Optional configuration:
SIEMENS ONE system
FANUC0i/31i system
Y/Z-axis grating ruler
Automatic capture function of accessory head
CNC rotary workbench
Manual/semi-automatic/automatic milling head
Detachable facing head
Tool magazine (40/60)
Ram thermal elongation compensation
Spindle internal cooling system
Grating ruler blowing
Platform
Adaptive control
Tool load abnormality detection
Energy saving package

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL General-purpose floor-type Milling and Boring machining center P-Force for Wind Power Industry 7
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:

SMTCL General-purpose floor-type Milling and Boring machining center P-Force for Wind Power Industry 8

Exhibition:

SMTCL General-purpose floor-type Milling and Boring machining center P-Force for Wind Power Industry 9

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
