SMTCL Floor Type E-Force Large Spindle Power Large Torque CNC Floor Milling And Boring Machine

Name: SMTCL Floor Type E-Force Large Spindle Power Large Torque CNC Floor Milling And Boring Machine
Brand: Shanghai HD ME Tech Co., Ltd.
SKU: E-Force
Availability: InStock

Brand Name: SMTCL

Model Number: E-Force

Place of Origin: CHINA

Certification: CE ISO certification

Minimum Order Quantity: 1

Supply Ability: 50 sets per month

Horizontal Boring And Milling Machine

Horizontal CNC Boring Machine

CNC Milling And Boring Machine

Product Details

Brand Name:	SMTCL	Product Name:	High Efficiency CNC Floor Milling And Boring Machine
Product:	E-Force	Spindle Diameter:	160/200
Milling Axis Diameter:	260/320	Tool Handle Specification:	JT50/BT50
X-axis:	6000(increment Per 2000)	Y-axis:	3000/4000/5000
Z-axis:	1200	W-axis:	1200
Highlight	Large Spindle Power , Large Torque , Floor type

Product Description

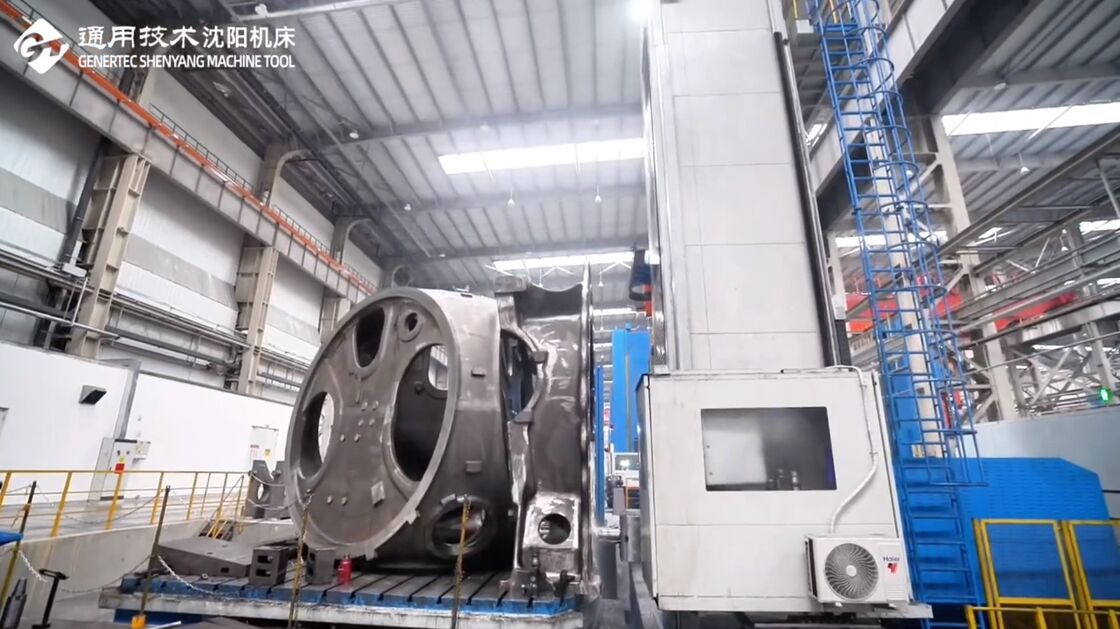

SMTCL Floor Type E-Force Large Spindle Power Large Torque CNC Floor Milling And Boring Machine 0

Product Description:

SMTCL Floor Type E-Force Large Spindle Power Large Torque CNC Floor Milling And Boring Machine

High efficiency with large spindle power and large torque, it is suitable for machining of medium and large parts, and it is used in wind power, energy, reducer, general machinery and other industries.

Structural features:Single column side hanging box layout, in which, the column moves horizontally along the body guide rail (X-axis coordinate) , the headstock moves vertically along the column guide rail (Y-axis coordinate) , the ram moves horizontally in the headstock (Z-axis coordinate) , and the spindle moves in the ram (W-axis coordinate).

Basic parts:cast with high-strength cast iron material and resin sand process, ram is made of high-strength ductile cast iron.

Spindle group:High speed and large torque, with independent homemade gearbox, divided into high, medium and low three speed change.

Guide rail:X-axis and Y-axis are equipped with closed constant flow static guide rail, with good vibration resistance and accuracy retention, and Z-axis is equipped with rolling element plus
steel strip combined guide rail, while static guide rail is optional.

Product Features:

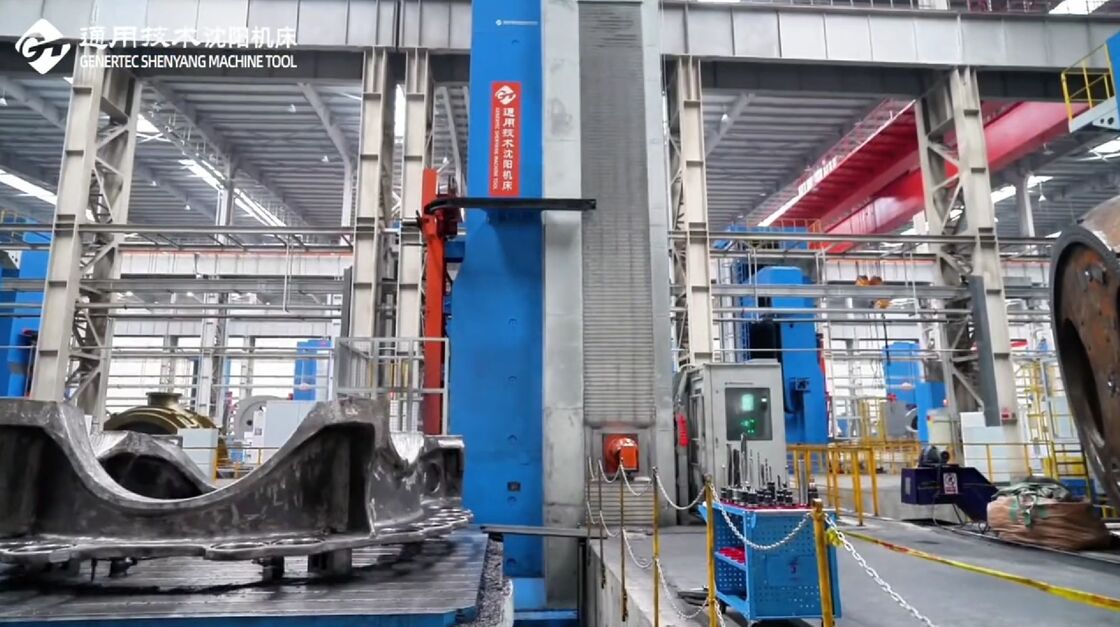

SMTCL Floor Type E-Force Large Spindle Power Large Torque CNC Floor Milling And Boring Machine 1

High-quality basic castings

The body, sliding seat, column, headstock and other castings of the machine tool are made of resin sand molding high strength gray cast iron. The ram and the
main gearbox are made of high-strength ductile cast iron, which has good shock absorption and stiffness

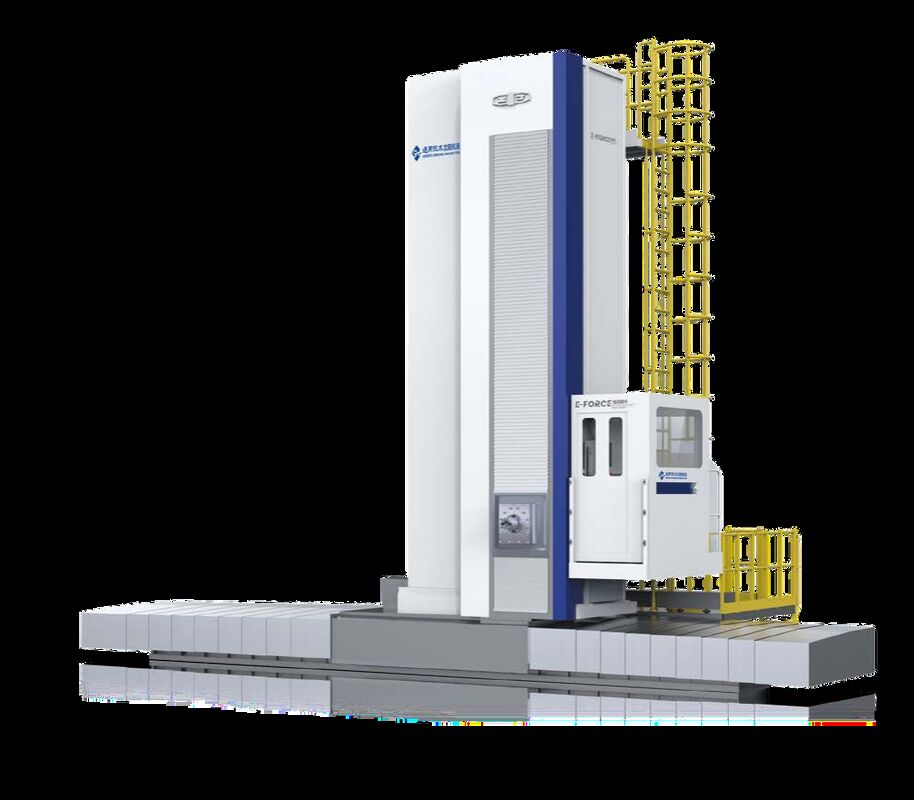

SMTCL Floor Type E-Force Large Spindle Power Large Torque CNC Floor Milling And Boring Machine 2

Strict process control and quality inspection

Strict and comprehensive quality process control, 138 process inspection control items, total acceptance test, and 179 inspection items conduct high-standard
inspection on accuracy of the product to ensure that the product accuracy is stable and reliable.

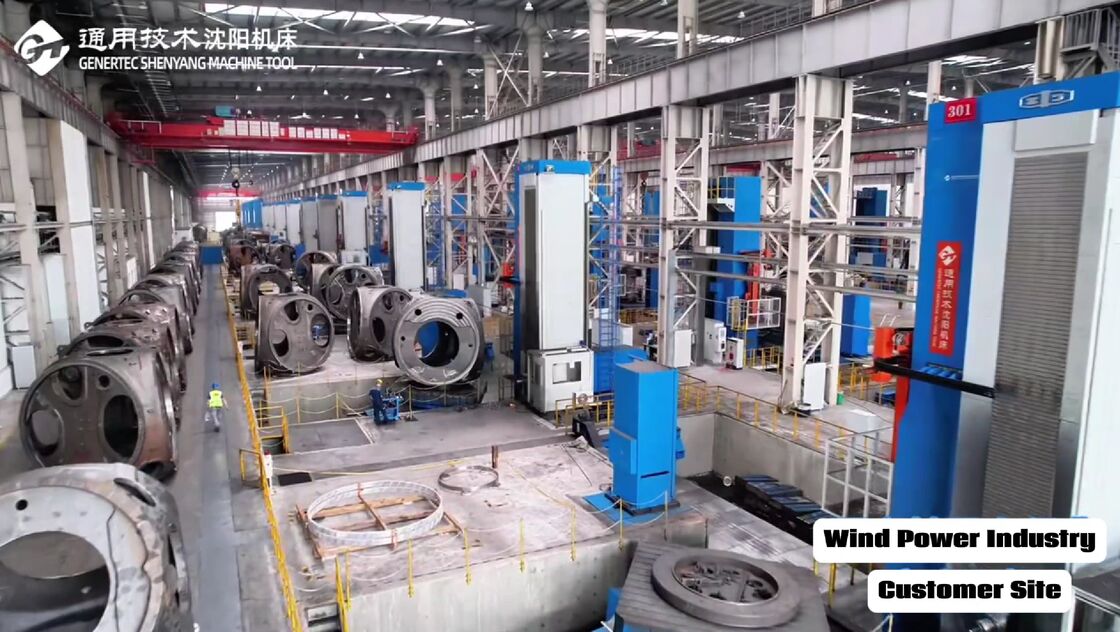

SMTCL Floor Type E-Force Large Spindle Power Large Torque CNC Floor Milling And Boring Machine 3

High-accuracy and high-rigidity ram

The ram is made of high-strength ductile cast iron, and is jointly compensated by double hydraulic cylinder, proportional valve and CNC control system.

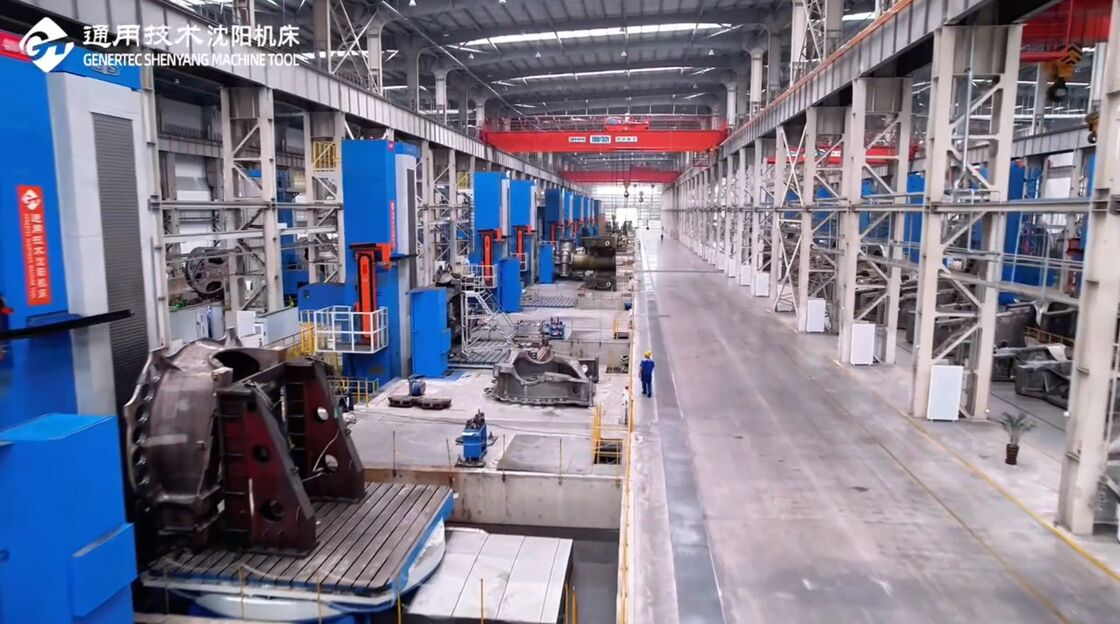

SMTCL Floor Type E-Force Large Spindle Power Large Torque CNC Floor Milling And Boring Machine 4

Full closed-loop control

Each axis is measured by imported grating ruler to achieve full closed loop control, improving the positioning accuracy of the machine tool.

SMTCL Floor Type E-Force Large Spindle Power Large Torque CNC Floor Milling And Boring Machine 5

SMTCL Floor Type E-Force Large Spindle Power Large Torque CNC Floor Milling And Boring Machine 6

Product Paramenters:

Item		Unit	E-Force 160RH	E-Force 200RH
Spindle
Spindle diameter		mm	160	200
Milling axis diameter		mm	260	320
Tool handle specification			JT50/BT50	JT60/BT60
Spindle rotary speed		r/min	10-1500(2000)	10-1250
Maximum spindle torque		N·m	6300/7600	8400/10000
Spindle motor power		kW	58/69	85/102
Ram cross section		mm	480×540	480×540 520×580(Column 7000mm stroke)
Stroke
X-axis		mm	6000(increment per 2000)	8000(increment per 2000)
Y-axis		mm	3000/4000/5000	4000/5000/6000/7000
Z-axis		mm	1200	1200
W-axis		mm	1200	1200
Feed
Feed speed	X-axis	mm/min	1-10000	1-10000
	Y-axis	mm/min	1-8000	1-8000
	Z-axis	mm/min	1-6000	1-6000
	W-axis	mm/min	1-6000	1-6000
Fast moving	X-axis	mm/min	10000	10000
	Y-axis	mm/min	8000	8000
	Z-axis	mm/min	6000	6000
	W-axis	mm/min	6000	6000
Positioning accuracy
Execution standard GB/T 5289.2-2021	X-axis	mm	0.012/1000 (grating ruler as standard configuration)	0.012/1000 (grating ruler as standard configuration)
	Y-axis	mm	0.012/1000(grating ruler as Optional configuration)	0.012/1000(grating ruler as Optional configuration)
	Z-axis	mm	0.025/0.012(Grating)	0.025/0.012(Grating)
	W-axis	mm	0.025/0.012(Grating)	0.025/0.012(Grating)
Repeat positioning accuracy
Execution standard GB/T 5289.2-2021	X-axis	mm	0.01	0.01
	Y-axis	mm	0.01	0.01
	Z-axis	mm	0.01	0.01
	W-axis	mm	0.01	0.01
Note: The parameters provided in the table are for reference only. If there is any change, the physical object shall prevail.
Standard configuration: SIEMENS 828D system X/Y-axis grating ruler X/Y-axis static guide rail Steel protective pull plate for X-axis Imported spindle bearings Spindle blowing function Z-axis rolling & sliding combined guide rail Centralized lubrication system for machine tool Column armor protection Platform lifted up/down along with the headstock Imported feed reducer Constant temperature cooling system Y, Z, W-axis imported lead screws and bearings X-axis imported rack; Single side chain-type chip removal unit Clean air gun/water gun			Optional configuration: SIEMENS ONE system Z-axis static guide rail Z-axis grating ruler W-axis magnetic grid CNC rotary workbench Manual/semi-automatic/automatic milling head Facing head, tool magazine Automatic capture function of accessory head Ram thermal elongation compensation Spindle internal cooling system Grating ruler blowing Full closed-loop inspection Fully closed operation room Automatic lifting platform Pump station oil cooler 3D head library Adaptive control Tool load abnormality detection Energy saving package Platform

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control

3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

SMTCL Floor Type E-Force Large Spindle Power Large Torque CNC Floor Milling And Boring Machine 8

Exhibition:

SMTCL Floor Type E-Force Large Spindle Power Large Torque CNC Floor Milling And Boring Machine 9

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
