Double-station Vertical Honing Machine HDLH530 Hydraulic Cylinder PLC Vertical Honing Machine

Double-station Vertical Honing Machine HDLH530 Hydraulic Cylinder PLC Vertical Honing Machine

Double-station

Vertical Honing Machine

Hydraulic Cylinder PLC Vertical Honing Machine

Place of Origin:

CHINA

Brand Name:

HD

Certification:

CE ISO certification

Model Number:

HDLH530

Contact Us
Request A Quote
Product Details
Brand Name:
HD
Model Number:
HDLH530
Key Word:
Vertical Honing And Reaming Machine
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case,Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
50 sets per month
Product Description

Double-station Vertical Honing Machine HDLH530 Hydraulic Cylinder PLC Vertical Honing Machine 0

Product Description:

Double-station Vertical Honing Machine HDLH530 Hydraulic Cylinder PLC Vertical Honing Machine
Double-Station Vertical Honing Machine HDLH530 with double-station alternating operation, its efficiency is 60% higher than that of single-station machines. Adopting hydraulic pressure control and PLC control, the hole diameter tolerance is stably controlled within ±1.5μm, and the roughness reaches Ra0.2μm. It is suitable for hole processing in multiple industries, with a stable structure and easy operation and maintenance.

Product Features:

1. Double-station alternating operation, efficiency 60% higher than single-station
2. Hydraulic + PLC control, hole diameter tolerance ±1.5μm, roughness Ra0.2μm
3. Suitable for hole processing in multiple industries, stable structure and easy maintenance
Product Details:

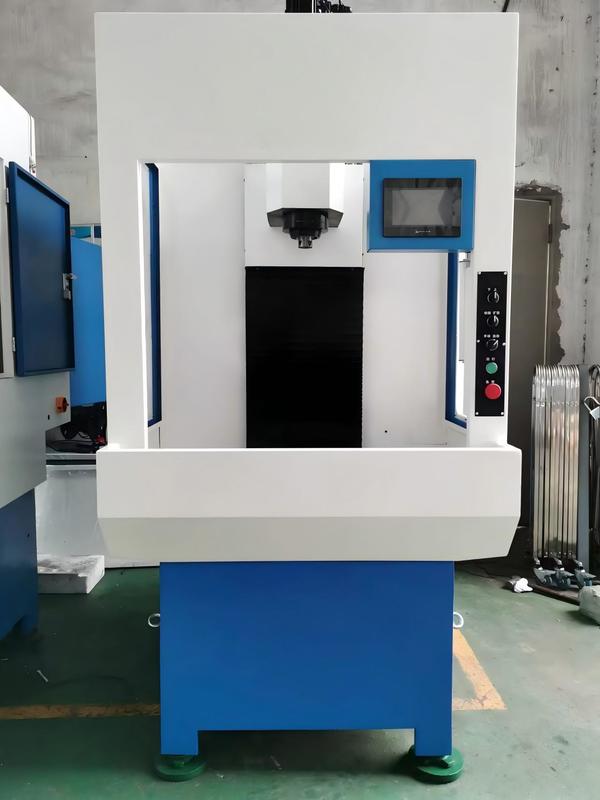

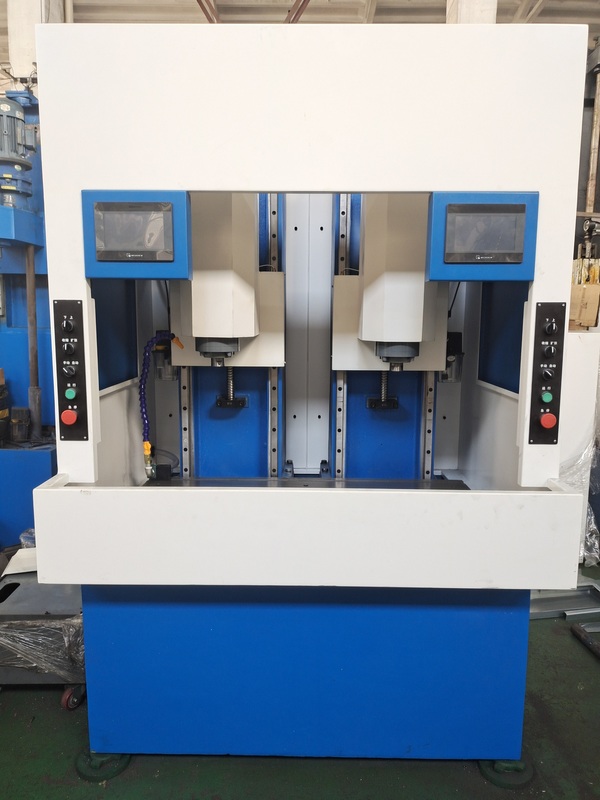

Double-station Vertical Honing Machine HDLH530 Hydraulic Cylinder PLC Vertical Honing Machine 1      Double-station Vertical Honing Machine HDLH530 Hydraulic Cylinder PLC Vertical Honing Machine 2
Product Paramenters:
Maintechnical specifications
Unit
HDLH530
HDLH1040
HDLH1550
Honing diameter range
mm
φ4-50
φ30-100
φ50-150
Max. spindle box travel
mm
550
650
800
Max. honing depth
mm
300
400
500
Distnce from spindle end to worktable
mm
850
1050
1250
Distance from spindle center to column surface
mm
300
Spindle reciprocating speed
m/min
2-32
2-20
2-32
Spindle rotation speed
r/min
20-300
30-180
30-130
Workable surface size
mm
550 x 400
Worktable surface height
mm
670
Sand bar expansion servo motor power
KW
400
Spindle rotation motor power
KW
2.1
3.1
3.1
Spindle box reciprocating motor power
KW
1.2
Stroke control method

Servo motor + ball screw
Machine dimensions (L*W*H)
mm
1700×1670x×3750
Machines for other travels can be ordered

Industry application:

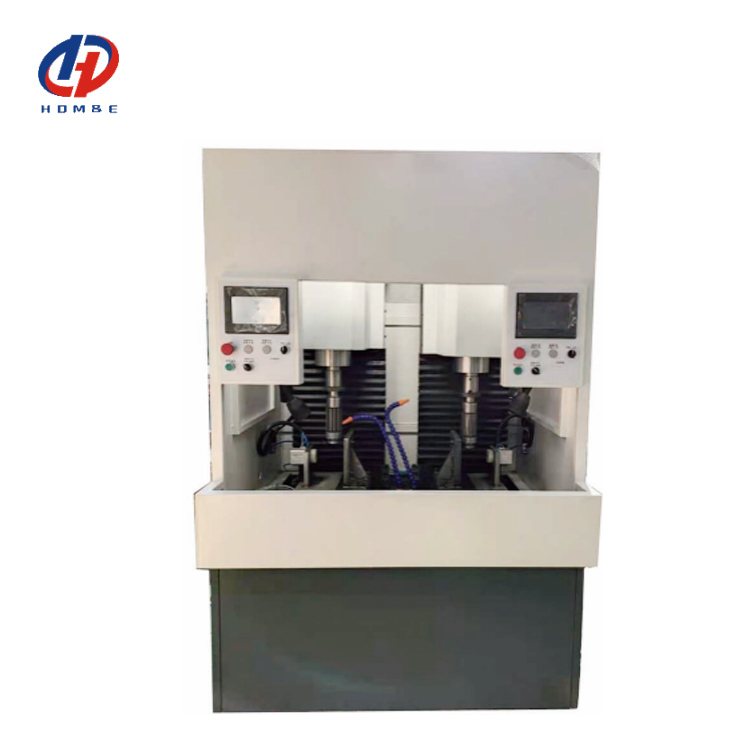

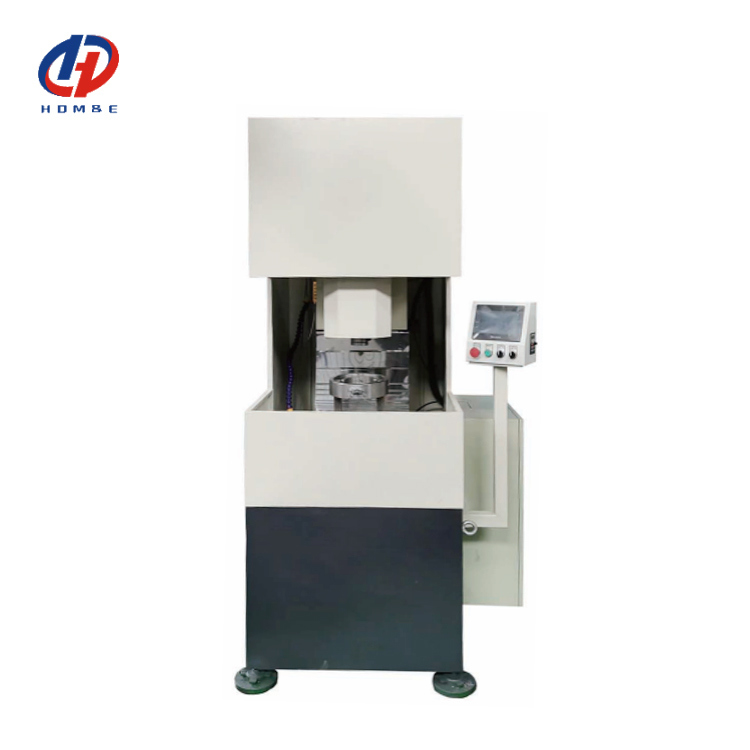

Double-station Vertical Honing Machine HDLH530 Hydraulic Cylinder PLC Vertical Honing Machine 3Double-station Vertical Honing Machine HDLH530 Hydraulic Cylinder PLC Vertical Honing Machine 4

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Double-station Vertical Honing Machine HDLH530 Hydraulic Cylinder PLC Vertical Honing Machine 5
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Double-station Vertical Honing Machine HDLH530 Hydraulic Cylinder PLC Vertical Honing Machine 6

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
