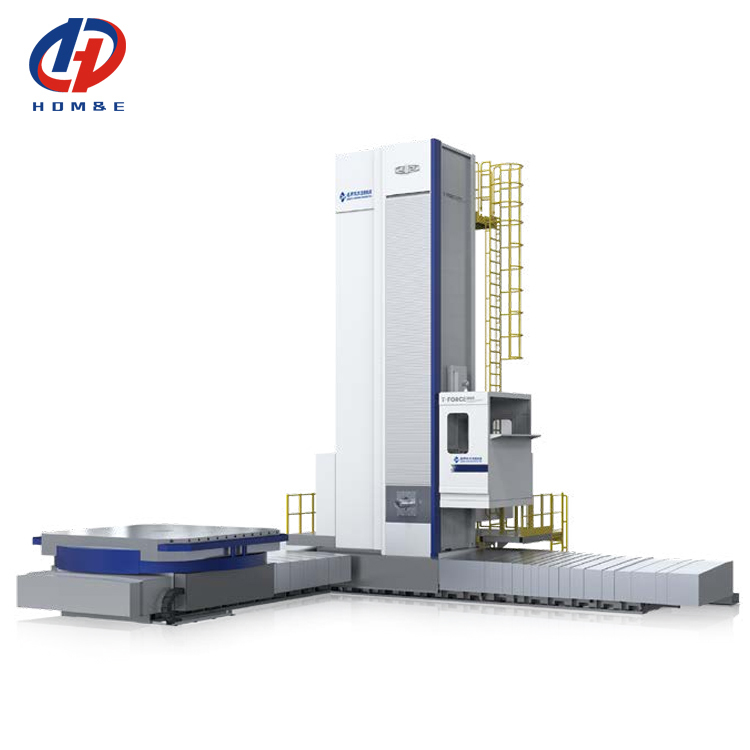

SMTCL T-Force wind energy power industries High accuracy CNC Floor Milling and Boring Machine

SMTCL T-Force wind energy power industries High accuracy CNC Floor Milling and Boring Machine

High accuracy

wind power energy power general machinery and other industries

SMTCL

Place of Origin:

CHINA

Brand Name:

SMTCL

Certification:

CE ISO certification

Model Number:

T-Force

Contact Us
Request A Quote
Product Details
Brand Name:
SMTCL
Product Name:
High Efficiency CNC Floor Milling And Boring Machine
Product:
T-Force
Spindle Diameter:
160/200/260
Milling Axis Diameter:
260/320/400
Tool Handle Specification:
JT50/BT50
X-axis:
6000(increment Per 2000)
Y-axis:
3000/4000
Z-axis:
1200
W-axis:
1200
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case,Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
50 sets per month
Product Description

SMTCL T-Force wind energy power industries High accuracy CNC Floor Milling and Boring Machine 0

Product Description:

SMTCL T-Force wind energy power industries High accuracy CNC Floor Milling and Boring Machine
High accuracy type with high accuracy of whole machine, it is suitable for machining of large precision
parts, and it is used in wind power, energy, power, general machinery and other industries.
Structural features:Single column side hanging box layout, in which, the column moves horizontally along the body guide rail (X-axis coordinate) , the headstock moves vertically along the column guide rail (Y-axis coordinate) , the ram moves horizontally in the headstock (Z-axis coordinate) , and the spindle moves in the ram (W-axis coordinate)
Basic parts:cast with high-strength cast iron material and resin sand process, ram is made of high-strength ductile cast iron
Spindle group:High speed and large torque, the imported spindle group is used, and spindle bearing adopts oil and gas lubrication method
Guide rail:X-axis, Y-axis and Z-axis are equipped with closed constant flow static guide rail, with good vibration resistance and accuracy retention, and W-axis is equipped with the originally imported linear guide rail as an auxiliary guide rail

Product Features:

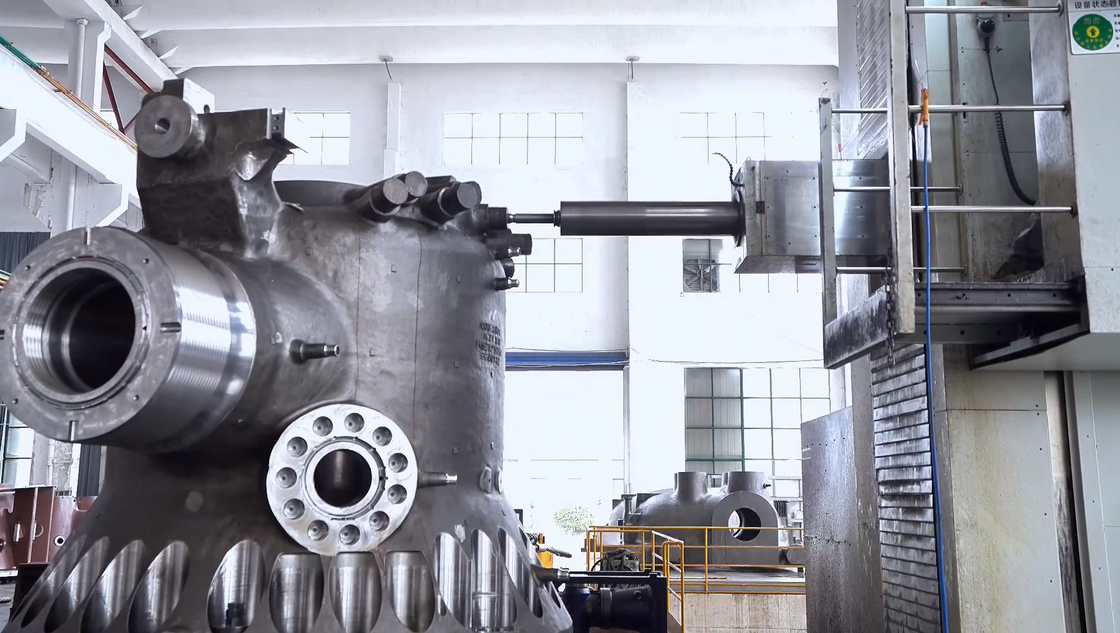

SMTCL T-Force wind energy power industries High accuracy CNC Floor Milling and Boring Machine 1

High-quality basic castings

The body, sliding seat, column, headstock and other castings of the machine tool are made of resin sand molding high strength gray cast iron. The ram and the
main gearbox are made of high-strength ductile cast iron, which has good shock absorption and stiffness

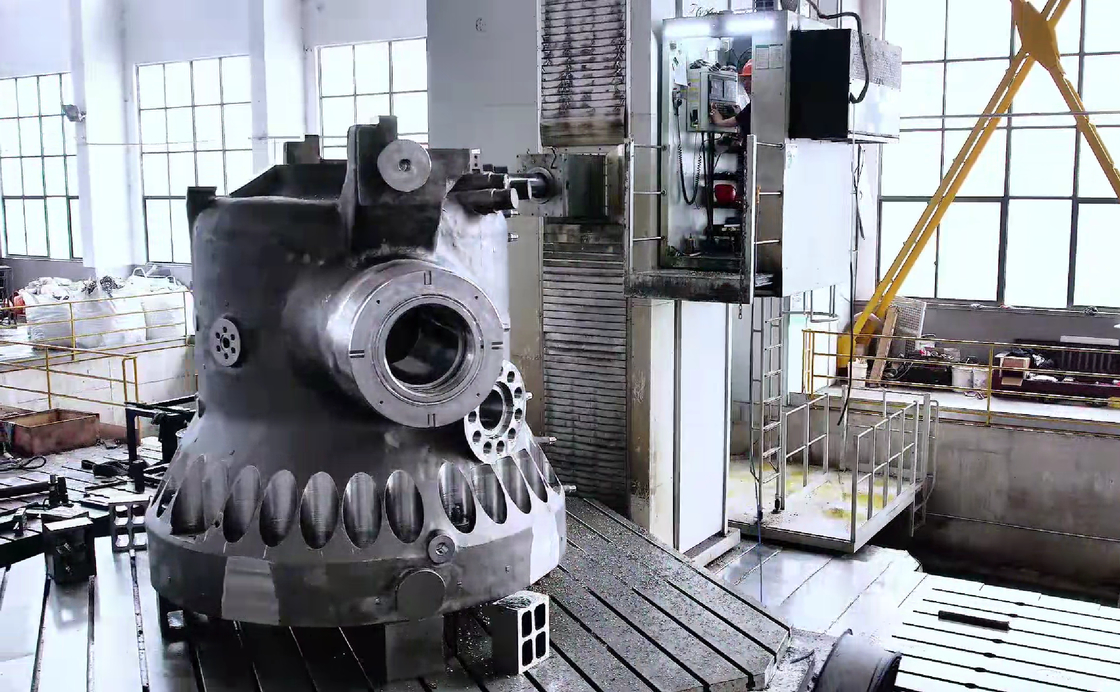

SMTCL T-Force wind energy power industries High accuracy CNC Floor Milling and Boring Machine 2

Strict process control and quality inspection

Strict and comprehensive quality process control, 138 process inspection control items, total acceptance test, and 179 inspection items conduct high-standard
inspection on accuracy of the product to ensure that the product accuracy is stable and reliable.

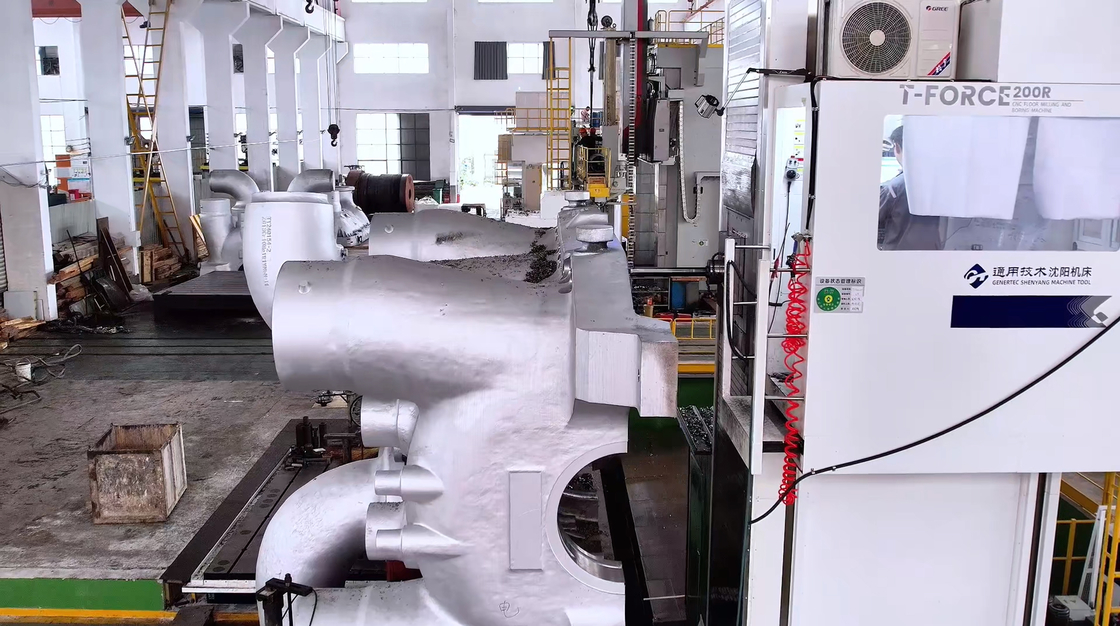

SMTCL T-Force wind energy power industries High accuracy CNC Floor Milling and Boring Machine 3

High-accuracy and high-rigidity ram

The ram is made of high-strength ductile cast iron, and is jointly compensated by double hydraulic cylinder, proportional valve and CNC control system.

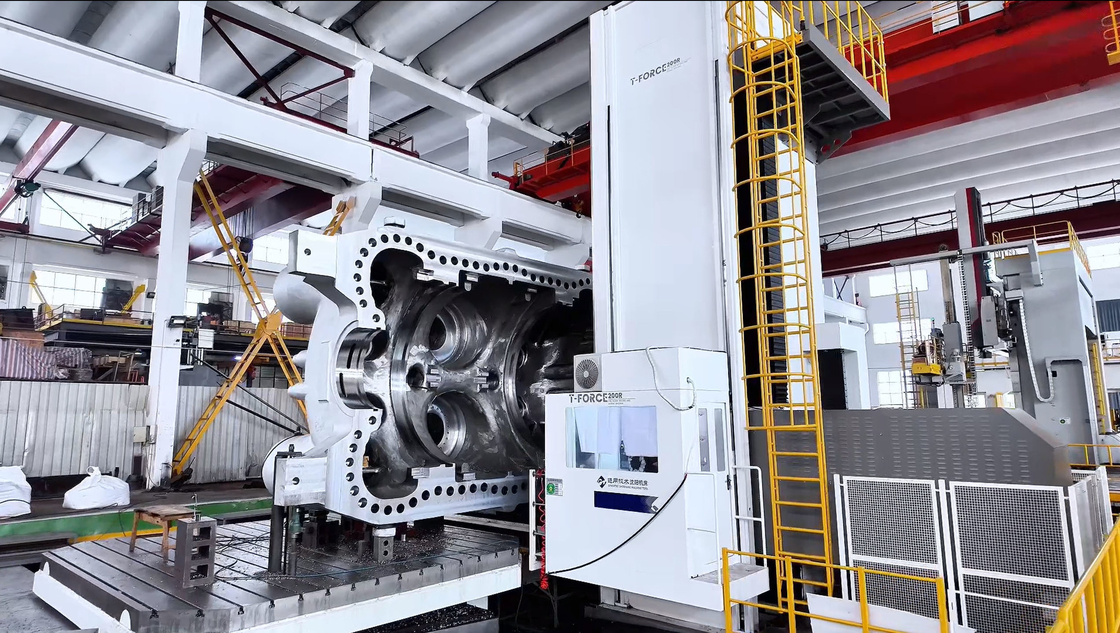

SMTCL T-Force wind energy power industries High accuracy CNC Floor Milling and Boring Machine 4

Full closed-loop control

Each axis is measured by imported grating ruler to achieve full closed loop control, improving the positioning accuracy of the machine tool.
SMTCL T-Force wind energy power industries High accuracy CNC Floor Milling and Boring Machine 5
SMTCL T-Force wind energy power industries High accuracy CNC Floor Milling and Boring Machine 6
Product Paramenters:
Item
Unit

T-Force 160R
T-Force 200R

Spindle

Spindle diameter
mm

160
200

Milling axis diameter
mm

260
320

Tool handle specification


JT50/BT50
JT60/BT60

Spindle rotary speed
r/min

10-1500(2000)
10-1250(2000)

Maximum spindle torque
N·m

6300/7600
9600/14000

Spindle motor power
kW

58/69
110/162

Ram cross section
mm

480×540
520×580

Stroke

X-axis
mm

6000(increment per 2000)
8000(increment per 2000)

Y-axis
mm

3000/4000
4000/5000/6000

Z-axis
mm

1200
1250

W-axis
mm

1200
1200

Feed

Feed speed
X-axis
mm/min

1-10000
1-10000

Y-axis
mm/min

1-8000
1-8000

Z-axis
mm/min

1-6000
1-6000

W-axis
mm/min

1-6000
1-6000

Fast moving
X-axis
mm/min

10000
10000

Y-axis
mm/min

8000
8000

Z-axis
mm/min

6000
6000

W-axis
mm/min

6000
6000

Positioning accuracy




Execution standard
GB/T 5289.2-2021
X-axis
mm

0.012/1000

0.012/1000

Y-axis
mm

0.012/1000
0.012/1000

Z-axis
mm

0.012
0.012

W-axis
mm

0.012
0.012

Repeat positioning accuracy



Execution standard
GB/T 5289.2-2021
X-axis
mm

0.01
0.01

Y-axis
mm

0.01
0.01

Z-axis
mm

0.01
0.01

W-axis
mm

0.01
0.01

Note: The parameters provided in the table are for reference only. If there is any change, the physical object shall prevail.

Standard configuration:
SIEMENS 828D system
X/Y/Z-axis grating ruler
X/Y/Z-axis static guide rail
W-axis magnetic grid
Imported spindle bearings
Spindle blowing function
Constant temperature cooling system
Centralized lubrication system for machine tool
Platform lifted up/down along with the headstock
Single side chain-type chip removal unit
Column armor protection
X/Y-axis guide rail protection
Imported rack, lead screw and bearing
Imported feed reducer
Full closed-loop inspection
Clean air gun/water gun

Optional configuration:
CNC rotary workbench
Manual/semi-automatic/automatic
milling head
Facing head
Automatic capture function of accessory head
Ram thermal elongation compensation
Spindle internal cooling system
Grating ruler blowing
Tool magazine
Fully closed operation room
Automatic lifting platform
Pump station oil cooler
3D head library
Adaptive control
Tool load abnormality detection
Energy saving package
Platform


OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
