SMTCL E-Force High Efficiency with Large Spindle Power and Large Torque CNC Floor Milling and Boring Machine

SMTCL E-Force High Efficiency with Large Spindle Power and Large Torque CNC Floor Milling and Boring Machine

High Efficiency

Large Spindle Power and Large Torque

SMTCL

Place of Origin:

CHINA

Brand Name:

SMTCL

Certification:

CE ISO certification

Model Number:

E-Force

Contact Us
Request A Quote
Product Details
Brand Name:
SMTCL
Product Name:
High Efficiency CNC Floor Milling And Boring Machine
Product:
E-Force
Spindle Diameter:
160/200
Milling Axis Diameter:
260/320
Tool Handle Specification:
JT50/BT50
X-axis:
6000(increment Per 2000)
Y-axis:
3000/4000/5000
Z-axis:
1200
W-axis:
1200
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case,Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
50 sets per month
Product Description

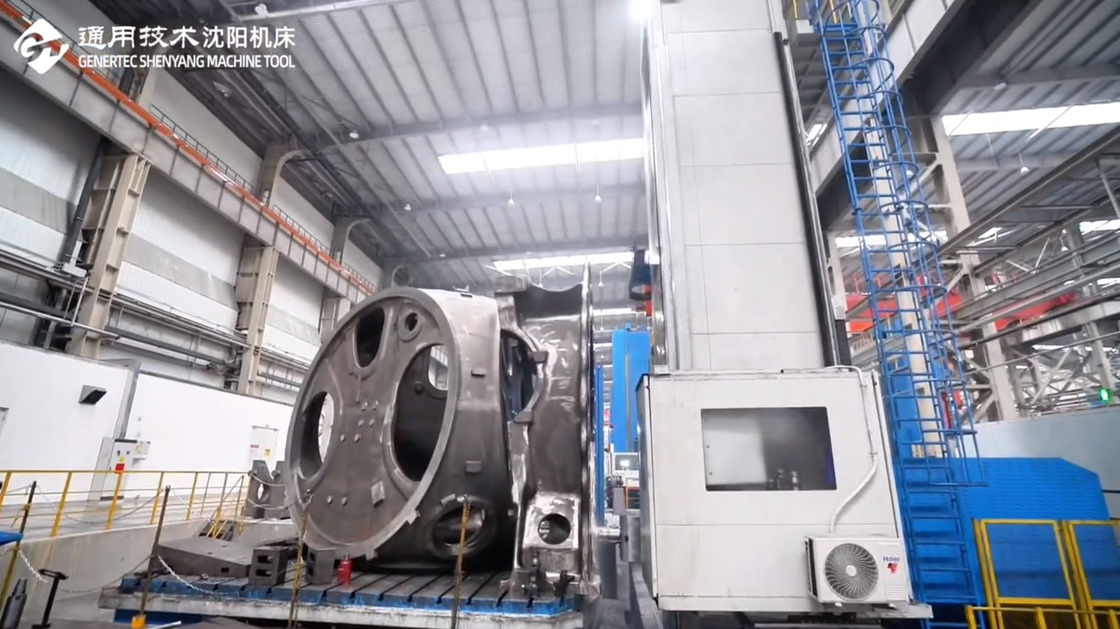

SMTCL E-Force High Efficiency with Large Spindle Power and Large Torque CNC Floor Milling and Boring Machine 0

Product Description:

SMTCL E-Force High Efficiency with Large Spindle Power and Large Torque CNC Floor Milling and Boring Machine
High efficiency with large spindle power and large torque, it is suitable for machining of medium and large parts, and it is used in wind power, energy, reducer, general machinery and other industries.
Structural features:Single column side hanging box layout, in which, the column moves horizontally along the body guide rail (X-axis coordinate) , the headstock moves vertically along the column guide rail (Y-axis coordinate) , the ram moves horizontally in the headstock (Z-axis coordinate) , and the spindle moves in the ram (W-axis coordinate).
Basic parts:cast with high-strength cast iron material and resin sand process, ram is made of high-strength ductile cast iron.
Spindle group:High speed and large torque, with independent homemade gearbox, divided into high, medium and low three speed change.
Guide rail:X-axis and Y-axis are equipped with closed constant flow static guide rail, with good vibration resistance and accuracy retention, and Z-axis is equipped with rolling element plus
steel strip combined guide rail, while static guide rail is optional.

Product Features:

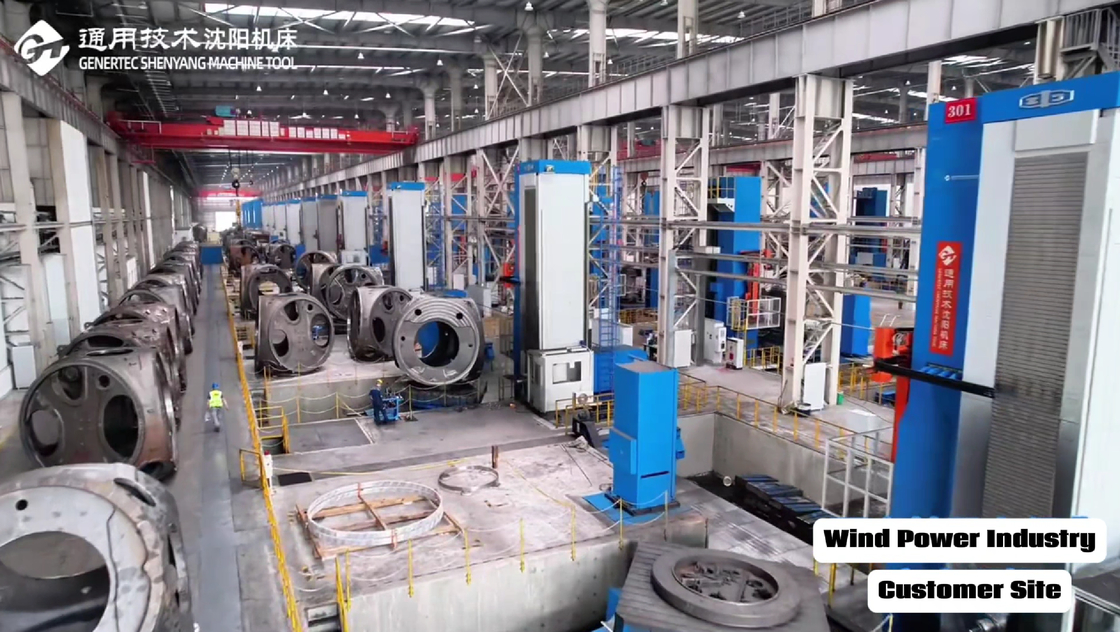

SMTCL E-Force High Efficiency with Large Spindle Power and Large Torque CNC Floor Milling and Boring Machine 1

High-quality basic castings

The body, sliding seat, column, headstock and other castings of the machine tool are made of resin sand molding high strength gray cast iron. The ram and the
main gearbox are made of high-strength ductile cast iron, which has good shock absorption and stiffness

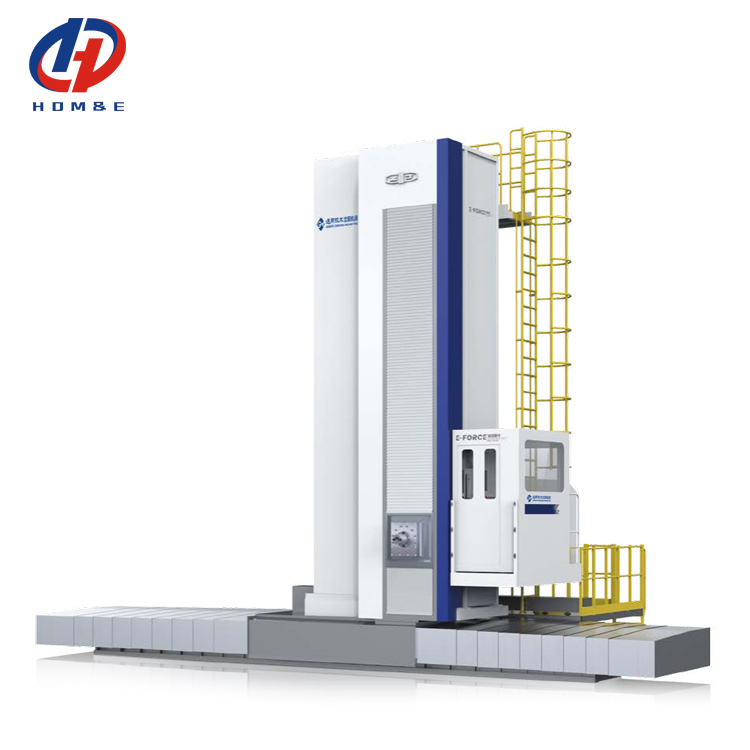

SMTCL E-Force High Efficiency with Large Spindle Power and Large Torque CNC Floor Milling and Boring Machine 2

Strict process control and quality inspection

Strict and comprehensive quality process control, 138 process inspection control items, total acceptance test, and 179 inspection items conduct high-standard
inspection on accuracy of the product to ensure that the product accuracy is stable and reliable.

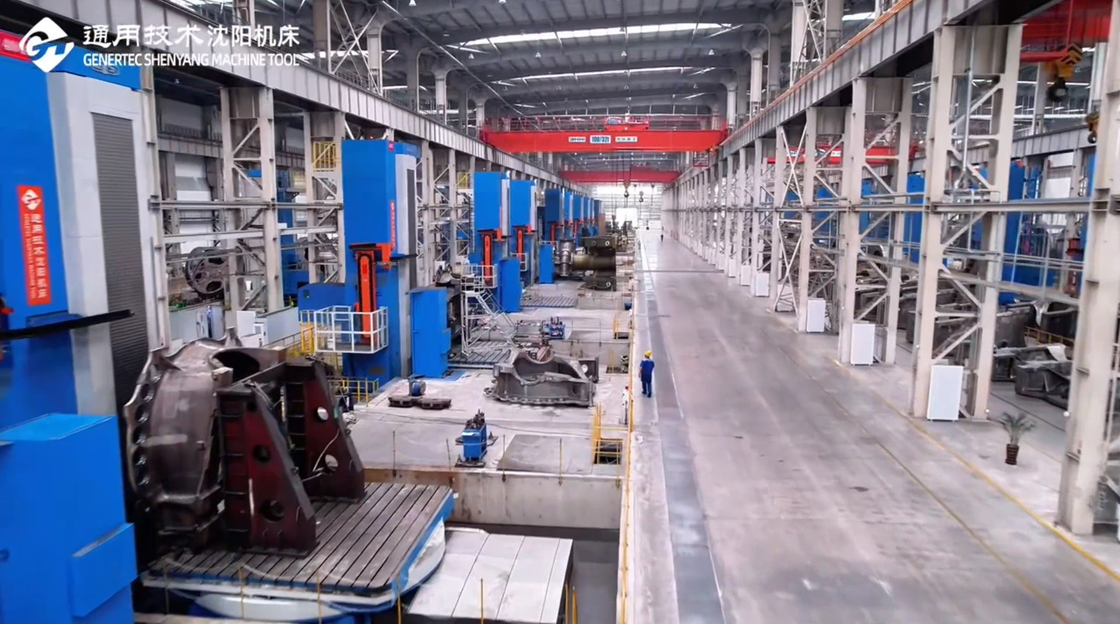

SMTCL E-Force High Efficiency with Large Spindle Power and Large Torque CNC Floor Milling and Boring Machine 3

High-accuracy and high-rigidity ram

The ram is made of high-strength ductile cast iron, and is jointly compensated by double hydraulic cylinder, proportional valve and CNC control system.

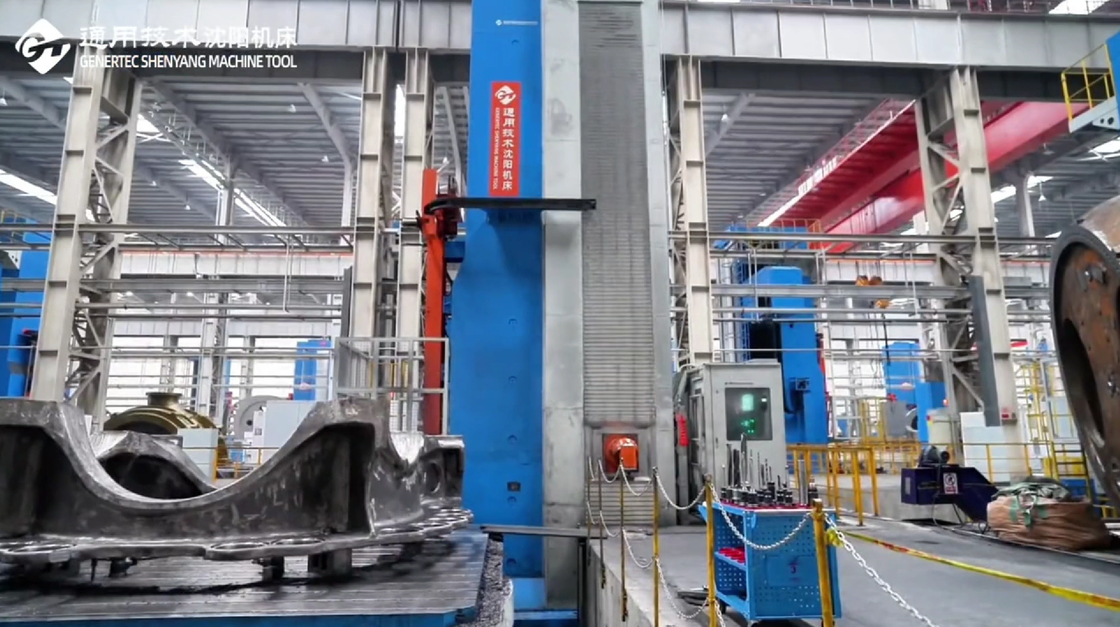

SMTCL E-Force High Efficiency with Large Spindle Power and Large Torque CNC Floor Milling and Boring Machine 4

Full closed-loop control

Each axis is measured by imported grating ruler to achieve full closed loop control, improving the positioning accuracy of the machine tool.

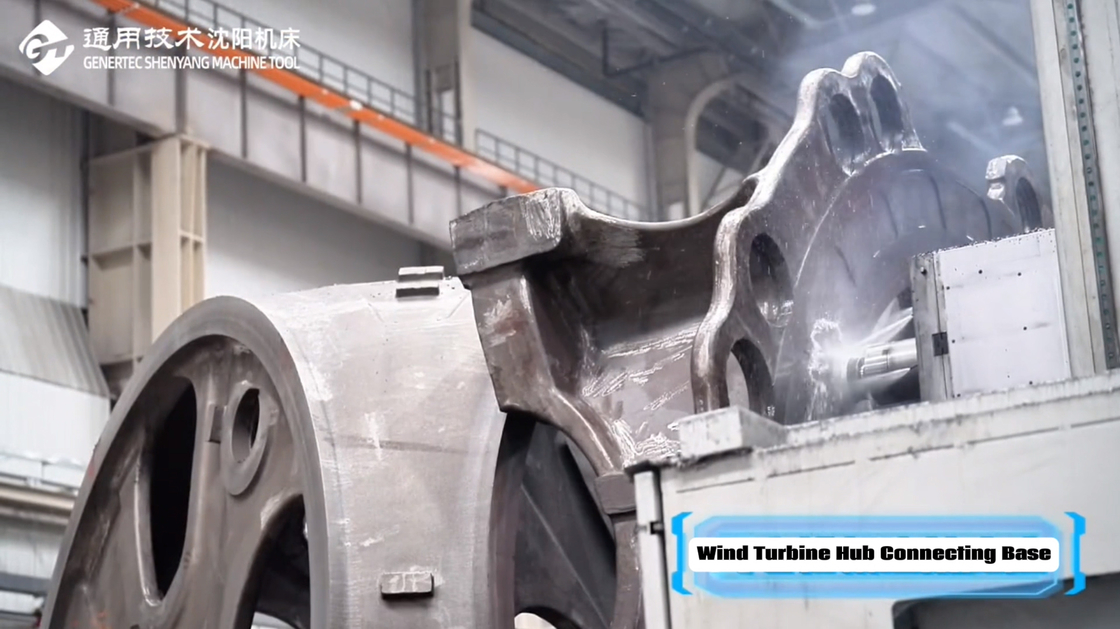

SMTCL E-Force High Efficiency with Large Spindle Power and Large Torque CNC Floor Milling and Boring Machine 5
SMTCL E-Force High Efficiency with Large Spindle Power and Large Torque CNC Floor Milling and Boring Machine 6
Product Paramenters:
Item
Unit
E-Force 160RH
E-Force 200RH
Spindle
Spindle diameter
mm
160
200
Milling axis diameter
mm
260
320
Tool handle specification

JT50/BT50
JT60/BT60
Spindle rotary speed
r/min
10-1500(2000)
10-1250
Maximum spindle torque
N·m
6300/7600
8400/10000
Spindle motor power
kW
58/69
85/102
Ram cross section
mm
480×540
480×540 520×580(Column 7000mm stroke)
Stroke
X-axis
mm
6000(increment per 2000)
8000(increment per 2000)
Y-axis
mm
3000/4000/5000
4000/5000/6000/7000
Z-axis
mm
1200
1200
W-axis
mm
1200
1200
Feed
Feed speed
X-axis
mm/min
1-10000
1-10000
Y-axis
mm/min
1-8000
1-8000
Z-axis
mm/min
1-6000
1-6000
W-axis
mm/min
1-6000
1-6000
Fast moving
X-axis
mm/min
10000
10000
Y-axis
mm/min
8000
8000
Z-axis
mm/min
6000
6000
W-axis
mm/min
6000
6000
Positioning accuracy



Execution standard
GB/T 5289.2-2021
X-axis
mm
0.012/1000
(grating ruler as standard configuration)
0.012/1000
(grating ruler as standard configuration)
Y-axis
mm
0.012/1000(grating ruler as Optional configuration)
0.012/1000(grating ruler as Optional configuration)
Z-axis
mm
0.025/0.012(Grating)
0.025/0.012(Grating)
W-axis
mm
0.025/0.012(Grating)
0.025/0.012(Grating)
Repeat positioning accuracy


Execution standard
GB/T 5289.2-2021
X-axis
mm
0.01
0.01
Y-axis
mm
0.01
0.01
Z-axis
mm
0.01
0.01
W-axis
mm
0.01
0.01
Note: The parameters provided in the table are for reference only. If there is any change, the physical object shall prevail.
Standard configuration:
SIEMENS 828D system
X/Y-axis grating ruler
X/Y-axis static guide rail
Steel protective pull plate for X-axis
Imported spindle bearings
Spindle blowing function
Z-axis rolling & sliding combined guide rail
Centralized lubrication system for machine tool
Column armor protection
Platform lifted up/down along with the headstock
Imported feed reducer
Constant temperature cooling system
Y, Z, W-axis imported lead screws and bearings
X-axis imported rack;
Single side chain-type chip removal unit
Clean air gun/water gun
Optional configuration:
SIEMENS ONE system
Z-axis static guide rail
Z-axis grating ruler
W-axis magnetic grid
CNC rotary workbench
Manual/semi-automatic/automatic milling head
Facing head, tool magazine
Automatic capture function of accessory head
Ram thermal elongation compensation
Spindle internal cooling system
Grating ruler blowing
Full closed-loop inspection
Fully closed operation room
Automatic lifting platform
Pump station oil cooler
3D head library
Adaptive control
Tool load abnormality detection
Energy saving package
Platform
