Product Description

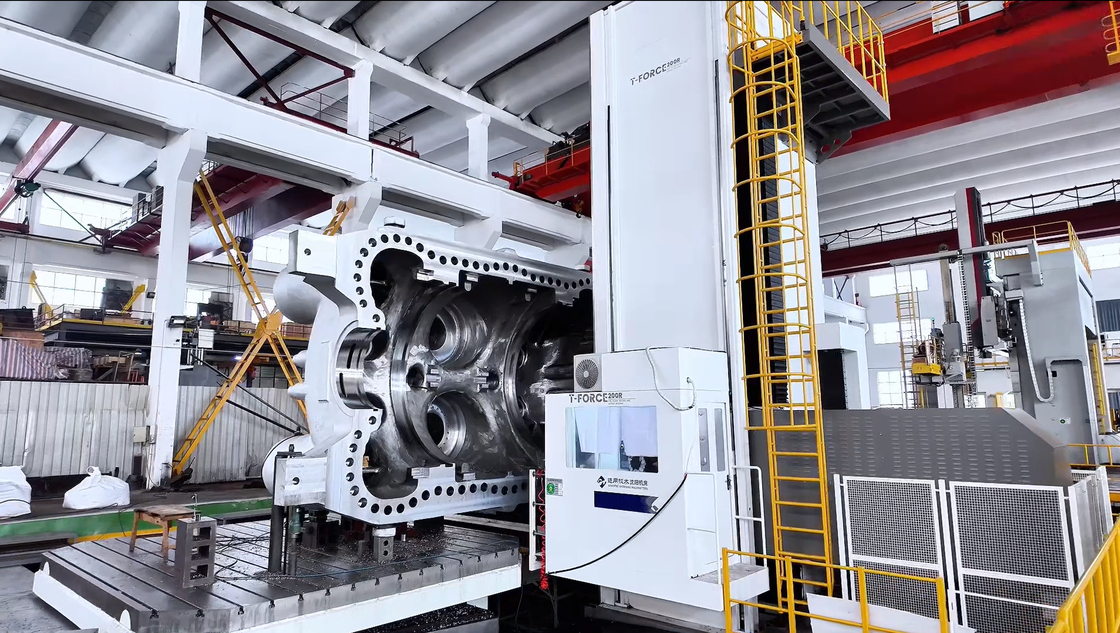

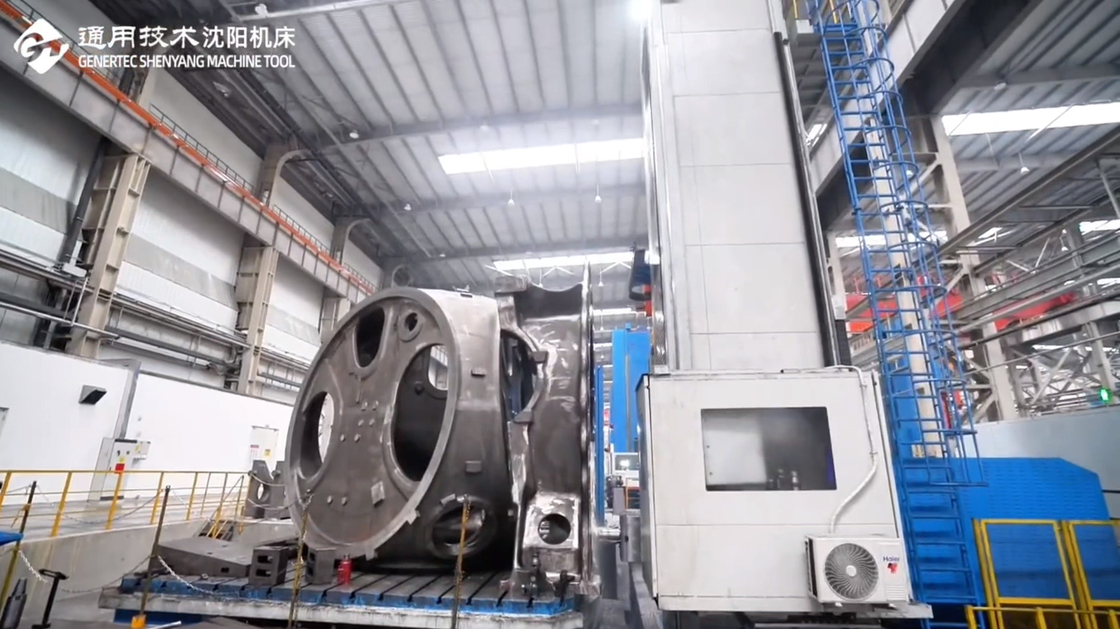

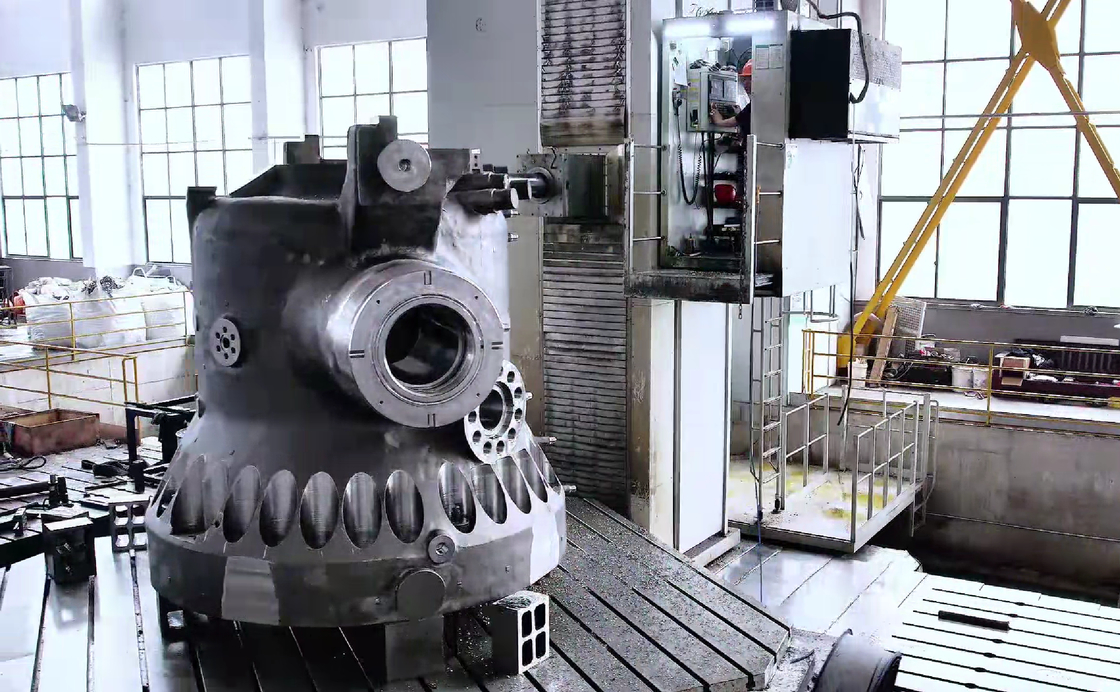

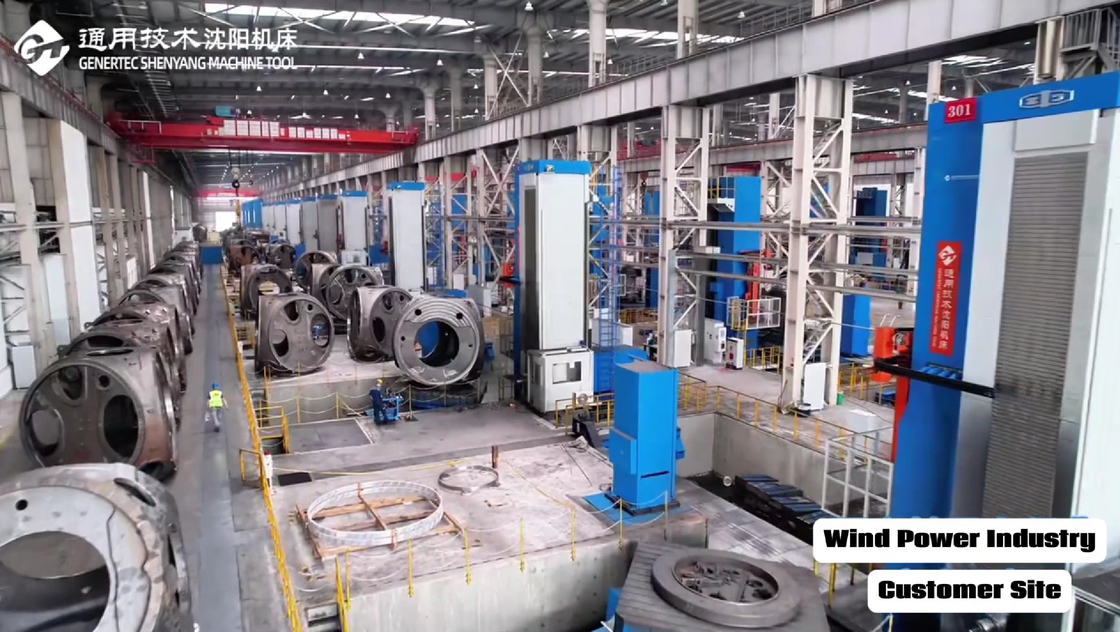

SMTCL P-Force CNC Floor Milling and Boring Machine Tool for Wind Power Industry 0

Product Description:

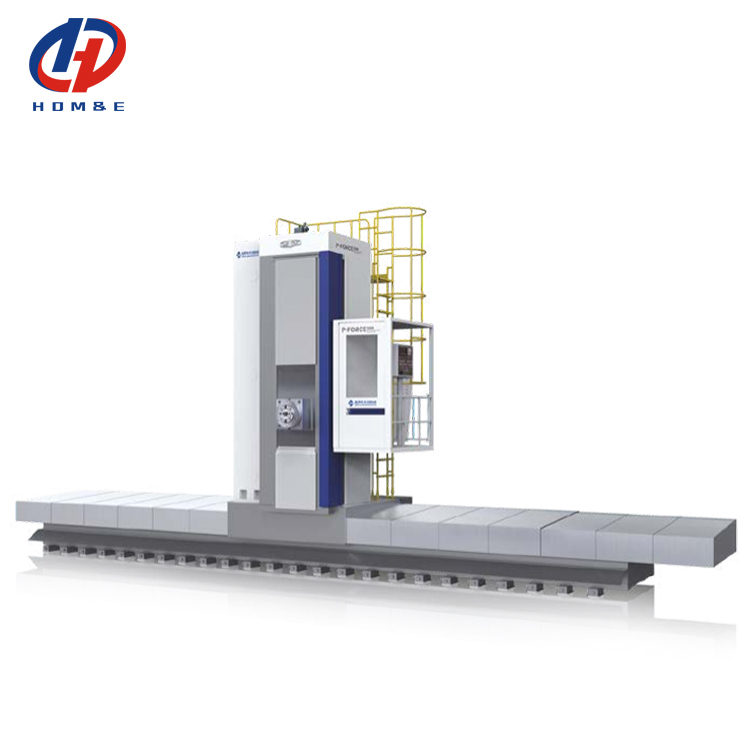

SMTCL P-Force CNC Floor Milling and Boring Machine Tool for Wind Power Industry
General type, which is economical and practical with wide machining range, and it is suitable for machining of various parts. It is used in engineering machinery, reducer, pump valve, general machinery and other industries.
Structural features:Single column side hanging box layout, in which, the column moves horizontally along the body guide rail (X-axis coordinate) , the headstock moves vertically along the column guide rail (Y-axis coordinate) , the ram moves horizontally in the headstock (Z-axis coordinate) , and the spindle moves in the ram (W-axis coordinate) .
Basic parts:Cast with high-strength cast iron material and resin sand process
Spindle group:The spindle is driven by Siemens AC servo motor via homemade reduction gearbox, which is divided into high gear and low gear speed change.
Guide rail:The imported heavy-load roller linear guide rail for X-axis, the steel plastered guide rail
pair for Y-axis, and the four-sided enclosed cast iron hardening guide rail for Z-axis

Product Features:

SMTCL P-Force CNC Floor Milling and Boring Machine Tool for Wind Power Industry 1

High-quality basic castings

The body, sliding seat, column, headstock and other castings of the machine tool are made of resin sand molding high strength gray cast iron. The ram and the
main gearbox are made of high-strength ductile cast iron, which has good shock absorption and stiffness
SMTCL P-Force CNC Floor Milling and Boring Machine Tool for Wind Power Industry 2

Strict process control and quality inspection

Strict and comprehensive quality process control, 138 process inspection control items, total acceptance test, and 179 inspection items conduct high-standard
inspection on accuracy of the product to ensure that the product accuracy is stable and reliable.
SMTCL P-Force CNC Floor Milling and Boring Machine Tool for Wind Power Industry 3

High-accuracy and high-rigidity ram

The ram is made of high-strength ductile cast iron, and is jointly compensated by double hydraulic cylinder, proportional valve and CNC control system.
SMTCL P-Force CNC Floor Milling and Boring Machine Tool for Wind Power Industry 4

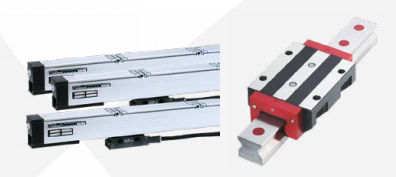

Full closed-loop control

Each axis is measured by imported grating ruler to achieve full closed loop control, improving the positioning accuracy of the machine tool.
SMTCL P-Force CNC Floor Milling and Boring Machine Tool for Wind Power Industry 5
SMTCL P-Force CNC Floor Milling and Boring Machine Tool for Wind Power Industry 6
Product Paramenters:
Item
Unit
P-Force 130R
P-Force 160R
FBC 130rp
FBC 160rp
Spindle
Spindle diameter
mm
130
160
130
160
Milling axis diameter
mm
211.44
260
211.44
260
Tool handle specification

BT50/JT50
BT50/JT50
BT50/JT50
BT50/JT50
Spindle rotary speed
r/min
10-1500
10-1000
10-1500
10-1500
Maximum
spindle torque
SIEMENS
N·m
1700/2100
2900/3500
3000/3600
4400/5000
FANUC
N·m
1850/2200
3000/3700
-
-
Spindle motor
power
SIEMENS
kW
41/49
41/49
41/49
60/69
FANUC
kW
37/45
37/45
-
-
Ram cross section
mm
480×480
480×480
480×480
480×480
Stroke
X-axis
mm
4000(increment per 2000)
6000(increment per 2000)
6000(increment per 2000)
6000(increment per 2000)
Y-axis
mm
2000/2500/3000/4000
2000/2500/3000/4000
2500/3000/4000
2500/3000/4000
Z-axis
mm
700
700
1000
1000
W-axis
mm
700
700
800
800
Feed
Feed speed
X/Y-axis
mm/min
1-6000
1-6000
1-6000
1-6000
Z/W-axis
mm/min
1-3000
1-3000
1-3000
1-3000
Fast moving
X/Y-axis
mm/min
6000
6000
6000
6000
Z/W-axis
mm/min
3000
3000
3000
3000
Positioning accuracy







Execution standard
GB/T 5289.2-2021
X-axis
mm
0.012/1000
(grating ruler as standard configuration)
0.012/1000
(grating ruler as standard configuration)
0.012/1000
(grating ruler as standard configuration)
0.012/1000
(grating ruler as standard configuration)
Y-axis
mm
0.02/1000; 0.012/1000(grating ruler as Optional configuration)
Z-axis
mm
0.025; 0.015(grating ruler as Optional configuration)
0.025; 0.015(grating ruler as Optional configuration)
0.025; 0.015(grating ruler as Optional configuration)
0.025; 0.015(grating ruler as Optional configuration)
W-axis
mm
0.025
0.025
0.025
0.025
Repeat positioning accuracy


Execution standard
GB/T 5289.2-2021
X-axis
mm
0.012
0.012
0.012
0.012
Y-axis
mm
0.012
0.012
0.012
0.012
Z-axis
mm
0.012
0.012
0.012
0.012
W-axis
mm
0.015
0.015
0.015
0.015
Note: The parameters provided in the table are for reference only. If there is any change, the physical object shall prevail.
Standard configuration:
SIEMENS 828D system
X-axis grating ruler
Imported linear guide rail for X-axis
Steel protective pull plate for X-axis
Imported spindle bearings
Spindle blowing function
Domestic headstock oil cooler
Centralized lubrication system for machine tool
Column armor protection for Y-axis
Platform lifted up/down along with the headstock
Single side chain-type chip removal unit
Tri-color light, floodlight
Y, Z, W-axis imported lead screws and bearings
Clean air gun/water gun
Optional configuration:
SIEMENS ONE system
FANUC0i/31i system
Y/Z-axis grating ruler
Automatic capture function of accessory head
CNC rotary workbench
Manual/semi-automatic/automatic milling head
Detachable facing head
Tool magazine (40/60)
Ram thermal elongation compensation
Spindle internal cooling system
Grating ruler blowing
Platform
Adaptive control
Tool load abnormality detection
Energy saving package
