Five-Axis CNC Tool Grinding Machine MG300 High Precision Tools Grinding Machine

Five-Axis CNC Tool Grinding Machine MG300 High Precision Tools Grinding Machine

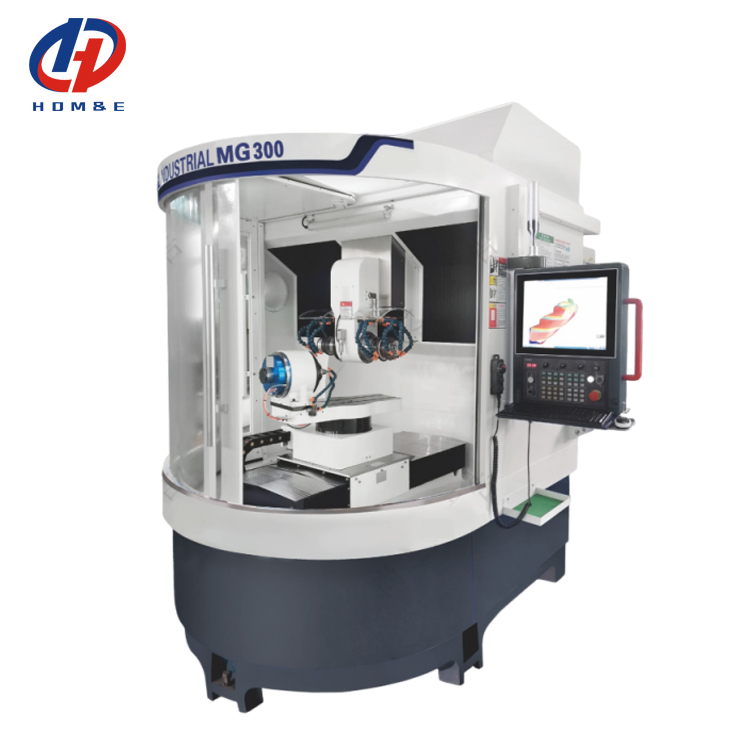

The MG series five-axis CNC tool grinding machine is a CNC tool production machine tool developed for fully ground tools. This machine tool is A five-axis five-linkage machine tool, among which X, Y and Z are linear servo axes, and A and C are rotary axes.
This machine is a professional CNC tool production equipment for manufacturing standard milling cutters, non-standard milling cutters, drill bits, reamers and other cutting tools, featuring low consumption, high efficiency and high precision. It has extraordinary superiority in the manufacturing field of high-speed steel and carbide milling cutters.

1,It can be equipped with advanced man-machine dialogue CNC system, bothG code programming, and tool software. The system is safe, stable.convenient and resistant to electromagnetic interference. The programtransmission between CNC and PC can be realized through Ethernetinterface and USB3.0, with the shortest processing preparation timeand one-click start-up, so that productivity can be greatly improved.

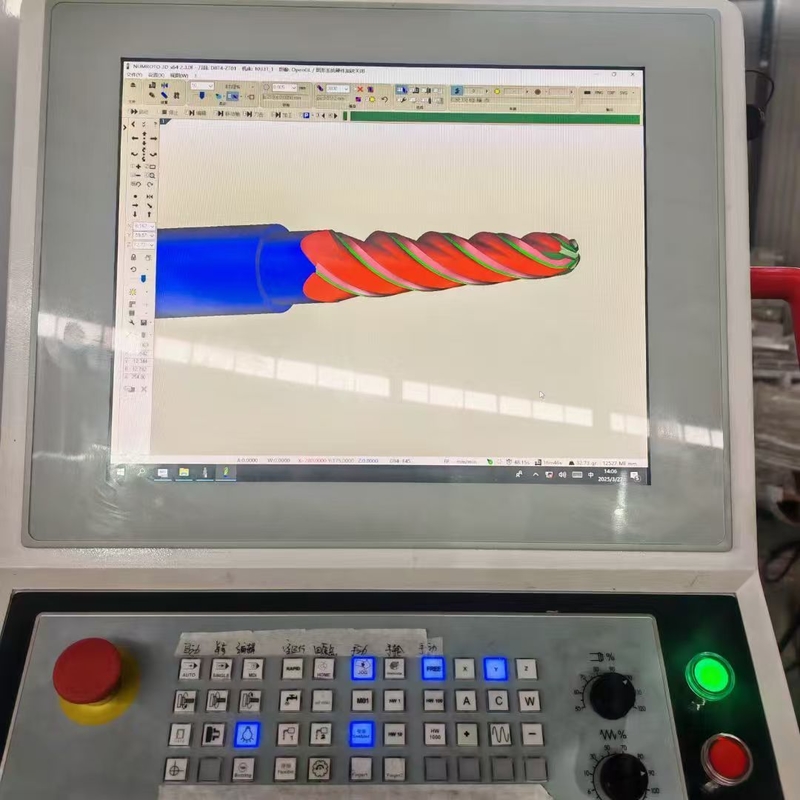

2,It is equipped with 3D simulation software to display the necessaryparameters of tool processing in the way of dialog box. After parameterinput, the tool simulation can display the 3D graphics of the tool and thegrinding steps of the machine tool.(Distinguish each grinding step withdifferent colors) Use the anti-collision function of the software to avoidthe collision phenomenon in the actual process. Select thecorresponding software module can process a variety of tools, throughthe probe, to realize the automatic cycle measurement of the workpieceand the tool wear compensation, which can produce tools and repairand sharpen tools.

3,Heavy design, high power, gantry type closed structure, good rigidity, highstrength, good stability.

4,Original imported screw, guide rail, A, C axis for DD motor high-precisionturntable, DD motor can achieve no-gap rotation, to ensure R Angleaccuracy,strong sensitivity, good stability,improve tool grindingaccuracy and processing efficiency.

5,The X/ Y axis is a linear motor, with a high-precision grating ruler, whichgreatly reduces component wear, has higher accuracy,fasterresponse, and higher processing efficiency.

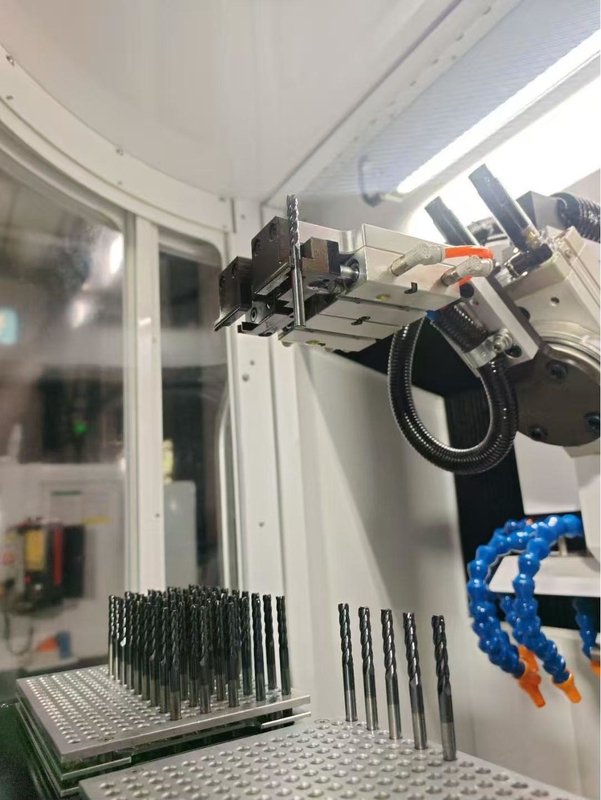

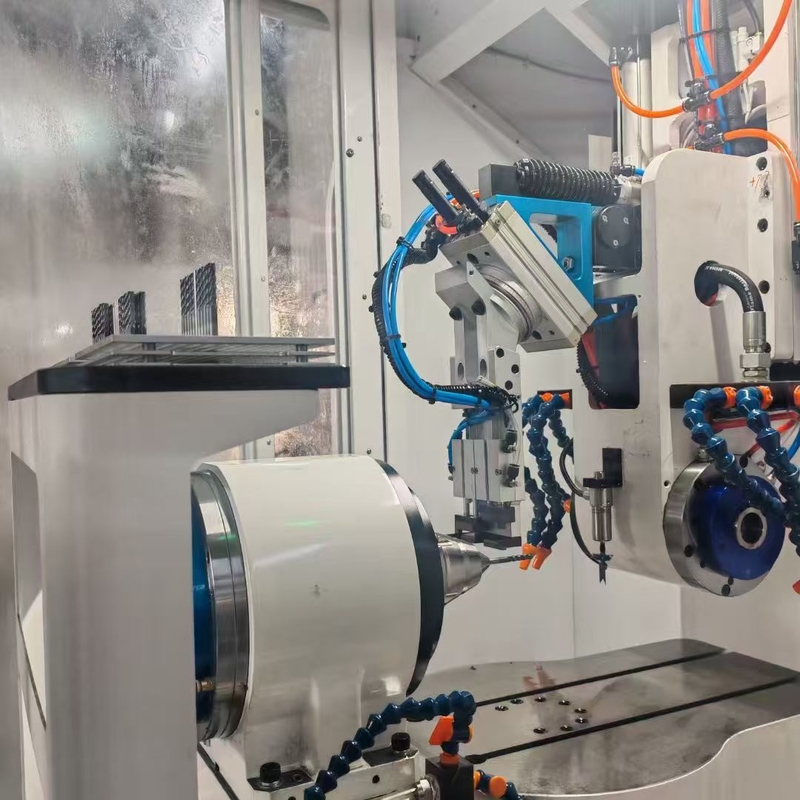

6,According to user needs, precision six-axis mechanical arm or self-madebuilt-in loading and unloading device can be selected to realizeautomatic loading and unloading. Automatic refuelling and productprocessing can be carried out simultaneously through unmannedoperation, greatly improving the production efficiency of tool grindingmachine.

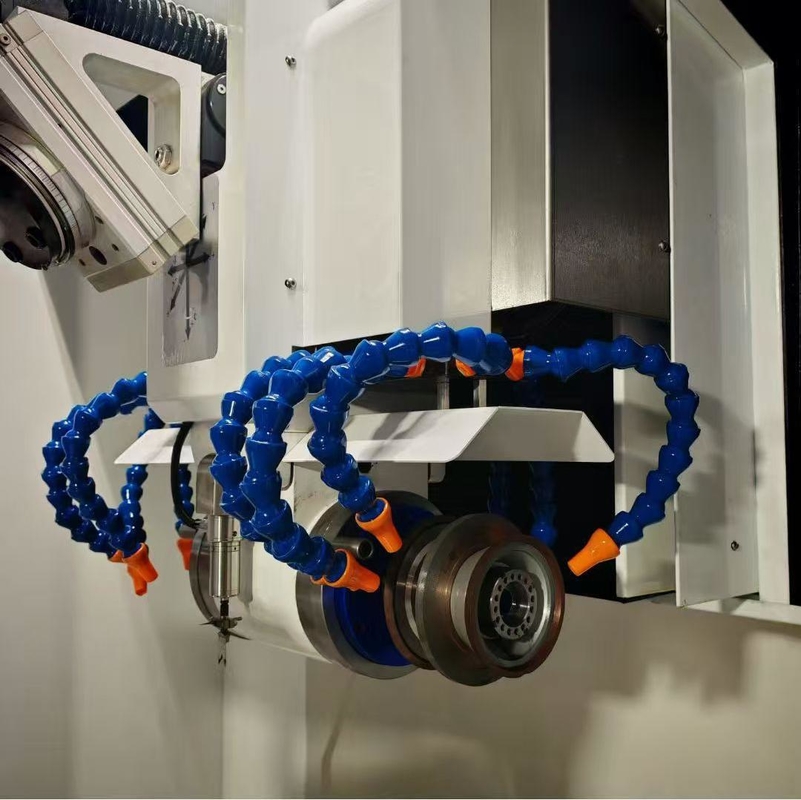

7,Double extension electric spindle, large torque, heavy grinding force. Thedouble-extension spindle can be equipped with 6-8 grinding wheels,which is suitable for the processing of non-standard tools and polishingtools.

8,Equipped with center and simple support for long tool production.

Areas of Application:

1,Processing materials: high speed steel, carbide and stainless steel, etc.

2,Reamer type: straight groove reamer, taper straight groove reamer, spiral reamer, taper spiral reamer.

3,Dril type: straiaht aroove drill, spiral aroove dril, straiaht aroove step drill, spiral aroove step dril

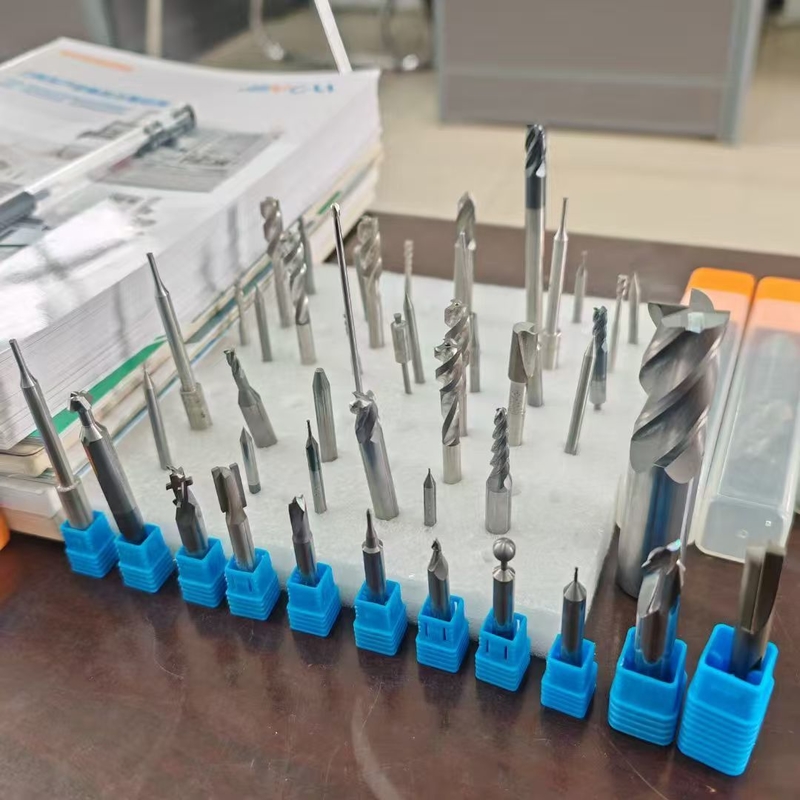

4,Miling cutter: flat head knife, taper flat head knife, round nose knite,tavernose knife, ball head knife, taper ballhead knife.

5,Various standard and non-standard tool processing. Five-axis linkage grinding in product parts.

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

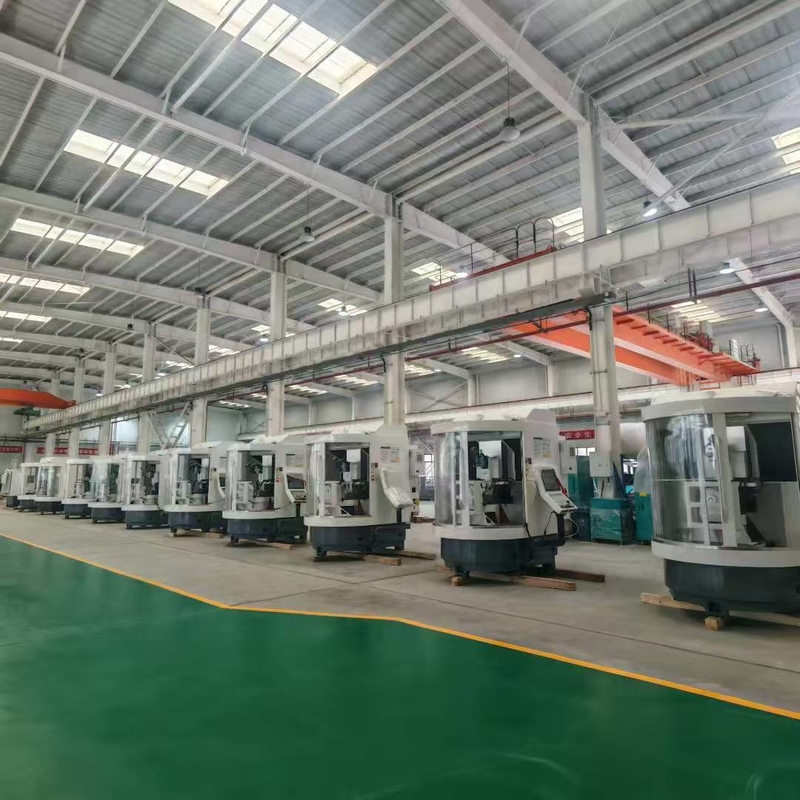

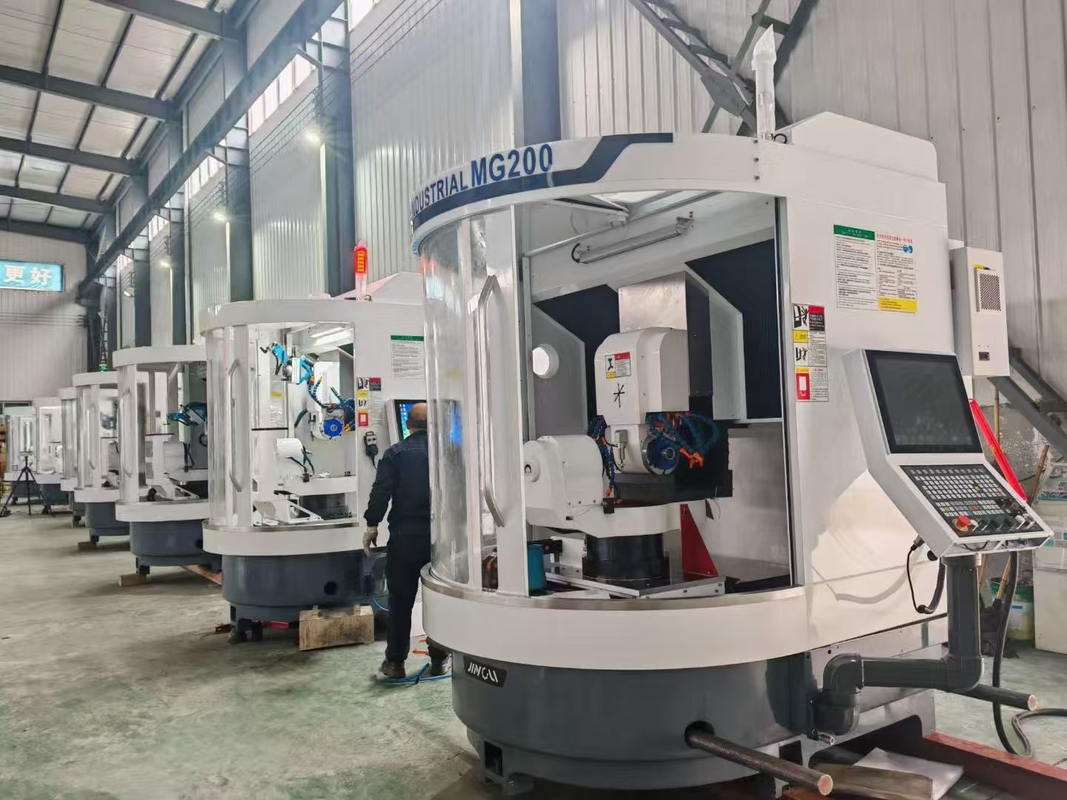

Our Factory:

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
