High-Quality Radial Drilling Machine 125mm Max Drilling Z30125 Heavy Duty Radial Drill

High-Quality Radial Drilling Machine 125mm Max Drilling Z30125 Heavy Duty Radial Drill

Best radial drilling machine

High rigidity

High precision

Place of Origin:

CHINA

Brand Name:

HD

Certification:

CE ISO certification

Model Number:

Z30125

Contact Us
Request A Quote
Product Details
Brand Name:
HD
Model Number:
Z30125
CNC Or Not:
Manual
Key Word:
Radial Drilling Machine
Maximum Hole Diameter:
125 Mm
Spindle Travel:
560 Mm
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case,Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
50 sets per month
Product Description

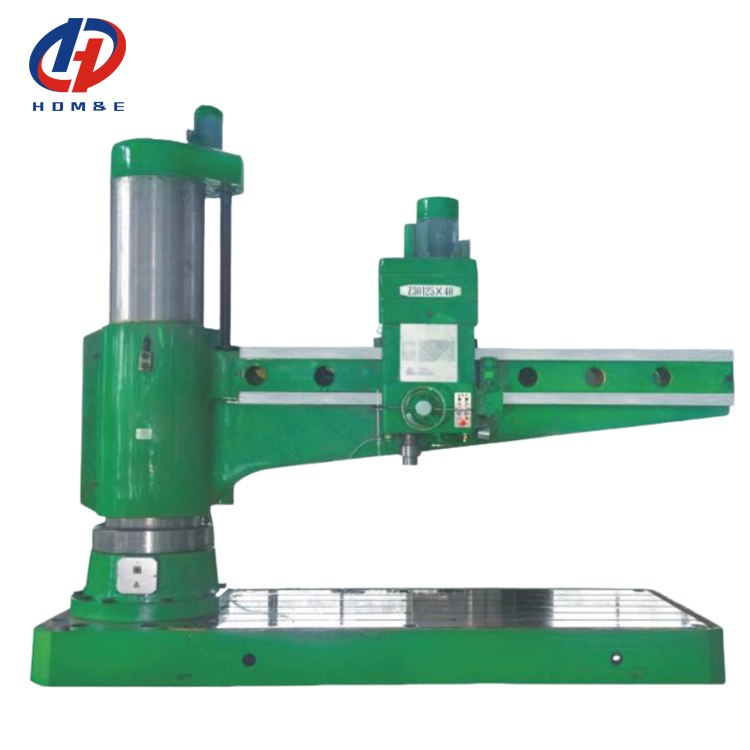

High-Quality Radial Drilling Machine 125mm Max Drilling Z30125 Heavy Duty Radial Drill 0

Product Description:

High-Quality Radial Drilling Machine 125mm Max Drilling Z30125 Heavy Duty Radial Drill
Radial Drilling Machine Z30125: Maximum drilling diameter 125mm. Hydraulic pre-selected speed change combined with 360° rotatable radial arm enables efficient positioning. Hydraulic diamond block clamping system, combined with quenched guideways and spindle sleeve, ensures high-precision machining. Spindle speed 6.3-800r/min, supports multiple processes such as drilling, counterboring,reaming, tapping. Equipped with overload protection, torque limitation and limit switches; CE certification ensures safety and compliance. Suitable for processing large workpieces in heavy machinery, bridge construction, pressure vessels, etc. High-rigidity cast iron structure for long-lasting durability.

Product Features:

1,Hydraulic preselection speed and feed change mechanism

2,Headstock, radial arm and columns are clamped by thehydraulic clamping mechanisms

3,Operations of spindle are all controlled by one single lever

4,Perfect performance, safe, reliable and easily operating.high accuracy, ample rigidity and long service life

5,Drilling,reaming,counter boring,boring,tapping

Product Paramenters:
SPECIFICATIONS
Unit
Z30125×40
Maximum hole diameter
mm
125
Distance from the centre line of spindle to column
mm
600-4000
Horizontal traverse of spindle head on arm
mm
3400
Distance from the spindle nose to working surface of base plate
mm
700-2500
Vertical travel of arm on column
mm
1800
Elevating speed of arm
m/min
0.6
Swivel angle of arm
degger
±180°
Voltage
V
380
Taper in spindle
metric
80
Range of spindle speeds
r/min
6.3~800
Number of spindle speeds
steps
22
Range of spindle feeds
mm/r
0.06~3.2
Number of spindle feeds
steps
16
Spindle travel
mm
560
Maximum permissible torque of spindle
N.m
3200
Maximum permissible feed pressure of spindle
KN
50
Power of the main drive motor
Kw
18.5
Power of arm elevating motor
Kw
4
Power of hydraulic clamping motor for spindlebox,column,arm
Kw
1.1
Power of coolant pump motor
Kw
0.125
Machine weight
Kg
30000
Overall dimensions
mm
5945×1950×4900

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
High-Quality Radial Drilling Machine 125mm Max Drilling Z30125 Heavy Duty Radial Drill 1
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

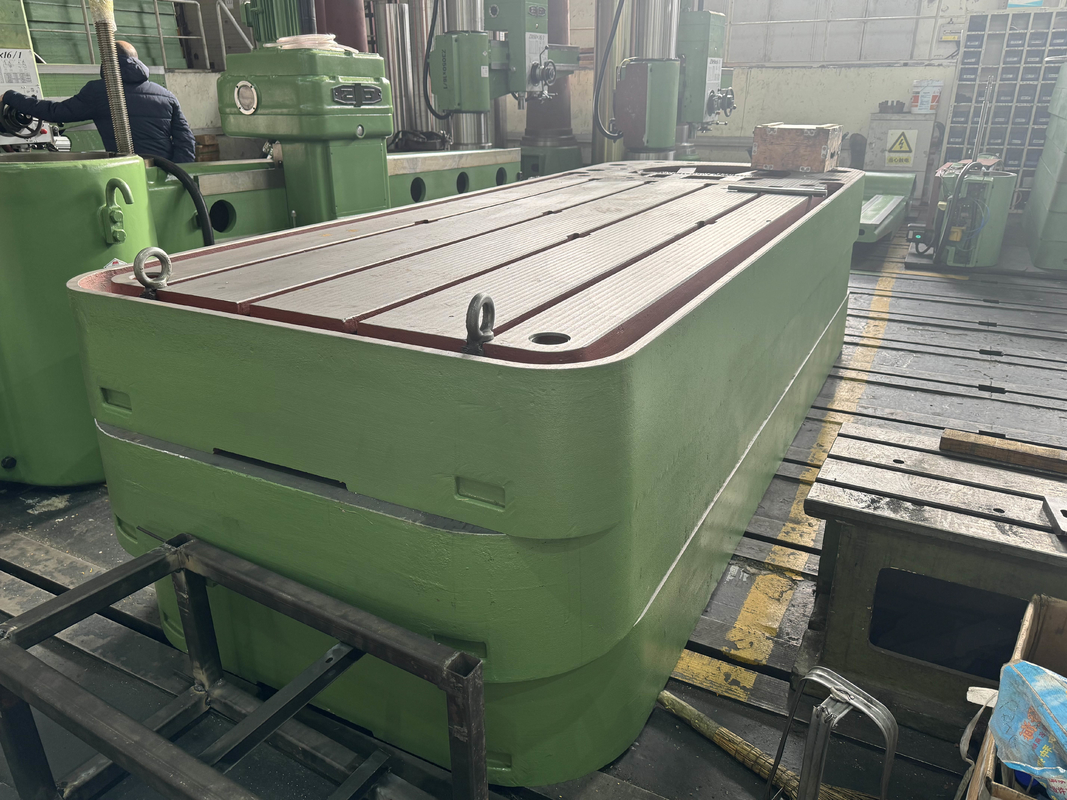

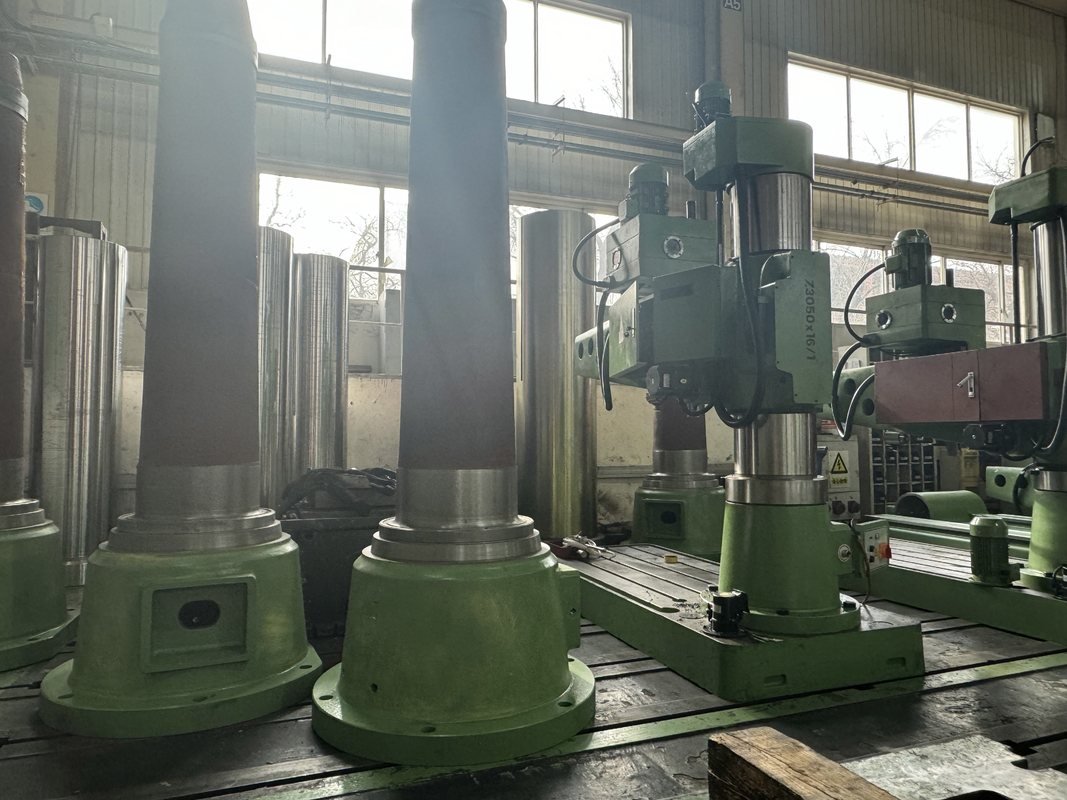

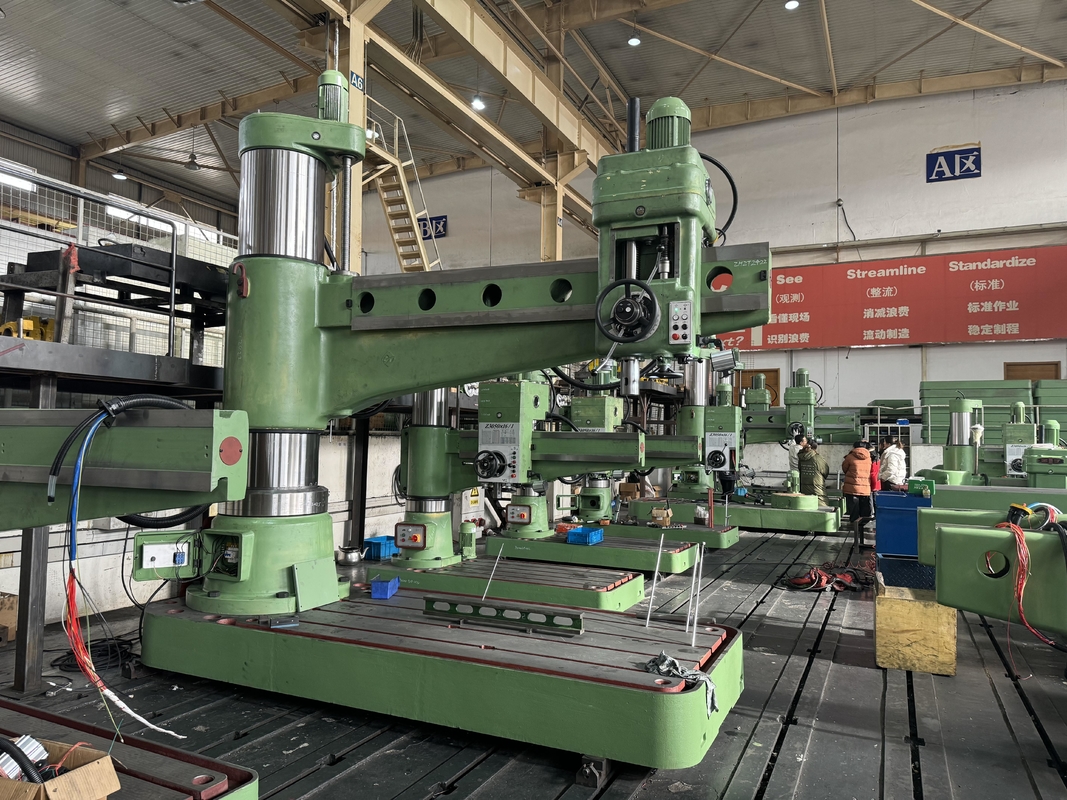

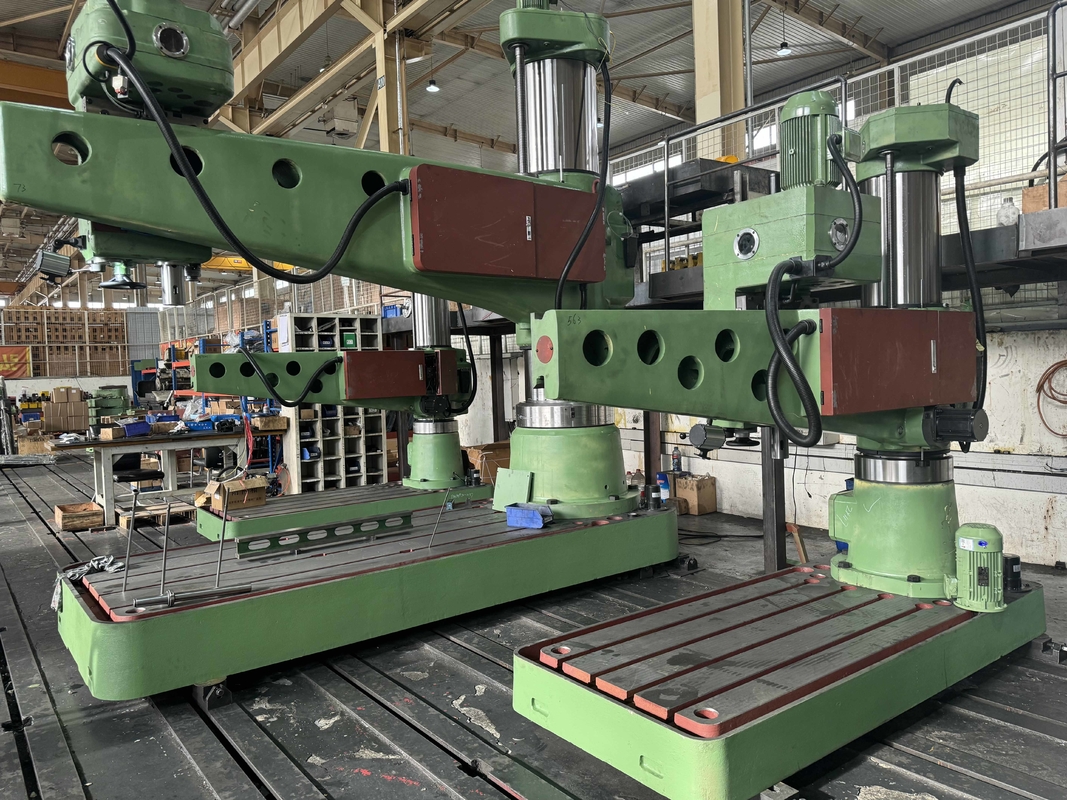

Our Factory:
High-Quality Radial Drilling Machine 125mm Max Drilling Z30125 Heavy Duty Radial Drill 2
Exhibition:

High-Quality Radial Drilling Machine 125mm Max Drilling Z30125 Heavy Duty Radial Drill 3

FAQ:



Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
