Heavy Duty Radial Drill 100mm Max Drilling 360° Rotation Z30100 Radial Arm Drill Press for Metalworking

Heavy Duty Radial Drill 100mm Max Drilling 360° Rotation Z30100 Radial Arm Drill Press for Metalworking

Radial Drilling Machine

drilling machine

Universal Radial Drill

Place of Origin:

CHINA

Brand Name:

HD

Certification:

CE ISO certification

Model Number:

Z3063

Contact Us
Request A Quote
Product Details
Brand Name:
HD
Model Number:
Z3063
CNC Or Not:
Manual
Key Word:
Radial Drilling Machine
Maximum Hole Diameter:
63 Mm
Spindle Travel:
400 Mm
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case,Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
50 sets per month
Product Description

Heavy Duty Radial Drill 100mm Max Drilling 360° Rotation Z30100 Radial Arm Drill Press for Metalworking 0

Product Description:

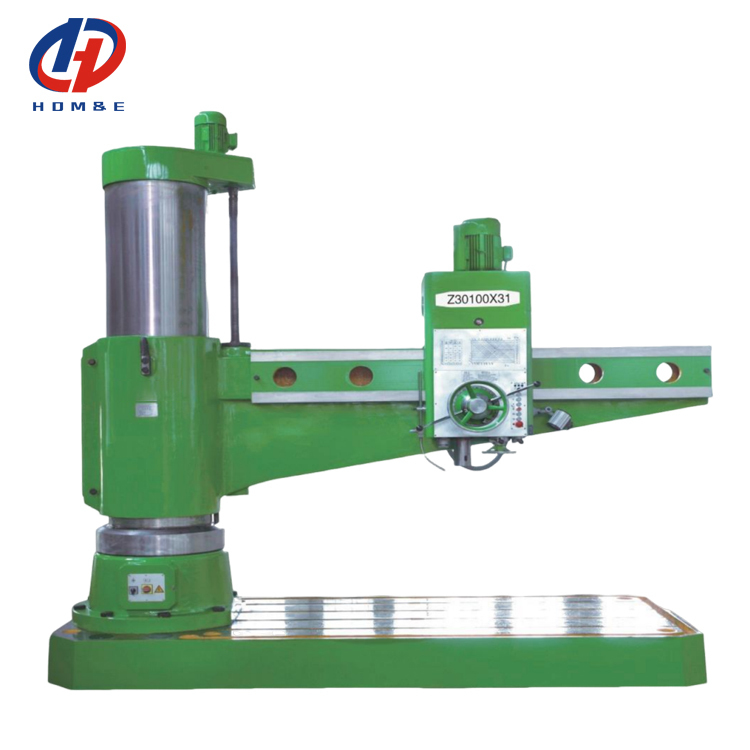

Heavy Duty Radial Drill 100mm Max Drilling 360° Rotation Z30100 Radial Arm Drill Press for Metalworking
Radial Drilling Machine Z30100: Max drilling diameter 100mm, hydraulic pre-selected speed change, radial arm liftable & 360° rotatable. Hydraulic diamond block clamping with safety lock, quenched guideways and spindle sleeve ensure lasting precision.Spindle speed 8-1000r/min, supports drilling, reaming, tapping. Equipped with safety protections, CE certified, ideal for heavy machinery and large complex workpieces, efficient and reliable.

Product Features:

1,Hydraulic preselection speed and feed change mechanism

2,Headstock, radial arm and columns are clamped by thehydraulic clamping mechanisms

3,Operations of spindle are all controlled by one single lever

4,Perfect performance, safe, reliable and easily operating.high accuracy, ample rigidity and long service life

5,Drilling,reaming,counter boring,boring,tapping

Product Paramenters:
SPECIFICATIONS
Unit
Z30100×31
  Z30100×40
Maximum hole diameter
mm
100
Center of the column to the center of the spindle
mm
560-3150
560-4000
Horizontal traverse of spindle head on arm
mm
700-2500
Vertical travel of arm on column
mm
1300
Horizontal traverse of spindle headon arm
mm
2590
3440
Elevating speed of arm
m/min
1.02
Swivel angle of arm
degger
±180°
Taper in spindle
morse
6
Range of spindle speeds
r/min
8~1000
Number of spindle speeds
steps
22
Range of spindle feeds
mm/r
0.06~3.2
Number of spindle feeds
steps
16
Spindle travel
mm
500
Maximum permissible torque of spindle
N.m
2500
Maximum permissible feed pressure of spindle
N
50000
Power of the main drive motor
Kw
15
Power of arm elevating motor
Kw
4
Power of hydraulic clamping motor for spindlebox,column,arm
Kw
0.8
Power of coolant pump motor
Kw
0.125
Machine weight
Kg
20000
       21000
Overall dimensions
mm
4530×1630×4800
5380×1630×4810
OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Heavy Duty Radial Drill 100mm Max Drilling 360° Rotation Z30100 Radial Arm Drill Press for Metalworking 1
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

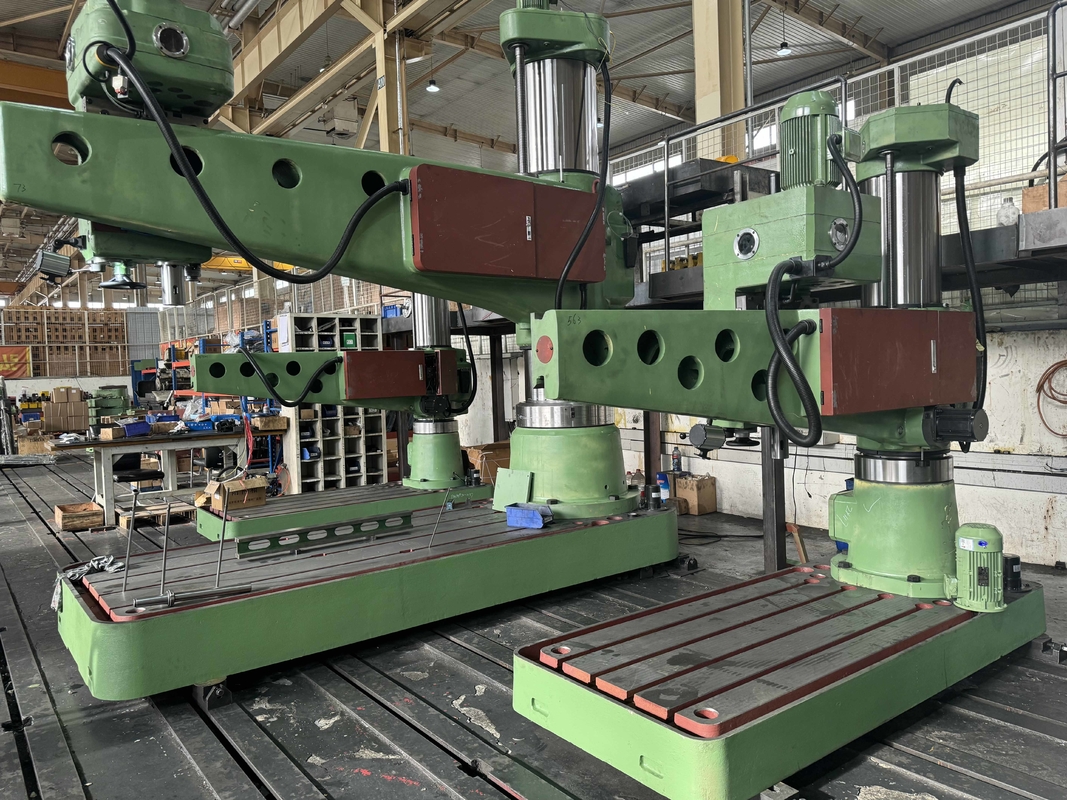

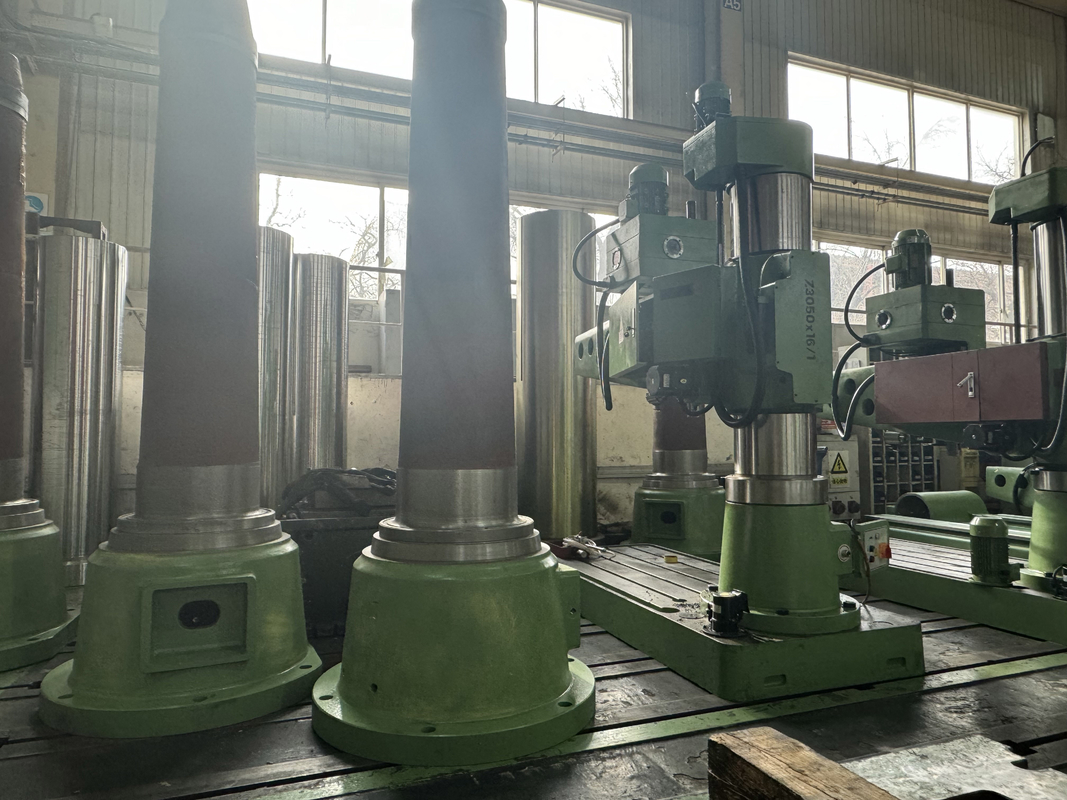

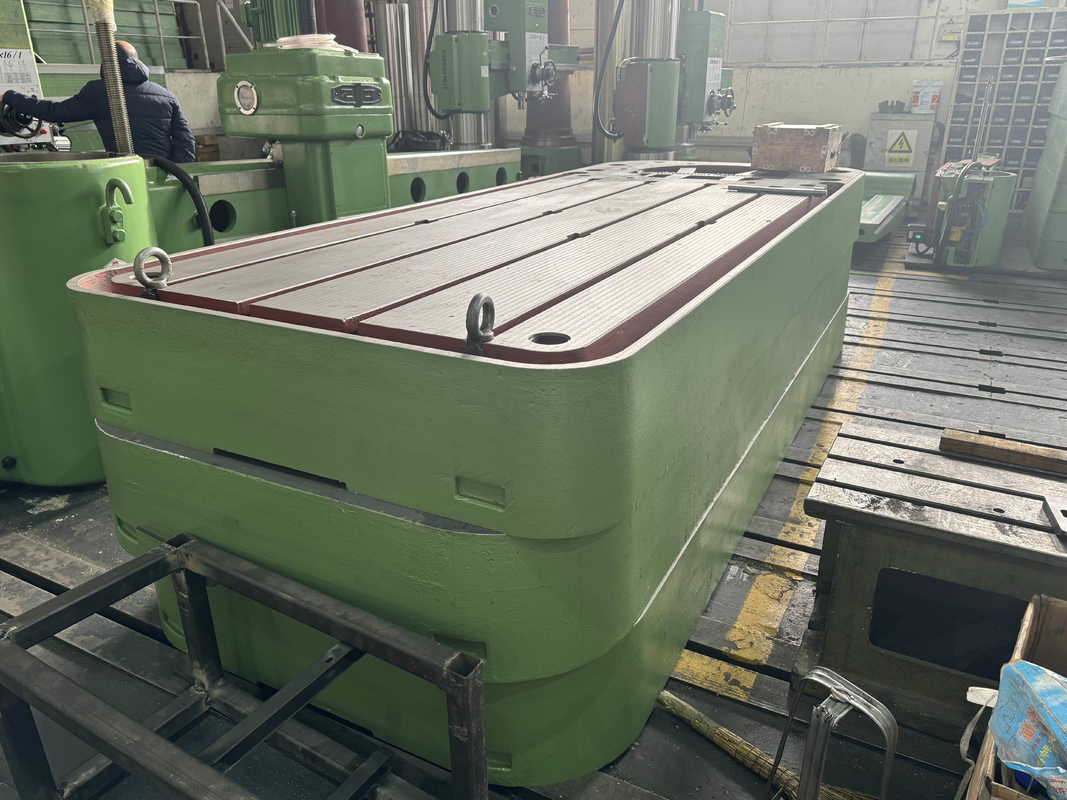

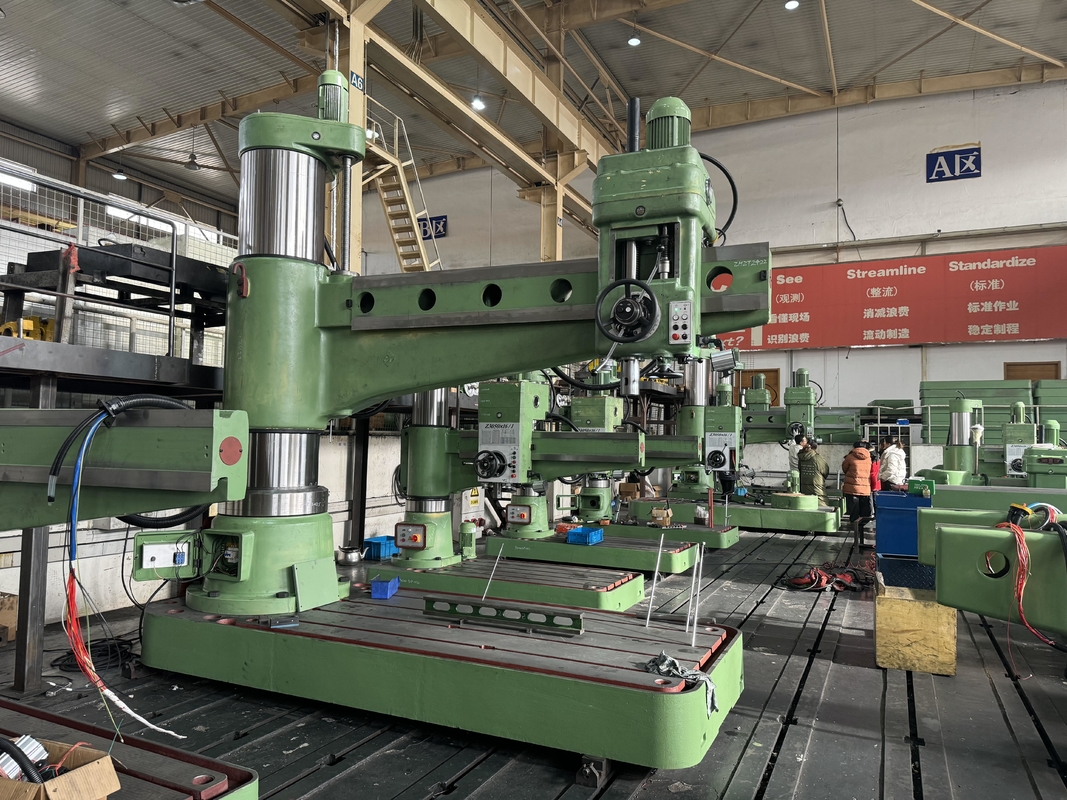

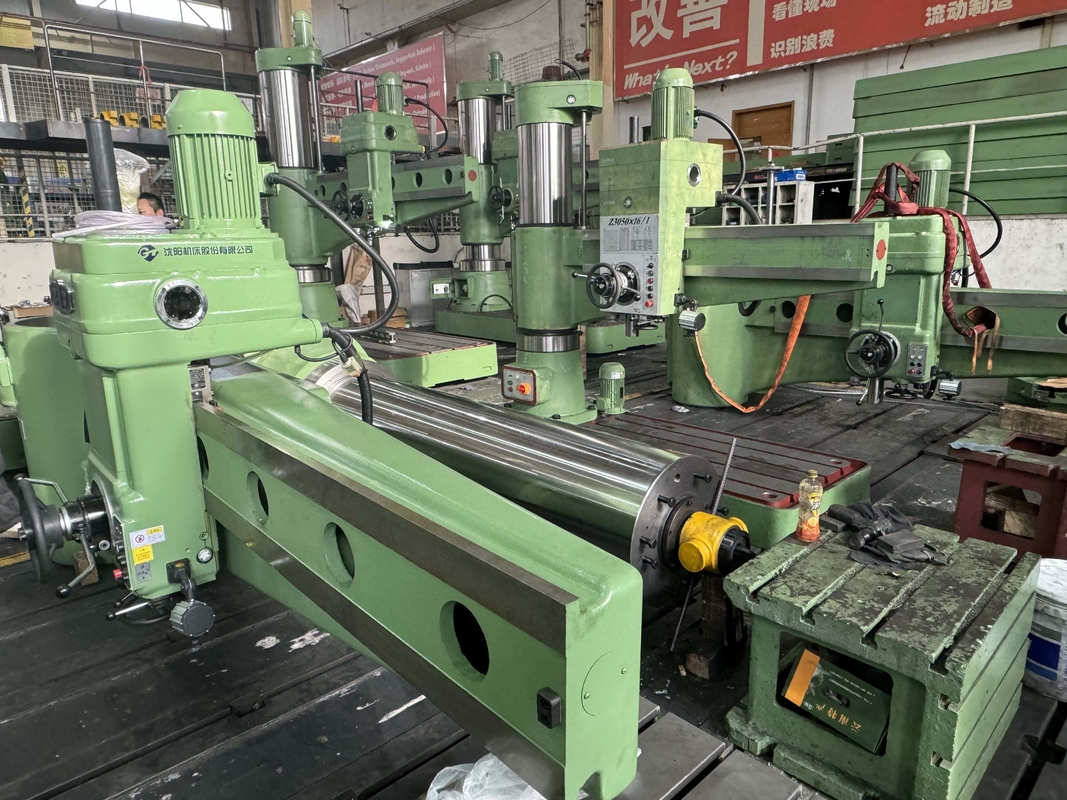

Our Factory:
Heavy Duty Radial Drill 100mm Max Drilling 360° Rotation Z30100 Radial Arm Drill Press for Metalworking 2
Exhibition:

Heavy Duty Radial Drill 100mm Max Drilling 360° Rotation Z30100 Radial Arm Drill Press for Metalworking 3

FAQ:


Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
