Radial Drilling Machine Z3063 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill

Radial Drilling Machine Z3063 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill

Factory Direct

Large Capacity Drilling

Heavy Duty Radial Drill

Place of Origin:

CHINA

Brand Name:

HD

Certification:

CE ISO certification

Model Number:

Z3063

Contact Us
Request A Quote
Product Details
Brand Name:
HD
Model Number:
Z3063
CNC Or Not:
Manual
Key Word:
Radial Drilling Machine
Maximum Hole Diameter:
63 Mm
Spindle Travel:
400 Mm
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case,Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
50 sets per month
Product Description

Radial Drilling Machine Z3063 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 0

Product Description:

Radial Drilling Machine Z3063 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill
The Radial drilling machine Z3063 has a maximum drilling diameter of 63mm. The Radial can be flexibly raised and lowered and rotate ±180°. The spindle speed ranges from 20 to 1600r/min, with 16 levels of hydraulic pre-selected speed change. It adopts a hydraulic-driven rhombic block clamping mechanism, which has a large and stable clamping force. It supports multiple processes such as drilling, reaming, boring and tapping. Quenched guide rails and raceways ensure the durability of precision. It is applicable to large and medium-sized metal processing scenarios such as heavy machinery and mold manufacturing, featuring both high efficiency and reliability.

Product Features:

1,Hydraulic preselection speed and feed change mechanism

2,Headstock, radial arm and columns are clamped by thehydraulic clamping mechanisms

3,Operations of spindle are all controlled by one single lever

4,Perfect performance, safe, reliable and easily operating.high accuracy, ample rigidity and long service life

5,Drilling,reaming,counter boring,boring,tapping

Product Details:

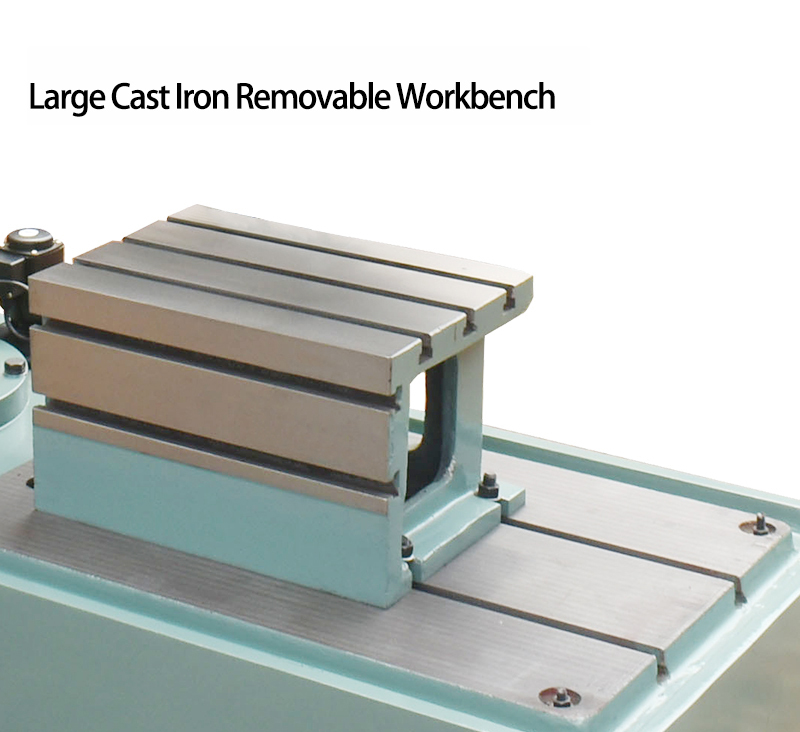

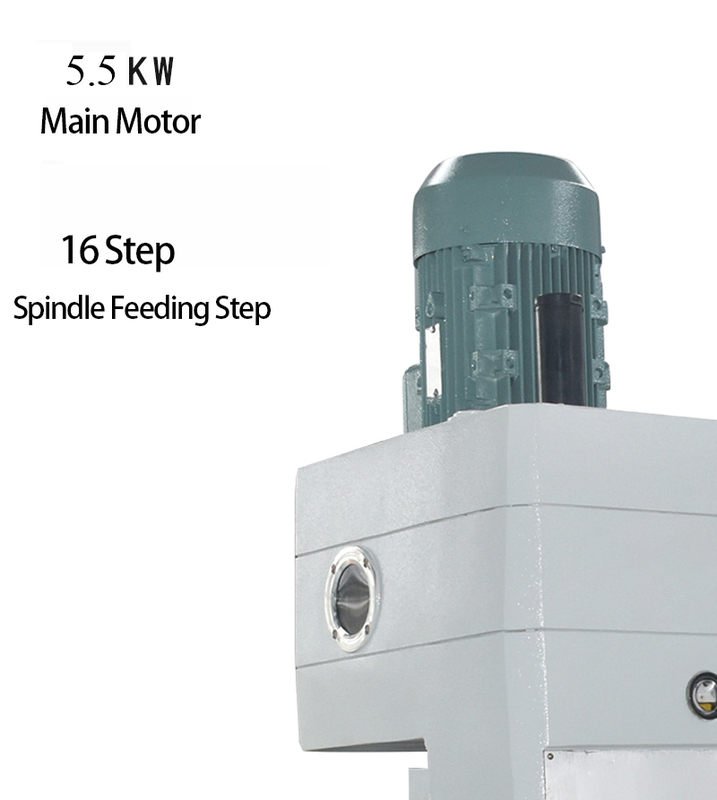

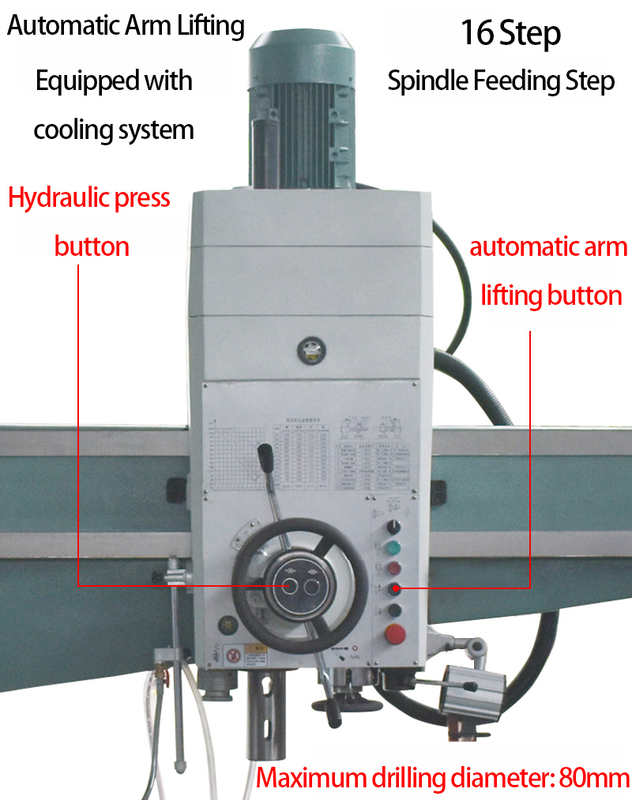

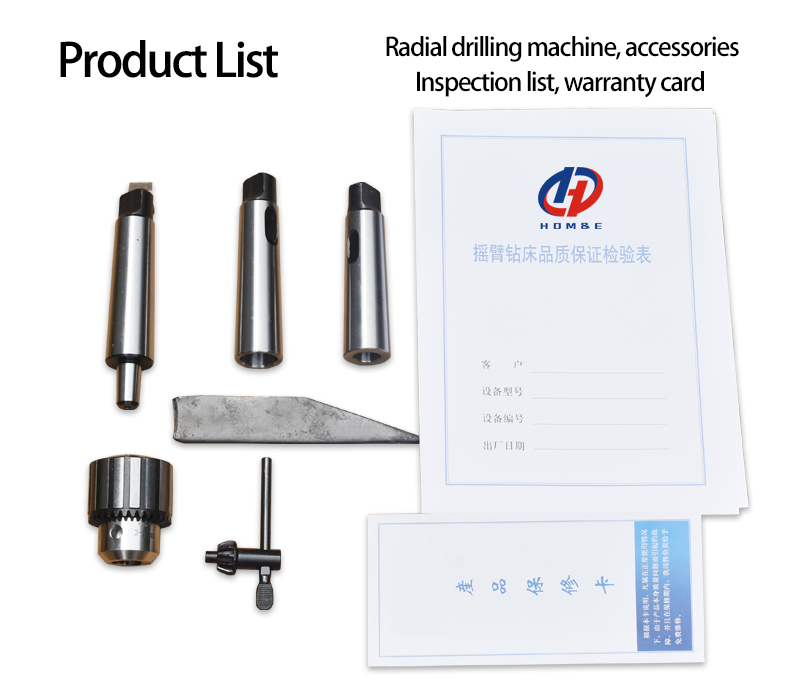

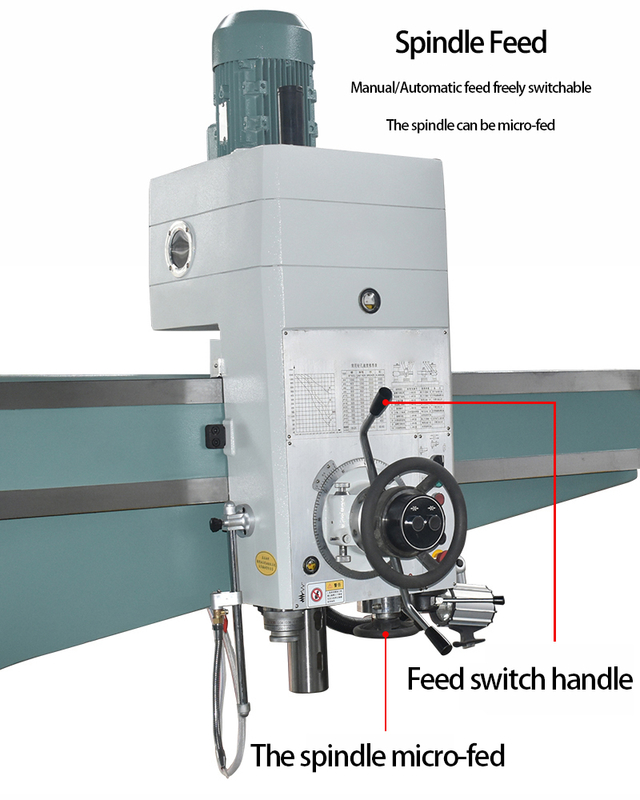

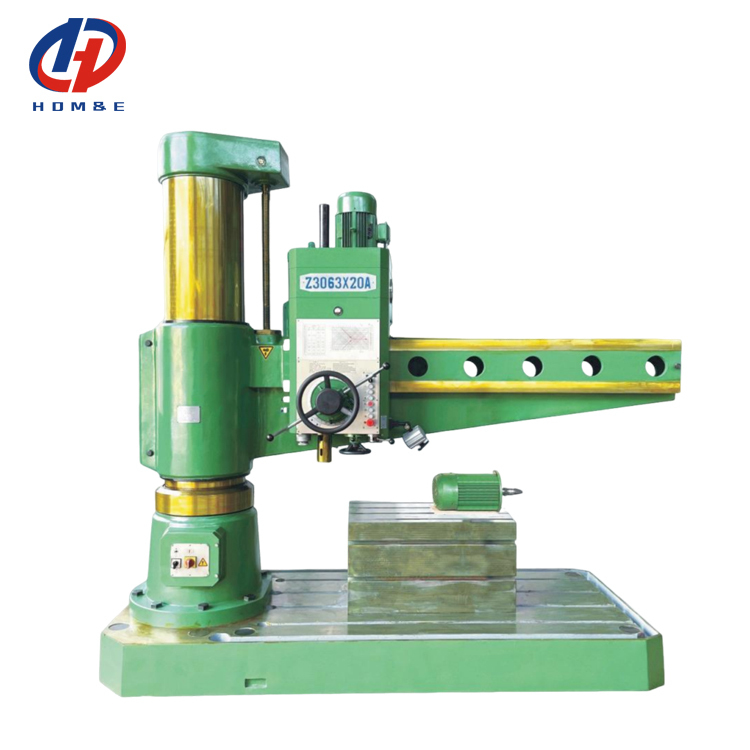

Radial Drilling Machine Z3063 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 1Radial Drilling Machine Z3063 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 2Radial Drilling Machine Z3063 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 3
Radial Drilling Machine Z3063 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 4Radial Drilling Machine Z3063 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 5Radial Drilling Machine Z3063 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 6Radial Drilling Machine Z3063 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 7
Product Paramenters:
SPECIFICATIONS
Unit
Z3063×20A
Z3063×25
Maximum hole diameter
mm
63
Center of the column to the center of the spindle
mm
450-2050
450-2550
Horizontal traverse of spindle head on arm
mm
1600
2100
Horizontal traverse of spindle head on arm
mm
400-1600
Vertical travel of arm on column
mm
800
Elevating speed of arm
m/min
1
Swivel angle of arm
degger
±180°
Taper in spindle
morse
5
Range of spindle speeds
r/min
20~1600
Number of spindle speeds
steps
16
Range of spindle feeds
mm/r
0.04~3.2
Number of spindle feeds
steps
16
Spindle travel
mm
400
Feed depth per revolution of graduated dial
mm
150.8
Maximum permissible torque of spindle
N.m
1000
Maximum permissible feed pressure of spindle
KN
25
Power of the main drive motor
Kw
5.5
Power of arm elevating motor
Kw
1.5
Power of hydraulic clamping motor for spindlebox,column,arm
Kw
0.75
Power of coolant pump motor
Kw
0.09
Machine weight
Kg
7000
7300
Overall dimensions
mm
3110×1250×3151
3610×1250×3467


OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Radial Drilling Machine Z3063 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 8
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Radial Drilling Machine Z3063 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 9
Exhibition:

Radial Drilling Machine Z3063 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 10

FAQ:



Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
