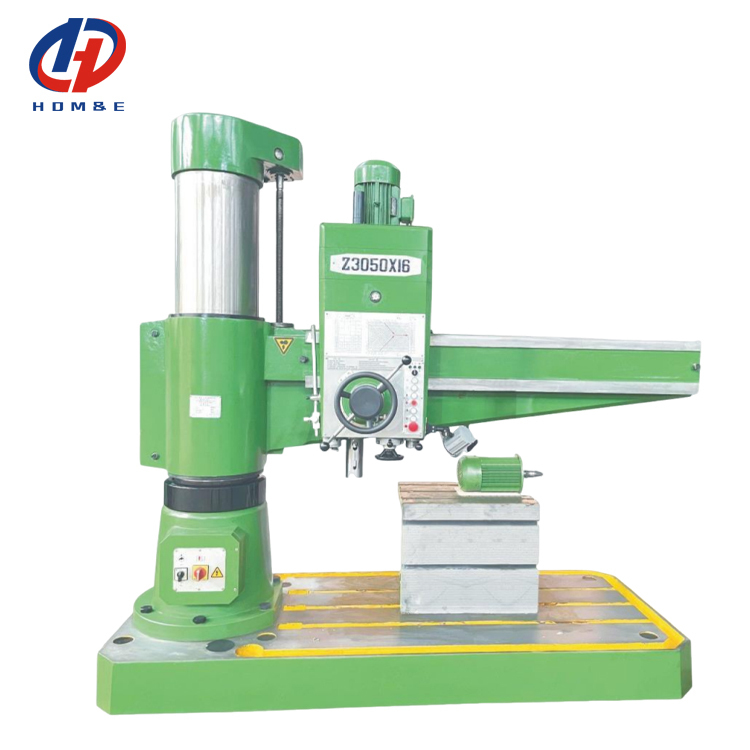

Radial Drilling Machine Z3050 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill

Brand Name: HD
Model Number: Z3050
Place of Origin: CHINA
Certification: CE ISO certification
Minimum Order Quantity: 1
Supply Ability: 50 sets per month
Tags

High Speed Drilling Milling Machine

CNC Milling Machining Center GD1007

Drilling Machining Center 1000kg

Product Details

Brand Name: HD Model Number: Z3050
CNC Or Not: Manual Key Word: Radial Drilling Machine
Maximum Hole Diameter: 50 Mm Spindle Travel: 315 Mm
Highlight

Precision Radial Drilling Machine

,

Heavy Duty Radial Drill

,

50mm+ Max Drilling Diameter

Product Description

Radial Drilling Machine Z3050 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 0

Product Description:

Radial Drilling Machine Z3050 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill
The Radial Drilling Machine Model Z3050x16,Z3050x20 is a new series of diversified functions product which has been designed and accomplished according to the international Standards (ISO) inthe recent years. In this machine,hydraulic reselections speed and feed change mechanisms areadopted, the headstock, radial arm and columns are clamped by the hydraulic clamping mechanisms and the spindle turn forward and reverse, stop(braking),spindle in neutral position as well as spindlein neutral position are all controlled by a single-lever,themachine has the characteristic of perfectperformance,safe,reliable and easy operation,convenient maintenance,high accuracy,ample rigidityand long service life,IT is suitable for drilling,counter boring,spot facing,reaming,tapping andboring.It is widely used in every department of mechanical machining.

Product Features:

1,Hydraulic preselection speed and feed change mechanism

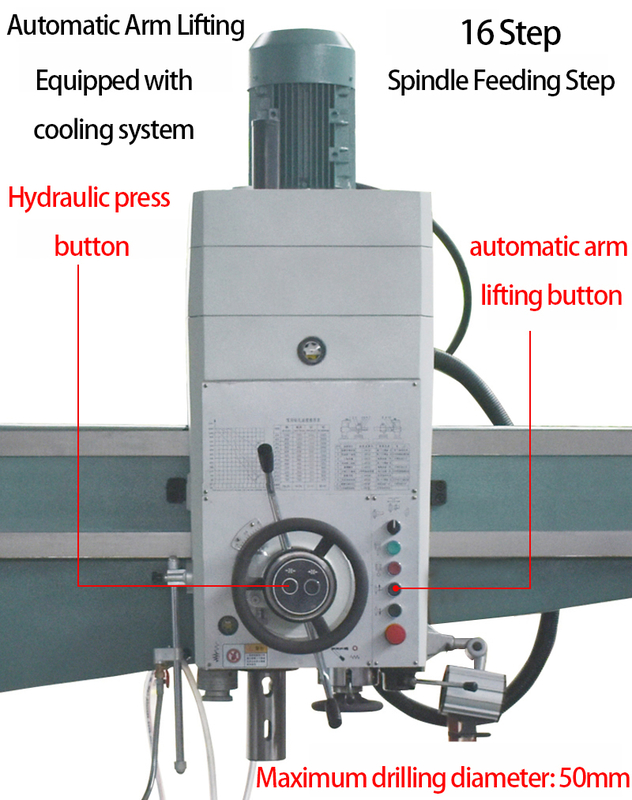

2,Headstock, radial arm and columns are clamped by thehydraulic clamping mechanisms

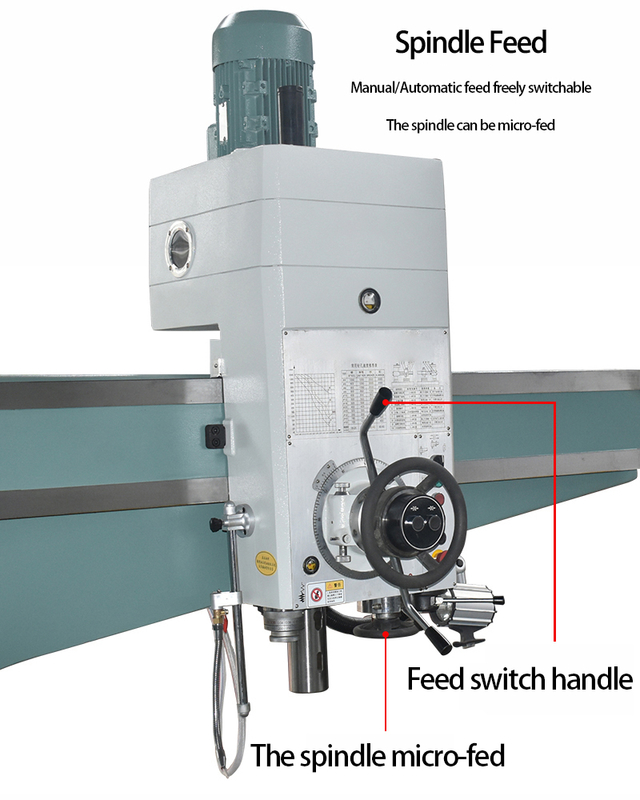

3,Operations of spindle are all controlled by one single lever

4,Perfect performance, safe, reliable and easily operating.high accuracy, ample rigidity and long service life

5,Drilling,reaming,counter boring,boring,tapping

Product Details:


Radial Drilling Machine Z3050 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 1Radial Drilling Machine Z3050 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 2Radial Drilling Machine Z3050 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 3Radial Drilling Machine Z3050 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 4Radial Drilling Machine Z3050 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 5Radial Drilling Machine Z3050 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 6Radial Drilling Machine Z3050 Manual Feed Hydraulic Speed Change 50mm Drilling Diameter Radial Drill 7
Product Paramenters:
SPECIFICATIONS
Unit
Z3050×16
Z3050×20
Maximum hole diameter
mm
50
50
Distance from the centre line of spindle to column
mm
350-1600
350-2000
Horizontal traverse of spindle head on arm
mm
1500
1650
Distance from spindle nose toworking surface of base plate
mm



315-1215
Vertical travel of arm on column
mm
600
Elevating speed of arm
m/min
1.2
Swivel angle of arm
degger
±180°
Taper in spindle
morse
5
Range of spindle speeds
r/min
25~2000
Number of spindle speeds
steps
16
Range of spindle feeds
mm/r
0.04~3.2
Number of spindle feeds
steps
16
Spindle travel
mm
315
Feed depth per revolution of graduated dial
mm
122.5
Maximum permissible torque of spindle
N.m
500
Maximum permissible feed pressure of spindle
KN
18

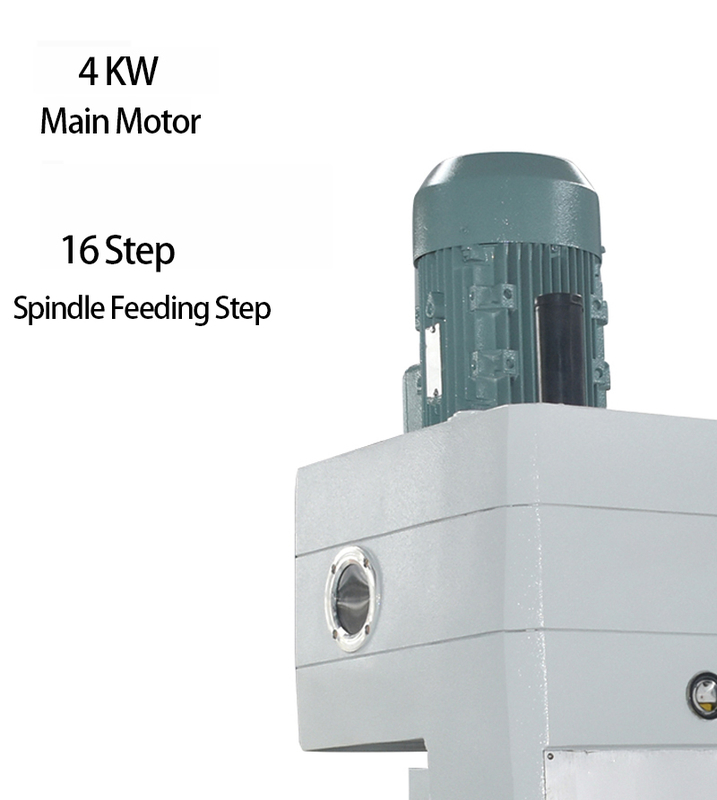

Power of the main drive motor
Kw
4
Power of arm elevating motor
Kw
1.5
Power of hydraulic clamping motor for spindlebox,column,arm
Kw
0.75
Power of coolant pump motor
Kw
0.09
Machine weight
Kg
3500
3800
Overall dimensions
mm
2490×1035×2645
2890×1035×2855
