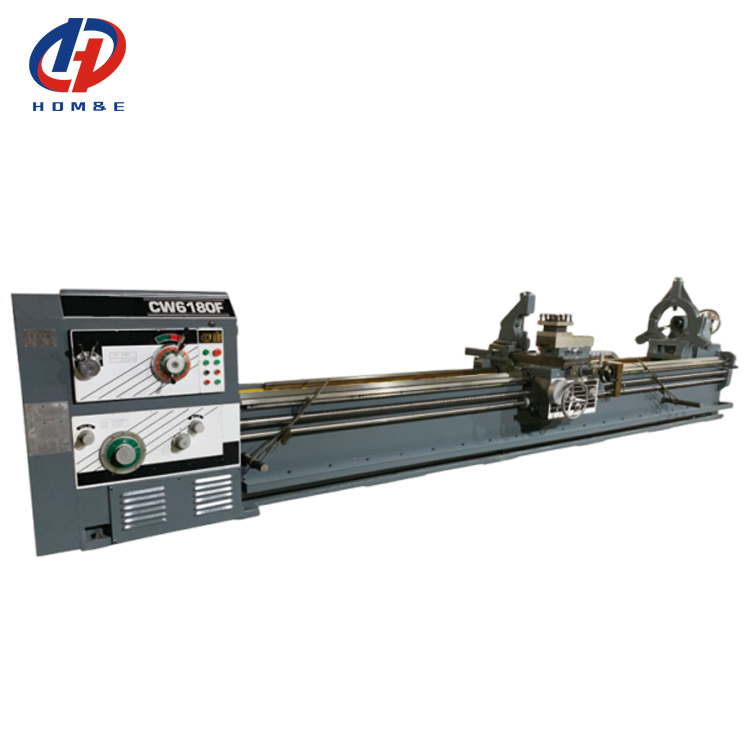

Name: CW6180F Heavy Horizontal Ordinary Lathe High-rigidity Guide Rail Width 600mm Floor Manual Lathe
Brand: Shanghai HD M&E Tech Co., Ltd.
SKU: CW6180F
Availability: InStock

Home > products > Conventional Lathe Machine >

CW6180F Heavy Horizontal Ordinary Lathe High-rigidity Guide Rail Width 600mm Floor Manual Lathe

Heavy Duty Lathe

High Stability Low Vibration

High cost performance

Place of Origin:

China

Brand Name:

Certification:

CE ISO

Model Number:

CW6180F

Request A Quote

Product Details

Brand:

Type:

CW6180F

Product Name:

Heavy Manual Lathe

Max.swing Diameter Over Bed:

800mm

Max.swing Diameter Over Carriage:

480mm

Width Of Bed:

600mm

Max.length Of Workpiece:

600mm-15000mm

Spindle Bore Diameter:

ф104mm

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

Wooden package standard for sea shipping

Delivery Time

30 days

Supply Ability

50 Sets per Month

12m Floor Type Heavy Duty Horizontal Lathe Machine CW6180F Universal Turning Lathe

Get Best Price

Video

Precision Heavy Duty CNC Lathes for Large Diameter Turning Work CQW61110F Engine Lathes

Get Best Price

Video

Heavy Duty Lathe for Large Metal Parts CQW61100F Large Swing Powerful Cutting Heavy Duty Lathe

Get Best Price

Video

CW6180F Heavy Horizontal Ordinary Lathe High-rigidity Guide Rail Width 600mm Floor Manual Lathe

Get Best Price

+8613916455787

sales@huidijd.com

86-021-61195255

Contact Now

Product Description

CW6180F Heavy Horizontal Ordinary Lathe High-rigidity Guide Rail Width 600mm Floor Manual Lathe 0

Product Description:

CW6180F Heavy Horizontal Ordinary Lathe High-rigidity Guide Rail Width 600mm Floor Manual Lathe

The machine tool desianed and manufactured adopts the Intenationary Standard.There is advance stucture,new and original ouifline,suitable for the trend of the times,possessing much of rotation rate grads,high in roation rate,large in hole diameter,good in rigidity,lt is widly in use. The bed guideway of the lathe is made with inremdeiate frequency quenching The Max length of cutingcan reach 15m. The upper slide rest may carry out mechanical feeding to cut taper surface The machine provides metric whitworth series,and we are satisfied with customers needing to produce heightened center 100,150,200mm of machine.

Product Details:

Product Paramenters:

SPECIFICATION	Unit	CW6180F
Max.swing over bed	mm(inch)	800
Max.length of wordpiece	mm(inch)	600,1500,2000,3000,4000,5000,6000,7000,8000,10000,12000,13000,14000,15000
Max.swing over carriage	mm(inch)	480
Max.swing in gap	mm(inch)	1020
Validlength of gap	mm(inch)	400
Spindle bore	mm(inch)	104
Width of bed	mm(inch)	600
Taper hole in spindle	mm	120
Grades of spindle speeds	Metric	Forward rotation 18,Reverse rotation 6
Ranges of spindle speeds	r/min	4.8~640 5.4~720 6~800
Longitudinal feedes 64 Kinds	mm/(in/r)	0.06~24
Transverse feeds 64kinds	mm/(in/r)	0.03~12
Metric threads 50 kinds	mm	1~240
Whitworth threads 26 kinds	tpi	14~1
Module threads 53 Kinds	mm	0.5~120
Diametral threads 24 kinds	D.P.	28~1
Max.travel of cross slide	mm(inch)	500
Slide rapid traverse speeds	m/min	4
Taper in centre sleeve	Morse	5
Max.travel of centre sleeve	mm(inch)	250
Power of main motor	kw	11/15
Power of rapid motor	kw	1.1
Power of coolant motor	kw	0.125
Overall diamensions (L.M.H)	mm	2745/3650/4150/5150/6150/7150/8380/9105/10285/12055/14305/15025/16255/17255×1500×1650
Net weg(approx.)	kg	4300;4900;5100:5500;6200:6900;7500:8100;8700;12400;13600;14200;15700;17000
Standard accessories: Centre sleeve and centre:Φ380mm 3-jawchuck;General tools. Note:above 3 metre deploy Φ40-350 centre rest;Φ30-80mm follow rest; Optional accessories:Internal and external grinding wheechead;Φ800mm,Φ1000m face plate; Φ500mm 3-jawchuck;Φ500mm,Φ630,Φ800mm4-jaw independent chuck;Φ250-480 mm centre rest;thread chasing dial;live-centre,driver plate

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
