Name: Vertical Machining Center VMC1100P High Rigidity Gantry Frame Structure 4 Axis CNC Milling Machine
Brand: Shanghai HD M&E Tech Co., Ltd.
SKU: VMC1100P
Availability: InStock

Home > products > CNC Vertical Machining Center >

Vertical Machining Center VMC1100P High Rigidity Gantry Frame Structure 4 Axis CNC Milling Machine

Vertical Machining Center

High Rigidity Gantry Frame Structure

Spindle speed 20000 r/min

Place of Origin:

CHINA

Brand Name:

SMTCL

Certification:

CE ISO certification

Model Number:

VMC1100P

Request A Quote

Product Details

Brand Name:

SMTCL

Model Number:

VMC1100P

CNC Or Not:

CNC

Key Word:

Vertical Machining Center

High Rigidity:

Gantry Frame Structure

Table Size (L×W):

1300×560mm

Spindle Speed:

20000 R/min

X Axis Travel:

1050mm

Y Axis Travel:

560mm

Z Axis Travel:

450mm

Spindle Nose To Table Surface:

160-610mm

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

The wooden case，Tin trunk ,Other seaworthy packing

Delivery Time

45-60 days

Payment Terms

T/T,L/C,,Western Union

Supply Ability

50 sets per month

Economical CNC Vertical Machining Center M800 3 Axis CNC Milling Machine Syntec Controller VMC Machine

Get Best Price

Video

SMTCL VMC850Q 3 Axis Vertical Machining Center 4 Axis CNC Milling Machine With Turntable

Get Best Price

Video

3 Axis Vertical Machining Center Aluminum Machining VMC850Q 4 Axis CNC Milling Machine Fanuc CNC VMC

Get Best Price

Video

Vertical Machining Center VMC1100P High Rigidity Gantry Frame Structure 4 Axis CNC Milling Machine

Get Best Price

+8613916455787

sales@huidijd.com

86-021-61195255

Contact Now

Product Description

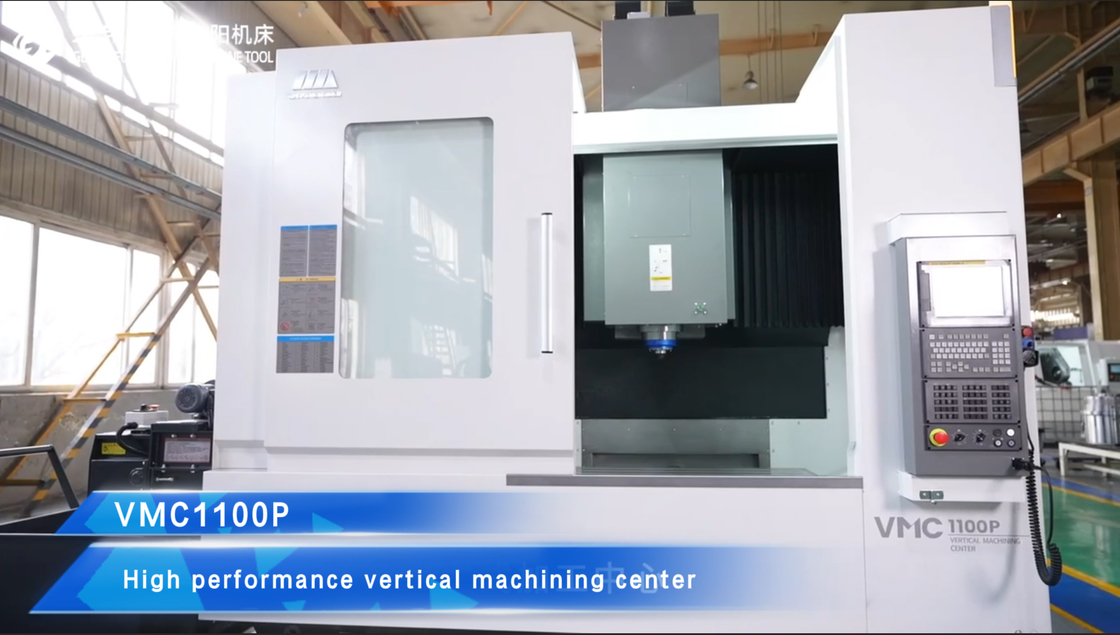

Vertical Machining Center VMC1100P High Rigidity Gantry Frame Structure 4 Axis CNC Milling Machine 0

Product Description:

VMC 1100P High rigidity Gantry Frame Structure Vertical Machining Center

VMC1100P products are high-performance vertical machining centers independently developed for aerospace, mold, automotive and other industries. The whole machine adopts gantry frame structure, wall type column, the overall rigidity is stable, suitable for mold parts processing; The machine is equipped with temperature detection system, which automatically compensates according to different environmental systems to ensure the same machining accuracy and size; The lead screw drive and main shaft are equipped with cooling function to inhibit the heat generated by the whole machine in the process of processing, and has excellent thermal deformation resistance. High precision, high rigidity, high efficiency, rich configuration, can meet the needs of aerospace, mold and other fields of high-quality parts processing.

Product Details:

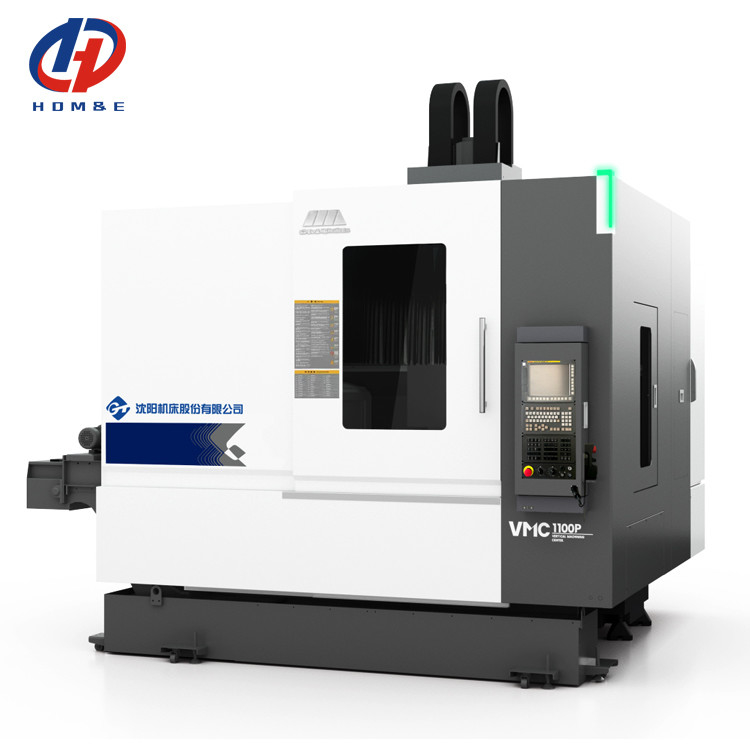

Vertical Machining Center VMC1100P High Rigidity Gantry Frame Structure 4 Axis CNC Milling Machine 1

Product Paramenters:

Item		Unit	Specifications
Capacity	X axis travel	mm	1050
	Y axis travel	mm	560
	Z axis travel	mm	450
	Spindle nose to table surface	mm	160-610
Worktable	Table size (L×W)	mm	1300×560
	Max load on the table	kg	700
	T-slot size	mm	18×5
Spindle	Spindle speed	rpm	20000
	Spindle taper		HSK-A63
	Spindle motor power	kw	22
	Rated output torque	N.m	30.9
	Spindle drive mode		Motorized spindle
Feed rate	X,Y,Z rapid traverse	M/min	24/24/24
Feed rate	Feed rate	MM/min	1-20000

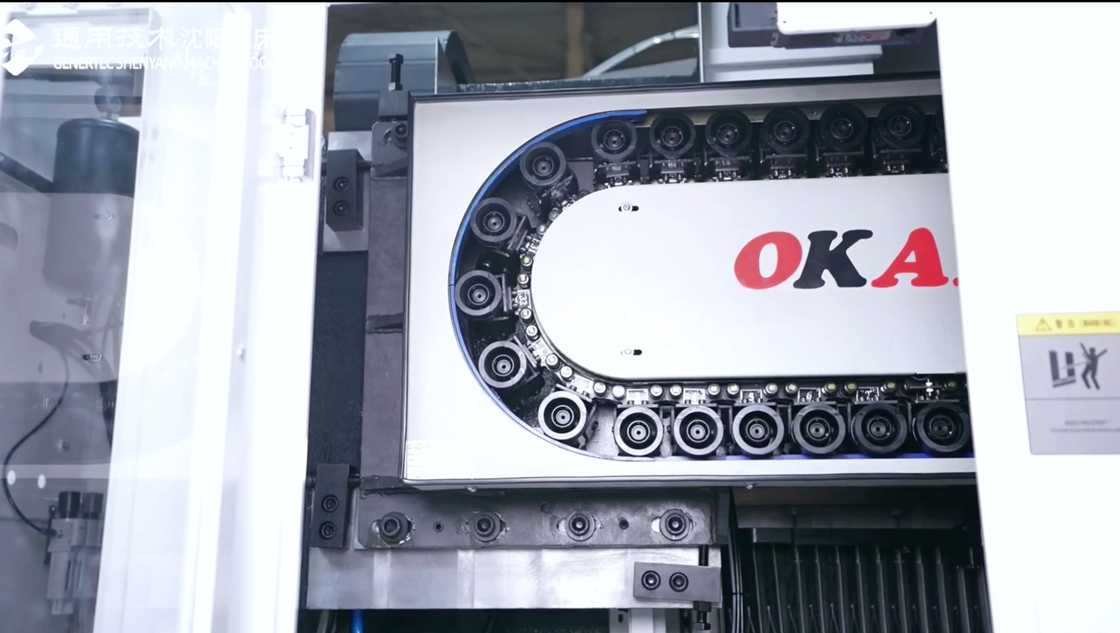

A.T.C	Tool storage capacity	pc	32
	Max tool length	mm	300
	Maximum tool weight	kg	8
	Max. tool disk dia. (full)	mm	75
	Max. tool disk dia. (adjacent)	mm	150
	Tool change time(T-T)	sec	8
Accuracy	Positioning accuracy X/Y/Z	mm	0.005
Accuracy	Repeatability positioning X/Y/Z	mm	0.003
Others	Net machine weight	kg	11500
Others	system		FANUC 31i

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
