Efficient-type CNC Threading Lathe S34 Petroleum Pipe Casing Pipe And Drill Pipe Machining

Brand Name: SMTCL
Model Number: HTC 40Hm/500
Place of Origin: CHINA
Certification: CE ISO certification
Minimum Order Quantity: 1
Supply Ability: 50 sets per month
Tags

CNC Lathe Machine

High Precision Horizontal CNC Lathe

CNC Turning Center

Product Details

Brand Name: SMTCL Model Number: S34
CNC Or Not: CNC Key Word: CNC Threading Lathe
Max.cutting Length: 200mm Max. Cutting Dia.: 340mm
Max. Swiming Dia.over Bed: 850mm X Axis Travel: 480mm
Z Axis Travel: 650mm Spindle Speed: 90-400 R/min
Highlight

S34 CNC Threading Lathe

,

Efficient-type CNC Threading Lathe

,

Drill Pipe CNC Threading Lathe

Product Description

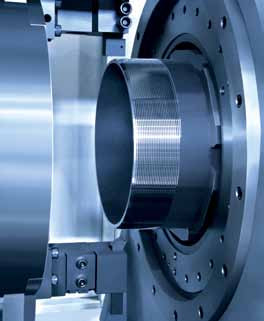

Efficient-type CNC Threading Lathe S34 Petroleum Pipe Casing Pipe And Drill Pipe Machining 0

Product Description:

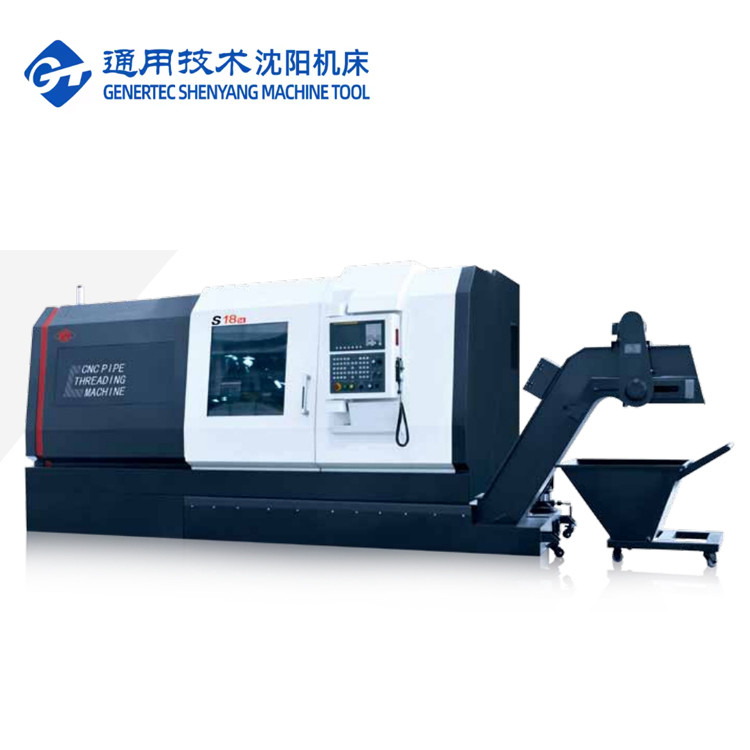

Efficient-type CNC Threading Lathe S34 petroleum pipe casing pipe and drill Pipe Machining
S series is a pipe threading CNC machine tool featuring high eficieney and high accuracy.   The product is mainly used for thread machining of petroleum pipe, casing pipe and drill pipe, and is able to machine API5B,5CT long/short knuckle thread, buttress thread and specialthread of Ameitcan Petroleum insttute standard.   The product features chaiacteriste such as high rigidity, high accuray and high accuray stability,and is configured with optional auxiliary machine unit.

Industry application:

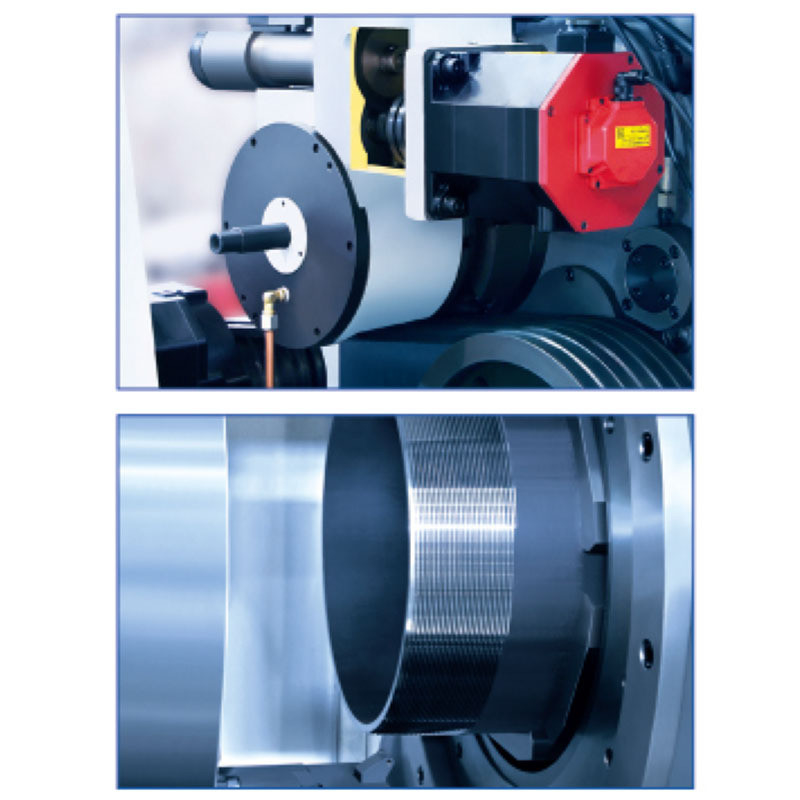

Efficient-type CNC Threading Lathe S34 Petroleum Pipe Casing Pipe And Drill Pipe Machining 1

Product Paramenters:
Item Unit S18 S22 S34
Max swing diameter over bed mm 650 650 850
Max cutting length mm 200 200 200
Max cutting diameter mm 140/180 220 340
Scope of application for petroleum products inc 23/8"-51/2"/23/8"-7" 31/2"-85/8" 51/2"-133/8"
Spindle speed range r/min 200-750/200-670 200-600 90-400
Output power of main motor Kw 22/30(main servo) 22/30(main servo) 30/37(main servo)
Spindle bore diameter mm 160/220 240 365
X-axis rapid traverse speed m/min 10 10 8
Z-axis rapid traverse speed m/min 12 12 10
X-axis travel mm 350 350 480
Z-axis travel mm 650 650 650
Machining accuracy   IT6 IT6 IT6
Standard tool post type   Gang tool 32x 32 Vertical 6-position Vertical 6-position
Optional tool post type   Vertical 6-position and horizontal 8-position Gang tool 32x 32,horizontal 8-position Horizontal 8-position

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Efficient-type CNC Threading Lathe S34 Petroleum Pipe Casing Pipe And Drill Pipe Machining 2
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Efficient-type CNC Threading Lathe S34 Petroleum Pipe Casing Pipe And Drill Pipe Machining 3

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
