4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine

4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine

CNC Milling Machining Center 20000mm/min

DTC500 Vertical Machining Center

Vertical Drilling And Tapping Center

Place of Origin:

China

Brand Name:

SMTCL/SYMG

Certification:

ISO certification

Model Number:

DTC500

Contact Us
Request A Quote
4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine
4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine
Product Details
Brand Name::
SYMG,SMTCL
Type::
VERTICAL
Model:
DTC500
Spindle Taper::
BT30
CNC Control System::
Fanuc Siemens Syntec KND GSK
Max.speed:
20000 Mm/min
Spindle Motor Power(kW)::
3.7/5.5
Tool Magazine Capacity::
21
X Axis Travel:
500mm
Y Axis Travel:
400mm
Z Axis Travel:
300mm
Worktable Dimensions:
650×400mm
Allowable Maximum Load:
250kg
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
L/C,T/T,Western Union
Supply Ability
50 sets per month
RELATED PRODUCTS
Good price SMTCL CNC Vertical Milling Machine VMC850Q VMC1000Q 4 Axis CNC Vertical Machining Center With Turntable online Video

SMTCL CNC Vertical Milling Machine VMC850Q VMC1000Q 4 Axis CNC Vertical Machining Center With Turntable

Get Best Price
Good price VMC850Q 3 Axis CNC Vertical Machining Center SMTCL 4 Axis CNC Milling Machine With Turntable online Video

VMC850Q 3 Axis CNC Vertical Machining Center SMTCL 4 Axis CNC Milling Machine With Turntable

Get Best Price
Good price SMTCL CNC Vertical Milling Machine VMC850Q 6061 Aviation Aluminum Processing Vertical Machining Center online Video

SMTCL CNC Vertical Milling Machine VMC850Q 6061 Aviation Aluminum Processing Vertical Machining Center

Get Best Price
Good price SMTCL VMC850Q 3 Axis Vertical Machining Center CNC Milling Machine 4 Axis CNC Vertical Machining Center online Video

SMTCL VMC850Q 3 Axis Vertical Machining Center CNC Milling Machine 4 Axis CNC Vertical Machining Center

Get Best Price
Contact Us
+8613916455787
sales@huidijd.com
86-021-61195255
Contact Now
Product Description

4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 0

4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine
Widdly applicability to 3C,automobile and other industries
DTC500 series machine tool is a kind of vertical drilling and tapping center with high seismic resistance and high dynamic response. lt can provide high speed,excellent precision, and high stability solutions for various complicated processing cases like small segments and multiple corners etc., which can realize the manufacturing of medium and small board, plate, as well as shell components in the application of 3C, automotive and small metal structure parts
Product Features:
1,High rigidity and high seismic resistance design
◆ Large span machine body
◆ Herringbone columns
◆ Thermal symmetry spindle box
2,High dynamic response
◆ Newly updated transmission system
◆ High response servo system
3,High efciency and stability
◆ Efcient servo tool magazine
◆ Fully enclosed internal protection
◆ Second cleaning of tool handle
Product Details:

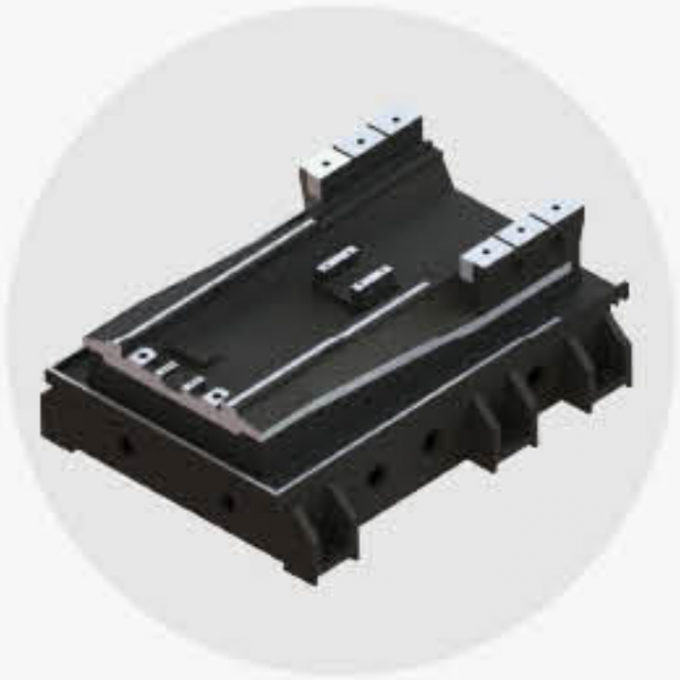

4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 1
1. The bed with six ground feet, low center of gravity and large span improves the anti-vibrati on performance of the machine tool in an all-round way.

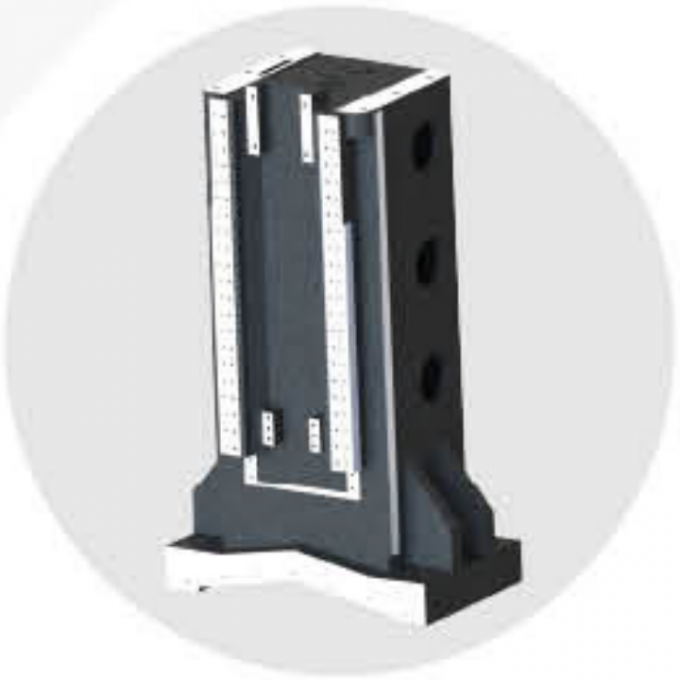

4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 2
2. The bottom is more stable, and the inner rib has stronger torsion resistance and more stable processing.

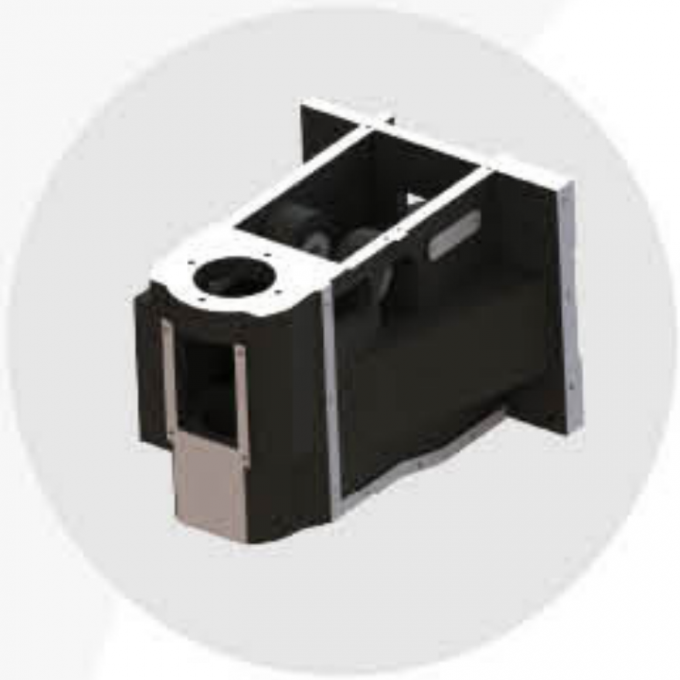

4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 3
3. The left and right thermally symmetrical design adopts the structure of ribs on both sides and inner cross reinforcement to offset thermal deformation and improve the machining stability of the machine tool.

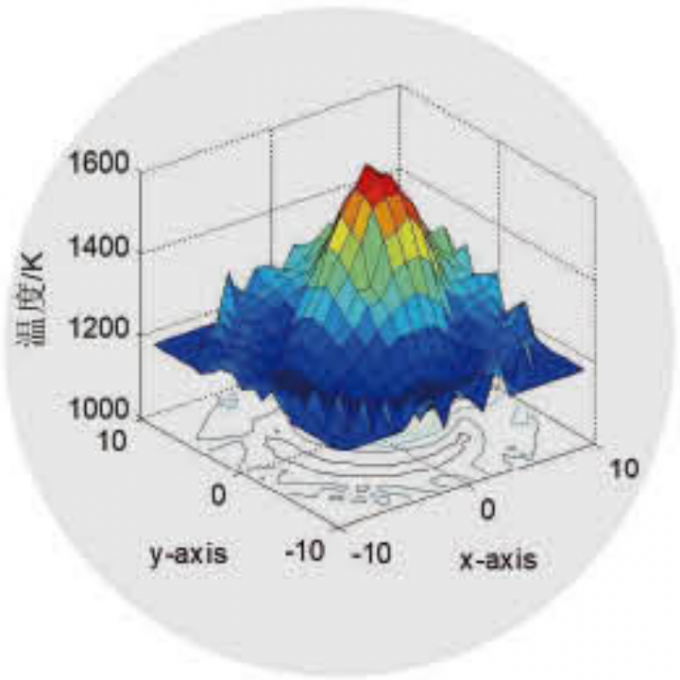

4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 4
4. This function ensures that the actual machining accuracy of drilling and tapping products can be stably controlled within 0.015mm during the machining process.

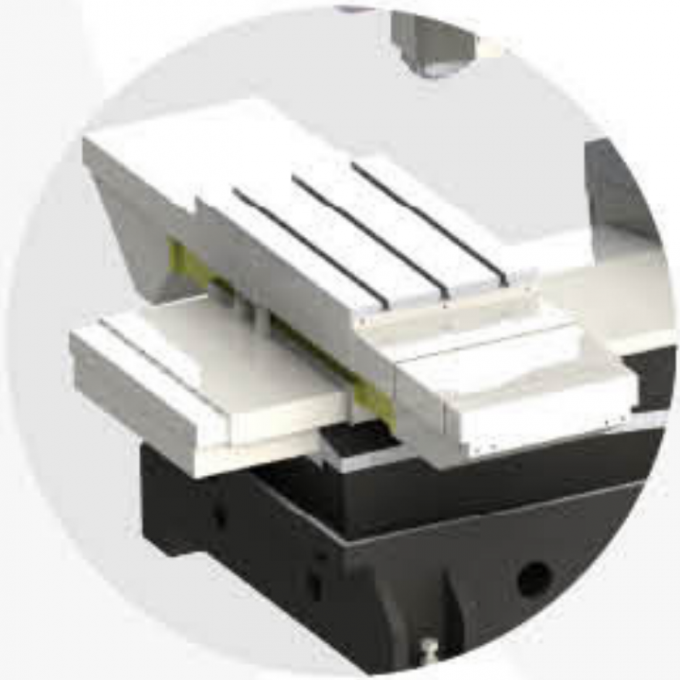

4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 5
5. The three axes form a labyrinth structure through baffles and guards, which can effectively prevent the entry of machining debris and cutting fluid, and effectively improve the service life of the machine tool.

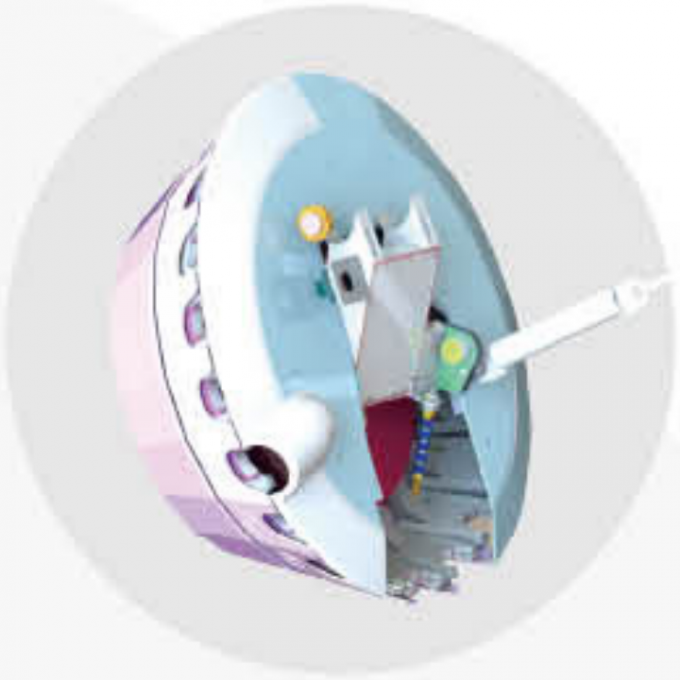

4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 6
6. This function can effectively solve the problem of tool drop or sudden deterioration of machining accuracy caused by unclean tool holder.
Product Paramenters:

Main technical specifications

Main Technical Parameters
Name
Unit
DTC500
Worktable
Worktable dimensions
mm
650X400
allowable maximum load
kg
250
T-slot sizes
mm×pcs
14×3
Processing range
Max. travel of worktable X

mm
500
Max. travel of slide Y

mm
400
Max. travel of spindle Z
mm
300
Distance between spindle end face and worktable

Max.
mm
460
Min.
mm
160
Distance from spindle center to guide rail

mm
445
Spindle
Taper hole (7:24)

BT30
Max.speed
r/min
20000
Rated output torque(S1/S2)
N.m
11.8/17.5
Spindle motor power(S1/S2)
kW
3.7/5.5
Tool
tool shank model

MAS 403 BT30
Feed
Fast moving
X axis
m/min
48
Y axis

48
Z axis

48
Three-axis drive motor power(X/Y/Z)
kW
2.5/2.5/2.7
Three-axis drive motor torque(X/Y/Z)

Nm
8/8/12
Feed speed
mm/min
30000
Tool magazine
Tool magazine form

Turret servo tool magazine

Select tool method

Two-way nearby tool selection

Tool magazine capacity
bar
21
Max. Tool length
mm
250
Max. Tool weight
kg
3
Max.tool head diameter
Full tool
mm
Φ65
Adjacent empty tool
mm
Φ100
Tool change time (tool to tool)
s
1.6
Machine tool weight
kg
2800
Total electrical capacity

KVA
18
Outline dimension (LXWXH)

mm
2300×1800×2400
 Machine tool precision
The positioning accuracy of this machine tool complies with the National Standard of the People's Republic of China GB/T18400.4-2010 "Acceptance Standards for Positioning Accuracy of Machine Tools".
Inspection items
Factory standard
Processing Accuracy
IT6
Positioning accuracy
X axis(mm)
0.006
Y axis(mm)
0.006
Z axis(mm)
0.006
Repeat positioning accuracy

X axis(mm)
0.004
Y axis(mm)
0.004
Z axis(mm)
0.004
No.
Name
Model or Specification
Qty
Brand
Remark
1.
CNC System
FANUC OI-MF PLUS TYPE(5)
1
FANUC

2.
Main mortor
aiI2/20000-B
1
FANUC

3.
X axis servo motor
aiS8/4000
1
FANUC

4.
Y axis servo motor
aiS8/4000
1
FANUC

5.
Z axis servo motor
aiS12B/4000 aiS12B/4000
1
FANUC

6.
X-axis lead screw
Ball screw,φ28×12,C3
1
Japan THK

7.
Y-axis lead screw
Ball screw,φ28×12,C3
1
Japan THK

8.
Z-axis lead screw
Ball screw,φ32×12,C3
1
Japan THK

9.
Screw bearing
20×47×15/25×62×15 2
4/4
Japan NTN

10.
Tool magazine
21 tool positions, turret tool magazine

1
Okada, Taiwan

11.
Lubrication system

1
Sheng Xiang

12.
Water tank

1
Shenyang Machine Tool

13.
Pneumatic part

1
Qi Li Ke

14.
Main power switch

1
Korea LS

15.
main contactor

——
Korea LS

According to the supply cycle, the manufacturer has the right to change purchased parts of the same quality without affecting the performance of the machine tool.
Industry application:
4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 7
4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 8
 Why Choose Us:

◆ Top quality sense, customers' requests come first

◆ 30 years + R & D history, the company was founded in 1993

◆ High-tech manufacturer with research anddesign capacity

◆ Stable and mature supplying system

◆ Young active sales and engineers for instant services(24 hours online)

◆ Upgrading on mechanism according to ergonomics and easy maintenance

◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:
4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 9
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:

4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 10

Exhibition:

4 Axis Drilling Tapping Center DTC500 CNC Vertical Processing FANUC CNC Milling Machine 11


FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight

Tags：
