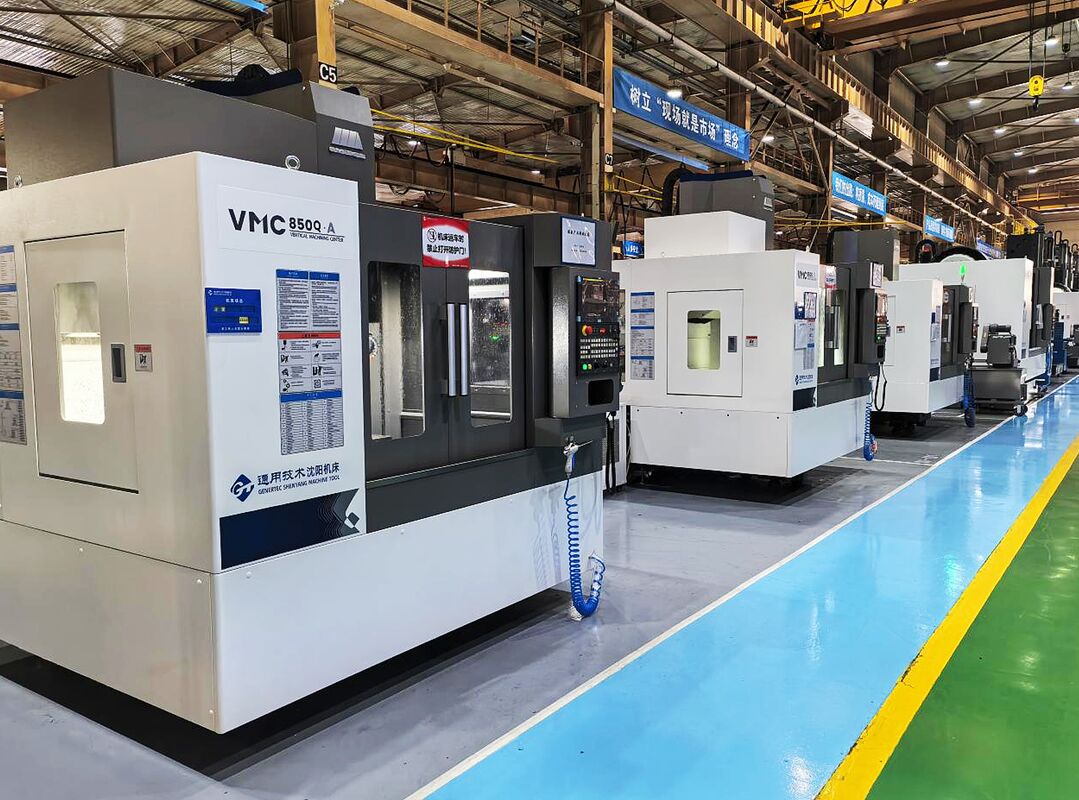

SMTCL Best-selling Product FANUC 10000rpm VMC850Q-A 4 Axis Vertical Machining Center with Turntable
Product Details
| Type:: | VERTICAL | CNC Control System:: | FANUC, Siemens |
|---|---|---|---|
| Feed Speed(mm/min):: | 1 - 10000 Mm/min | Positioning Accracy (mm)u:: | 0.006 |
| Repeatability (X/Y/Z) (mm):: | 0.004 | Spindle Motor Power(kW):: | 11/15 |
| Tool Magazine Capacity:: | 24 | Table Size (L×W): | 1000x500mm |
| Brand Name:: | SYMG,SMTCL | X Axis Travel: | 850mm |
| Y Axis Travel: | 500mm | Z Axis Travel: | 540mm |
| Highlight |
FANUC 10000rpm vertical machining center,4 axis CNC vertical machining center,VMC850Q-A turntable machining center |
||
Product Description
Main Technical Parameters

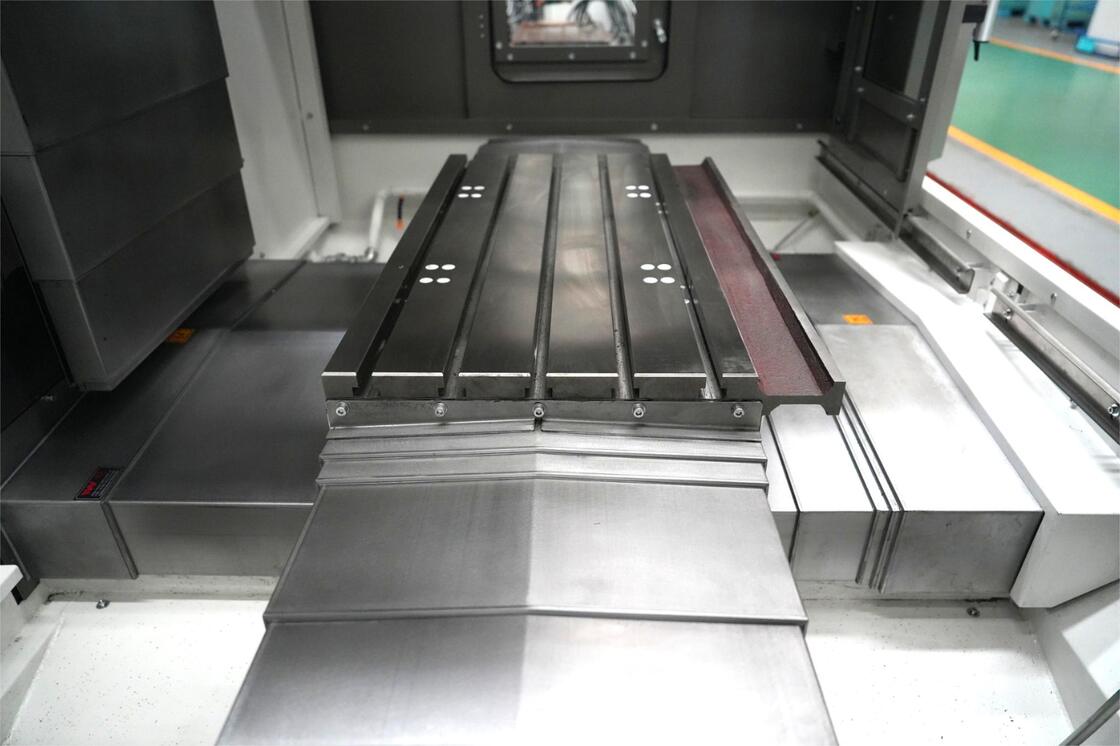

| Item | Unit | VMC850Q-A | |
|---|---|---|---|
| Capacity | X axis travel | mm | 850 |
| Y axis travel | mm | 500 | |
| Z axis travel | mm | 540 | |
| Spindle nose to table surface | mm | 120-660 | |
| Spindle nose to column surface | mm | 640 | |
| Worktable | Table size (L×W) | mm | 1000×500 |
| Max load on the table | kg | 600 | |
| T-slot size | mm | 18×5 | |
| Spindle | Spindle speed | rpm | 10000 |
| Spindle taper/spindle shank | mm | 7/24 taper | |
| BT40 | |||
| Spindle motor | kw | 11/15 | |
| Maximum output torque | N.m | 52.5/95.5 | |
| Spindle drive type | Synchronous tooth belt | ||
| Feed rate | X,Y,Z rapid traverse | M/min | 48/48/48 |
| Max cutting feed rate | M/min | 20 | |
| A.T.C | Tool storage capacity | pc | Arm type 24 |
| Max tool diameter | mm | 150(80) | |
| Max tool length | mm | 300 | |
| Tool change time(T-T) | sec | 2.5 | |
| Accuracy | Positioning accuracy X/Y/Z | mm | 0.008/0.006/0.006 |
| Repeatability positioning X/Y/Z | mm | 0.005/0.004/0.004 | |
| Others | Overall dimensions(L×WxH) | mm | 2940×3450×3050 |
| Net machine weight | kg | 5100 | |
| Total power requirment | KVA | 18 | |

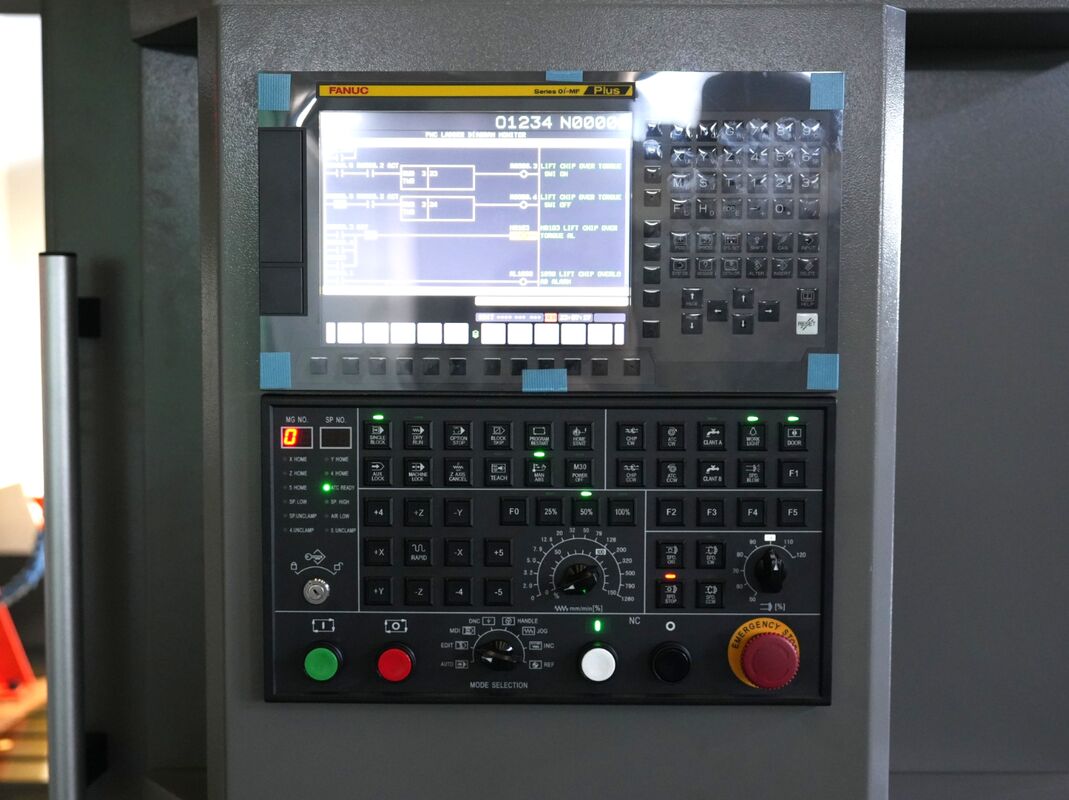

- FANUC OI-MF TYPE(5)β control system

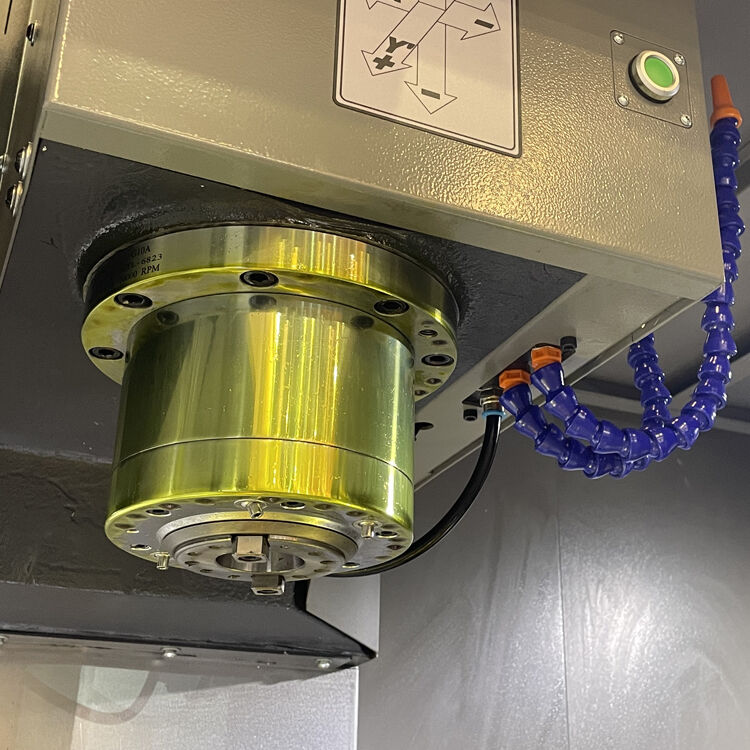

- 10000 RPM spindle , belt connected

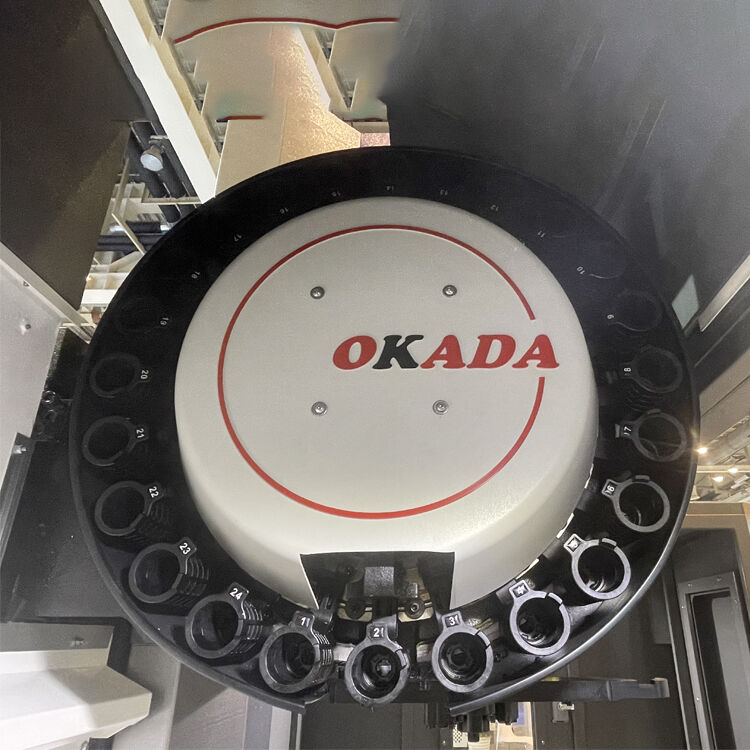

- 24 disc manipulator tool magazine
- Water tank + bed flushing chip
- Clean air gun, working light, warning light
- Fanuc Oi-MF TAPE(l)β system
- Fanuc Oi-MF TAPE(l)α system
- Siemens 828D CNC system
- Direct connection 12000 RPM mechanical spindle
- 16000 RPM, 24000 motorized spindle
- 4th axis turntable
- Cooling inside 2MPa, 3MPa,5MPa,7MPa
- Oil-water separator
- Chain chip remover
- Clean water gun
- Tool and workpiece inspection
- automatic door
- Safety door lock
- Electric cabinet and air conditioning
The accuracy of the machine implements the acceptance standard GB/T18400.2-2010 Acceptance standard for machine tool positioning accuracy and repeated positioning accuracy GB/T18400.4-2010
| Inspection items | Factory standard | |
|---|---|---|
| Machining accuracy | IT6 | |
| Positioning accuracy | X axis (mm) | 0.008 |
| Y axis (mm) | 0.006 | |
| Z axis (mm) | 0.006 | |
| Repeat positioning accuracy | X axis (mm) | 0.005 |
| Y axis (mm) | 0.004 | |
| Z axis (mm) | 0.004 | |
Main configuration of machine tool and list of purchased parts
| Item | Specifications | Brand | Remarks |
|---|---|---|---|
| CNC system | FANUC Oi-MF PLUS TYPE(5) | FANUC | |
| Main motor | βiI 8/12000-B | FANUC | |
| X-axis motor | βiSc 12/3000-B | FANUC | |
| Y-axis motor | βiSc 12/3000-B | FANUC | |
| Z-axis motor | βiS 22B/3000-B | FANUC | |
| X-axis screw bearing | 30×62×15 | NSK/FAG/NACHI/NTN | |
| Y-axis screw bearing | 30×62×15 | NSK/FAG/NACHI/NTN | |
| Z-axis screw bearing | 30×62×15 | NSK/FAG/NACHI/NTN | |
| X-axis ball screw | φ40×16,C3 | THK/PMI/HIWN | |
| Y-axis ball screw | φ40×16,C3 | THK/PMI/HIWN | |
| Z-axis ball screw | φ40×16,C3 | THK/PMI/HIWN | |
| X-axis guide way | 35 | THK/REXROTH/PMI/HIWN | |
| Y-axis guide way | 45 | THK/REXROTH/PMI/HIWN | |
| Z-axis guide way | 45 | THK/REXROTH/PMI/HIWN |
