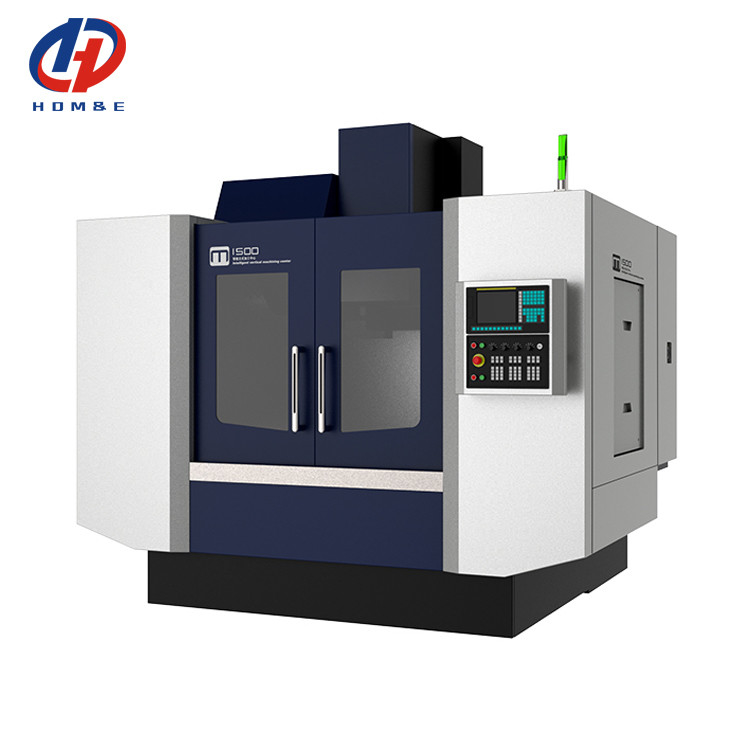

CNC Milling Machine M800 Taiwan Syntec Controller 3 Axis CNC Vertical Machining Center

Brand Name: HD
Model Number: M800
Place of Origin: China
Certification: CE ISO
Minimum Order Quantity: 1 Set
Price: Negotiable
Supply Ability: 50 Sets per Month
Tags

High Precision CNC Vertical Machining Center

3 Axis CNC Vertical Machining Center

3 Axis CNC Milling machine

Product Details

Brand: HD Type: M800
Product Name: Vertical Machining Center Table Size (L×W): 1000×500
Max Load On The Table: 500kg X Axis Travel: 800mm
Y Axis Travel: 500mm Z Axis Travel: 500mm
A.T.C: 24 ATC With Robot Arm
Highlight

CNC Vertical Machining Center

,

3 Axis CNC Vertical Machining Center

Product Description

CNC Milling Machine M800 Taiwan Syntec Controller 3 Axis CNC Vertical Machining Center 0

Product Description:

Cost-effective CNC Milling Machine M800 Taiwan Syntec Controller 3 Axis Vertical Machining Center

M800 series intelligent vertical machining center is mainly used for machining plates, plates, shell parts, and other parts with high precision, many processes and complex shapes. It can continuously complete milling, drilling, expanding, reaming, boring, tapping and accurate machining of two-dimensional and three-dimensional surfaces and inclined surfaces in one clamping, and the processing can be programmed to shorten the production cycle, so that users can obtain good economic benefits.

M800 series intelligent vertical machining center is one of the products with independent intellectual property rights developed by our company. The machine tool adopts mechatronics structure to optimize the design, so that the machine tool structure design is more reasonable, and the machine tool rigidity, accuracy retention and reliability are nearly perfect. Through the introduction of advanced design concepts, scientific design means to solve the traditional design can not be avoided.
Product Features:

1,Fully enclosed protection

The M series intelligent vertical machining center adopts a fully enclosed protective design, which minimizes the dispersion of dust and iron filings during the cutting process, making it more environmentally friendly and improving the safety of the machining process.
2,Automatic tool change
M series intelligent vertical machining centers are equipped with 24 tool magazines as standard, which can automatically change tools according to different workpieces and process workpieces in different processes.
3,Completing multiple machining processes in one clamping
One workpiece clamping can process multiple processes, such as boring, drilling, milling, tapping and other multi-process processing
4,Flexible wiring
It can be combined with industrial robots and robotic arms to form automated processing units and production lines, which are widely used in the automotive parts industry such as new energy motors, wheel hubs, brake discs, etc.
5,High scalability
According to different workpiece requirements, it can be extended to four, five, and multiple axes to achieve the processing of complex curved surface workpieces such as impellers, blades, and shafts.
Product Details:

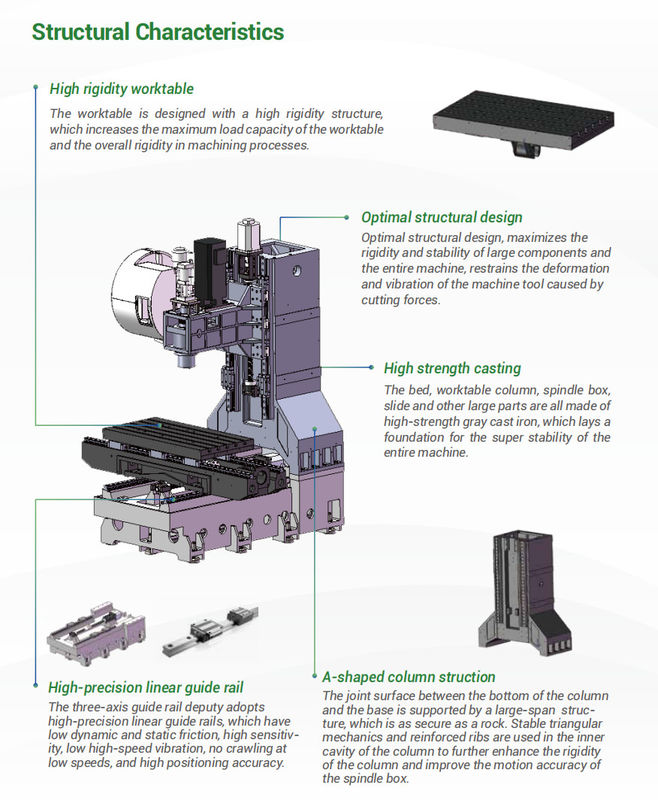

CNC Milling Machine M800 Taiwan Syntec Controller 3 Axis CNC Vertical Machining Center 1

Product Paramenters:

Item
Unit
M800
Table size (L×W)
mm
1000*500
Max load on the table
kg
500
T -slot size
mm
18×5×90
Max travel of workbench-X axis
mm
800
Max travel of slide-Y axis
mm
500
Max travel of spindle-Z axis
mm
500
Distance from spindle center to column guide surface
mm
600
Min distance from spindle face to tabe surface
mm
150
Max distance from spindle face to tabe surface
mm
650
Spindle taper

BT40
Max spindle speed
r/min
10000
Spindle motor power
kW
7.5/11
Spindle drive mode

Synchronous belt

Rapid traverse speed
X-axis
m/min
48
Y-axis
m/min
48
Z-axis
m/min
48
Feed speed
mm/min
1-10000
Machine Weight
kg
5300
Total electrical capacity
KVA
25
Tool type

Robotic Arm
Tool selection mode

Bidirectional nearest tool selection
Tool capacity

24
Max tool lengh
mm
300
Max tool weight
kg
8
Max tool diameter(full)
mm
80
Max tool diameter (adjacent empty)
mm
160
Tool change time
s
1.5

Positioning accuracy
X-axis
mm
0.008
Y-axis
mm
0.006
Z-axis
mm
0.006

Repeated positioning accuracy
X-axis
mm
0.005
Y-axis
mm
0.004
Z-axis
mm
0.004

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
CNC Milling Machine M800 Taiwan Syntec Controller 3 Axis CNC Vertical Machining Center 2
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
CNC Milling Machine M800 Taiwan Syntec Controller 3 Axis CNC Vertical Machining Center 3

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
