Horizontal CNC Lathe T400 GSK Control 8 Station Servo Turret Slant Bed CNC Lathe

Brand Name: HD
Model Number: T400
Place of Origin: CHINA
Certification: CE ISO certification
Minimum Order Quantity: 1
Supply Ability: 50 sets per month
Tags

CNC Lathe Machine

High Precision Horizontal CNC Lathe

CNC Turning Center

Product Details

Brand Name: HD Model Number: T400
CNC Control System: GSK CNC Or Not: CNC
Key Word: Slant Bed CNC Lathe Maximum Swing Over Bed: Φ470
Maximum Turning Length: 350/500 Maximum Turning Diameter: Φ360
Max Swing Over Slide: Φ280 Max. Spindle Speed (r.p.m): 3500 R.p.m
Travel (X Axis)(mm): 200 Travel (Z Axis)(mm): 500
Highlight

Slant Bed CNC Lathe

,

8 Station Servo Turret CNC Lathe

,

Horizontal CNC Lathe

Product Description

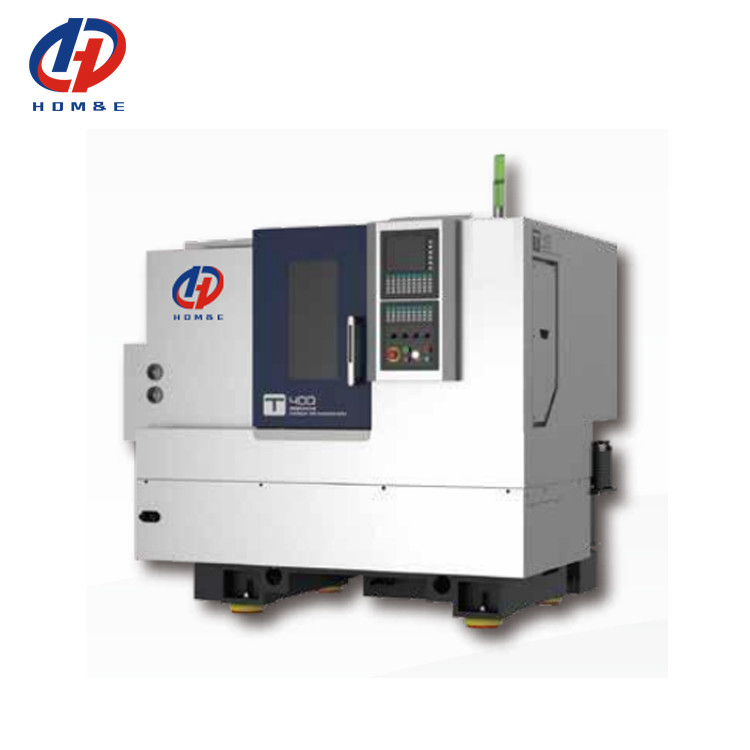

Horizontal CNC Lathe T400 GSK Control 8 Station Servo Turret Slant Bed CNC Lathe

Product Description:

Cost-effective Horizontal CNC Lathe T400 GSK Control 8 Station Servo Turret Slant Bed CNC Lathe

T400 CNC lathe is a powerhouse in the machining field. Its 45° inclined bed combined with a fully - enclosed protective cover ensures stability and safety. The high - torque spindle, paired with an 8 - inch chuck, provides robust power. The eight - station servo turret features rapid tool - changing and precise positioning. With a dimensional accuracy reaching IT6 level, it efficiently facilitates precision machining.

Product Features:

1,Main drive system

The main drive system is driven by a high-performance, high-torque servo motor, which drives the spindle to rotate through a belt. The spindle unit adopts high-precision bearings to meet the requirements of bearing axial and radial cutting forces and high speed.

2,High-quality cast iron bed
High-quality cast iron bed, rib plate layout is reasonable, with good rigidity. The 45 ° overall
inclined bed has a long chip removal port in front of it, and the chip removal effect is excellent.
3,Linear guide rail
Linear guide rail, with high rigidity and good dynamic performance and accuracy
4,High performance hydraulic station
High performance hydraulic station, compact structure, convenient maintenance, high stability, and extremely low failure rate
5,Tool holder structure
Simple structure:reduces main machine failures, decreases rate of spoiled
Strong rigidity: The tool holder can withstand greater cutting force
High precision and fast tool change: Driven by servo motors, it can achieve bi-directional tool change
and select the nearest tool position arbitrarily.

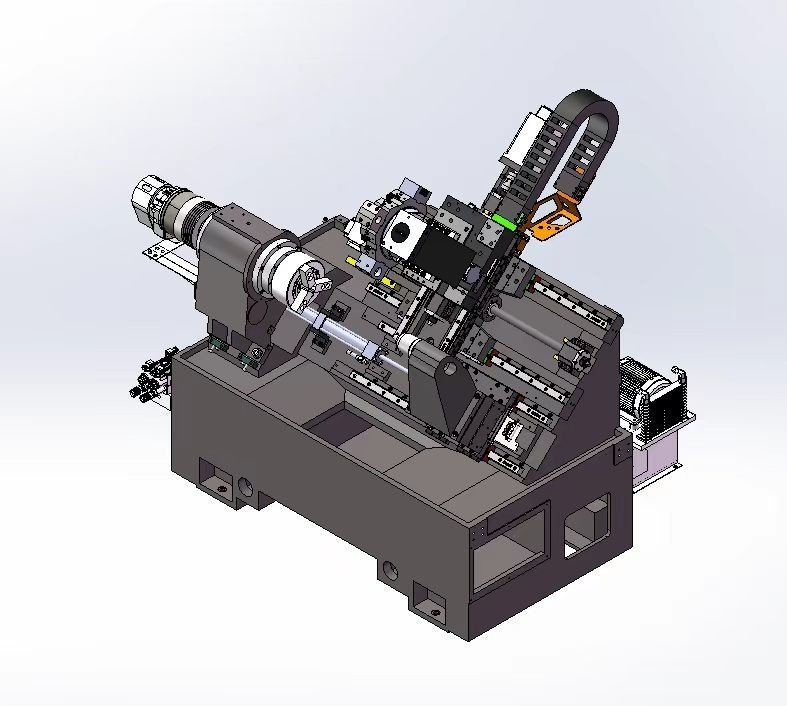

Product Details:

Using high-quality cast iron and a reasonable reinforced rib structure, it has strong rigidity.

The spindle box is connected by scraping and grinding, with a positioning base added on the side. The spindle box structure is
optimized, with a large span and excellent rigidity

Servo positioning, efficient machining, optimized tool holder structure, configurable power cutting tools, achieving integrated machining of
turning, milling and drilling.

The X/Z axis adopts linear guide rails and optimized guide rail layout, achieving high rigidity and good dynamic performance. The X-axis adopts pre stretched screws to reduce the impact of temperature on accuracy and achieve high-precision and stable processing.

The lathe features a full-travel programmable tailstock, with intelligent control of the tailstock.
The tailstock adopts a high-rigidity structure, with a sleeveless design to achieve maximum
rigidity. It is maintenance-free for life, improving machining accuray. The tailstock is of upper and
lower split design, hydraulically driven for convenient precision adjustment.
Product Paramenters:
Item
Unit
T300
T400
Max swing diameter over bed
mm
470
470
Max cutting length
mm
350
350|500
Max cutting diameter
mm
250
360
Max. swing dia. over saddle
mm
280
280
Spindle nose type and code

A2-5
A2-6
Diameter of spindle bore
mm
56
66
Max.passing bar diameter
mm
44
50
Spindle speed range
r/min
4000
3500
Max. output torque of spindle
Nm
80
120
Output power of spindle motor
kW
11/7.5
15/11
Chuck diameter
inch
6
8
X/Y-axis rapid traverse speed
m/min
30/30
30/30
X/Z-axis travel
m/min
125/350
200/500
Tailstock travel
mm
300
450
Taper of tailstock spindle taper hole
Morse
4#
5#
Standard turret type

Horizontal 8-station
Horizontal 8-station
Tool size (external turning tool)
mm
25
25
Tool size (boring tool hole diameter)
mm
40
40
Machine Weight
kg
3000
3200|3500
Machine size

2050×1600×1800
2200×1600×1800
Positioning accuracy-X-axis
mm
0.008
0.008
Positioning accuracy-Y-axis
mm
0.008
0.008|0.01
Repeated positioning accuracy-X-axis
mm
0.004
0.004
Repeated positioning accuracy-Y-axis
mm
0.005
0.005
Technical parameters are subject to the technical agreement at the time of purchase
Main machine tool accuracy
Processing accuracy
IT6
Roundness of workpiece (mm)
0.005 /Ф75
Cylindricity of workpiece (mm)
0.010 / 150
Processing workpiece flatness (mm)
0.020/Ф300
Processing surface roughness (mm)
Ra1.25μm
Positioning accuracy
X axis (mm)
0.008
Z axis (mm)
0.01
Repeat positioning accuracy
X axis (mm)
0.004
Z axis (mm)
0.005
Standard Configuration
GSK-980TDi-plus / GSK-980TB3i
8- station servo tool holder
Foot switch
Machine tool lighting work lamp
Cutting fluid system
Foundation pads and adjustment bolts
Spindle unit
Centralized automatic feed lubrication system
Three-color warning light
Fixed hand wheel
Chip box
Electrical cabinet heat exchanger
Supplied technical documents


OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Horizontal CNC Lathe T400 GSK Control 8 Station Servo Turret Slant Bed CNC Lathe
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

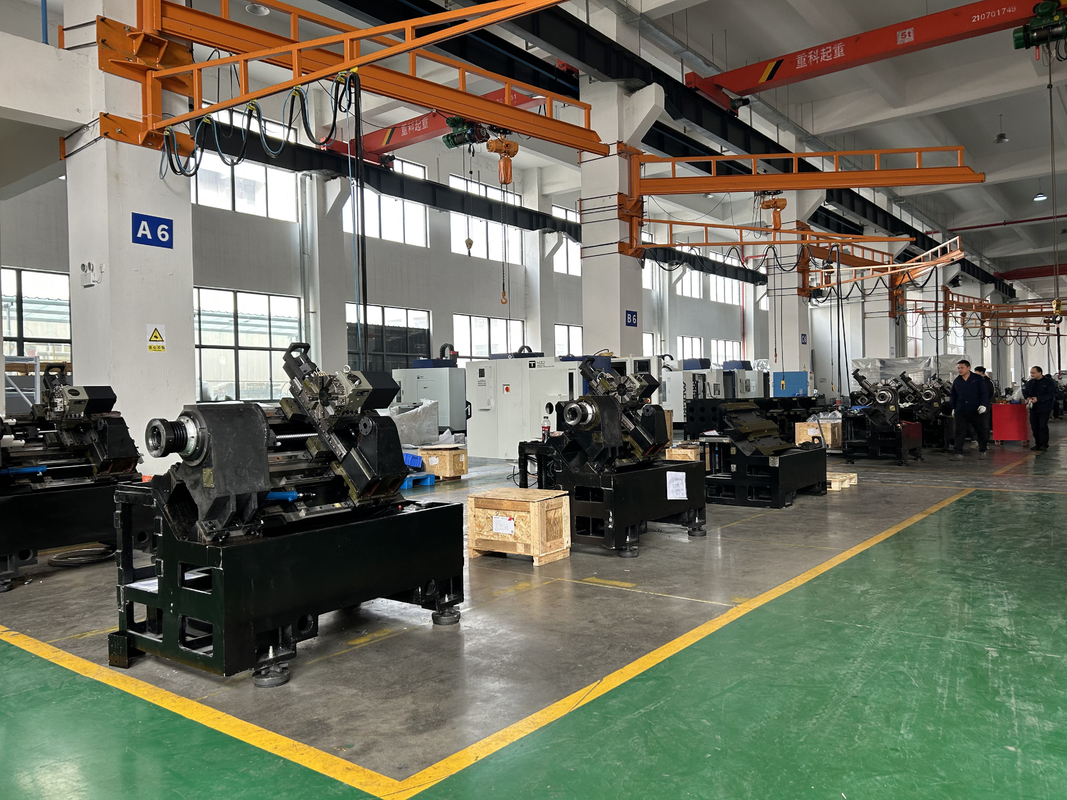

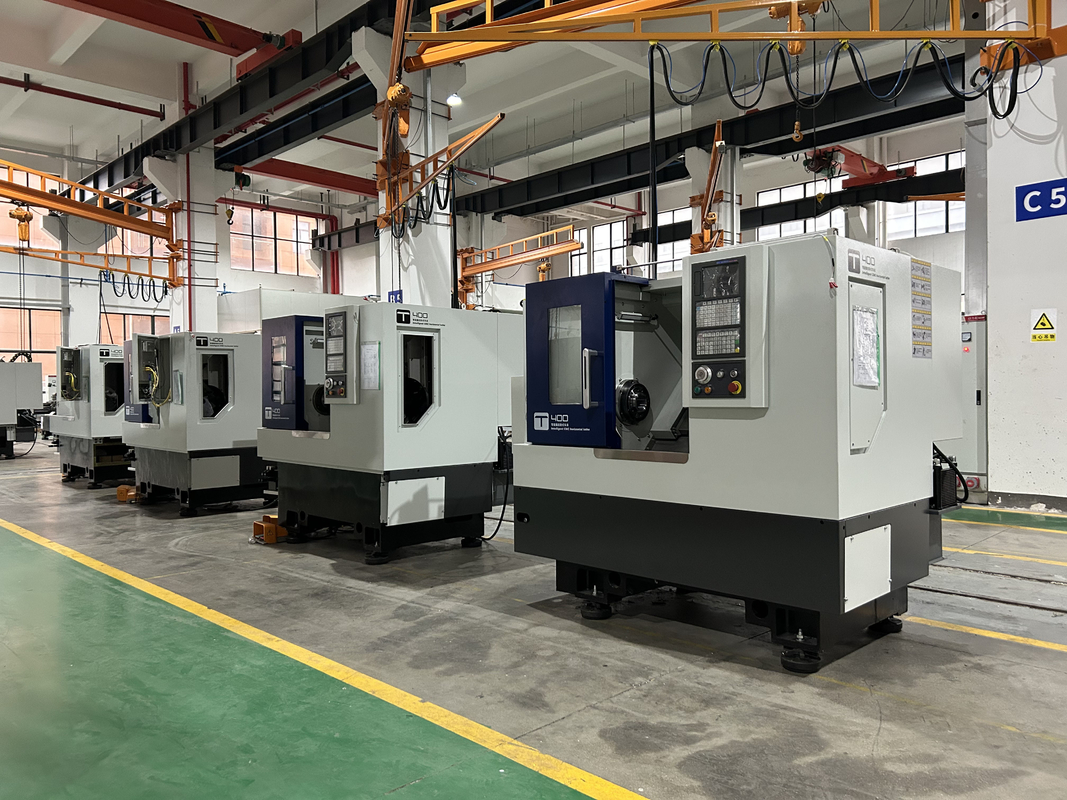

Our Factory:
Horizontal CNC Lathe T400 GSK Control 8 Station Servo Turret Slant Bed CNC Lathe

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
