SMTCL Inverted Vertical Lathe IVT45 Spindle Gripping Automatic Loading And Unloading Vertical CNC Lathe

Brand Name: SMTCL
Model Number: IVT45
Place of Origin: CHINA
Certification: CE ISO certification
Minimum Order Quantity: 1
Supply Ability: 50 sets per month
Tags

Vertical CNC Lathe

Vertical Lathe Milling Center

Vertical Turning Lathe Machine

Product Details

Brand Name: SMTCL Model Number: IVT45
CNC Or Not: CNC Key Word: Inverted Vertical Lathe
Max. Swimming Dia. Of The Spindle: 520mm Max. Machining Dia. Of The Workpiece: 450mm
Max. Machining Length Of The Workpiece: 300mm Spindle Nose And Taper: A2-11
Max.spindle Speed: 3000r/min X Axis Travel: 1180mm
Z Axis Travel: 600mm
Highlight

Automatic Loading Vertical Lathe

,

Inverted Vertical Lathe

,

Spindle Gripping Vertical Lathe

Product Description

SMTCL Inverted Vertical Lathe IVT45 Spindle Gripping Automatic Loading And Unloading Vertical CNC Lathe 0

Product Description:

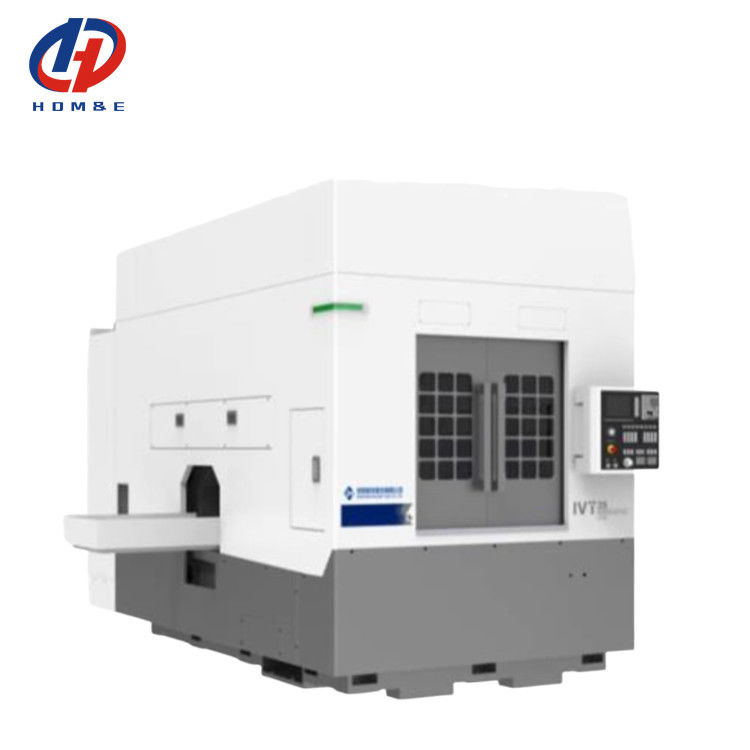

Inverted Vertical Lathe IVT45 Spindle Gripping Automatic Loading And Unloading Vertical CNC Lathe

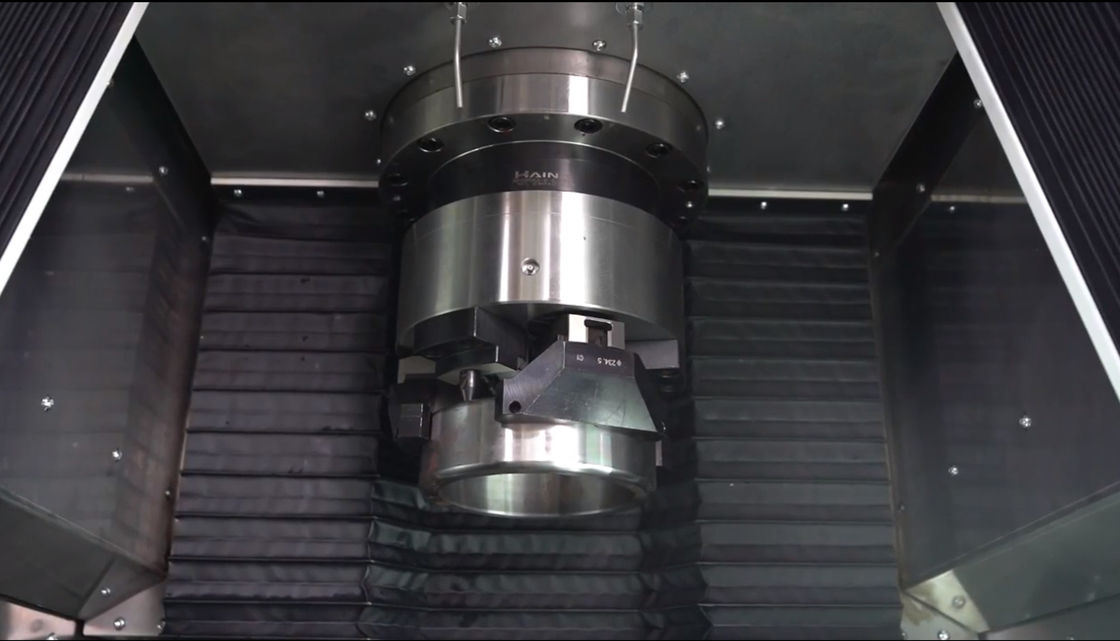

IVT45 inverted vertical lathe adopts modular and systematic structural design, especially suitable for medium and large batch processing. The inverted spindle structure and the large Angle design of the bed protection ensure the smooth discharge of iron filings. The small footprint of the whole machine ensures lower space costs and more possibilities for machine layout. Through centralized loading and unloading conveyor belts and diversified manipulators, future flexible production can be met, achieving lower automation costs and lower equipment time. In addition, the Y-axis and measuring stations outside the machining room are optional for machining complex geometric shapes, which improves the flexibility of the machine configuration.

Product Features:

1,High rigidity, high stability
Through the finite element analysis of the key components and the whole machine structure, the component structure and the whole machine layout are optimized to achieve the best rigidity and improve the stability of the main machine.
2,High precision
X/Z axis is configured with absolute value grating ruler, spindle is configured with encoder to achieve closed-loop control. X/Z positioning accuracy can reach 8µm, repeated positioning accuracy can reach 4µm
3,High automation

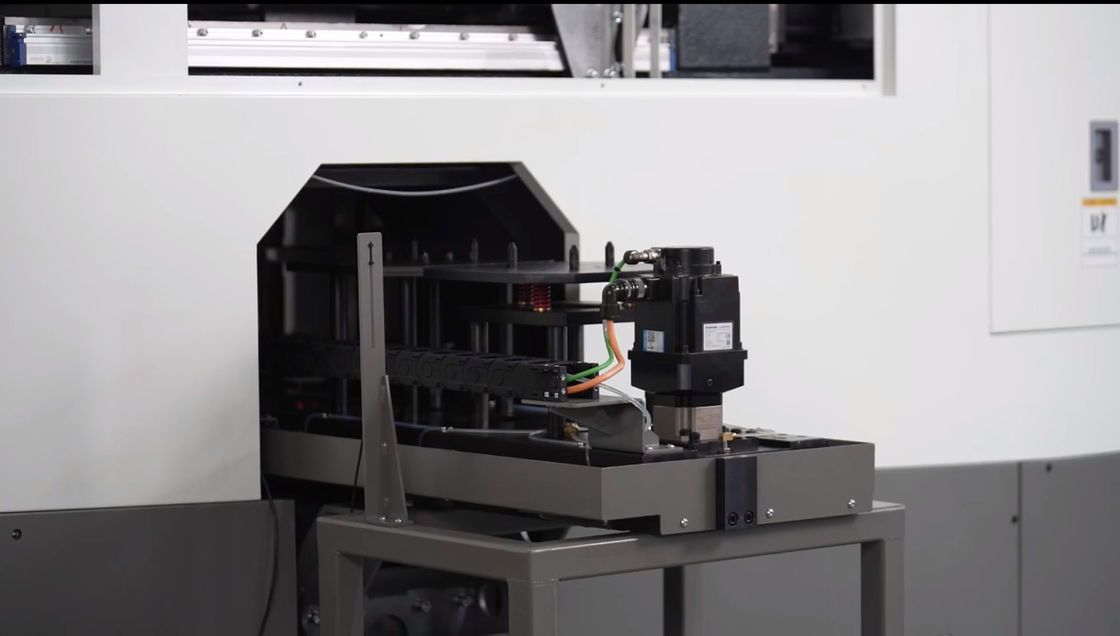

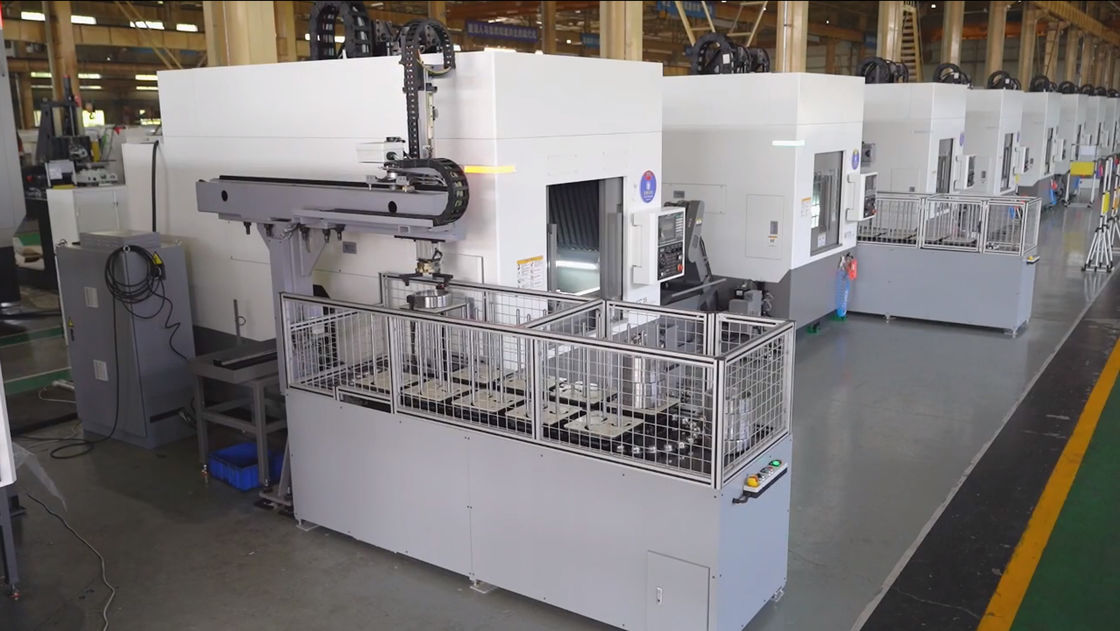

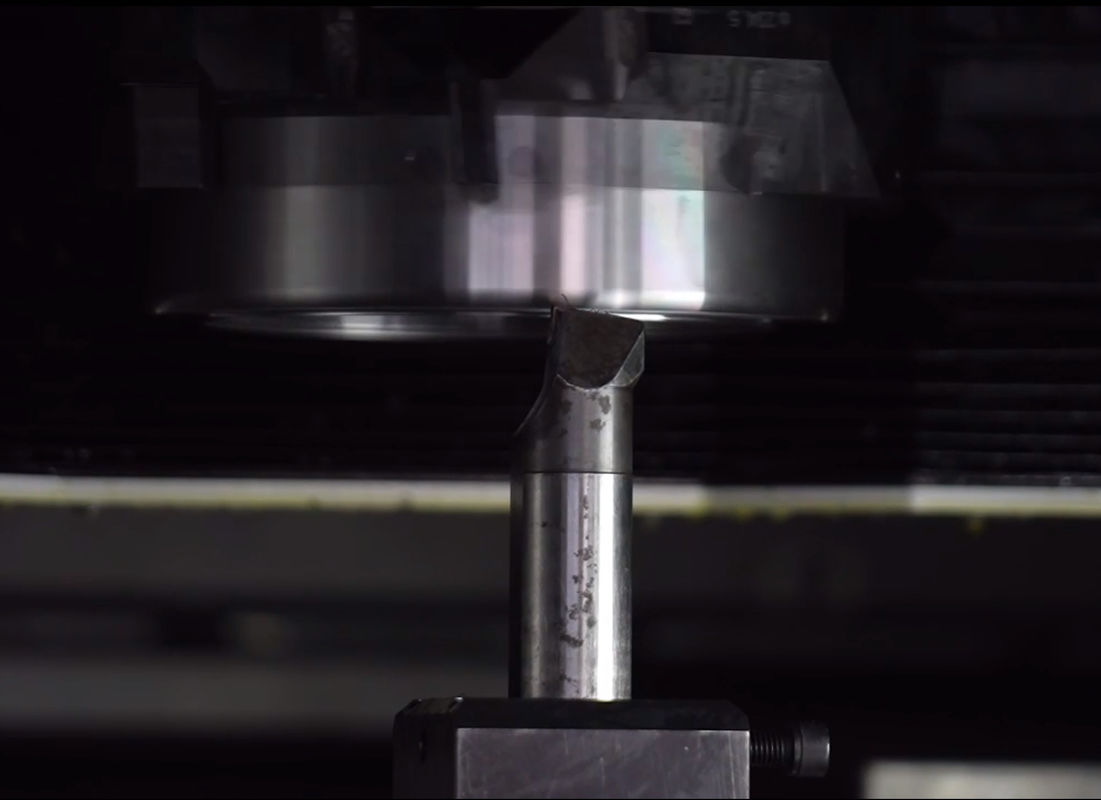

The inverted spindle structure can replace the manipulator and realize automatic loading and unloading with the automatic line in the machine. The in-machine automatic line can also meet the future flexible production through centralized loading and unloading conveyor belts and diversified manipulators, achieving lower automation costs and lower equipment time.

Product Details:

SMTCL Inverted Vertical Lathe IVT45 Spindle Gripping Automatic Loading And Unloading Vertical CNC Lathe 1
Product Paramenters:
Item
Unit
IVT45
Processing range
Max. swimming dia. of the spindle
mm
520
Max. machining dia. of the workpiece
mm
450
Max. machining length of the workpiece
mm
300
Spindle
Spindle nose and taper

A2-11
Max.spindle speed
r/min
3000
Output torque (100%/40%)
N.m
585/795
Spindle motor power (100%/40%)
kw
48/52
Spindle drive mode

electric spindle
Feed
X axis rapid traverse
m/min
30
Z axis rapid traverse
m/min
30
X axis travel
mm
1180
Z axis travel
mm
600
Three-axis servo motor Power (X/Z)
kw
7.96/5.03
Three-axis servo motor torque (X/Z)
kw
38/24
Turret
Type

Horizontal 12 positions servo turret
Whether the cutter can select the tool nearby

yes
Center height
mm
125
Others
X/Z positioning accuracy
mm
0.008
X/Z repeated positioning accuracy
mm
0.004
Fixture

18-inch solid chuck
The height of the material line from the footing placement surface
mm
1300
Machine weight
kg
16000
Total electrical capacity
KVA
95
Machine dimensions
mm
5550×2480×3570
OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL Inverted Vertical Lathe IVT45 Spindle Gripping Automatic Loading And Unloading Vertical CNC Lathe 2
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

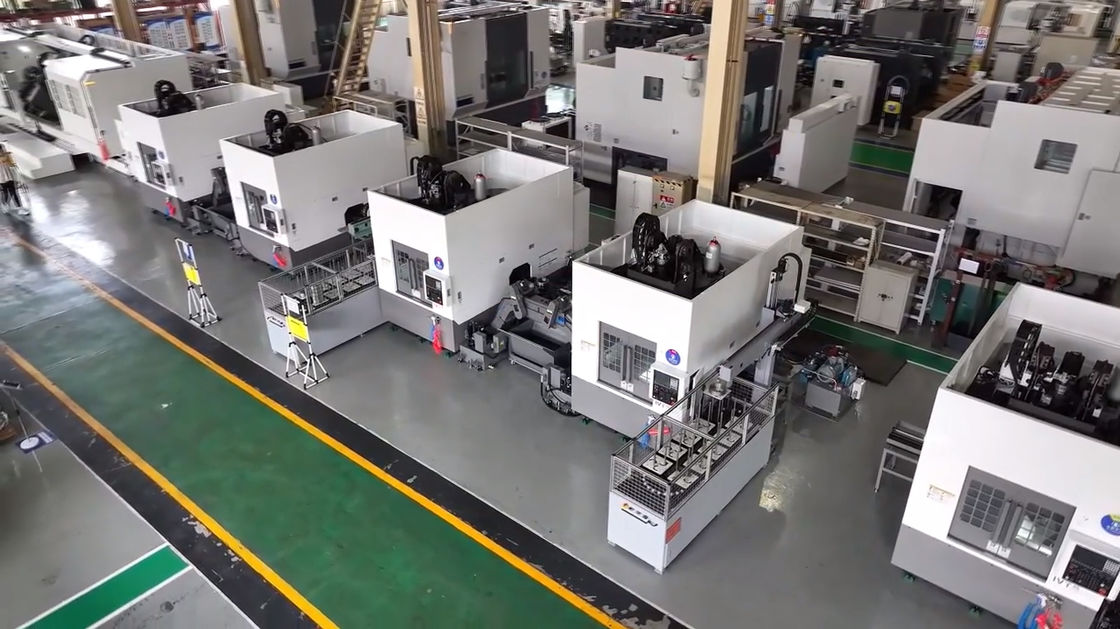

Our Factory:
SMTCL Inverted Vertical Lathe IVT45 Spindle Gripping Automatic Loading And Unloading Vertical CNC Lathe 3

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
