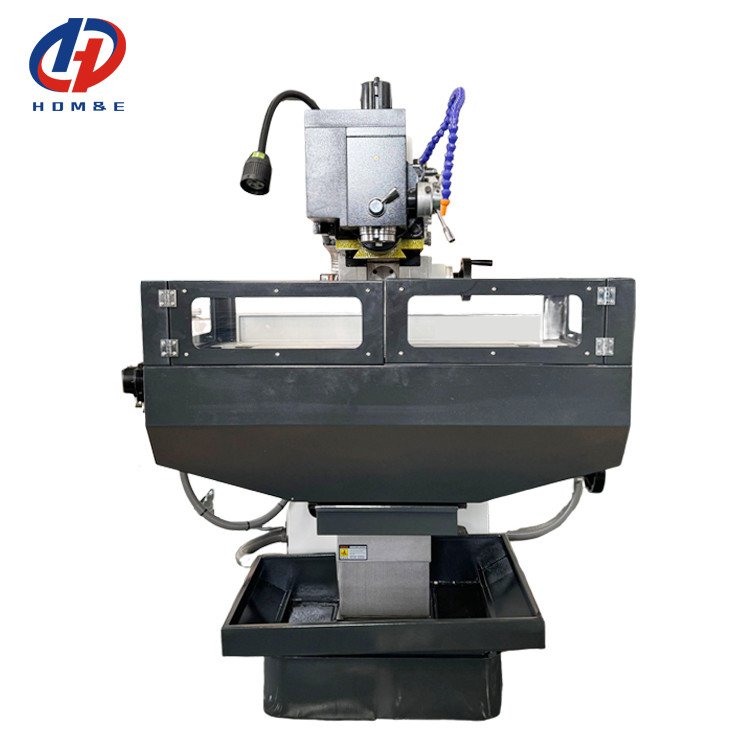

Quality CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine factory
<
Quality CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine factory
Quality CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine factory
Quality CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine factory
Quality CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine factory
Quality CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine factory
Quality CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine factory
Quality CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine factory
Quality CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine factory
Quality CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine factory
Quality CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine factory
Quality CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine factory
>

CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine

Brand Name: HD
Model Number: XKH8140A
Place of Origin: CHINA
Certification: CE ISO certification
Minimum Order Quantity: 1
Supply Ability: 50 sets per month
Tags

Gantry Milling Machine

Moving Beam Vertical Milling Machine

Moving Beam Gantry Type Milling Machine

Product Details

Brand Name: HD Model Number: XKH8140A
CNC Or Not: CNC Key Word: Universal Milling Machine
Spindle Speed: 2-2000rpm Main Motor Power: 3KW
Horizontal Working Table: 800×400mm Table Travel(X/Y/Z): 500/350/400mm
Highlight

Manual Universal CNC Milling Machine

,

Lifting Table Universal CNC Milling Machine

,

XKH8140A Universal CNC Milling Machine

Product Description

CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine 0

Product Description:

CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine

1, XKH8140A machine tool using HNC808DiM numerical control system, manual mode and numerical control mode can be switched according to the needs of use, the machine tool has the functions of ordinary universal tool milling machine and CNC universal tool milling machine.

2,The machine tool adopts Changchun Yuheng electronic handwheel and Siemens electrical components.

3,Ball screw is manufactured by Hanjiang Machine Tool Factory;

4,The main shaft bearing adopts the C-class precision spindle special bearing of Harbin Bearing Factory.

5,Manual grab knife.

6,Workbench chip area simple protection.

Product Details:

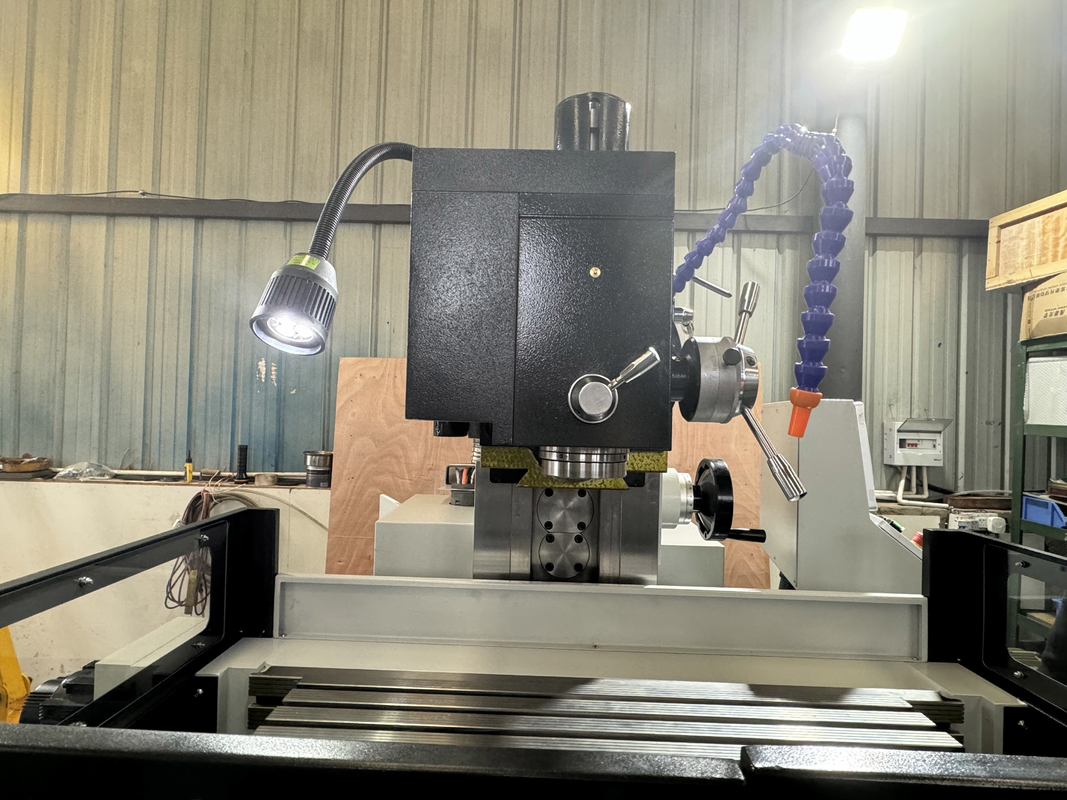

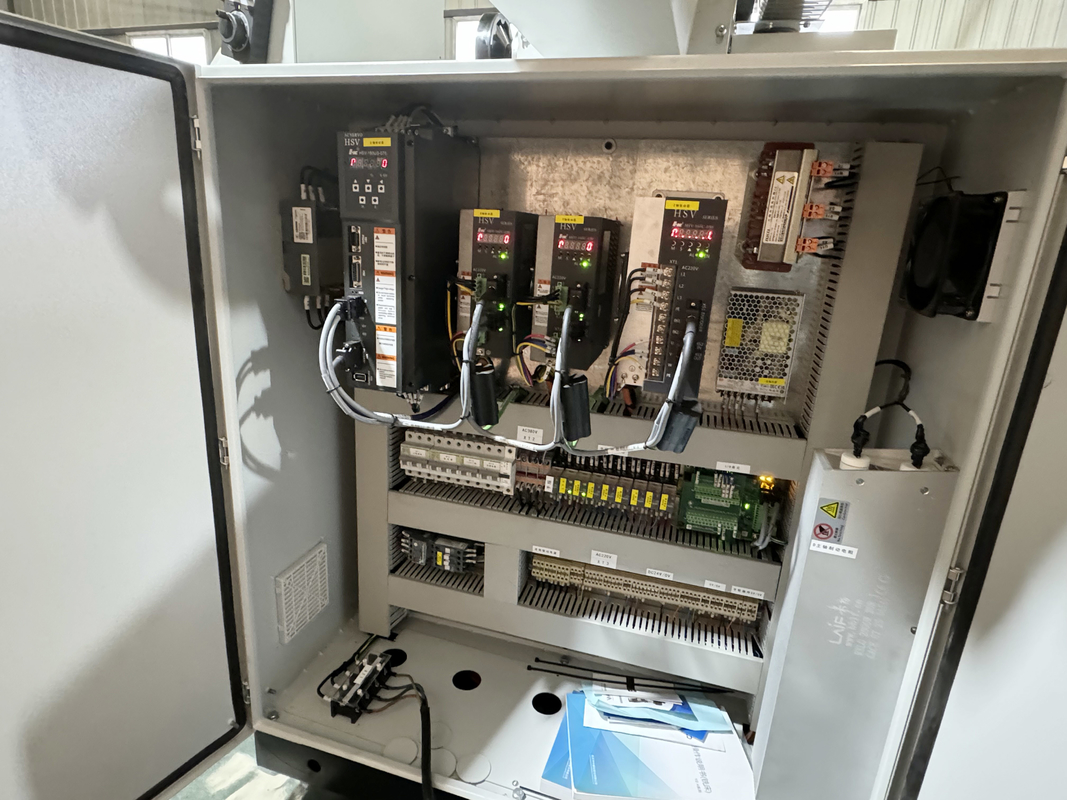

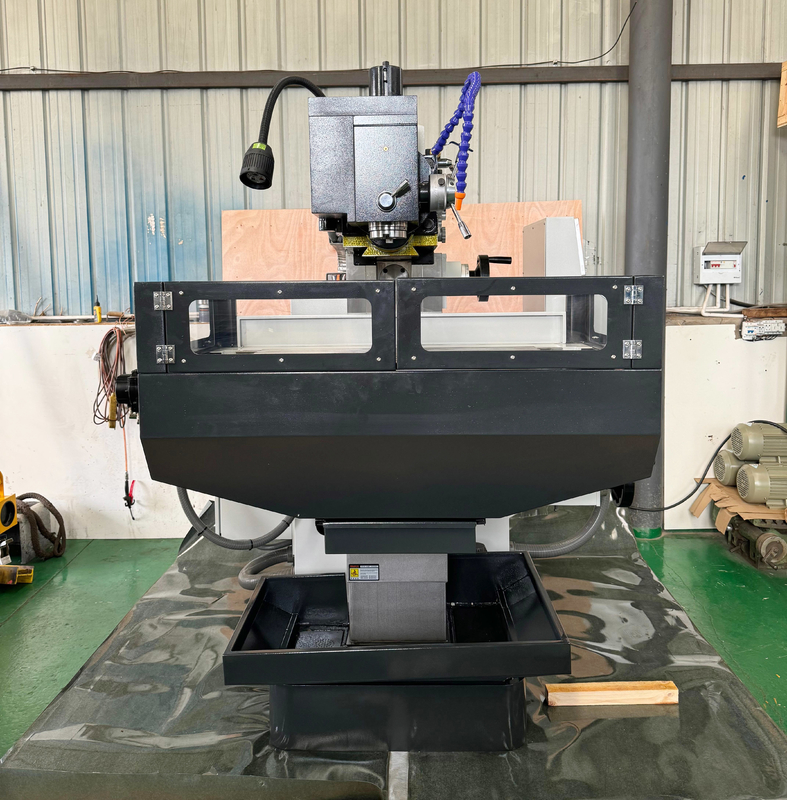

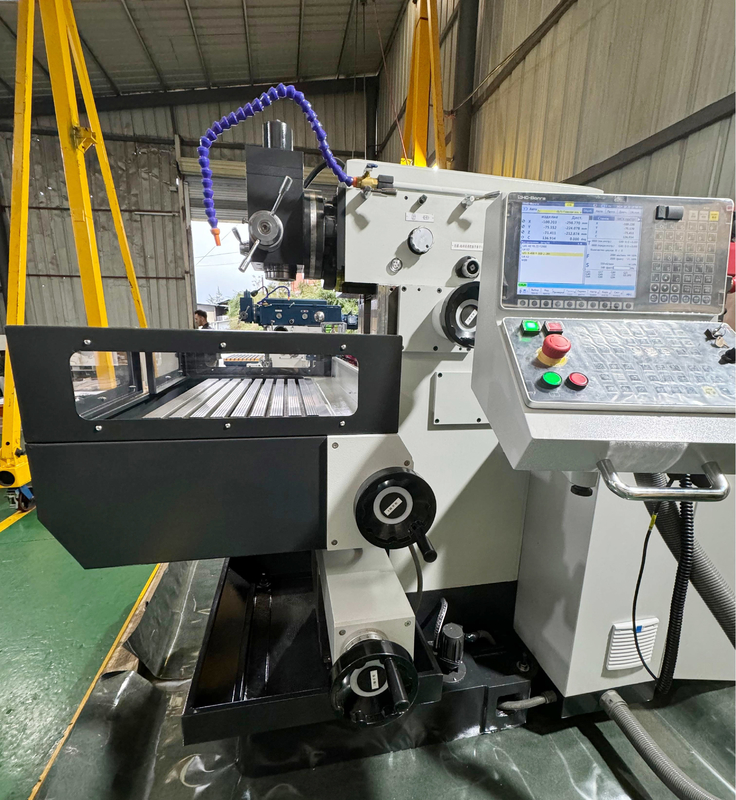

CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine 1CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine 2

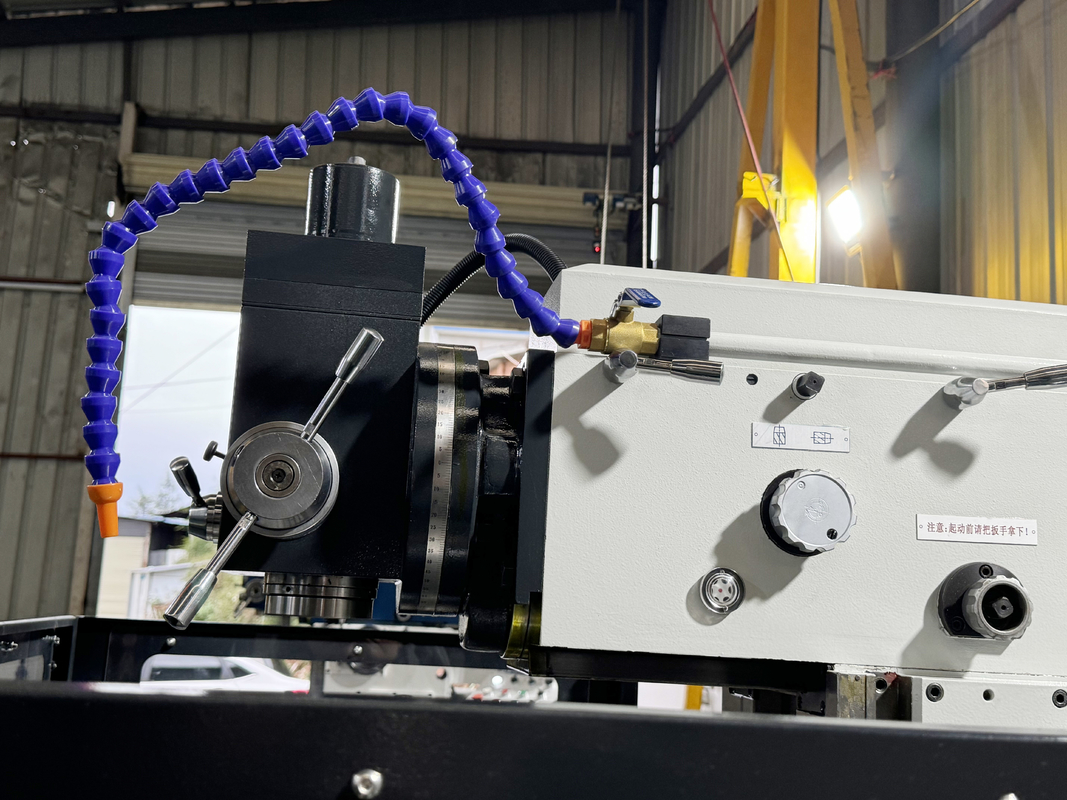

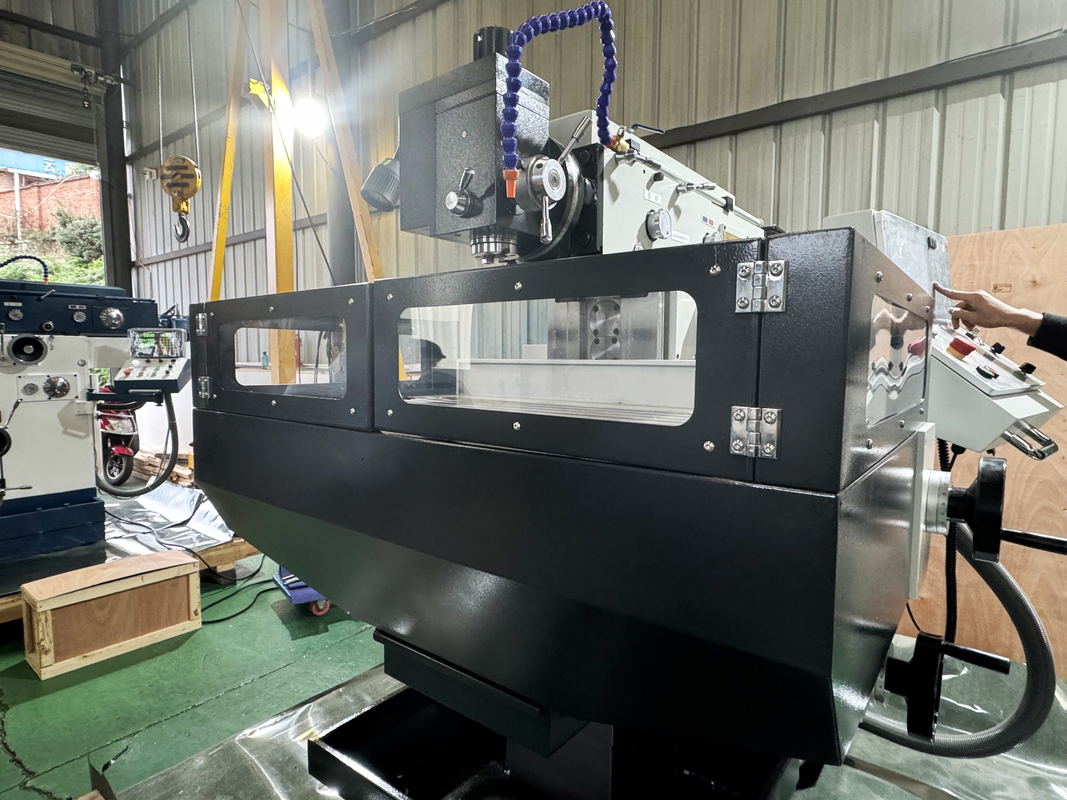

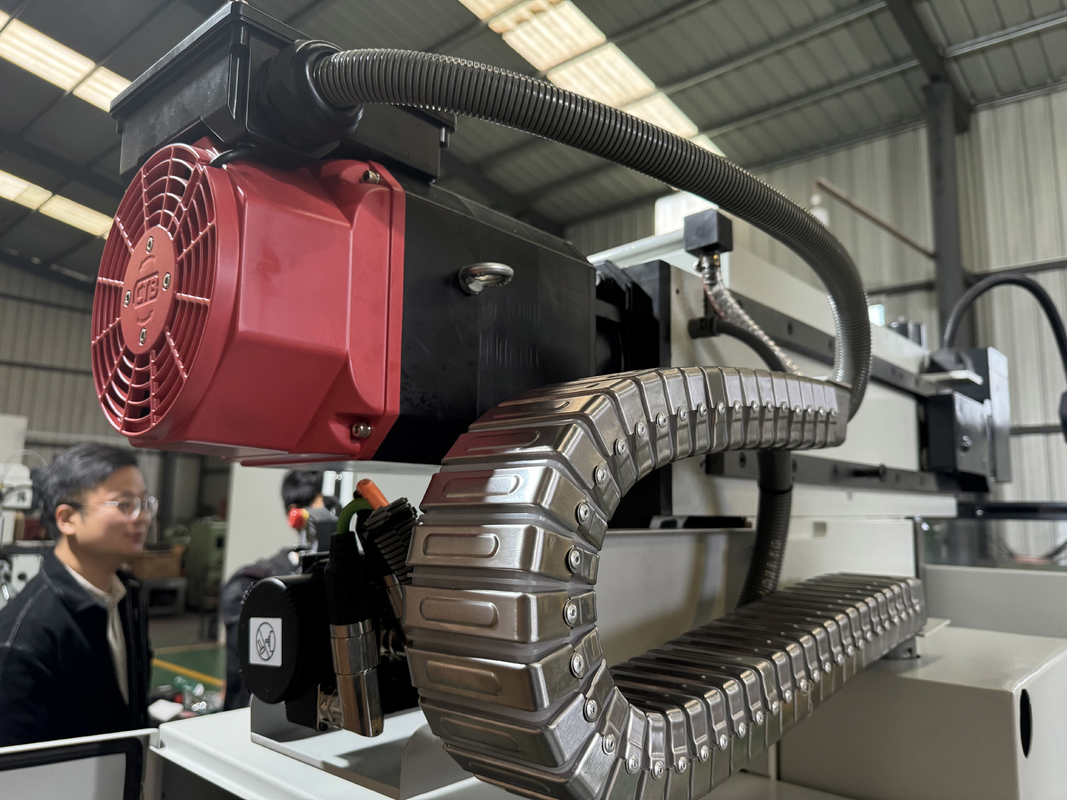

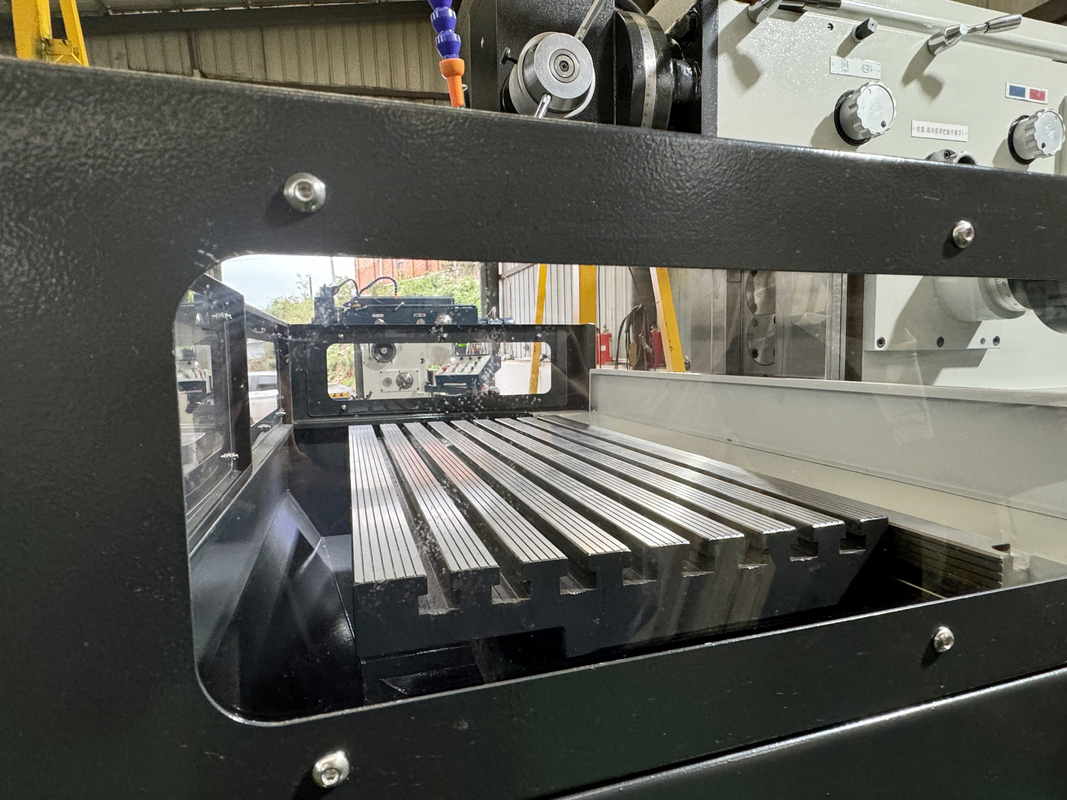

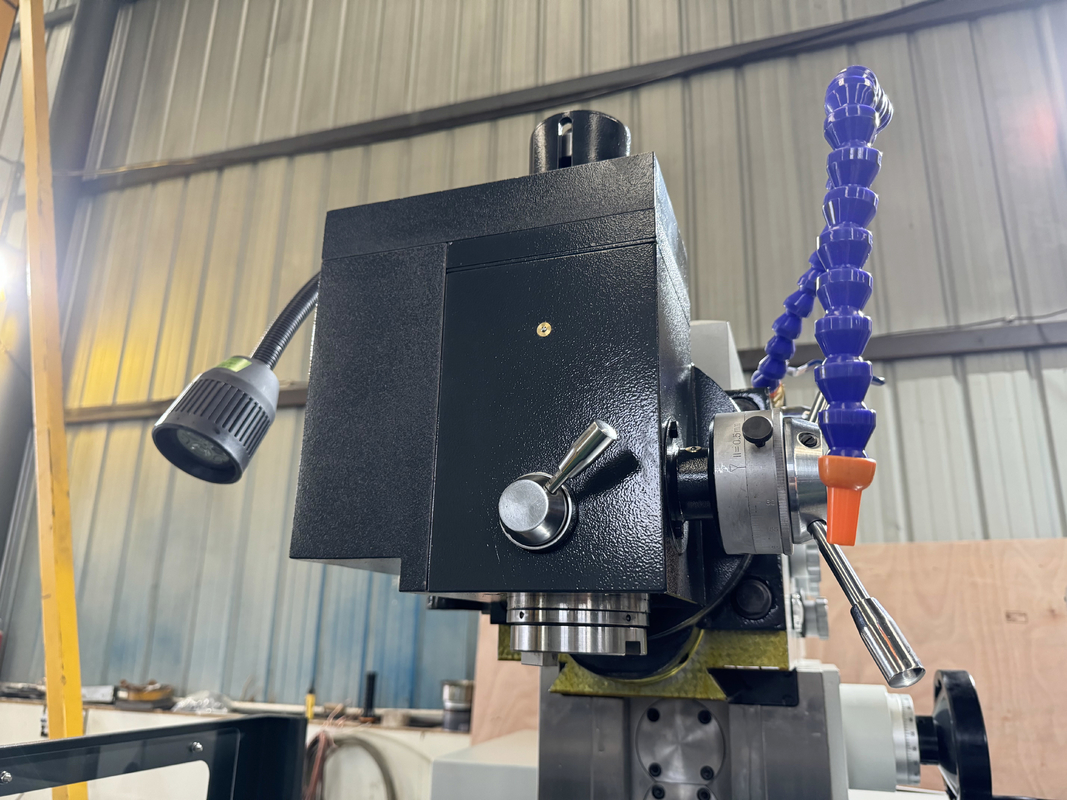

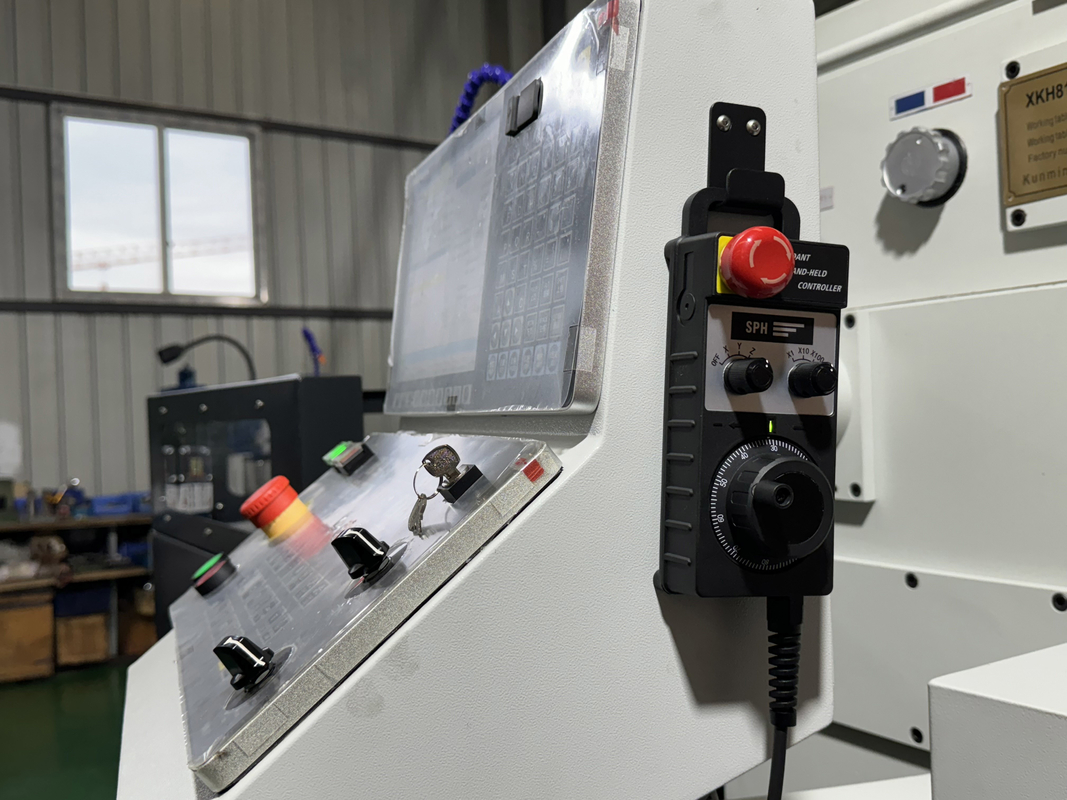

CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine 3CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine 4CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine 5CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine 6CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine 7CNC Universal Tool Milling Machine XKH8140A Lifting Table Universal CNC Milling Machine 8
Product Paramenters:
Specifications
XKH8140A
Spindle speed
2-2000rpm
Main motor power
3KW
Horizontal table area (L × W)
800×400mm
Table travel(X/Y/Z)
500/350/400mm
Horizontal table T-slot
7×14H7
Spindle taper hole
ISO40
Maximum allowable load of table
300kg
Axia inclination on left and right
±90°
Spindle sleeve travel
80mm
Maximum distance from vertical spindle end face to table
425mm
Feed speed range
2-2000 mm/min
Fast moving speed
4000 mm/min
Machine weight
2000kg
Dimensions of machine box
2900×2150×2320mm
Machine tool accuracy
CNC control resolution
0.001mm
Positioning accuracy
0.02mm
Repeated positioning accuracy
0.01mm

Industry application:

Suitable for processing a variety of tools, fixtures, die and other medium and small mold and other complex parts, with a variety of special accessories can complete the rack, gear, spline, keyway and other parts processing.
