Vertical Sand Bar Expansion Honing Machine HDLH4010H Large Diameter Travel Vertical Honing Machine

Sand Bar Expansion Vertical Honing Machine

HDLH4010H Vertical Honing Machine

Large Honing Diameter Vertical Honing Machine

Place of Origin:

CHINA

Brand Name:

Certification:

CE ISO certification

Model Number:

HDLH4010H

Request A Quote

Product Details

Brand Name:

Model Number:

HDLH4010H

Key Word:

Vertical Honing And Reaming Machine

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

The wooden case，Tin trunk ,Other seaworthy packing

Delivery Time

45-60 days

Payment Terms

T/T, L/C,, Western Union

Supply Ability

50 sets per month

Heavy CNC Vertical Honing Machine HDHJ301112 Precision Machining Multiplex Sequential Honing Machine

Get Best Price

Video

Vertical Honing Machine HDHJ5089 Multiplex Sequential Precision Machining Honing Machine

Get Best Price

Video

Vertical Honing Machine HDHJ5068 Multiplex Sequential Honing Machine High Efficiency

Get Best Price

Video

Vertical Honing Machine HDHJ3089 Multiplex Sequential Honing Machinery

Get Best Price

+8613916455787

sales@huidijd.com

86-021-61195255

Contact Now

Product Description

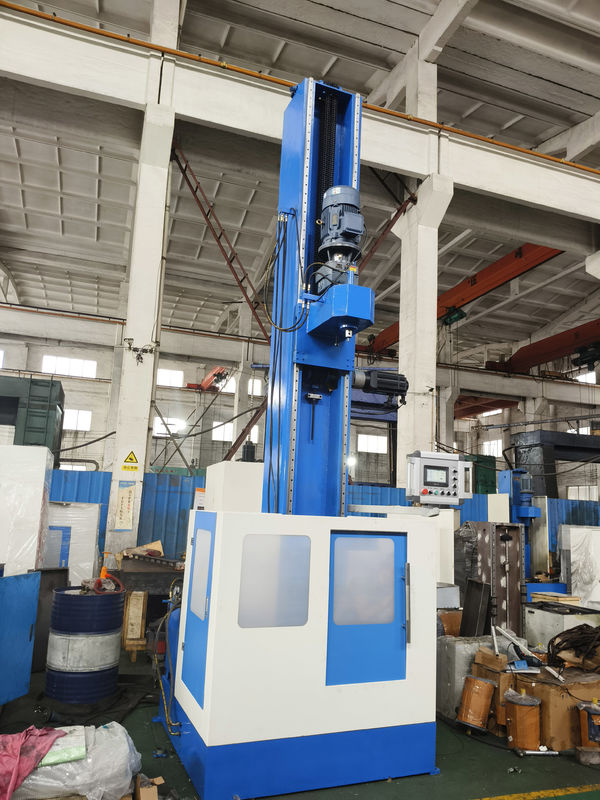

Vertical Sand Bar Expansion Honing Machine HDLH4010H Large Diameter Travel Vertical Honing Machine 0

Product Description:

HDLH4010H Vertical abrasive expansion honing machine is a kind of mechanical equipment used for polishing and polishing the surface of metal products.

Vertical expansion honing machine is an efficient grinding equipment, mainly used for fine grinding and polishing of the surface of metals, minerals and other materials. It adopts a vertical structure, through the high-speed rotating sand bar and the workpiece surface friction, using the expansion of the sand bar to achieve fast and uniform grinding. The machine has the advantages of simple operation, high efficiency and low energy consumption, and is widely used in machinery manufacturing, metal processing, jewelry and other industries. Grinding accuracy up to the micron level is an excellent surface treatment device.

Product Features:

Functional features:

The machine tool consists of base, column, moving table, spindle box, lubrication system, filtering and cooling system, hydraulic system, electric control system and so on.

Oilstone expansion can be driven by servo motor or hydraulic pressure.
The reciprocating drive mode consisting of servo motor + chain has low noise and low energy
consumption. Position control is simple and convenient.PLC control system man-machine
interface is easy to operate and reliable.

Processing objects:

It can process motorbike cylinder block, gears, brake pumps, guide bushings, connecting rods, shock absorbers, and other parts with precision requirements for internal holes.
Suitable for high-pressure pump parts, cylinders, piston pump parts, connectingrods, gears, guide bushings, hydraulic valves, valve bushings, ceramic parts and so on.

Application:

Hydraulic cylinder body, large valve body, compressor and other large parts and other mechanical
parts with precision bore. Part materials can be cast iron, steel parts, hardened hardware,
non-ferrous metals, ceramics and so on.

Product Details:

Product Paramenters:

Maintechnical specifications	Unit	HDLH 4010H
Honing diameter range	mm	50-400
Max. spindle box travel	mm	1400
Max. honing depth	mm	1000
Distnce from spindle end to worktable	mm	2750
Distance from spindle center to column surface	mm	580
Spindle reciprocating speed	m/min	2-20
Spindle rotation speed	r/min	20-110
Workable surface size	mm	1000 x 1000
Worktable surface height	mm	450
Sand bar expansion mechanism		Servo motor or hydraulic
Spindle rotation motor power	KW	7.5
Spindle box reciprocating motor power	KW	4.3
Worktable travel	mm	500
Machine dimensions (LWH)	mm	1700×1670x×3750
Machines for other travels can be ordered
